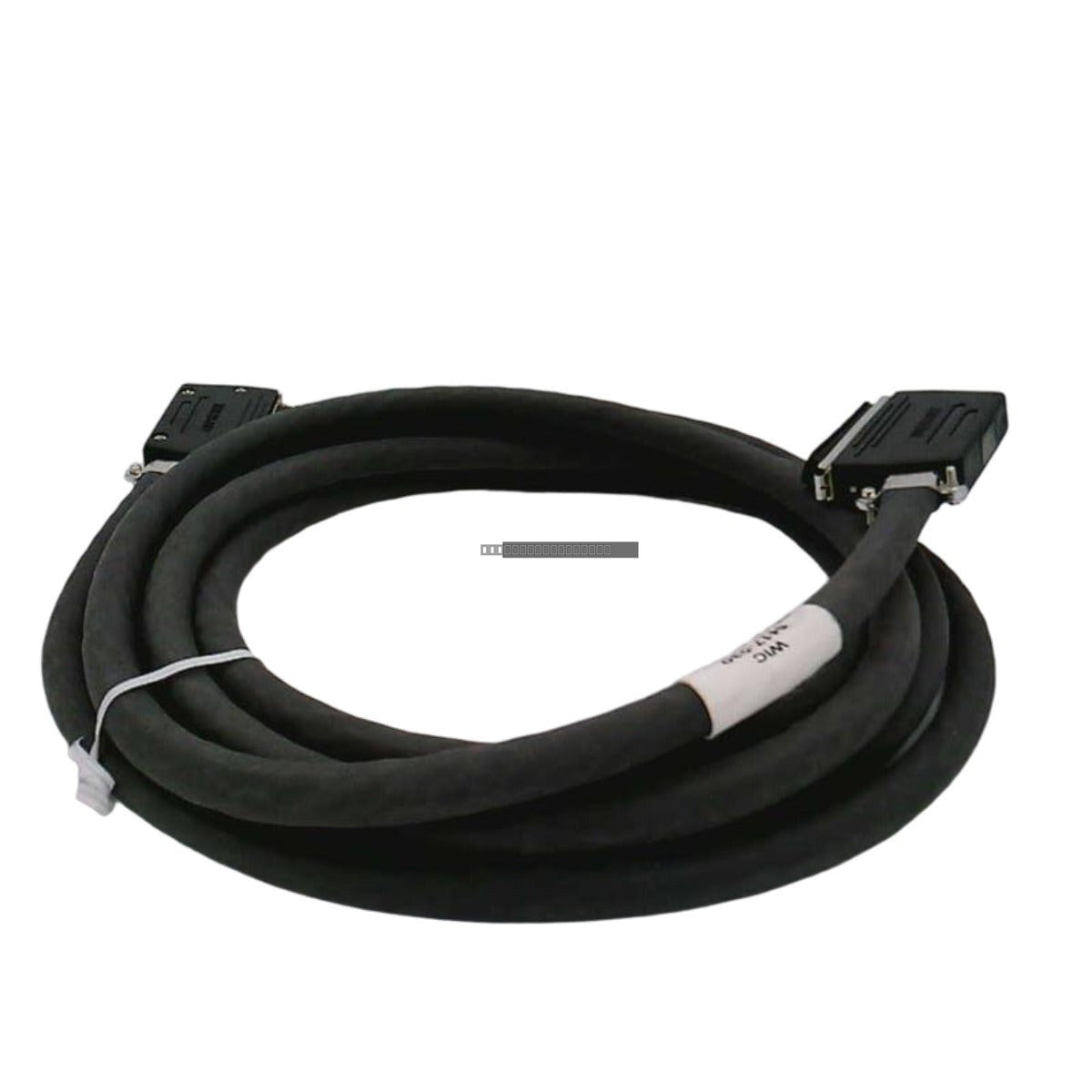

The Woodward 5417-028 is a precision-engineered cable assembly designed for high-reliability signal transmission within industrial control systems. This component provides critical connectivity for MicroNet and 723plus control platforms, ensuring seamless data flow between modules and field devices. Optimized for harsh environments such as power generation and oil refineries, it utilizes high-grade shielding to eliminate electromagnetic interference, which is vital for maintaining system uptime and preventing control logic failures in mission-critical applications.
Features
- Designed for seamless integration with Woodward MicroNet and 723plus control platforms.
- Industrial-grade connectors featuring gold-plated contacts for low contact resistance and long-term durability.
- High-grade EMI/RFI shielding to ensure signal integrity in electrically noisy environments.
- Rugged outer jacket resistant to oil, heat, and mechanical stress.
- Supports high-speed serial or I/O data links within Woodward chassis architectures.
Applications
This cable assembly is primarily used in industrial automation environments, including power generation, turbine control, and oil and gas processing facilities where reliable signal transmission between control modules and field instrumentation is required.
Technical Specifications
| Model |
5417-028 |
| Brand |
Woodward |
| Component Type |
Cable Assembly |
| Shielding |
Industrial Grade EMI/RFI |
| Operating Temperature |
-40 to +85 deg C |
Installation Guidelines
- Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical surges or damage to module ports.
- Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Ensure connectors are fully seated and locked to prevent intermittent connections due to vibration.
- Avoid sharp bends or excessive mechanical tension on the cable during installation to maintain the integrity of the internal shielding and conductors.
- Inspect the gold-plated contacts for debris or oxidation before installation to ensure optimal conductivity.
FAQ
What control systems is the 5417-028 compatible with?
The 5417-028 is specifically designed for use with Woodward MicroNet and 723plus control platforms.
Is this cable suitable for high-temperature environments?
Yes, this cable assembly is rated for an operating temperature range of -40 to +85 deg C, making it suitable for most industrial control cabinet environments.
Does this cable require special grounding?
The cable features integrated shielding designed to provide noise immunity. Ensure that the associated chassis or module grounding points are properly connected to the system earth to maximize the effectiveness of the EMI/RFI shielding.
