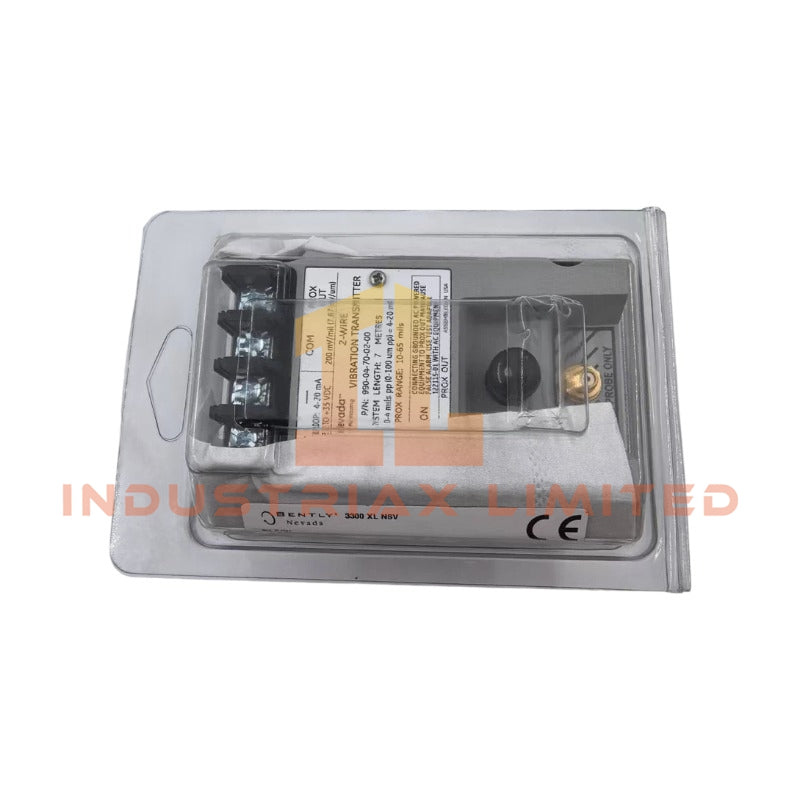

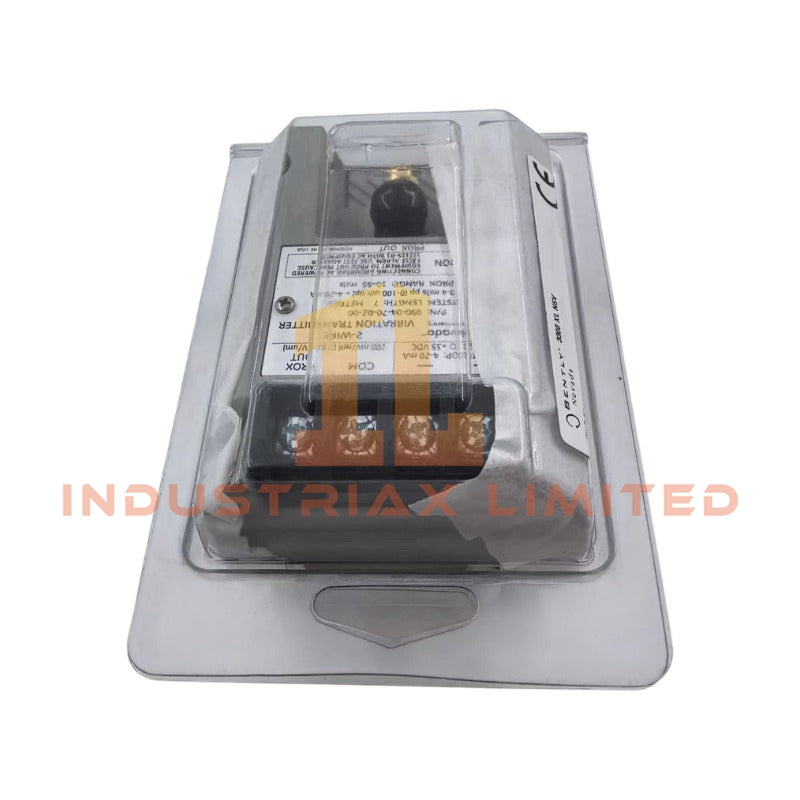

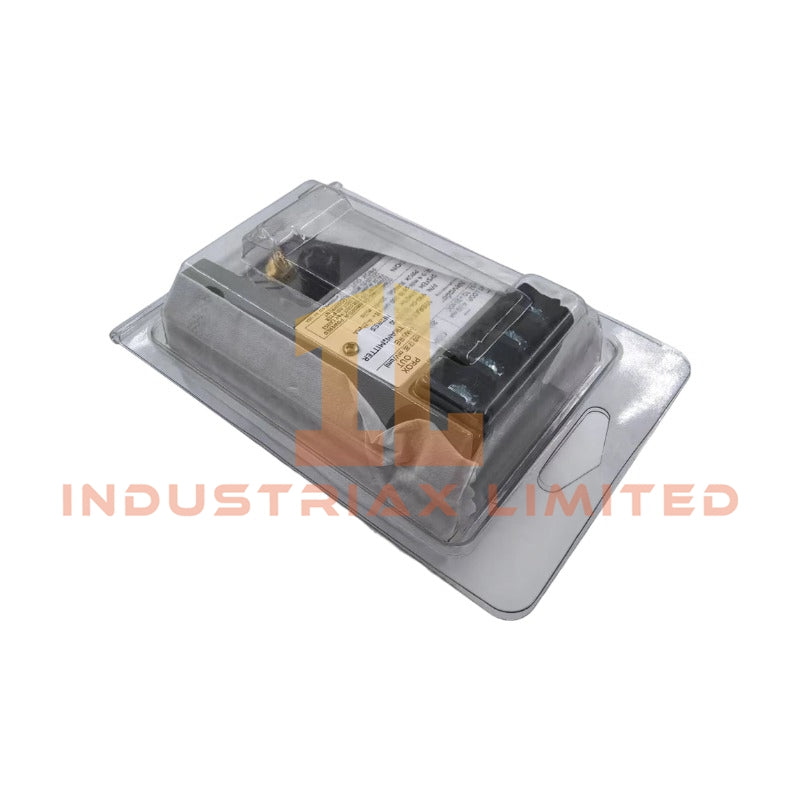

Bently Nevada 990-04-70-02-00 Vibration Transmitter Configured for continuous vibration monitoring and signal conditioning in Turbine Supervisory Instrumentation (TSI) applications, the...
Read more
Configured for continuous vibration monitoring and signal conditioning in Turbine Supervisory Instrumentation (TSI) applications, the Bently Nevada 990-04-70-02-00 (990 Vibration Transmitter) provides direct physical/electrical execution by processing eddy-current proximity probe inputs into analog current loop outputs. The hardware functions as a standalone, loop-powered device that transforms dynamic displacement data into a linear 4-20 mA signal proportional to overall shaft vibration, interfaces directly with programmable logic controllers (PLCs) or distributed control systems (DCSs), and operates without requiring a separate monitor rack.
Suffix Breakdown & Model Matrix
The specific alphanumeric configuration of the 990-04-70-02-00 defines its calibrated scale, physical system length compatibility, and mounting hardware as itemized below:
04: Full-scale option designated for 0-4 mils pp (0-100 μm pp) linear displacement range.
70: Calibrated system length configured for 7.0 meters (23.0 feet) total proximity probe and extension cable matching.
00: Agency approval option indicating no hazardous area certifications are required for this specific assembly.
Hardware Specifications
Parameter
Specification
Model
990-04-70-02-00
Brand
Bently Nevada
Origin
USA
Weight
0.44 kg
Dimensions
10 x 7.3 x 6 cm
Core Performance Indicator
0-4 mils pp (0-100 μm pp) full-scale displacement
System Length Option
7.0 meters (23.0 feet)
Mounting Type
Bulkhead screws
Power Consumption
Loop-powered, 4-20 mA interface
Agency Approval
Not required
Eddy-Current Probe Scaling and Gap Voltage Validation
The transmitter circuitry is precisely engineered for eddy-current probe scaling to match standard 3300 XL 5 mm and 8 mm proximity transducer networks. During commissioning and baseline calibration validation, the direct-current (DC) voltage across the coaxial probe terminal measures the proximity sensor gap voltage. A target gap voltage baseline of -10 VDC corresponds to the center of the linear range, ensuring optimal rotor dynamic measurements and cross-talk suppression. Incorrect system length matching or probe mismatch shifts this voltage, compromising the 4-20 mA loop scaling accuracy.
Frequently Asked Questions
Q: Can the 990-04-70-02-00 operate with a 5.0-meter probe and extension cable system?
A: No. This model is hardware-calibrated specifically for a 7.0-meter system length. Interfacing it with 5.0-meter proximity components induces significant impedance mismatch, shifting the gap voltage baseline and rendering the linear voltage-to-current conversion inaccurate.
Q: Does this device support hot-swap replacement under power?
A: Yes, because the transmitter operates as a loop-powered current device. Disconnecting or reconnecting the 4-20 mA circuit does not damage the internal circuitry, provided the external power supply does not exceed the maximum rated voltage specifications of the loop loop terminal.
Field Installation Guidelines
Mechanical Mounting: Secure the housing onto a rigid flat surface using the integrated bulkhead screws to mitigate localized housing vibrations that could couple into the internal electronic components.
Shielding and Grounding: Terminate the outer shield of the proximity probe extension cable cleanly at the transmitter terminal block. Ensure that field wiring shields follow a single-point grounding philosophy—typically grounded at the control system end—to prevent ground loops from injecting electrical noise into the vibration readings.
Conduit and Wiring: Run all proximity probe cables and analog output wiring in dedicated, grounded metal conduits. Separate these low-voltage signal lines from heavy AC power distribution routing to prevent inductive cross-talk.
