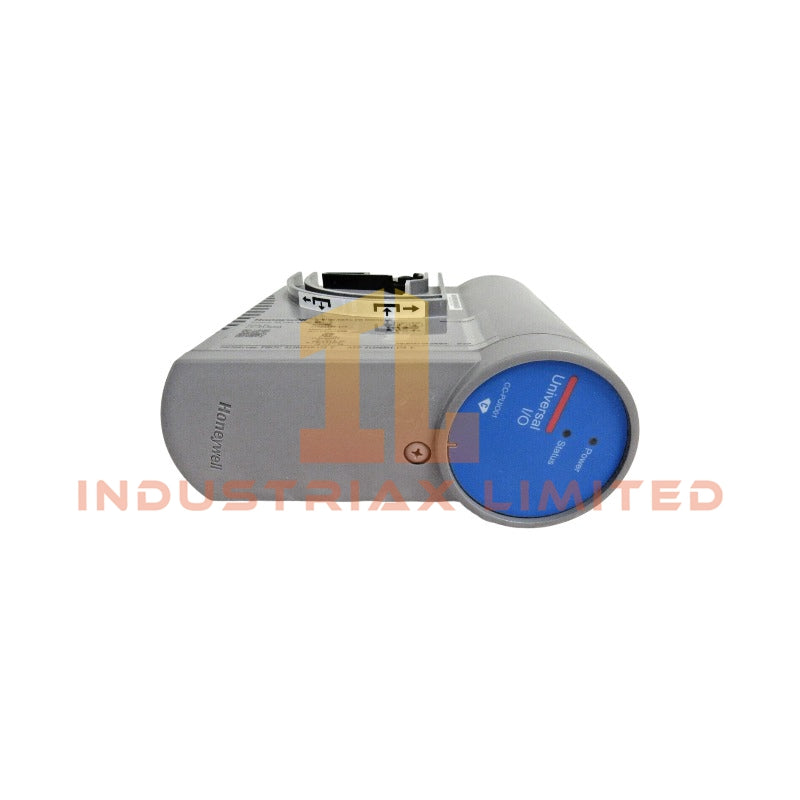

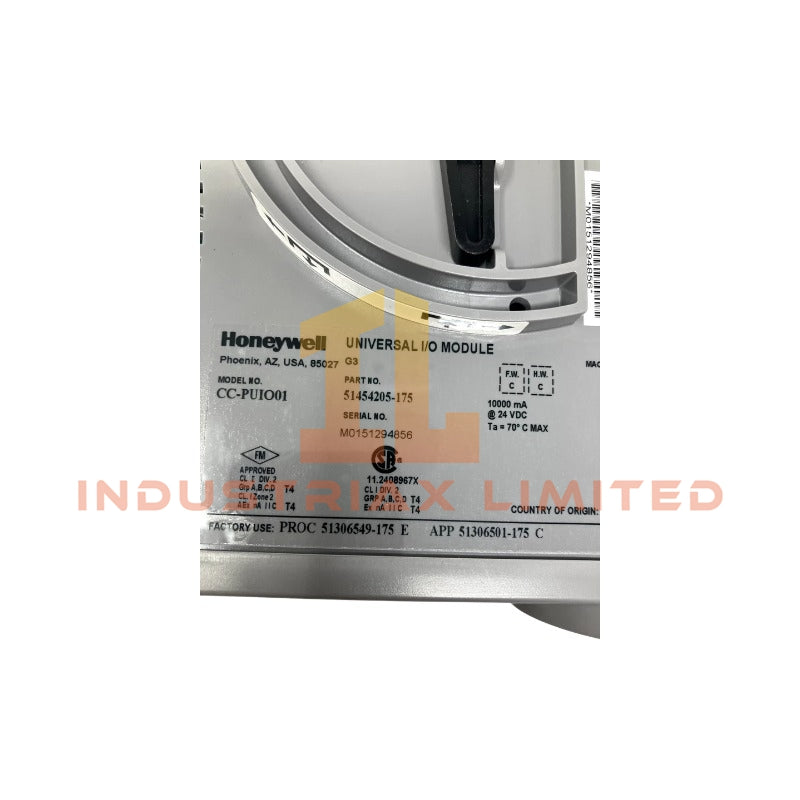

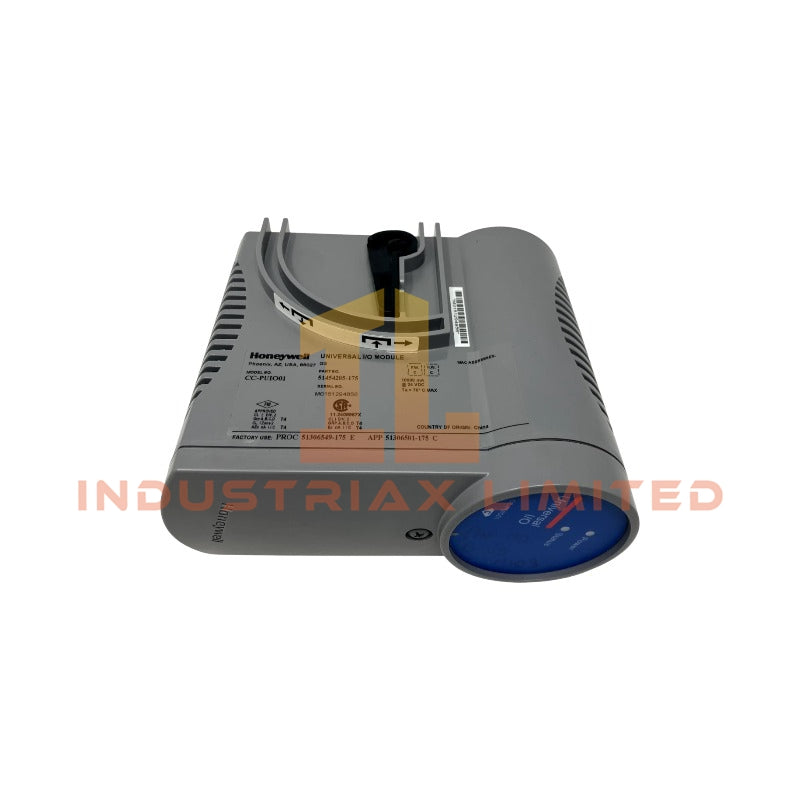

Honeywell CC-PUIO01 51454205-175 Universal Input Output Module Configured for analog current acquisition and output interfacing in Honeywell Experion PKS distributed...
Read more
SKU: CC-PUI001 51454205-175
Country of origin: USA
Configured for analog current acquisition and output interfacing in Honeywell Experion PKS distributed control environment, the Honeywell CC-PUIO01 51454205-175 (CC-PUIO01 Universal Input Output Module) provides direct electrical execution of 4-20 mA / 0-20 mA signal conditioning, A/D conversion, and HART 7 loop communication handling across multi-channel I/O backplane architectures.
Suffix Breakdown & Model Matrix
No validated manufacturer-provided suffix segmentation is defined for CC-PUIO01 51454205-175. The identifier is treated as a single ordering and assembly reference.
Hardware Specifications
Parameter
Specification
Model
CC-PUIO01 51454205-175
Brand
Honeywell
Origin
USA
Weight
0.26 kg
Dimensions
12 x 14.5 x 6.5 cm
Operating Temp
-40 deg C to +70 deg C
Power Consumption
Not specified
Input Channels
Up to 32 channels per module
Input Type
Current input (2, 3, or 4 wire devices)
Input Range
0-20 mA / 4-20 mA
A/D Resolution
16 bit
Input Impedance
250 ohm nominal
Max Input Voltage
+36 VDC to -1.1 VDC
Scan Rate
50 ms
Protocol Support
HART 7 (analog IO)
Honeywell 4-20 mA HART Loop & Fast Scan Architecture
The module operates on a 4-20 mA current loop measurement architecture with embedded HART 7 digital communication overlay. Channel acquisition is executed via fast scan sequencing with a 50 ms scan interval, enabling deterministic sampling across high-density analog input groups. The analog front end is designed for 250 ohm loop impedance interfacing, supporting both 2-wire and multi-wire field transmitter configurations. A/D conversion is implemented at 16-bit resolution for incremental signal quantization across process instrumentation inputs.
Channel handling supports concurrent multi-loop acquisition with loop-level signal conditioning and HART superimposed digital data extraction. Electrical protection includes short-circuit limiting behavior on input paths, maintaining controlled current handling under fault conditions.
Frequently Asked Questions (FAQ)
Q: Can the module operate with both 2-wire and 4-wire current transmitters? A: Yes. Input circuitry is designed to accept 2, 3, and 4-wire current loop devices within the specified 0-20 mA or 4-20 mA ranges.
Q: Does the module support HART communication simultaneously with analog measurement? A: Yes. HART 7 communication is superimposed on the analog current loop and processed in parallel with analog signal conversion.
Q: What is the scan behavior across multiple channels? A: Channels are sampled under a fast scan scheduling mechanism with a nominal 50 ms cycle time per module.
Field Installation Guidelines
The module shall be installed on a compatible Honeywell backplane chassis with verified grounding continuity to system protective earth. Signal wiring for 4-20 mA loops must maintain continuous shield termination at one end only to prevent ground loop formation.
Field loop conductors should be segregated from high-voltage switching cables to minimize inductive coupling. HART-enabled loops require impedance compliance at nominal 250 ohm conditions for stable digital overlay communication.
Mechanical seating into the rack shall be fully engaged to ensure backplane electrical continuity. All termination points must be torque-verified according to cabinet assembly standards.
