Description
Product Overview

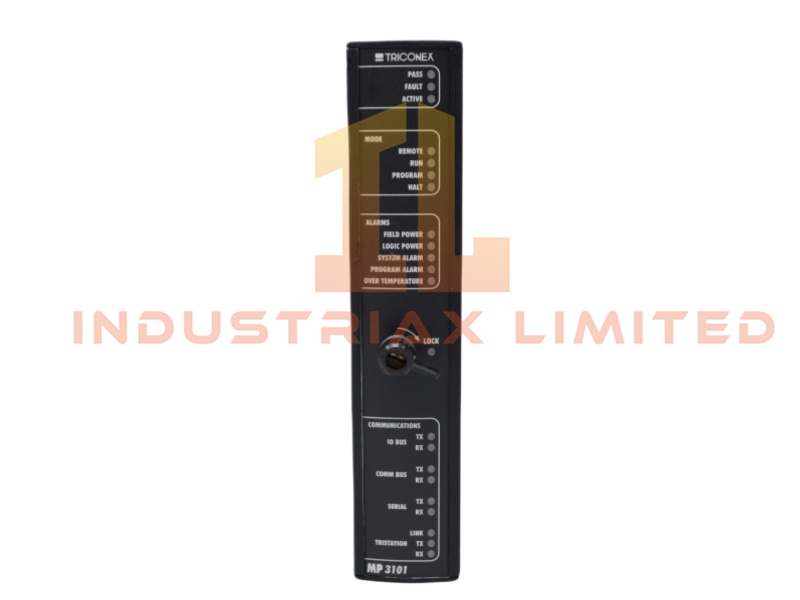

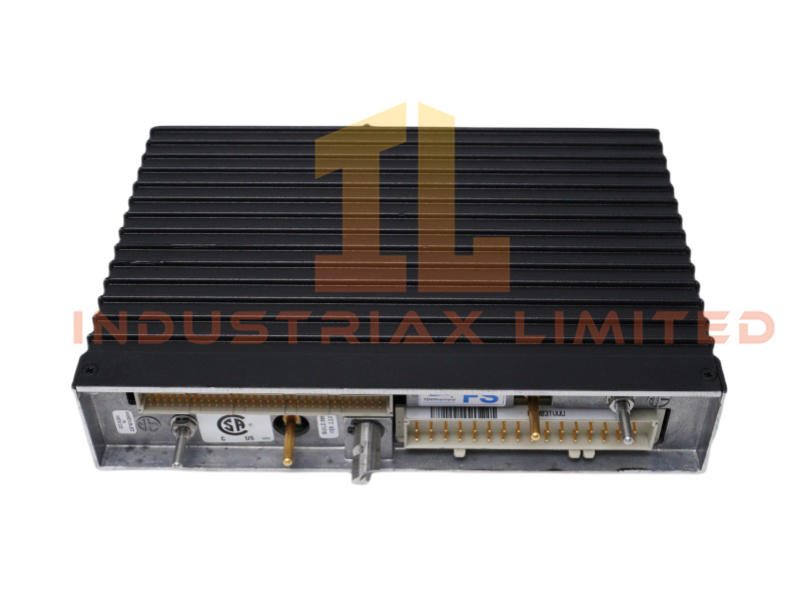

The MP3101 Main Processor Module from Triconex serves as the central control unit in Tricon Systems. It operates in parallel with two identical processors, forming a fault-tolerant triad using Triple-Modular Redundant (TMR) architecture.
Each MP3101 module includes dedicated I/O and communication processors that manage data flow across the triplicated I/O bus. It processes control logic while maintaining real-time synchronization with its counterparts via high-speed TriBus communication.
The module uses specialized DMA hardware to perform continuous data voting. Majority voting resolves discrepancies instantly, ensuring uninterrupted operation even during hardware faults. Engineers rely on the MP3101 for SIL3-certified safety functions in mission-critical environments.
Its robust design supports 24/7 reliability, making the MP3101 ideal for emergency shutdown systems and complex process control applications.
Technical Specifications
| Parameter |
Specification |
| Model Number |
MP3101 |
| Manufacturer |
Triconex |
| Product Range |
Tricon Systems |
| Module Type |
Main Processor Module |
| System |
DCS |
| Architecture |
Triple-Modular Redundant (TMR) |
| Voting Logic |
Hardware-based majority voting |
| Synchronization |
TriBus high-speed communication |
| Memory Handling |
Local memory tables for input data |
| Certifications |
IEC 61508 SIL3, ATEX, cULus |
| Operating Temp. |
-40°C to 70°C |
| Dimensions |
4.5 × 18.8 × 21.8 cm |
| Weight |
1.48 kg |
| HS Code |
8537101190 |
| Communication |
Ethernet Router |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Discontinued |
Active |
Applications & Compatibility
The MP3101 integrates with Tricon controllers and supports:
-
Emergency Shutdown (ESD) systems
-
Safety Instrumented Systems (SIS)
-
Oil & gas, chemical, and power generation facilities
-
Continuous process control requiring fault tolerance
