Description
Product Overview

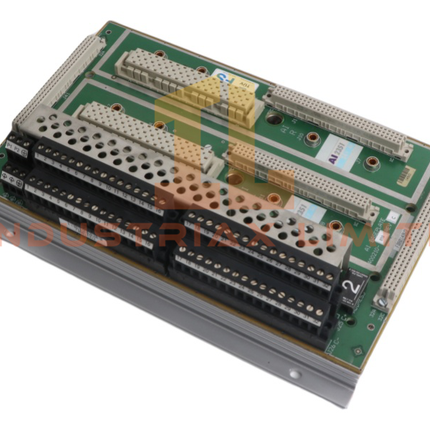

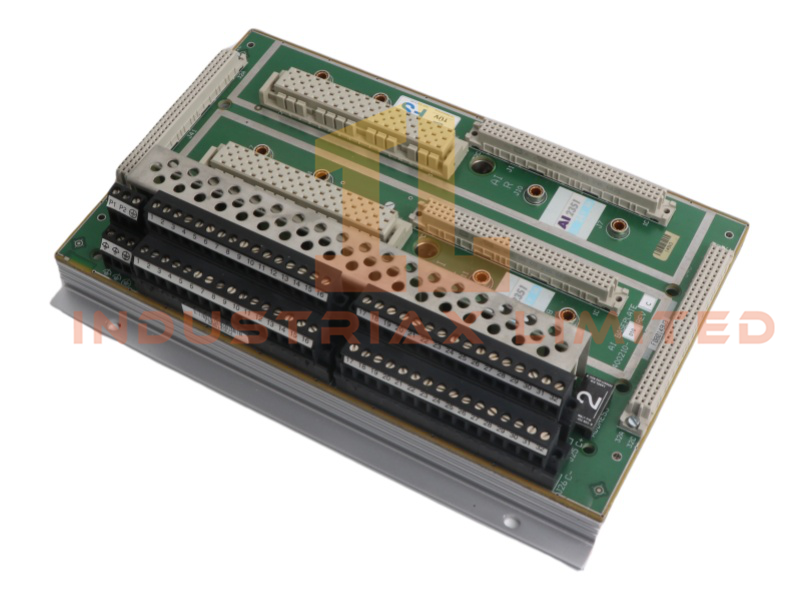

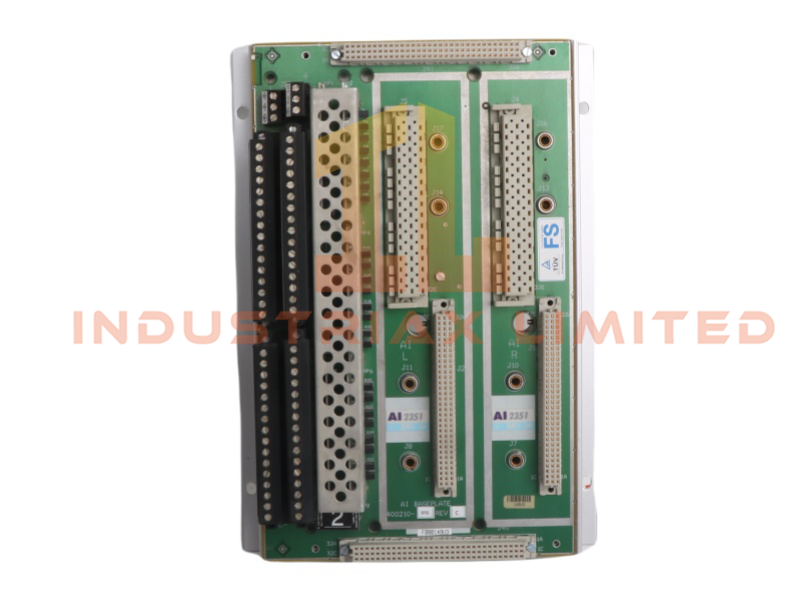

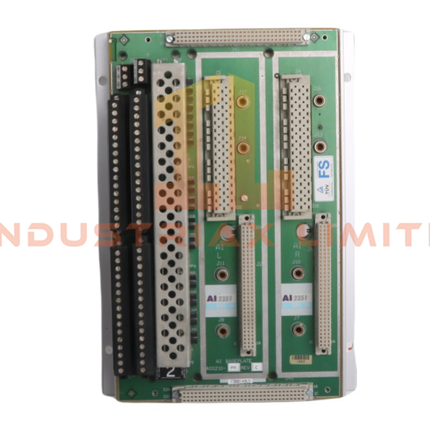

The 7400210-010 AI2351 Analog Input Baseplate from Triconex delivers high-precision signal acquisition for safety-critical DCS environments. Built for Tricon Systems v9–v11, this 16-channel module supports both current and voltage inputs with ±0.1% measurement accuracy.
Each channel in the 7400210-010 AI2351 provides 16-bit resolution and 1500V AC/DC isolation, ensuring signal integrity across hazardous industrial settings. The module handles up to 200mA fault current without compromising performance, making it ideal for refineries, chemical plants, and power stations.
Its hot-swappable design allows technicians to perform maintenance without interrupting operations. The module supports HART communication for advanced diagnostics and configuration, while consuming only 130mA typical power—perfect for space-constrained installations.
Engineers value the 7400210-010 AI2351 for its rugged construction, vibration resistance, and seamless integration with TRISTATION 1131 tools. It maintains SIL3 compliance and ensures reliable analog input for safety instrumented systems.
Technical Specifications
| Parameter |
Specification |
| Model Number |
7400210-010 AI2351 |
| Manufacturer |
Triconex |
| Product Range |
Tricon Systems |
| Module Type |
Analog Input Baseplate |
| System |
DCS |
| Channels |
16 Analog Inputs |
| Input Types |
4–20mA, 0–20mA, 0–10V, ±10V |
| Resolution |
16-bit |
| Accuracy |
±0.1% |
| Isolation |
1500V AC/DC channel-to-channel |
| Fault Current |
200mA max |
| Diagnostics |
HART support, TRISTATION 1131 |
| Certifications |
IEC 61508 SIL3, ATEX, cULus |
| Operating Temp. |
-40°C to +70°C |
| Storage Temp. |
Up to +85°C |
| Dimensions |
24.7 × 23 × 6 cm |
| Weight |
1.3 kg |
| HS Code |
8537101190 |
| Communication |
Ethernet Router |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Discontinued |
Active |
Applications & Compatibility
The 7400210-010 AI2351 integrates with Tricon controllers and supports:
-
Analog signal acquisition in hazardous zones
-
Safety Instrumented Systems (SIS)
-
Oil & gas, chemical, and power generation facilities
-
HART-enabled field devices and TRISTATION 1131 tools
