Description
Product Overview

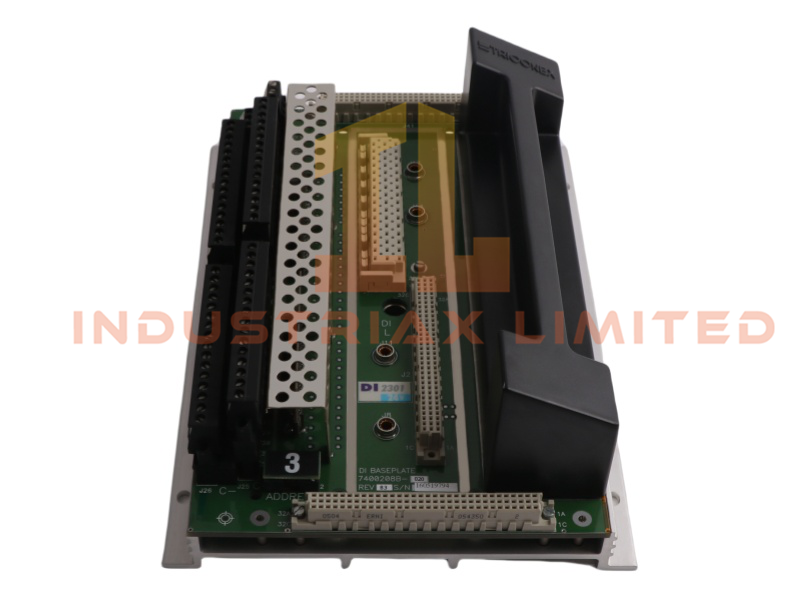

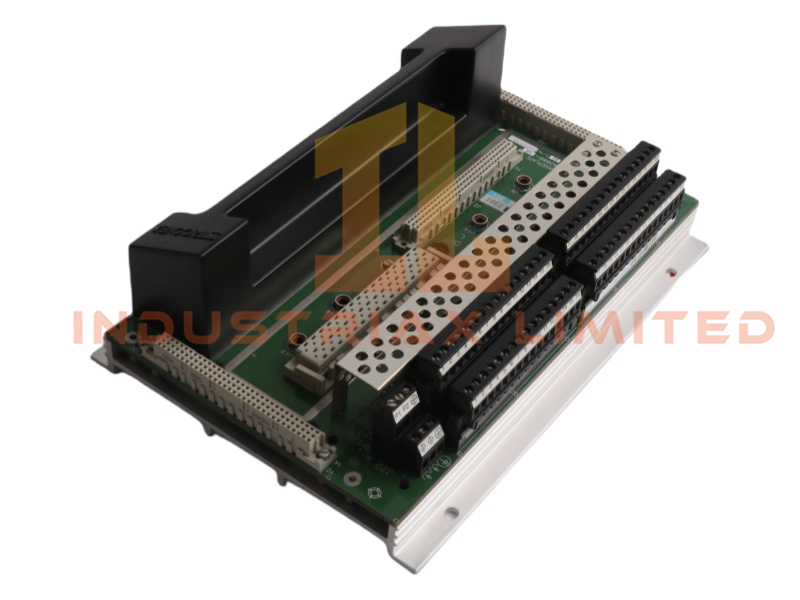

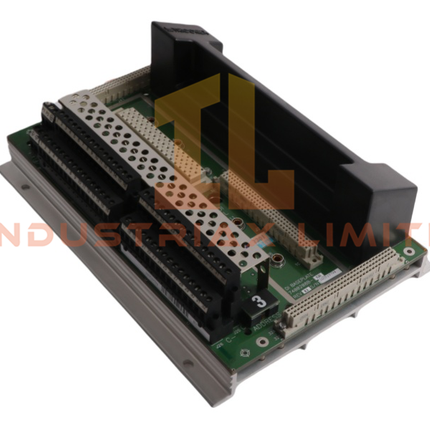

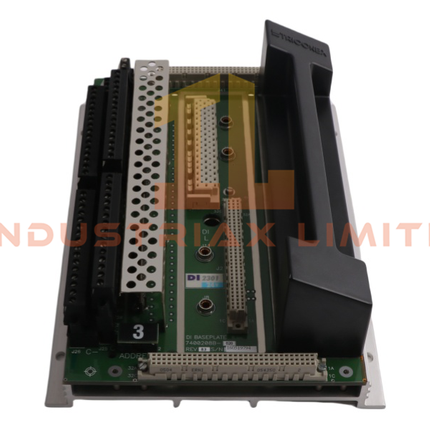

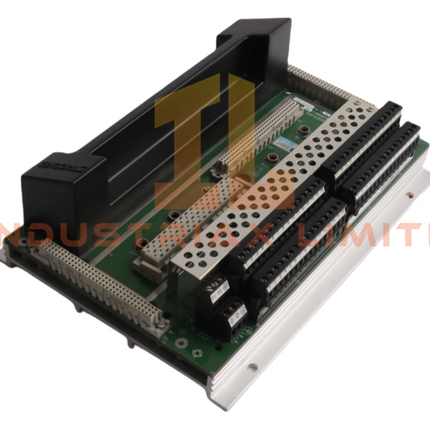

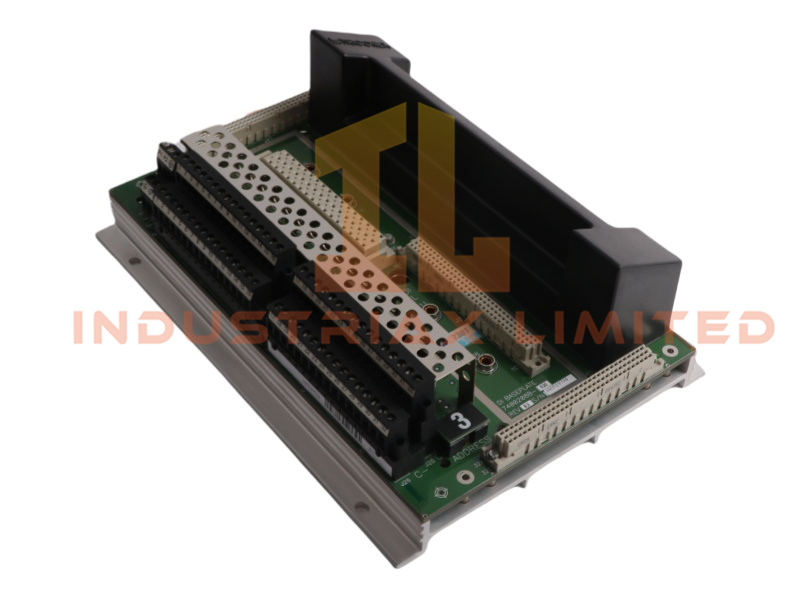

The 7400208B-020 DI2301 Card Module from Triconex delivers high-speed digital input for safety-critical DCS systems. Designed for Tricon Systems v10–v11, this 32-channel module supports 24VDC inputs with ON/OFF thresholds of 15–30V and 0–5V respectively.
Each input channel in the 7400208B-020 DI2301 features 1500V AC/DC isolation and optical separation to prevent cross-channel interference. The module responds in under 10 milliseconds, ensuring rapid signal acquisition for shutdown and protection systems.
Its hot-swappable design allows technicians to replace the module without halting operations. Engineers rely on the 7400208B-020 DI2301 for continuous performance in refineries, offshore platforms, and chemical plants.
LED indicators provide per-channel diagnostics for quick fault identification. The module consumes just 130mA typical current while handling up to 200mA fault current, supporting energy-efficient installations.
Technical Specifications
| Parameter |
Specification |
| Model Number |
7400208B-020 DI2301 |
| Manufacturer |
Triconex |
| Product Range |
Tricon Systems |
| Module Type |
Card Module (Digital Input) |
| System |
DCS |
| Channels |
32 Digital Inputs |
| Input Voltage |
24V DC (15–30V ON / 0–5V OFF) |
| Response Time |
<10 milliseconds |
| Isolation |
1500V AC/DC per channel |
| Diagnostics |
LED indicators per channel |
| Power Consumption |
130mA typical, 200mA fault current |
| Certifications |
IEC 61508 SIL3, ATEX, cULus |
| Operating Temp. |
-40°C to +70°C |
| Dimensions |
24.8 × 17.8 × 8 cm |
| Weight |
1.34 kg |
| HS Code |
8537101190 |
| Communication |
Ethernet Router |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Discontinued |
Active |
Applications & Compatibility
The 7400208B-020 DI2301 integrates with Tricon controllers and supports:
-
Fire and gas detection systems
-
Turbine and compressor control
-
Emergency shutdown (ESD) logic
-
High-density cabinet installations
