Description
Product Overview

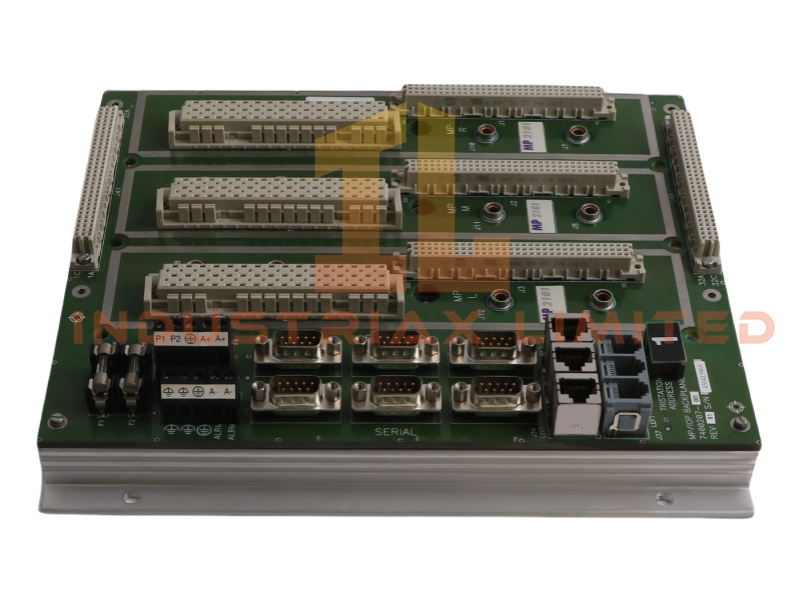

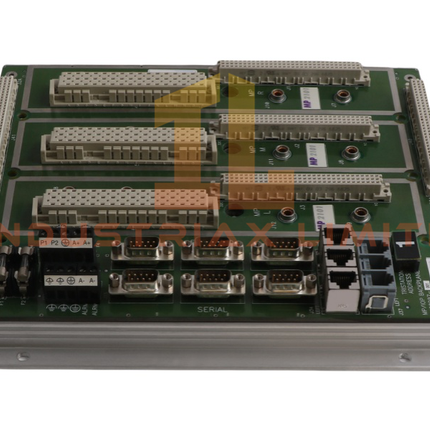

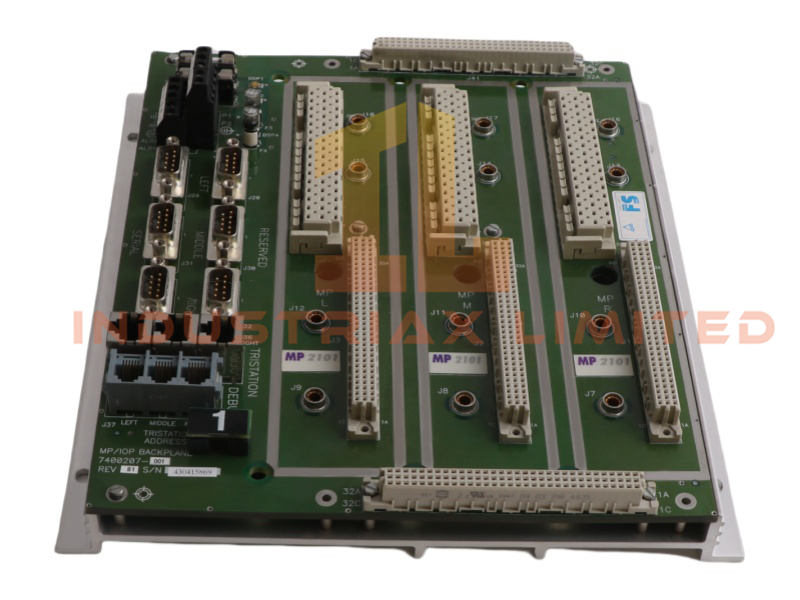

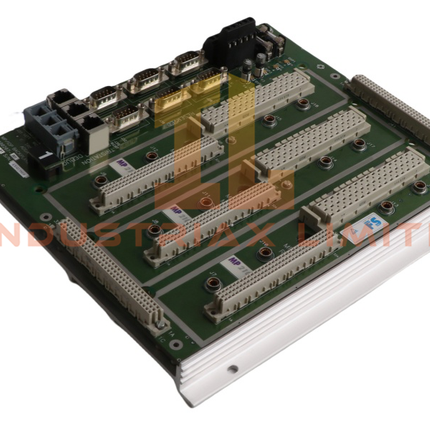

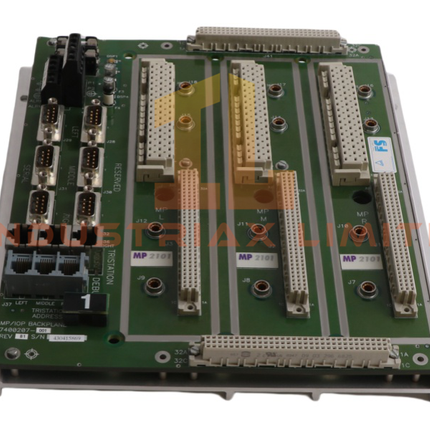

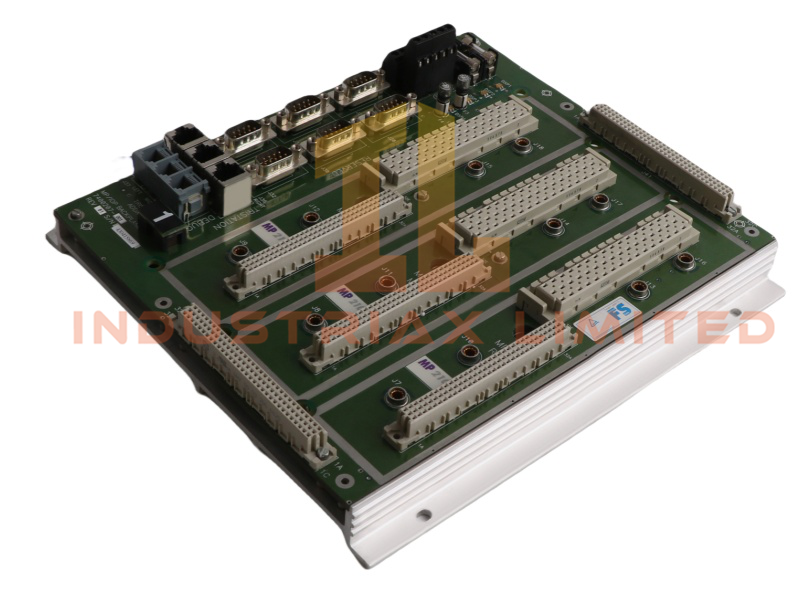

The 7400207-001 MP2101 Main Processor Baseplate from Triconex delivers fault-tolerant control for safety instrumented systems. Built for Tricon Systems v9–v11, this processor module operates at 50MHz and includes 16MB memory for executing complex safety logic.
Three independent channels in the 7400207-001 MP2101 synchronize at scan rates up to 15ms, maintaining process integrity during upset conditions. Its 2-out-of-3 voting logic eliminates single points of failure, ensuring continuous operation in critical environments.
The module supports hot-swappable replacement, allowing maintenance without system downtime. Engineers rely on the 7400207-001 MP2101 for emergency shutdown systems in refineries, chemical plants, and offshore platforms.
Built-in diagnostics and fault reporting continuously monitor system health. The module integrates with TRISTATION 1131 tools and connects seamlessly with analog and digital I/O modules for complete safety solutions.
Technical Specifications
| Parameter |
Specification |
| Model Number |
7400207-001 MP2101 |
| Manufacturer |
Triconex |
| Product Range |
Tricon Systems |
| Module Type |
Main Processor Baseplate |
| System |
DCS |
| Processor Speed |
50MHz |
| Memory Capacity |
16MB |
| Architecture |
Triple-Modular Redundant (TMR) |
| Voting Logic |
2-out-of-3 |
| Scan Rate |
Up to 15ms |
| Diagnostics |
Built-in fault detection and reporting |
| Certifications |
IEC 61508 SIL3, ATEX, cULus |
| Operating Temp. |
-40°C to +70°C |
| Dimensions |
24.7 × 23 × 6 cm |
| Weight |
1.3 kg |
| HS Code |
8537101190 |
| Communication |
Ethernet Router |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Discontinued |
Active |
Applications & Compatibility
The 7400207-001 MP2101 integrates with Tricon controllers and supports:
-
Emergency Shutdown (ESD) systems
-
Nuclear and offshore safety platforms
-
Turbine and compressor control
-
Safety Instrumented Systems (SIS) requiring SIL3 compliance
