Description

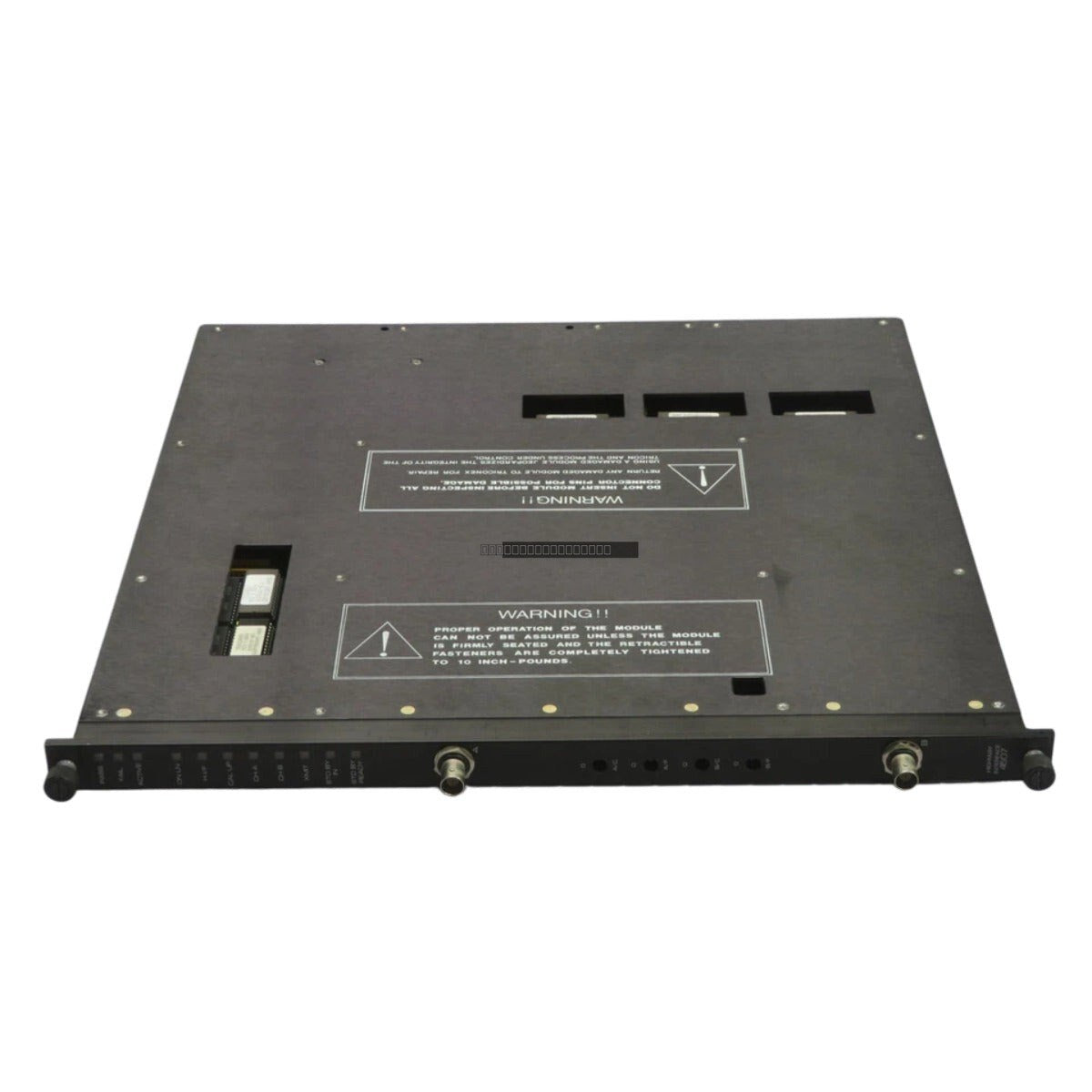

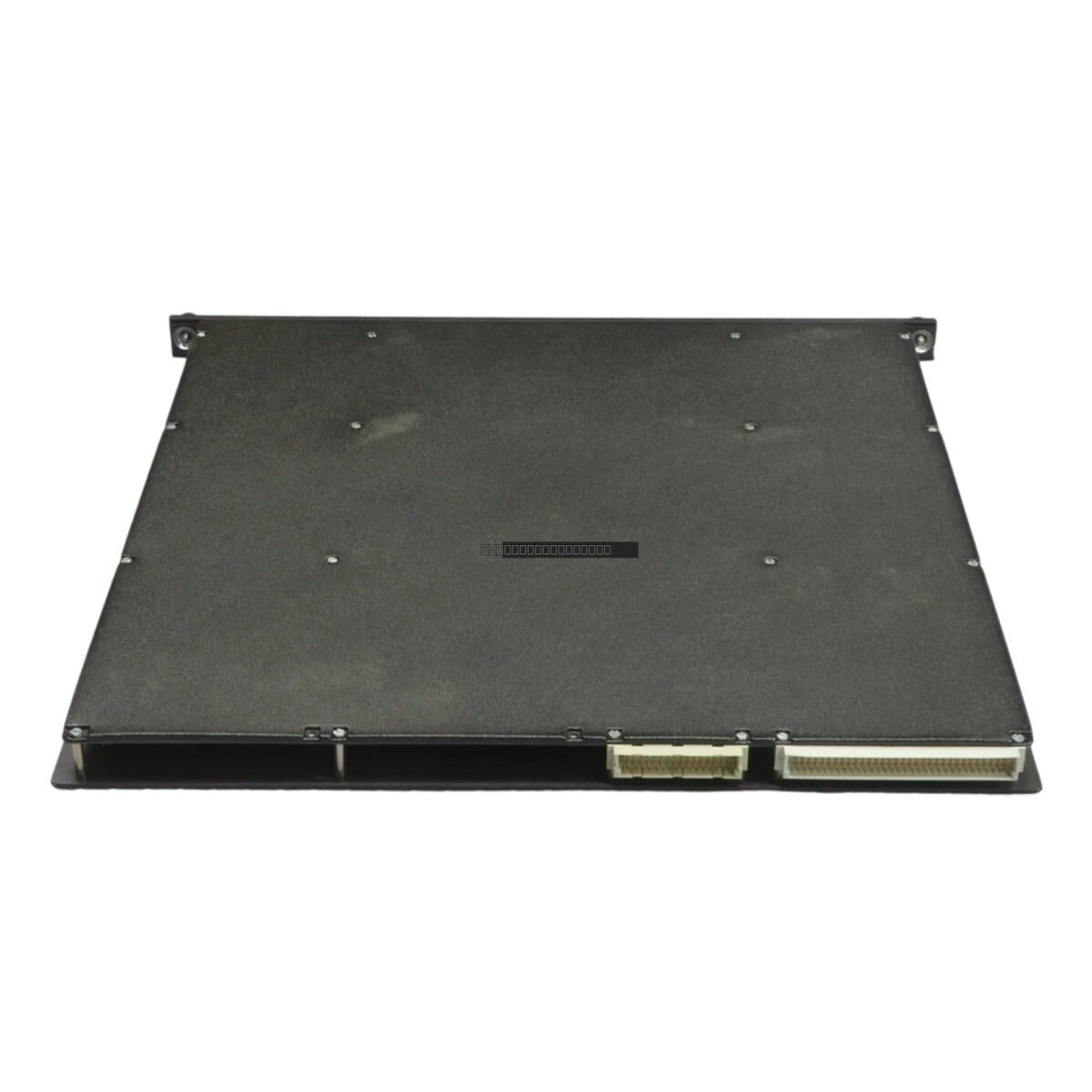

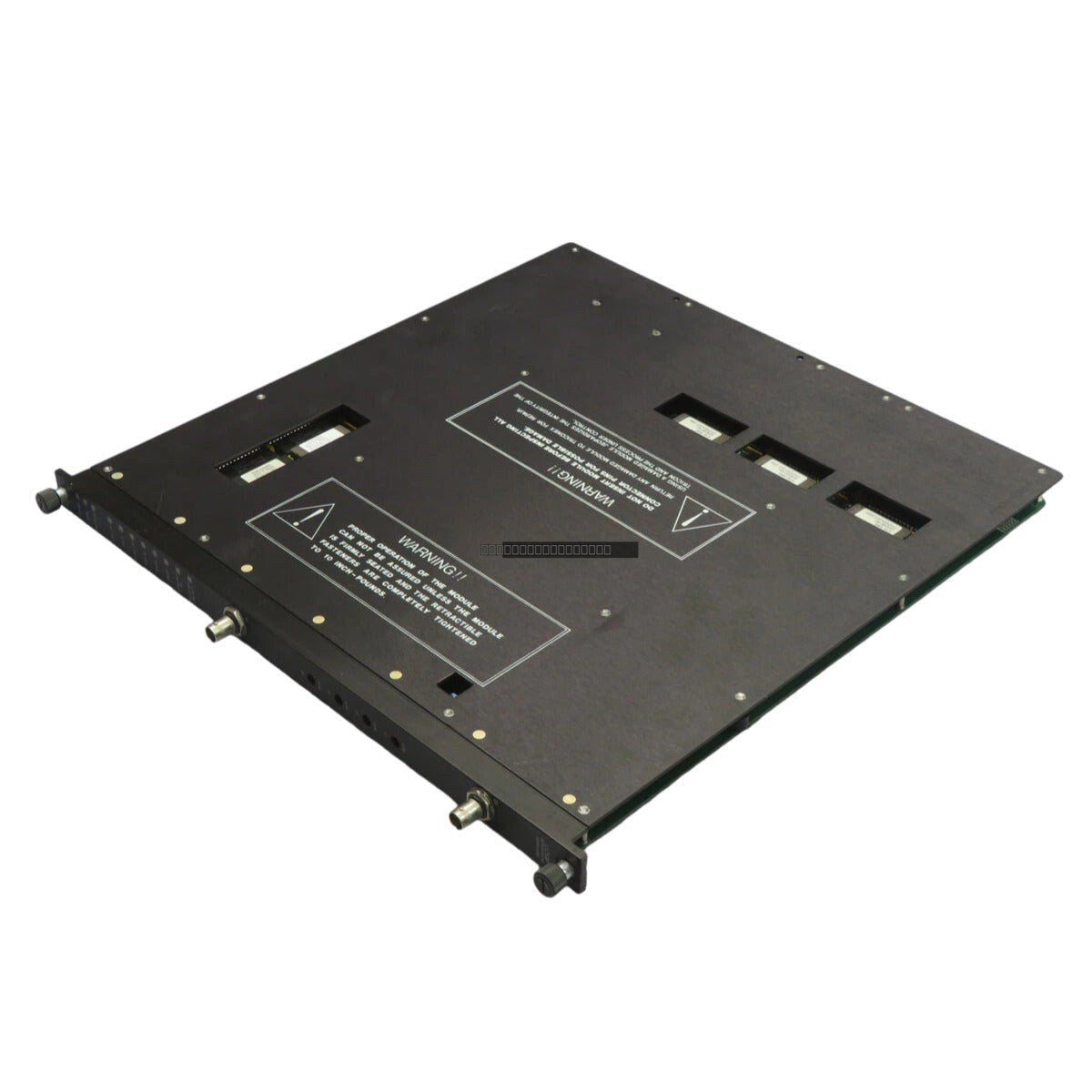

The Triconex 4507 is a high-performance Highway Interface Module (HIM) designed to facilitate secure and deterministic communication between the Tricon safety system and external peer or distributed control networks. This module is engineered for critical industrial applications where high-speed, reliable data exchange is essential for real-time monitoring and safety-critical control.
Features
-
High-Speed Data Exchange: Executes rapid communication tasks to support real-time process monitoring.
-
Dedicated Processing: Features onboard communication processors to offload networking overhead from the main Tricon processors, ensuring consistent system scan times.
-
Network Isolation: Provides physical layer isolation to protect the internal safety bus from external electrical surges and noise.
-
Fault Tolerance: Designed to maintain independent transmit and receive paths, preventing packet collisions and ensuring data integrity.
Applications
The 4507 Highway Interface Module is widely utilized in safety-instrumented systems (SIS) within high-hazard industrial environments, including:
- Oil and gas refining and petrochemical processing.
- Thermal and nuclear power generation facilities.
- Large-scale chemical processing plants.
- Mining and heavy material handling operations.
Technical Specifications
| Brand |
Triconex |
| Model |
4507 |
| Module Type |
Highway Interface Module |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal circuitry.
-
System Power: Ensure the Tricon system is powered down or follow site-specific hot-swap procedures if supported by the chassis configuration before inserting or removing the module.
-
Slot Alignment: Carefully align the module with the chassis guide rails to ensure proper seating of the backplane connectors.
-
Cable Routing: Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
-
Grounding: Ensure the chassis is properly bonded to a clean earth ground to maintain the effectiveness of the module's isolation barriers.
FAQ
What is the primary function of the Triconex 4507?
The 4507 acts as a bridge between the Tricon safety system and external networks, allowing the safety controller to exchange data with distributed control systems (DCS) or other peer devices without compromising the integrity of the safety bus.
Can this module be used in hot-swap scenarios?
The ability to hot-swap depends on the specific Tricon chassis configuration and system firmware. Please refer to your specific Triconex system manual for site-specific maintenance procedures.
