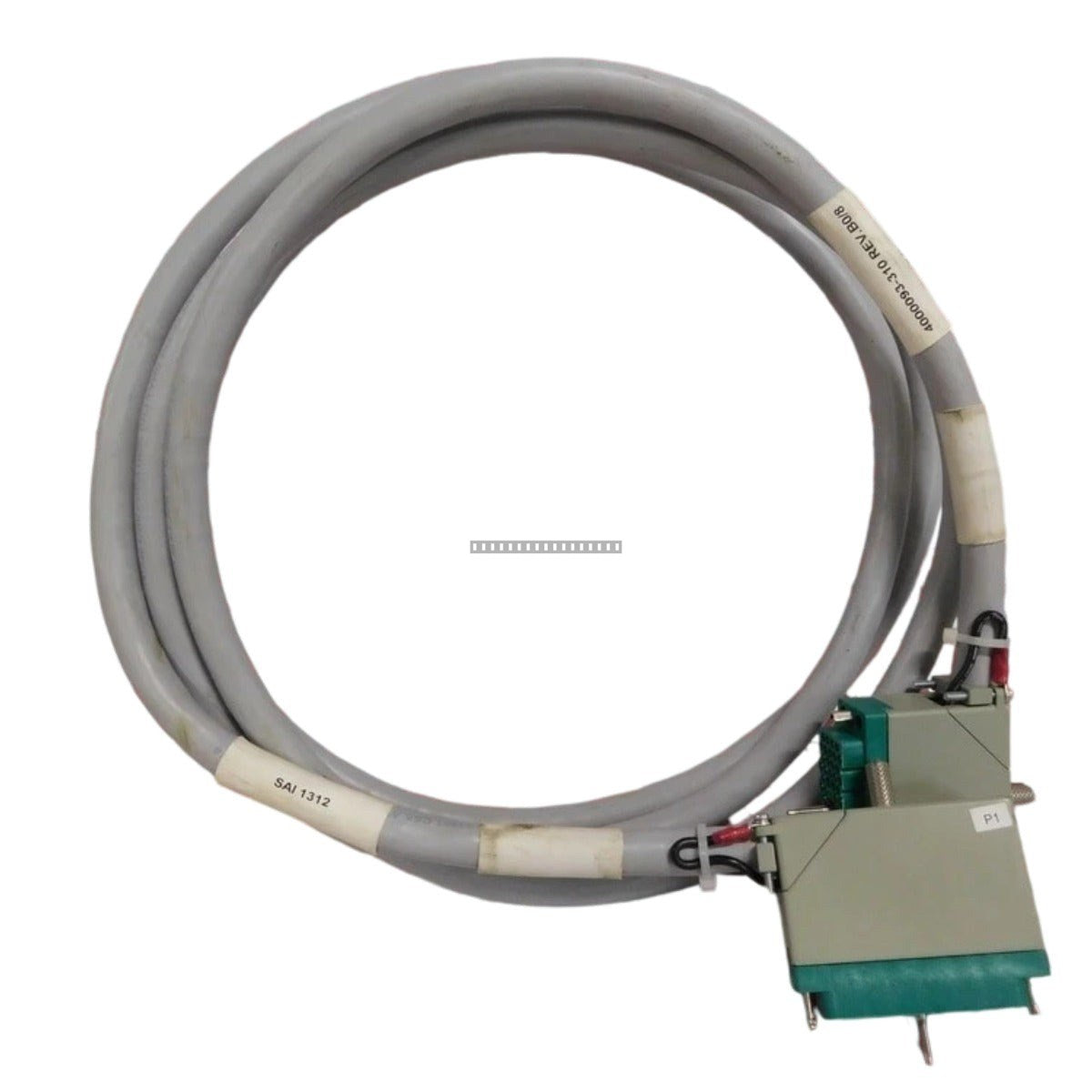

The 4000093-310 is a high-performance input cable assembly engineered for the Triconex Triple Modular Redundant (TMR) safety system. This heavy-duty interconnect solution bridges the gap between field termination panels and Tricon I/O modules, ensuring the secure transmission of critical sensor data. It is deployed in mission-critical environments such as petrochemical refineries, offshore platforms, and power generation facilities. By utilizing high-grade shielding and industrial-strength connectors, the 4000093-310 minimizes signal interference and mechanical strain, maintaining the integrity of the safety loop.
Features
- Optimized for Triconex TMR architecture, supporting fault-tolerant signal routing.
- Multi-conductor configuration designed for low-impedance signal paths and high electromagnetic compatibility (EMC).
- Heavy-duty connector retention screws to prevent accidental disconnection due to industrial vibration.
- Flame-retardant and oil-resistant cable jacket suitable for harsh rack-room and cabinet environments.
- Pre-fabricated assembly reduces installation time and minimizes human error compared to manual field wiring.
Applications
This cable assembly is primarily used in Safety Instrumented Systems (SIS) to connect field-side termination assemblies to the Tricon controller I/O modules. It is suitable for use in high-availability applications where signal integrity is paramount, including emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas monitoring.
Technical Specifications
| Model |
4000093-310 |
| Brand |
Triconex (Schneider Electric) |
| Product Type |
Input Cable Assembly |
| Operating Temperature |
-20 to 70 deg C |
Installation Guidelines
- Ensure the system is powered down before connecting or disconnecting the cable assembly from I/O modules or termination panels.
- Route cables away from high-voltage power lines and sources of extreme electromagnetic interference (EMI) to maintain signal quality.
- Secure all connector retention screws firmly to ensure a reliable electrical connection and prevent loosening due to vibration.
- Maintain proper bend radii during installation to prevent internal conductor stress or insulation damage.
- Verify that the cable path is clear of sharp edges or abrasive surfaces that could compromise the flame-retardant jacket.
FAQ
Is this cable compatible with all Triconex systems?
The 4000093-310 is designed for specific Triconex TMR I/O configurations. Please verify your specific I/O module part number and termination panel documentation to ensure compatibility.
Can this cable be used in outdoor environments?
While the cable jacket is oil-resistant and flame-retardant, it is intended for use in controlled rack-room or cabinet environments. It is not rated for direct exposure to sunlight or harsh outdoor weather conditions.
