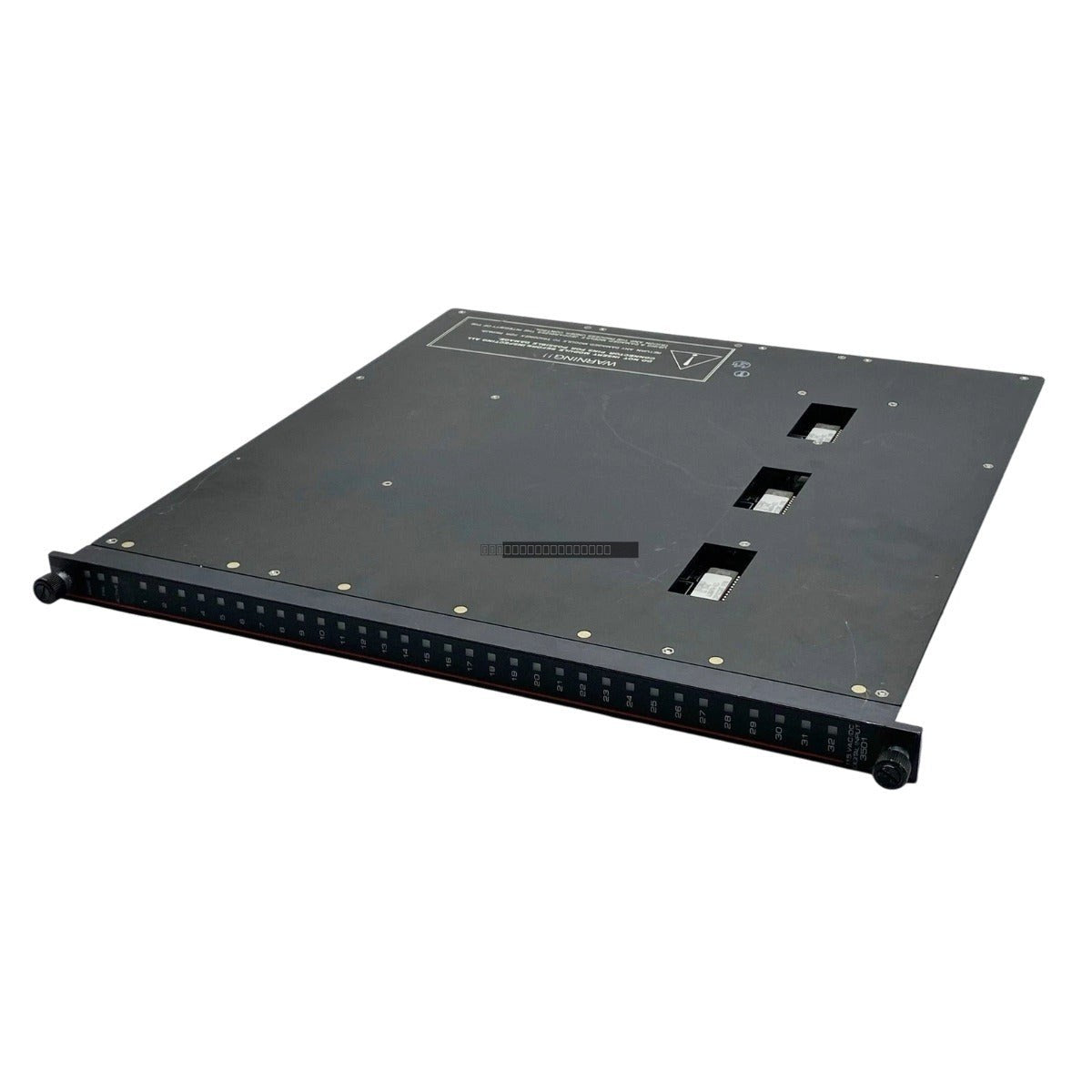

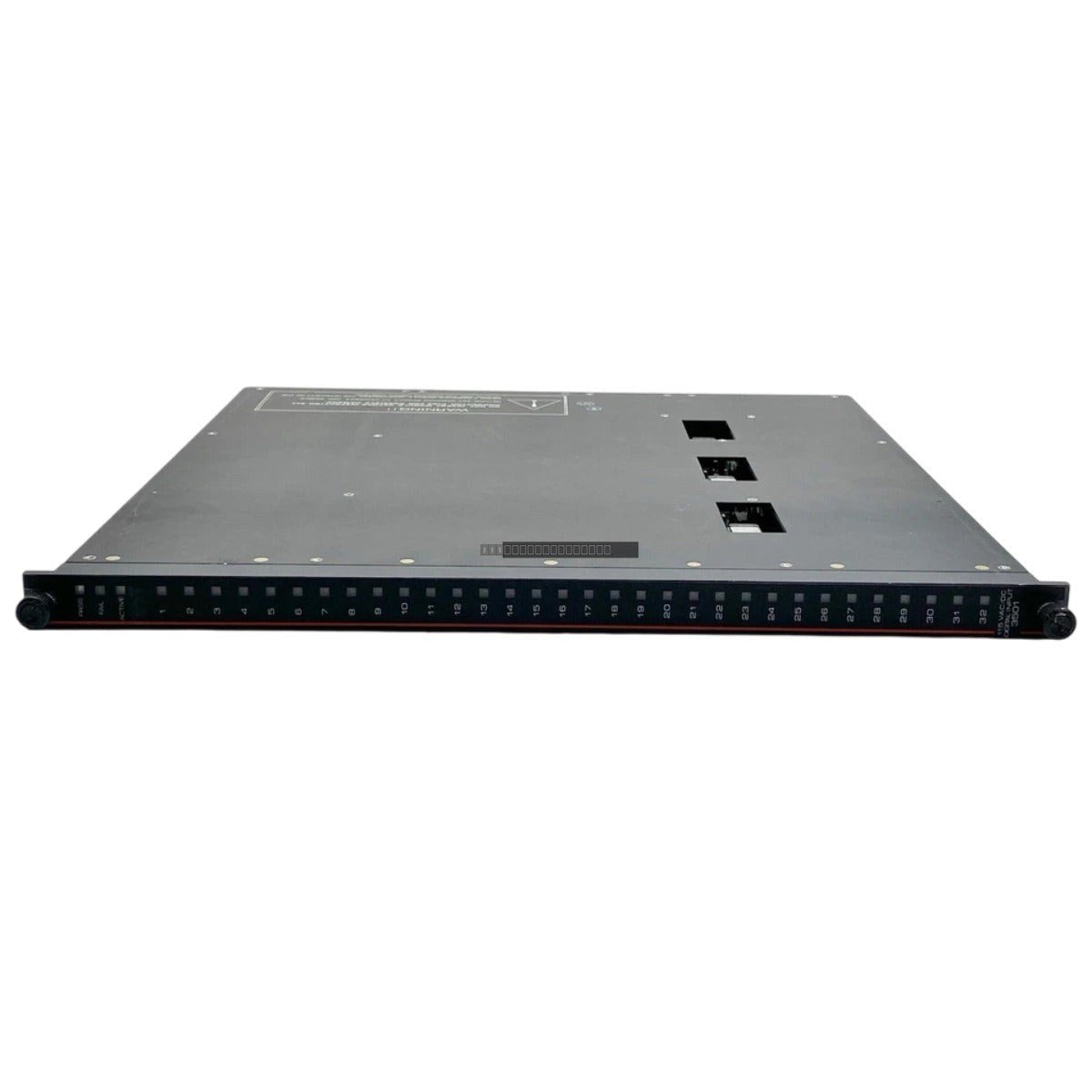

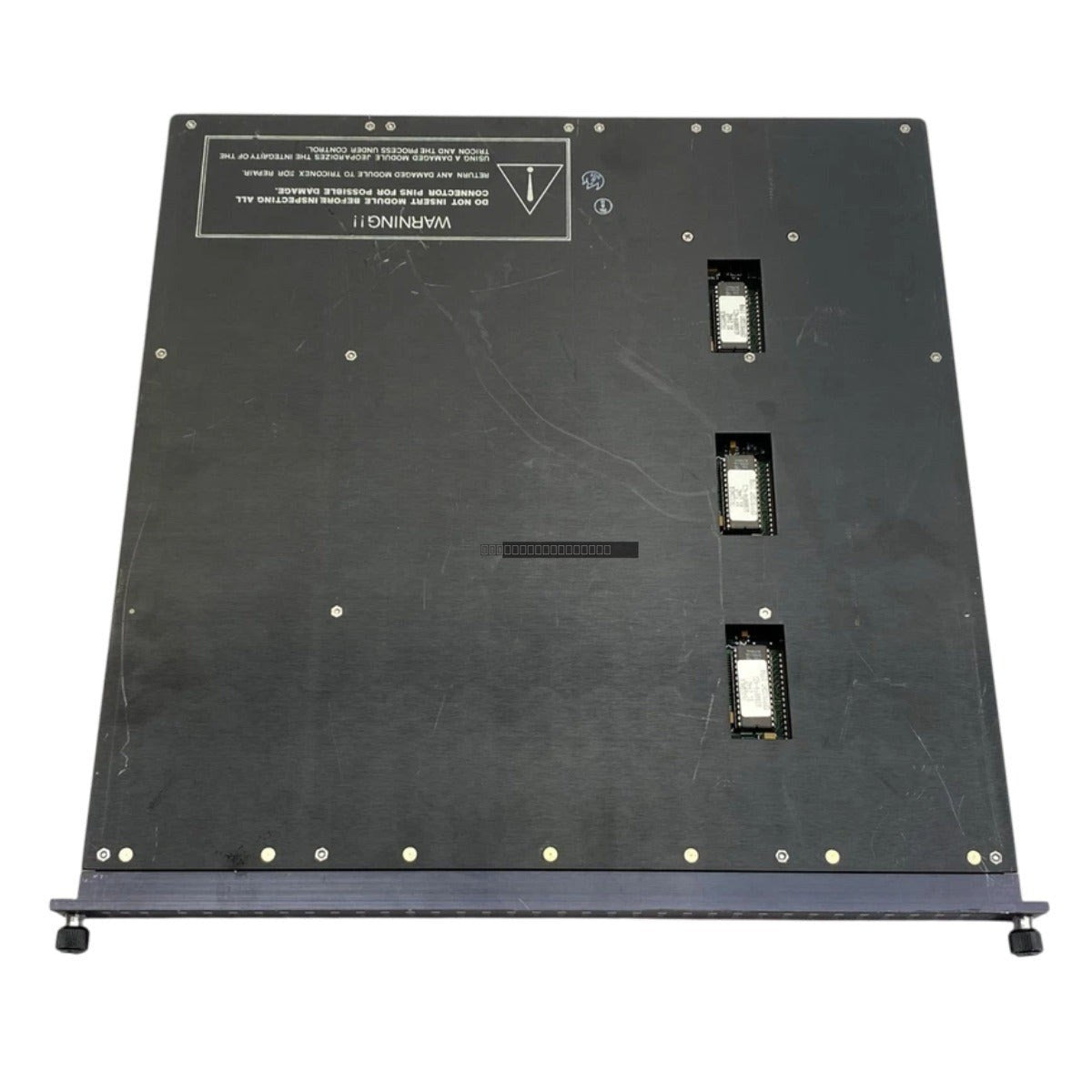

The Triconex 3501 is a high-density digital input module engineered for integration into Triple Modular Redundancy (TMR) safety systems. Designed for demanding industrial environments, this module provides reliable monitoring of discrete field inputs, including process interlocks, proximity switches, and safety-critical sensors. By utilizing advanced hardware-based voting logic and continuous internal diagnostics, the 3501 ensures high system availability while effectively mitigating the risk of nuisance trips in mission-critical applications.
Features
- Triplicated signal processing paths for fault-tolerant operation within TMR architectures.
- Integrated hardware-based voting circuitry to maintain system integrity and signal accuracy.
- High-voltage optocoupler isolation to protect internal logic from field-side electrical interference.
- Hot-swappable design allowing for module replacement without interrupting the active safety process.
- Continuous background self-testing to detect and report internal hardware faults or field line anomalies.
Applications
The 3501 module is widely deployed in safety-instrumented systems (SIS) within high-hazard industries, including:
- Oil and gas refineries and petrochemical processing.
- Thermal and nuclear power generation plants.
- Mining and mineral processing facilities.
- Critical infrastructure requiring high-availability safety interlocks.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
3501 |
| Input Channels |
32 isolated channels |
| Nominal Input Voltage |
24 VDC |
| Isolation Rating |
1500 V RMS |
| Power Consumption |
8.5 W (max) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the system is powered down before physical installation or removal, unless performing a hot-swap operation in accordance with the system manual.
- Verify that the module is correctly seated in the backplane to ensure proper communication with the chassis bus.
- Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise industrial environments.
- Maintain proper ventilation in the equipment cabinet to ensure the module operates within its specified temperature range.
- Handle with standard ESD precautions to prevent damage to sensitive internal circuitry.
FAQ
Is the Triconex 3501 compatible with hot-swapping?
Yes, the 3501 is designed for live-insertion and removal, allowing maintenance personnel to replace a faulty module while the system remains operational, provided the safety system configuration supports this action.
What is the primary function of the 3501 module?
The 3501 serves as a 32-channel digital input interface for TMR safety systems, responsible for acquiring and validating discrete field signals for safety-critical logic execution.
