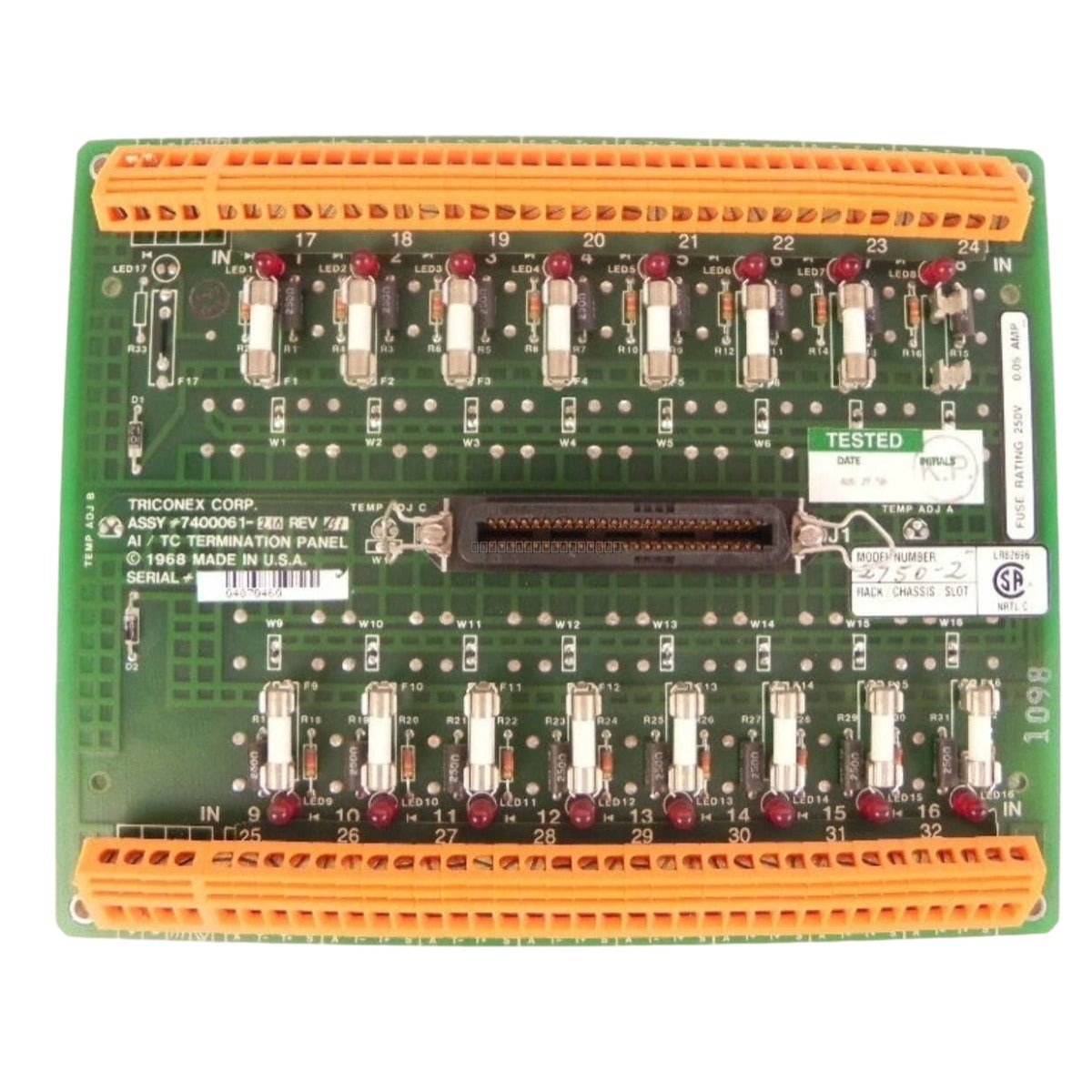

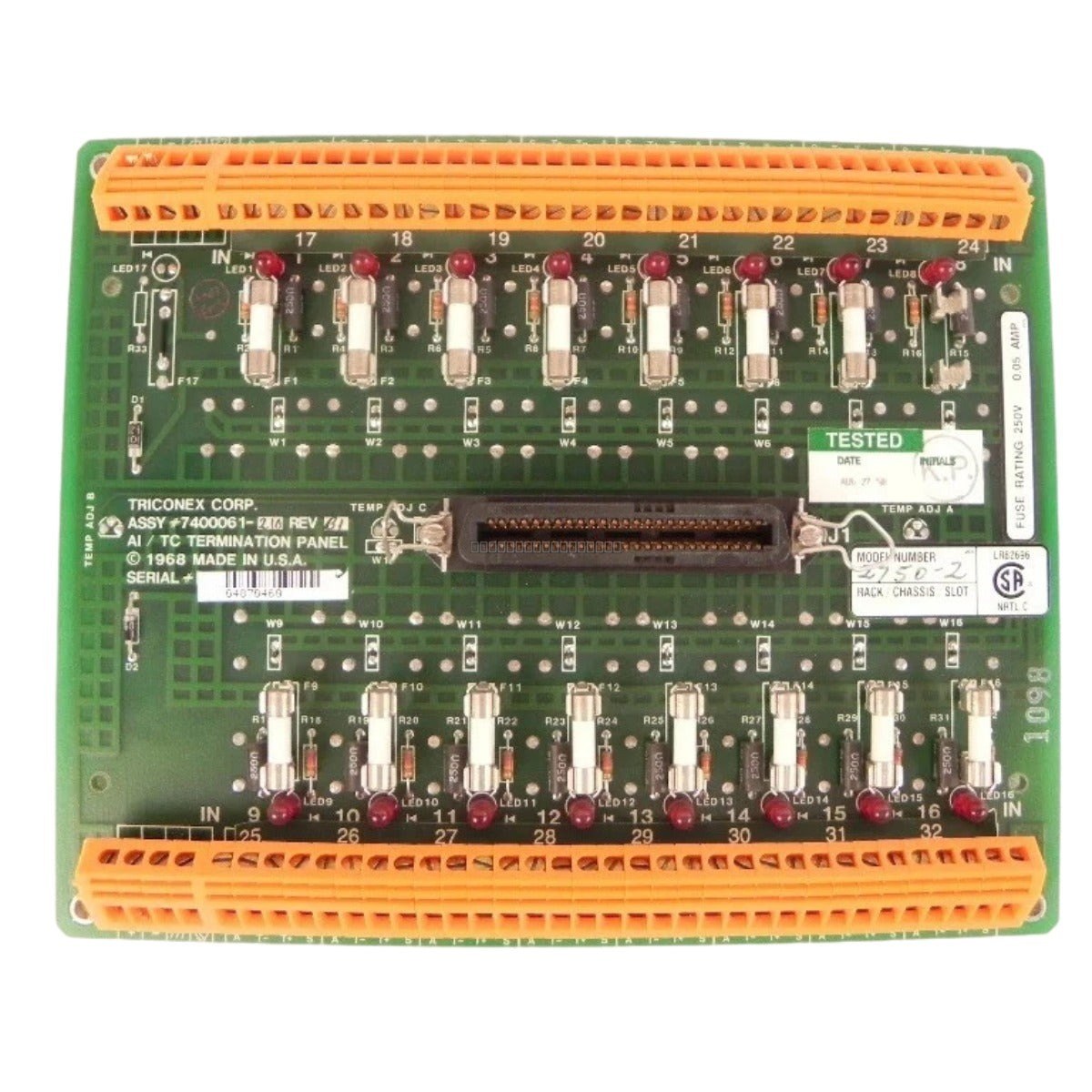

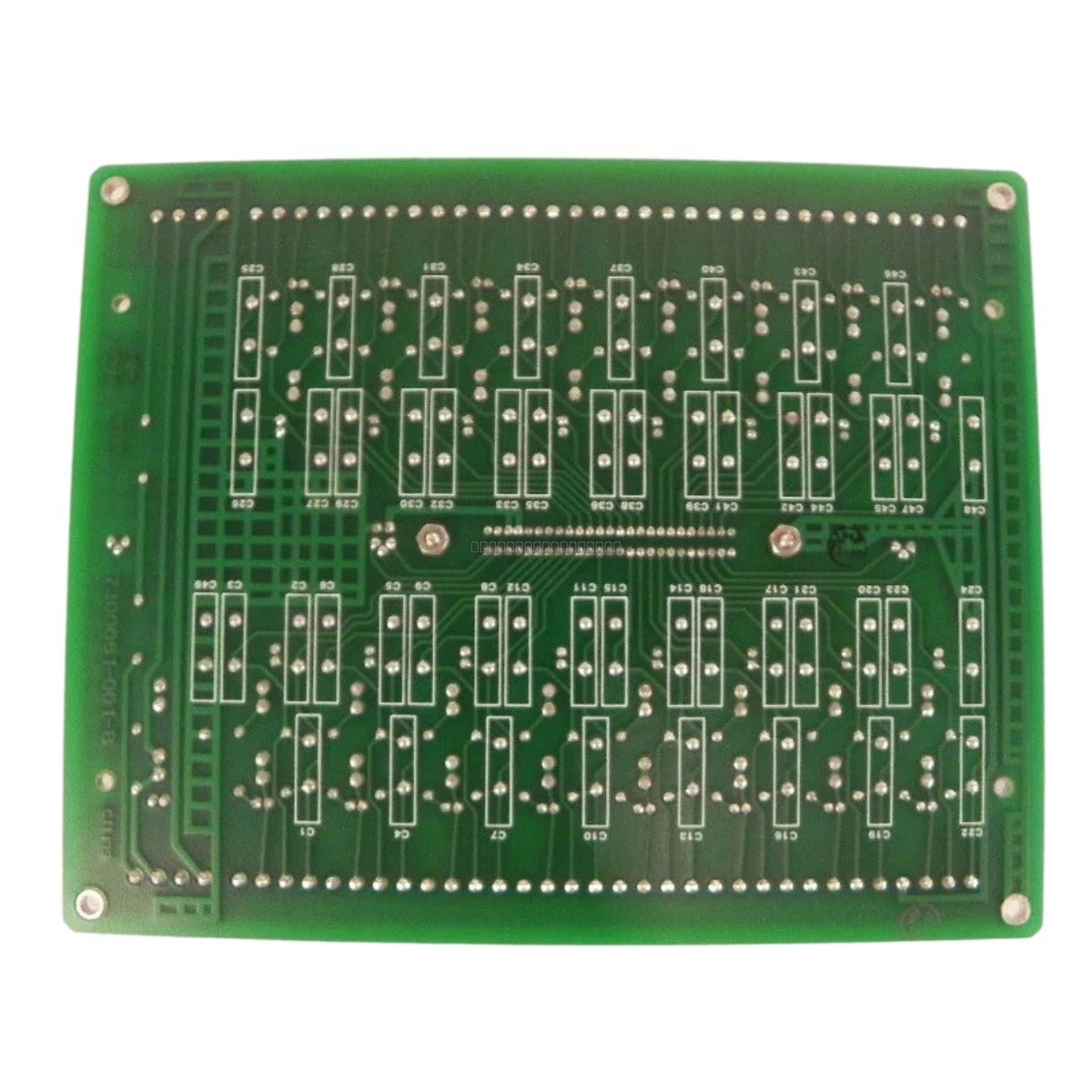

The Triconex 300012-220 is a high-density External Termination Panel (ETP) designed for seamless integration with the 2750-2 series modules. This component acts as the primary interface between field instrumentation wiring and the Safety Instrumented System (SIS) rack. Engineered for high-reliability environments, including gas processing facilities and power generation plants, the 300012-220 ensures signal integrity and simplifies complex wiring architectures within the control cabinet.
Features
- Designed for use with Triconex 2750-2 modules.
- Supports Triple Modular Redundant (TMR) safety path architecture.
- Integrated protection against electrical transients and signal noise.
- Robust screw-type terminal blocks for secure field wiring connections.
- Optimized layout to facilitate rapid maintenance and loop troubleshooting.
Applications
This termination panel is widely utilized in critical safety applications, including emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems. It is suitable for deployment in offshore platforms, petrochemical refineries, and thermal power plants where high-integrity signal transmission is required.
Technical Specifications
| Model |
300012-220 |
| Compatibility |
Triconex 2750-2 Modules |
| Connection Type |
Screw-type terminal blocks |
| Operating Temperature |
0 to 60 deg C |
| Weight |
0.8 kg |
Installation Guidelines
- Ensure the system power is fully disconnected before installing or removing the termination panel.
- Mount the panel securely within the cabinet to ensure proper grounding and vibration resistance.
- Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
- Verify all screw terminal connections are tightened to the recommended torque to prevent intermittent signal loss.
- Maintain adequate spacing around the panel to ensure proper airflow and cooling within the cabinet.
FAQ
What is the primary function of the 300012-220?
The 300012-220 serves as an External Termination Panel (ETP) that bridges field-side wiring to the Triconex 2750-2 controller, ensuring organized and reliable signal termination for safety-critical loops.
Is this panel compatible with other Triconex modules?
The 300012-220 is specifically engineered for the 2750-2 series. Please consult your system documentation or hardware manual before attempting to use this panel with different module types.
