Description

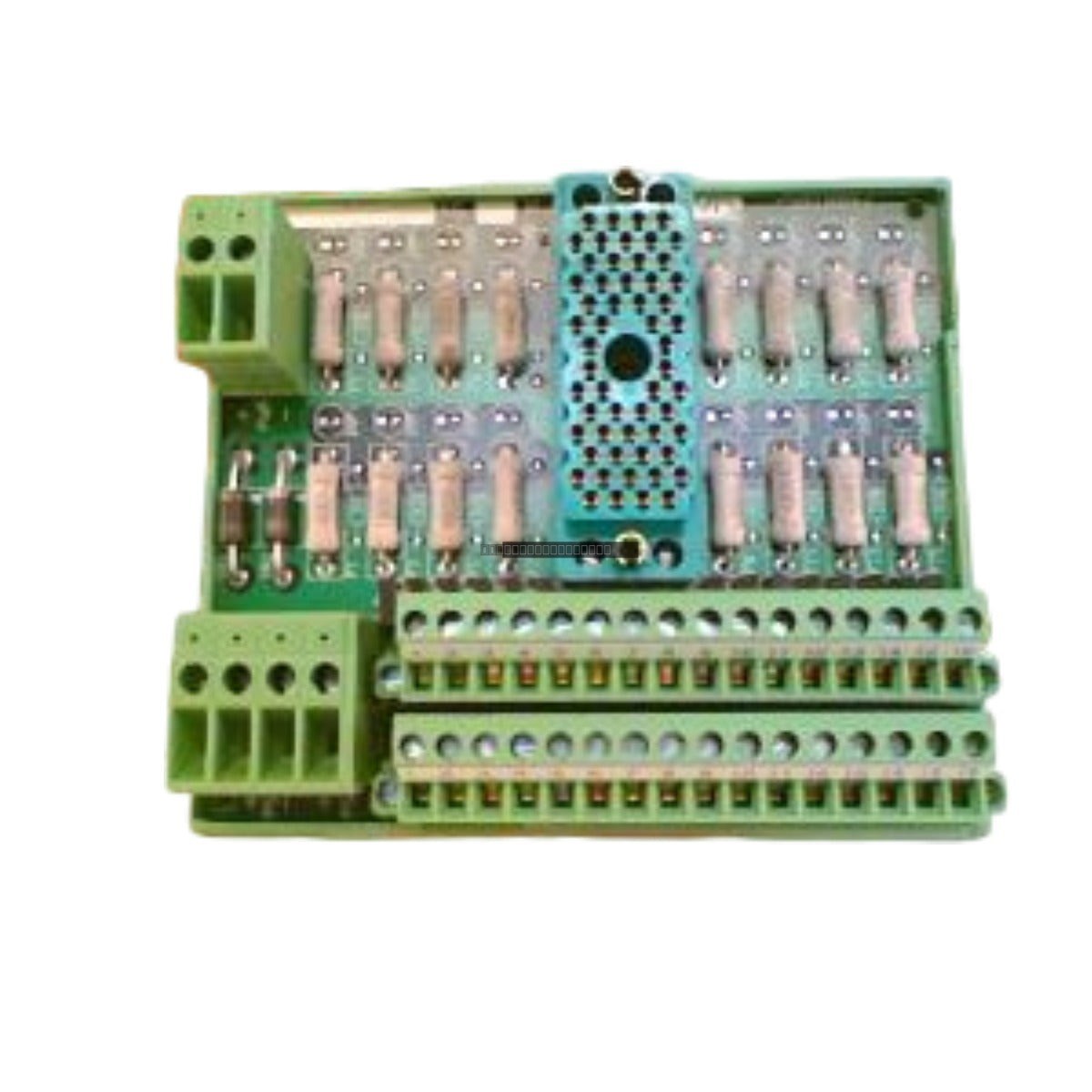

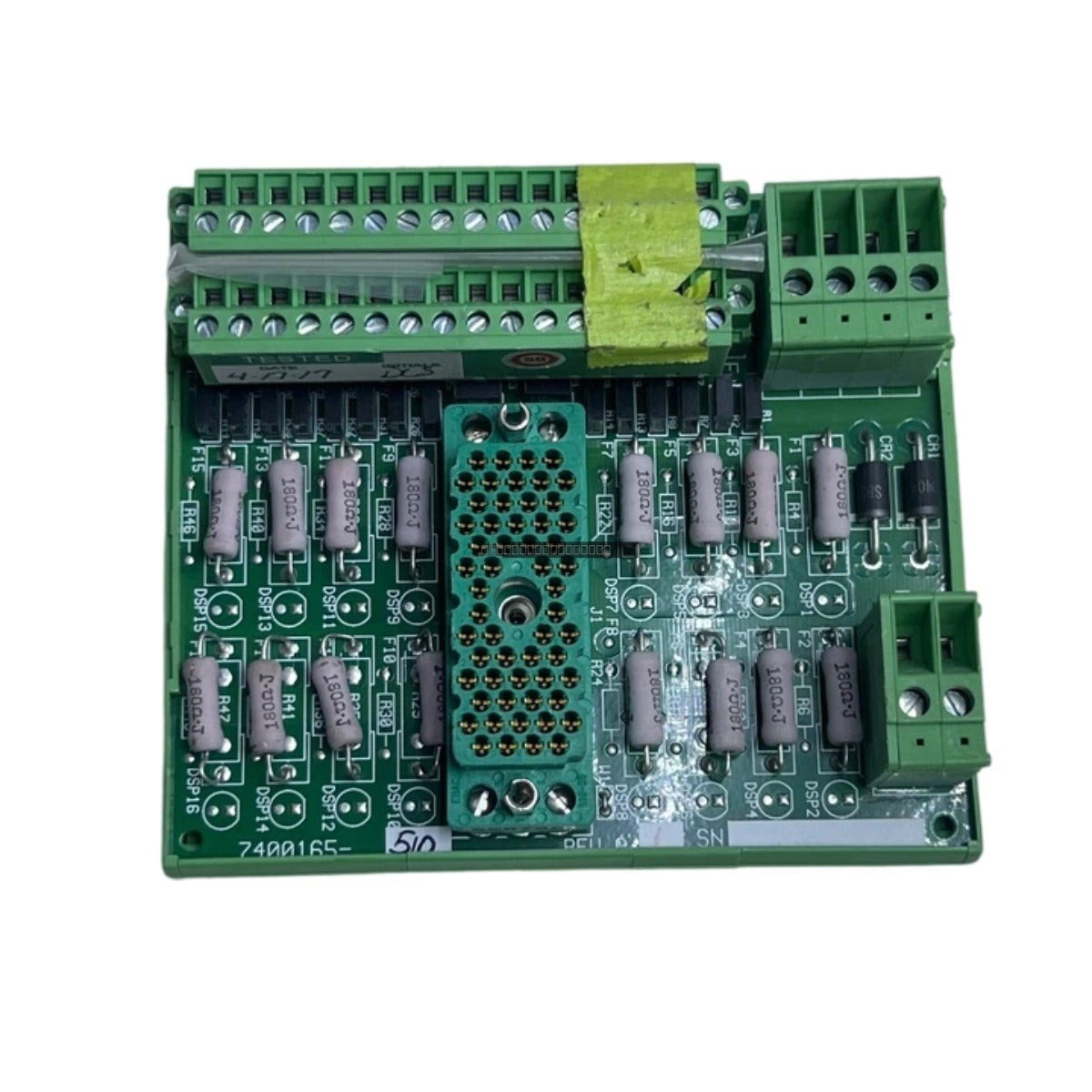

The Triconex 7400165-510 is a specialized field termination assembly designed to serve as the primary interface between field-level instrumentation and the Triconex safety system I/O modules. By providing a structured, reliable connection point for field wiring, this board ensures the integrity of critical control and monitoring signals in high-availability environments. It is engineered to support the rigorous demands of safety-instrumented systems (SIS) found in oil and gas, power generation, and chemical processing facilities.
Features
- Optimized for secure, low-impedance signal transmission between field devices and the controller backplane.
- Engineered to facilitate rapid system maintenance and hardware replacement, reducing overall downtime.
- Integrated electrical protection features designed to mitigate the impact of transient voltage spikes on sensitive I/O circuitry.
- High-density layout, suitable for installation in standard industrial marshaling cabinets and control racks.
- Robust terminal block architecture to ensure reliable contact retention for various field wire gauges.
Applications
This termination board is widely utilized in safety-critical automation architectures, including emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems. It is intended for use in environments where signal reliability and system fault tolerance are paramount.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
7400165-510 |
| Product Type |
Termination Board |
| Nominal Voltage |
24 VDC |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
Passive (Negligible) |
Installation Guidelines
- Ensure the system is fully de-energized before performing any wiring or installation tasks to prevent electrical damage or personal injury.
- Mount the board within a clean, dry, and vibration-dampened enclosure to maintain long-term reliability.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board components to prevent damage to sensitive circuitry.
- Verify that all field wiring is properly labeled and secured to the terminal blocks to prevent intermittent connectivity.
- Maintain proper clearance for cooling and cable routing as per the site's standard electrical installation practices.
FAQ
Is the 7400165-510 an active or passive module?
This unit is a passive termination board designed for signal routing and distribution; it does not require external power for its own operation and has negligible power consumption.
What is the primary function of this board?
It acts as the physical interface layer that connects field-side sensors and actuators to the Triconex I/O modules, ensuring organized, reliable, and protected signal paths.
