Description
Product Overview

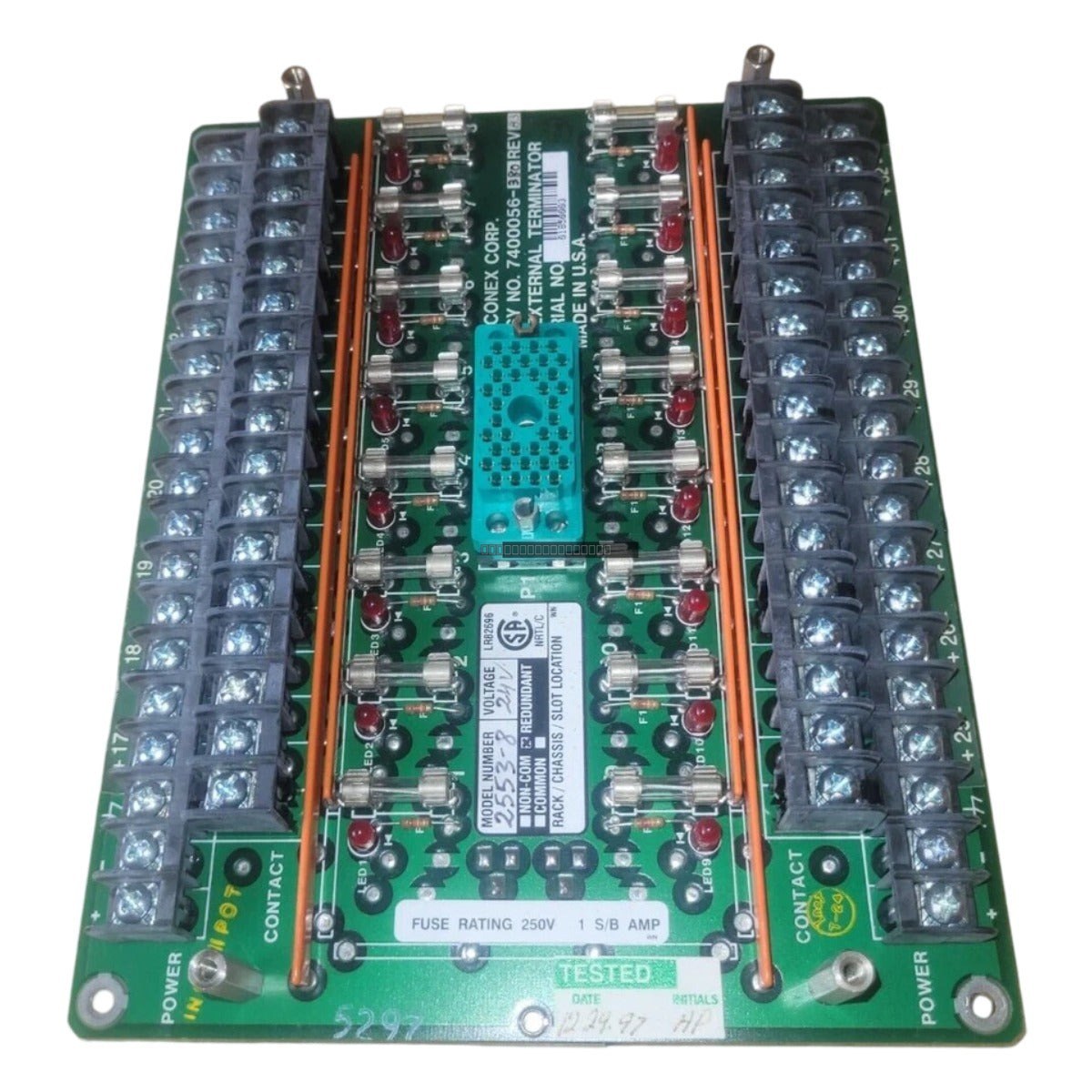

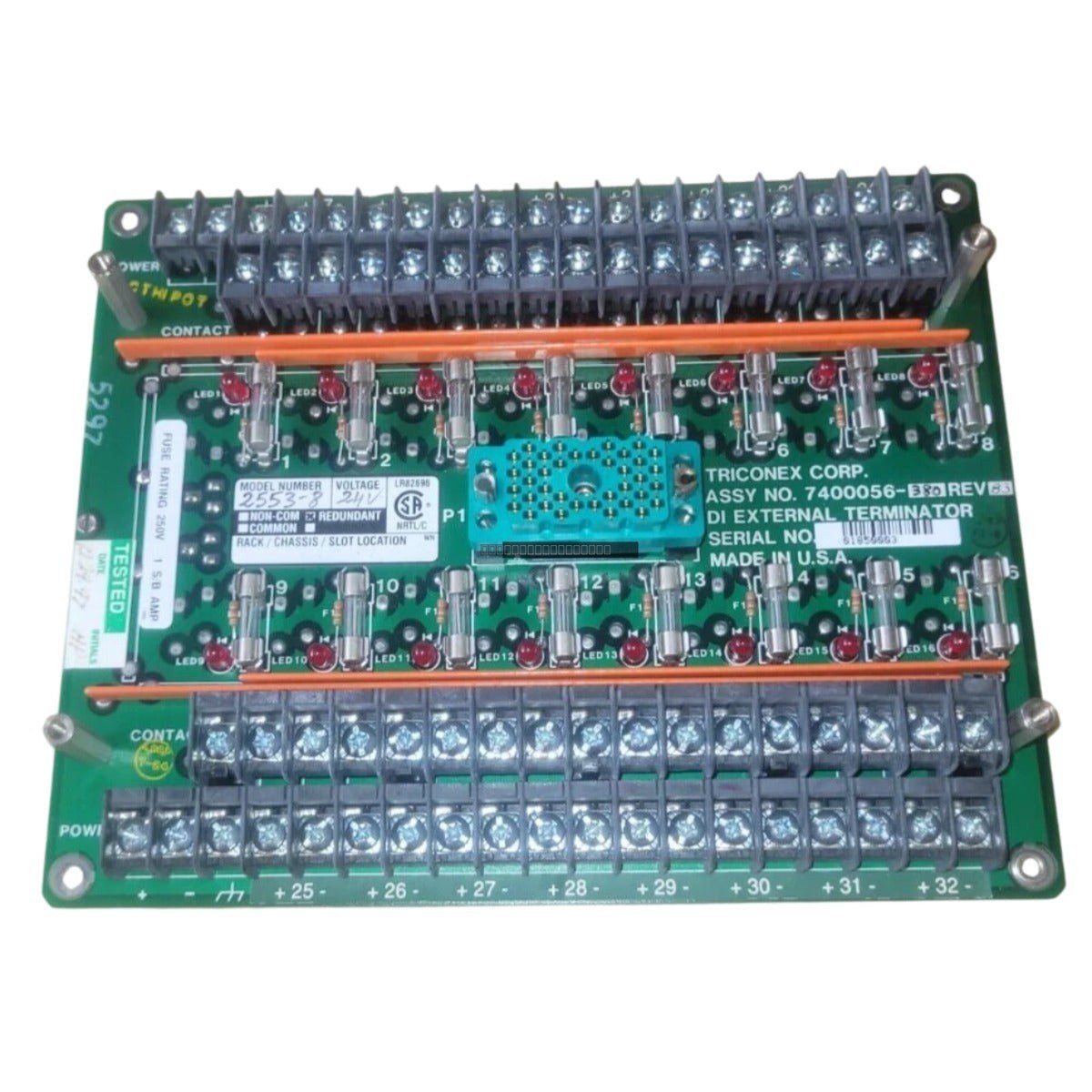

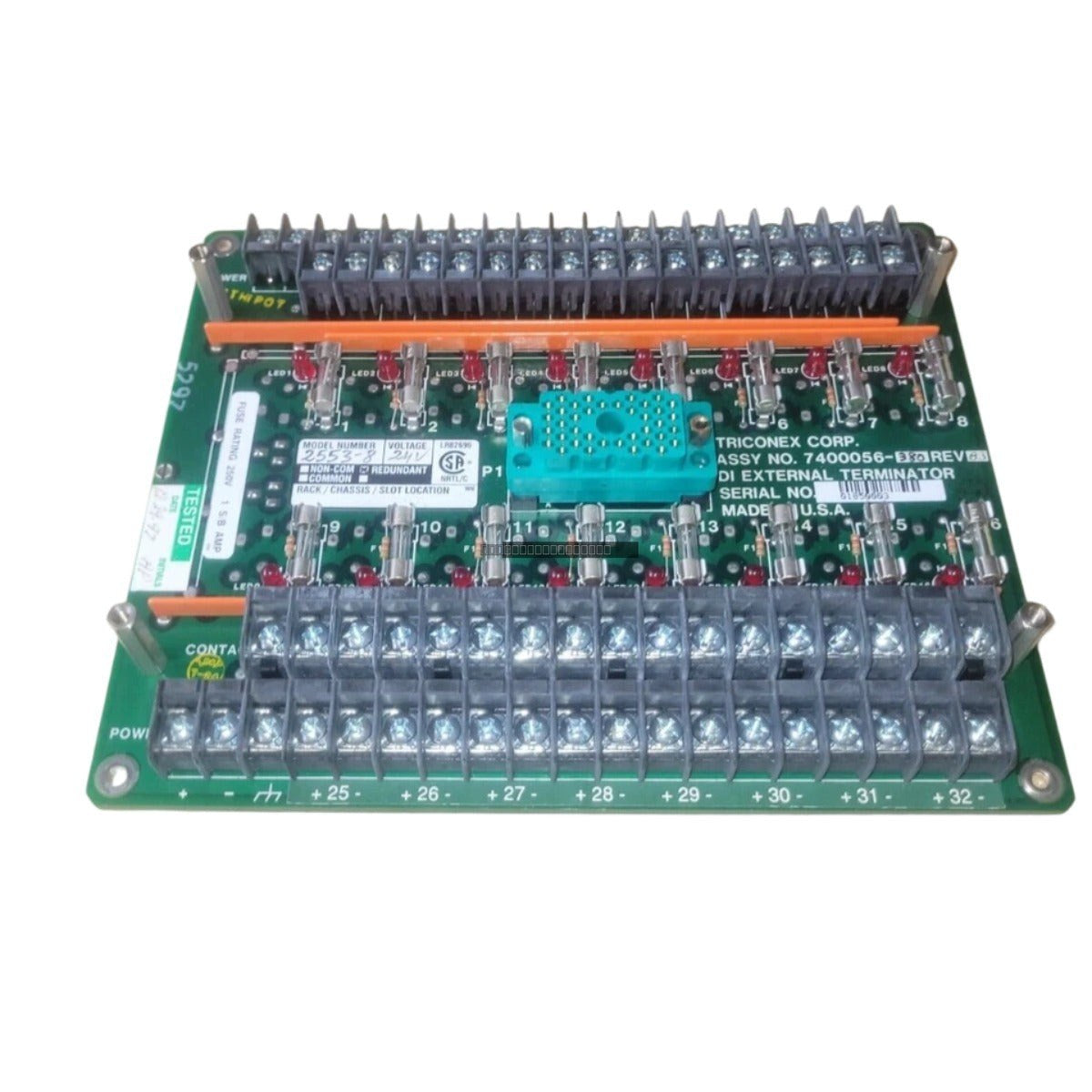

The Triconex 2553-8 (7400056-380) serves as a specialized field termination assembly engineered for high-integrity safety instrumented systems. This terminal board provides a reliable physical interface between field-level instrumentation wiring and Triconex I/O modules. By centralizing signal distribution, it facilitates efficient cable management and maintenance within critical infrastructure, including petrochemical, oil and gas, and power generation sectors. Its design emphasizes electrical stability and signal integrity, ensuring that sensitive control loops remain isolated from common field-side disturbances.
Features
- Robust terminal block architecture designed for secure, vibration-resistant field connections.
- Optimized signal path mapping for seamless integration with compatible Triconex I/O assemblies.
- Passive circuit design ensures zero power consumption at the board level.
- Integrated grounding planes support stable reference potentials for shielded instrumentation cabling.
- Engineered to minimize signal cross-talk and prevent localized overvoltage propagation.
Applications
This terminal board is primarily utilized in safety-critical automation environments where high availability and fault tolerance are required. It is commonly deployed in marshaling cabinets to bridge the gap between field sensors/actuators and the main safety controller, supporting both analog and digital signal processing requirements.
Technical Specifications
| Brand |
Invensys Triconex |
| Model / Order Code |
2553-8 (7400056-380) |
| Product Type |
Terminal Board |
| Operating Voltage |
24 VDC nominal |
| Power Consumption |
Passive (0 W) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the system is fully de-energized before performing any wiring or module installation.
- Mount the board within a clean, dry, and climate-controlled enclosure to prevent dust and moisture ingress.
- Use appropriate wire ferrules to ensure secure, low-resistance connections in the terminal blocks.
- Maintain proper segregation between signal-level wiring and high-voltage power cables to minimize EMI.
- Verify that all shield terminations are properly bonded to the ground plane to maintain noise immunity.
FAQ
Is this board active or passive?
The 2553-8 is a passive terminal board and consumes no electrical power during operation.
What is the primary function of this module in a Triconex system?
It acts as a field interface, allowing field wiring to be easily connected to and disconnected from the Triconex I/O modules without disturbing the permanent field-side wiring.
