Description
Description

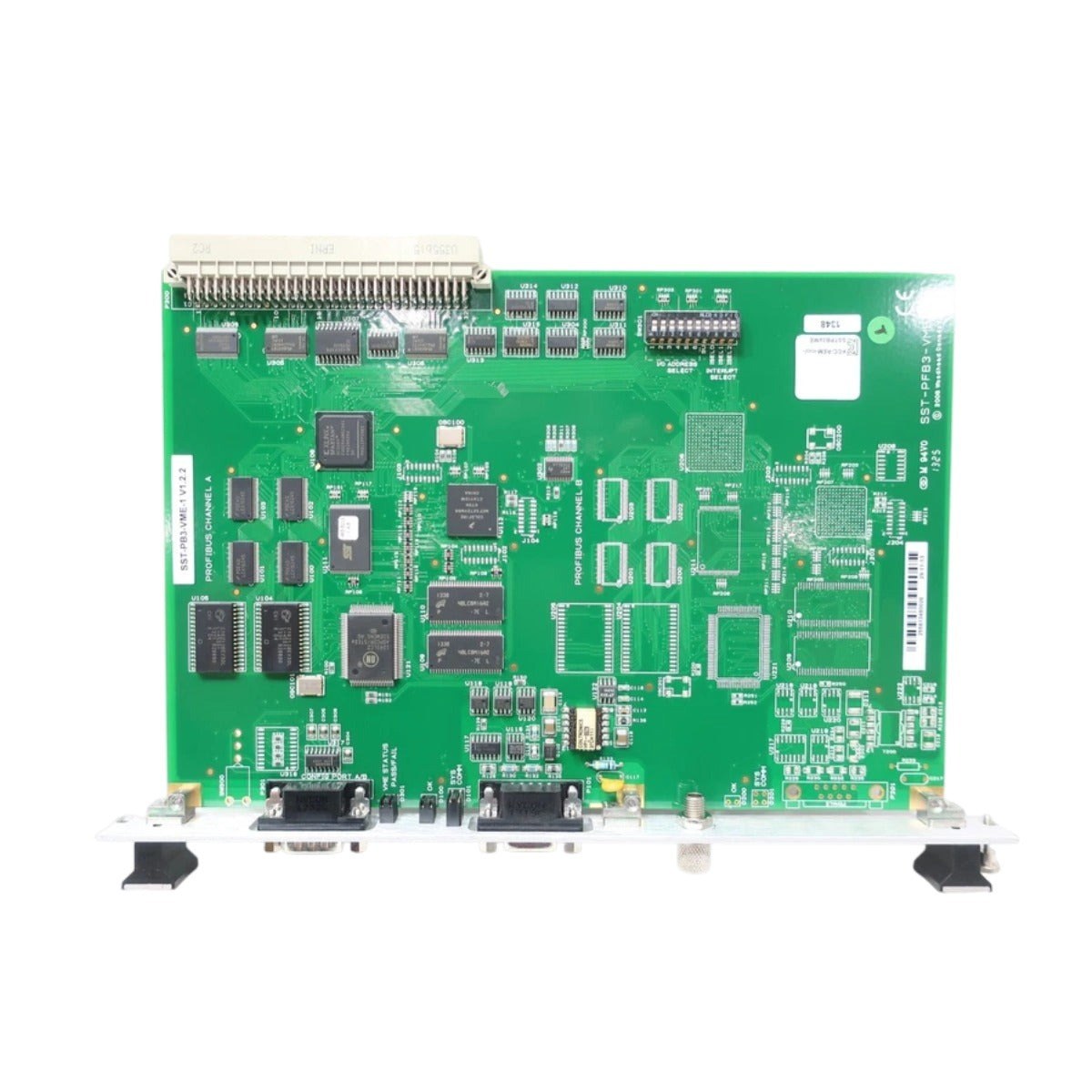

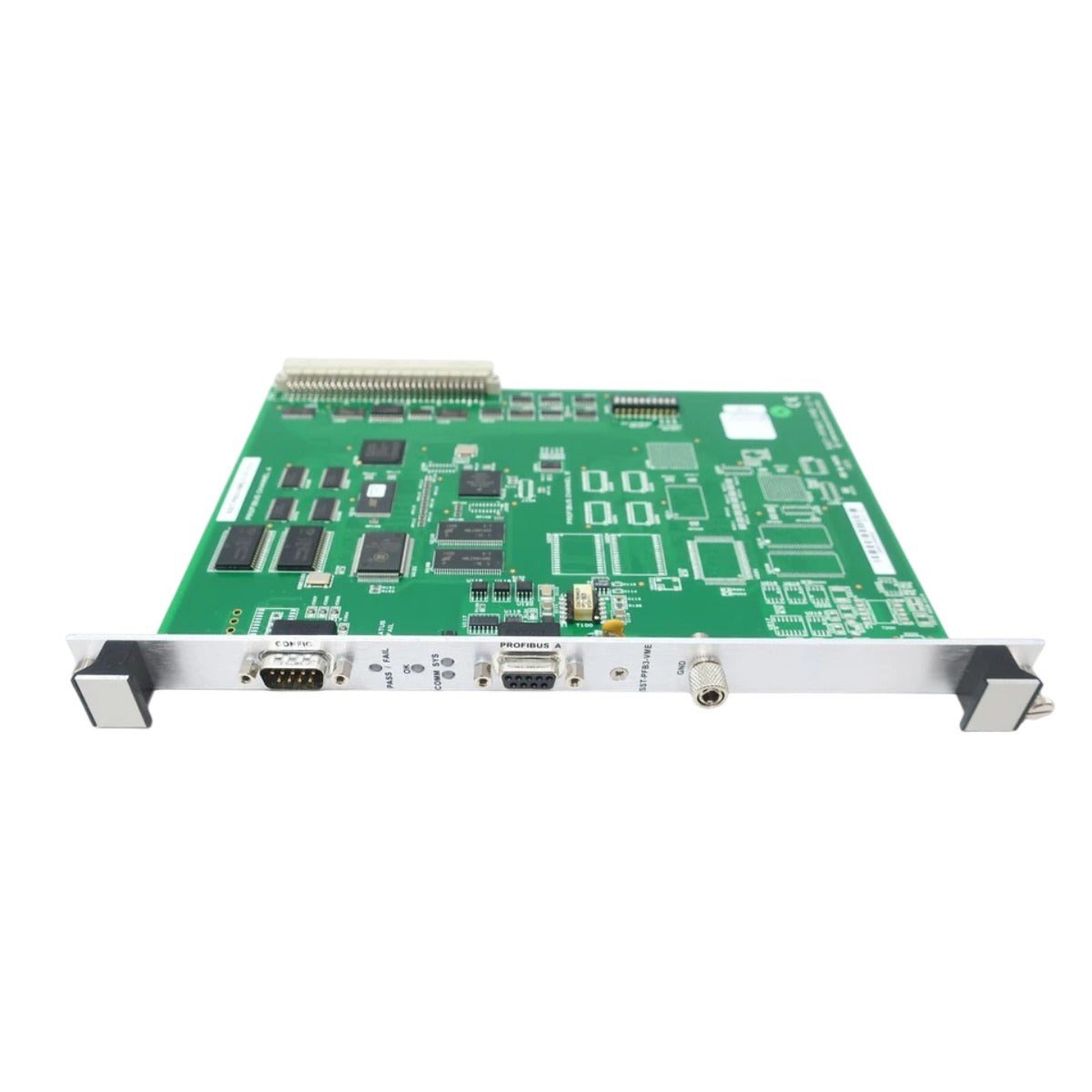

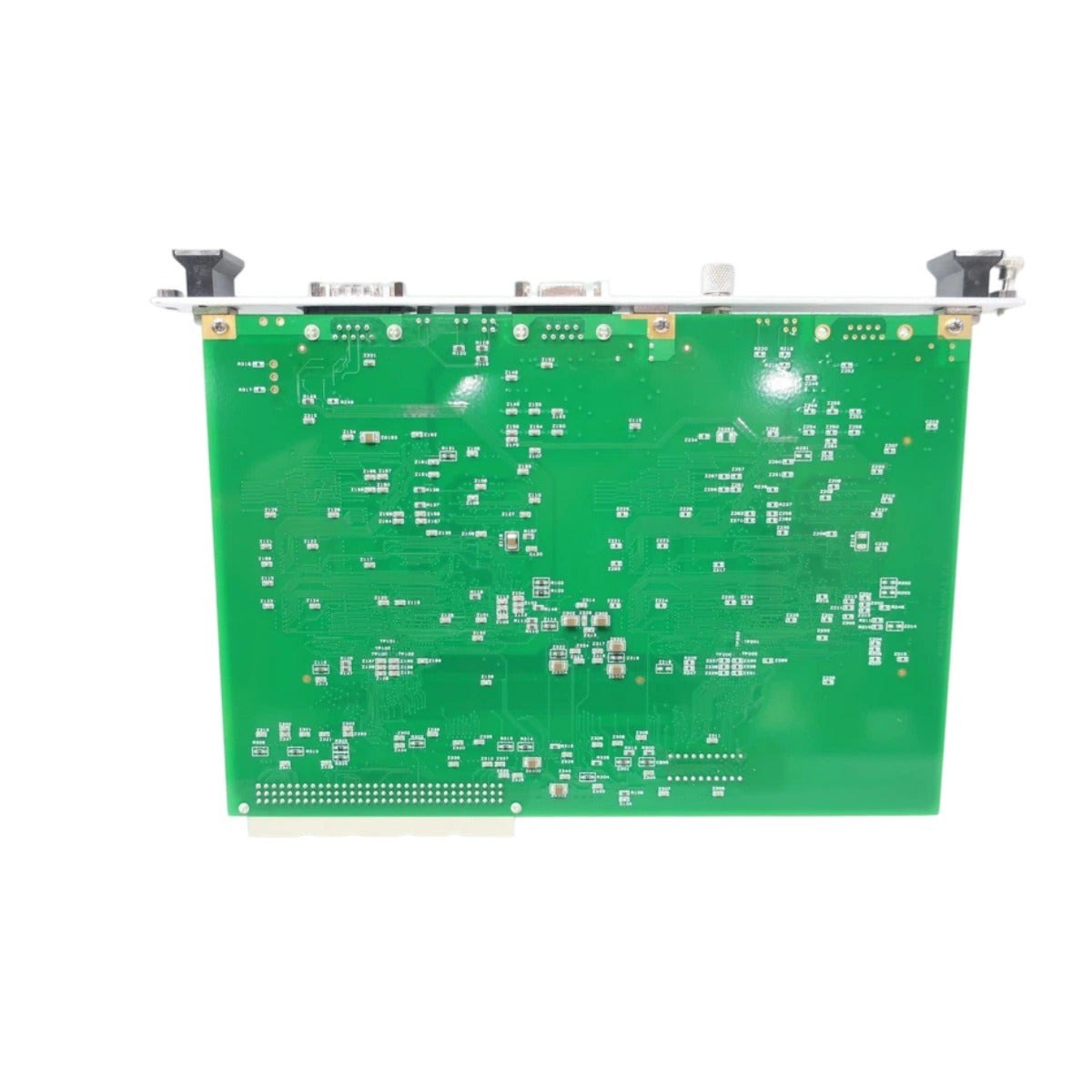

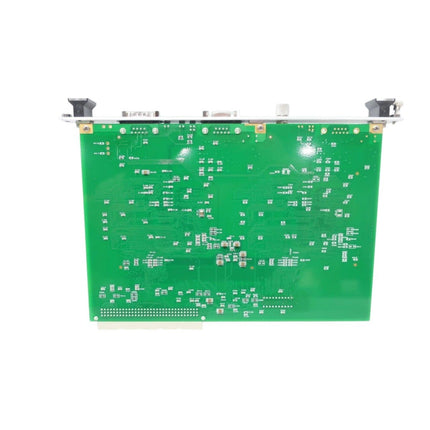

The SST-PB3-VME-1 is a high-performance VMEbus interface module designed for seamless integration of Profibus DP networks into VME-based control systems. This module serves as a critical communication bridge, offloading complex protocol processing from the host controller to its onboard processor. By managing Profibus DP-V0 and DP-V1 messaging independently, it ensures deterministic, low-latency data exchange, which is vital for maintaining stability in demanding industrial environments such as power generation and automated manufacturing.
Features
- Supports Profibus DP-V0 and DP-V1 protocols for versatile network integration.
- Configurable as either a Profibus Master or Slave node.
- High-speed VMEbus interface for rapid memory access and real-time data transfer.
- Onboard processor architecture minimizes CPU load on the host VME controller.
- Robust industrial design with high EMI resistance for reliable operation in noisy electrical environments.
- Supports transmission speeds ranging from 9.6 kbps up to 12 Mbps.
Applications
The SST-PB3-VME-1 is primarily utilized in turbomachinery control systems, power plant automation, and distributed I/O architectures where VMEbus controllers must interface with Profibus-enabled field devices, sensors, and actuators.
Technical Specifications
| Parameter |
Specification |
| Model |
SST-PB3-VME-1 |
| Brand |
Woodward / Molex Woodhead |
| Module Type |
Profibus Communication Module |
| Bus Interface |
VMEbus |
| Protocol |
Profibus DP (DP-V0, DP-V1) |
| Baud Rate |
9.6 kbps to 12 Mbps |
| Power Consumption |
5 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the VME rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the VME backplane slot is configured correctly for the module's address space.
- Use shielded Profibus-rated cabling to maintain signal integrity and minimize EMI interference.
- Ensure proper grounding of the VME chassis to the plant common ground to protect against surge and noise.
- Maintain adequate airflow within the cabinet to stay within the 0 to 60 deg C operating temperature range.
- Handle the module by the edges or front panel to avoid electrostatic discharge (ESD) damage to sensitive components.
FAQ
Can this module operate as a Profibus Master?
Yes, the SST-PB3-VME-1 supports both Master and Slave configurations, allowing it to act as a primary controller or a secondary node depending on your system requirements.
What is the maximum data rate supported?
The module supports standard Profibus baud rates up to 12 Mbps, ensuring high-speed communication for time-critical control applications.
