Description
Overview

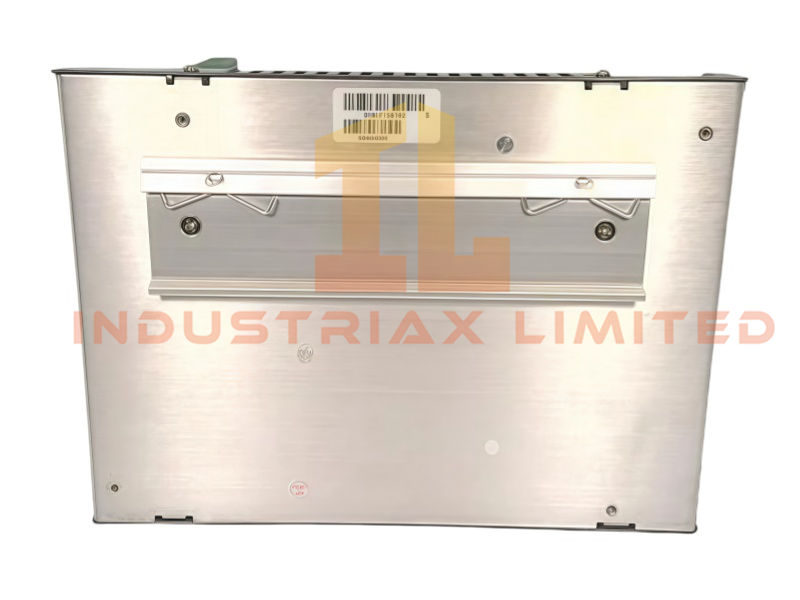

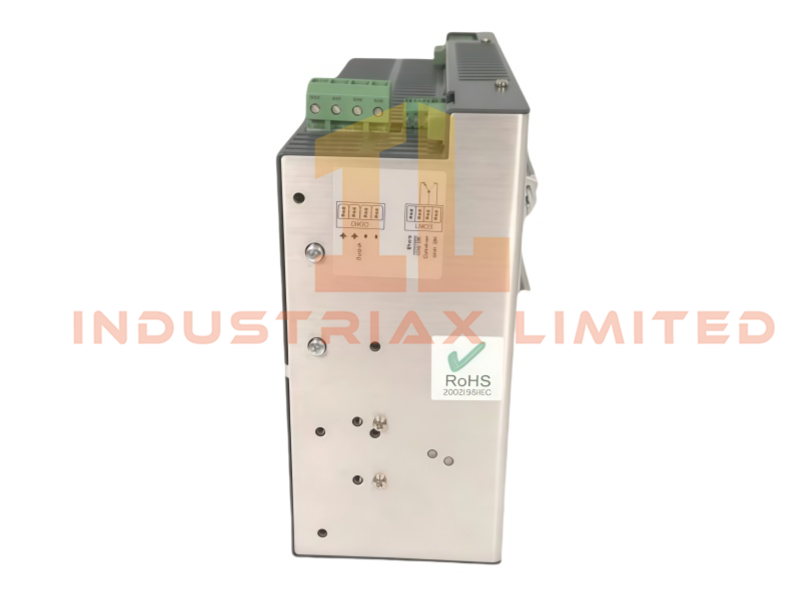

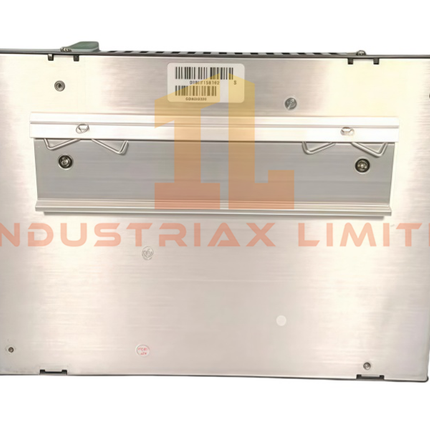

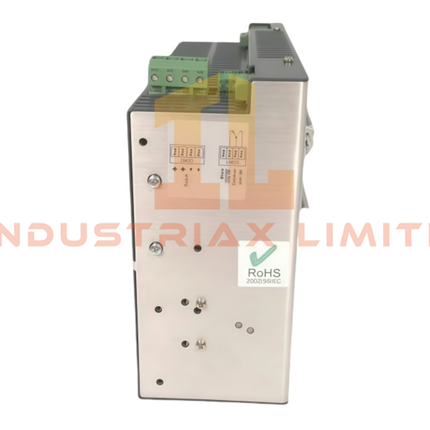

The SFL24‑24‑100RED is a compact 100 W DIN‑rail mounted power supply designed for industrial control environments requiring stable 24 VDC output. As part of the SolaHD product family, this unit provides high‑efficiency power conversion and dependable operation across a wide range of global AC mains conditions. Its rugged construction and protective features make it suitable for continuous‑duty automation systems.
Key Features
-
24 VDC regulated output for industrial control loads
-
Universal 85–264 VAC input range (50/60 Hz)
-
High efficiency up to 90%
-
Conforms to CE (LVD/EMC) and UL 508 requirements
-
Compact IP20 enclosure for DIN‑rail mounting
-
Integrated protection against overload, short circuit, and overvoltage
-
Compatible with SolaHD DC‑UPS modules for backup power applications
Technical Specifications
Electrical Characteristics
| Parameter |
Specification |
| Output Power |
100 W |
| Output Voltage |
24 VDC |
| Output Regulation |
±1% |
| Input Voltage Range |
85–264 VAC |
| Input Frequency |
50/60 Hz |
| Efficiency |
Up to 90% |
| Protection Features |
Overload, short‑circuit, overvoltage |
Environmental Ratings
| Parameter |
Specification |
| Operating Temperature |
Manufacturer‑rated industrial range |
| Humidity |
5–95% RH, non‑condensing |
| Enclosure Rating |
IP20 |
| Certifications |
CE (LVD/EMC), UL 508 |
Mechanical Data
| Parameter |
Specification |
| Dimensions |
24.4 × 17.8 × 8.3 cm |
| Weight |
2.7 kg |
| Mounting |
DIN‑rail |
| Housing Color |
Red |
| Country of Origin |
USA |
Logistics
| Parameter |
Specification |
| Condition |
Brand New |
| Availability |
In Stock |
| MOQ |
1 |
| HS Code |
8537101190 |
| Product Status |
Active |
Functional Description
The SFL24‑24‑100RED power supply delivers a stable 24 VDC output suitable for powering PLCs, sensors, relays, and other automation components. Its universal AC input range allows deployment in facilities worldwide without the need for manual voltage selection. With a high efficiency rating and low thermal dissipation, the unit supports dense control panel installations without derating.
The power supply incorporates comprehensive protection mechanisms, ensuring safe operation under fault conditions. Its IP20 housing and tool‑free DIN‑rail mounting simplify installation and maintenance. When paired with SolaHD DC‑UPS modules, the unit can provide uninterrupted power during mains disturbances, enhancing system reliability.
Designed for industrial automation, packaging lines, and material handling systems, the SFL24‑24‑100RED offers a dependable and cost‑effective power conversion solution for modern control architectures.
Application Scenarios
-
PLC and DCS control panels
-
Sensor and instrumentation power distribution
-
Packaging and material handling systems
-
Manufacturing automation equipment
-
Installations requiring compact, high‑efficiency DIN‑rail power supplies
FAQ
Q: Can this power supply operate on both 120 V and 230 V AC mains? A: Yes. Its universal 85–264 VAC input range supports global voltage standards.
Q: Does the unit require derating at higher temperatures? A: The SolaHD design minimizes derating requirements, supporting stable output across typical industrial environments.
Q: Is this model compatible with SolaHD DC‑UPS modules? A: Yes. It can be paired with SolaHD UPS units for backup power applications.
