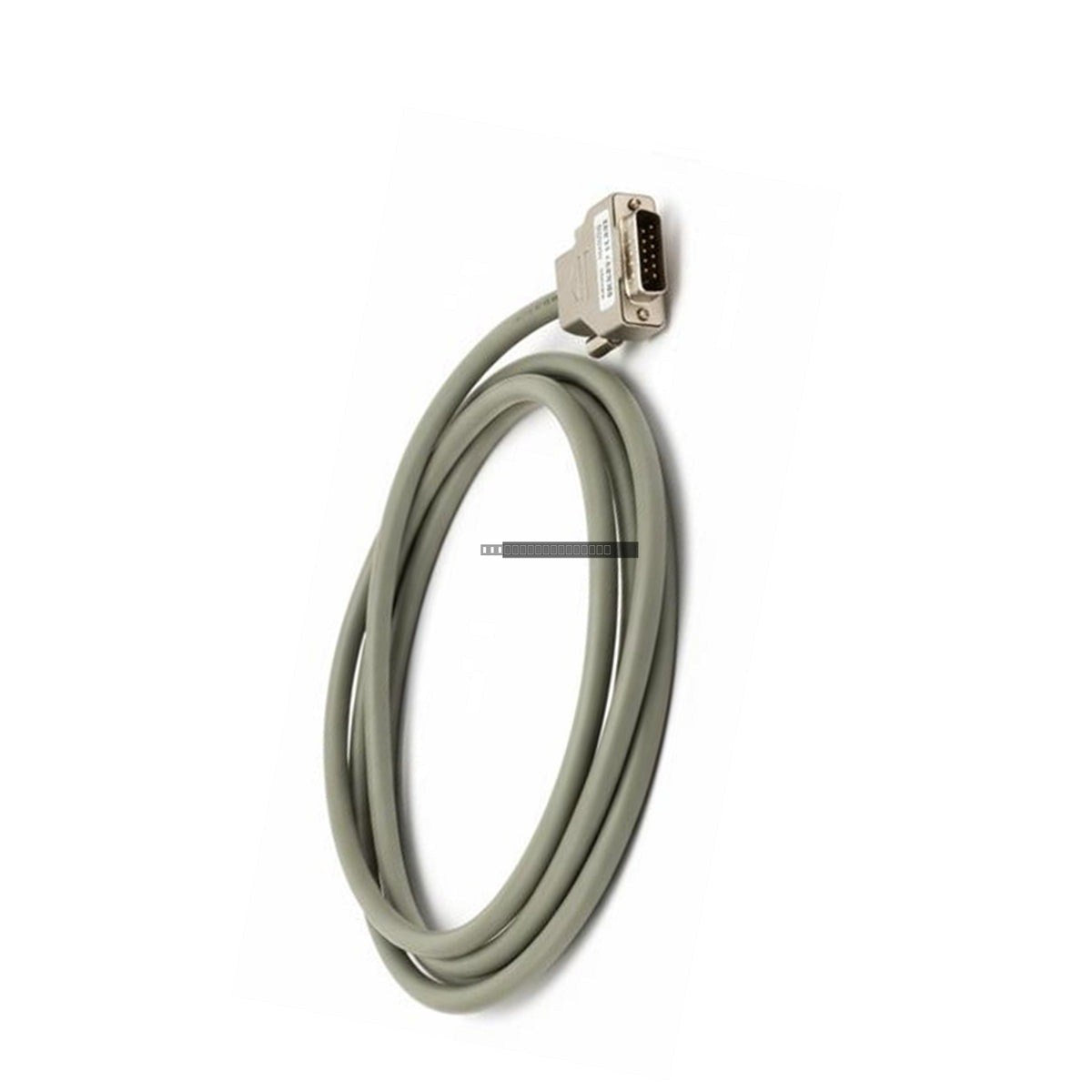

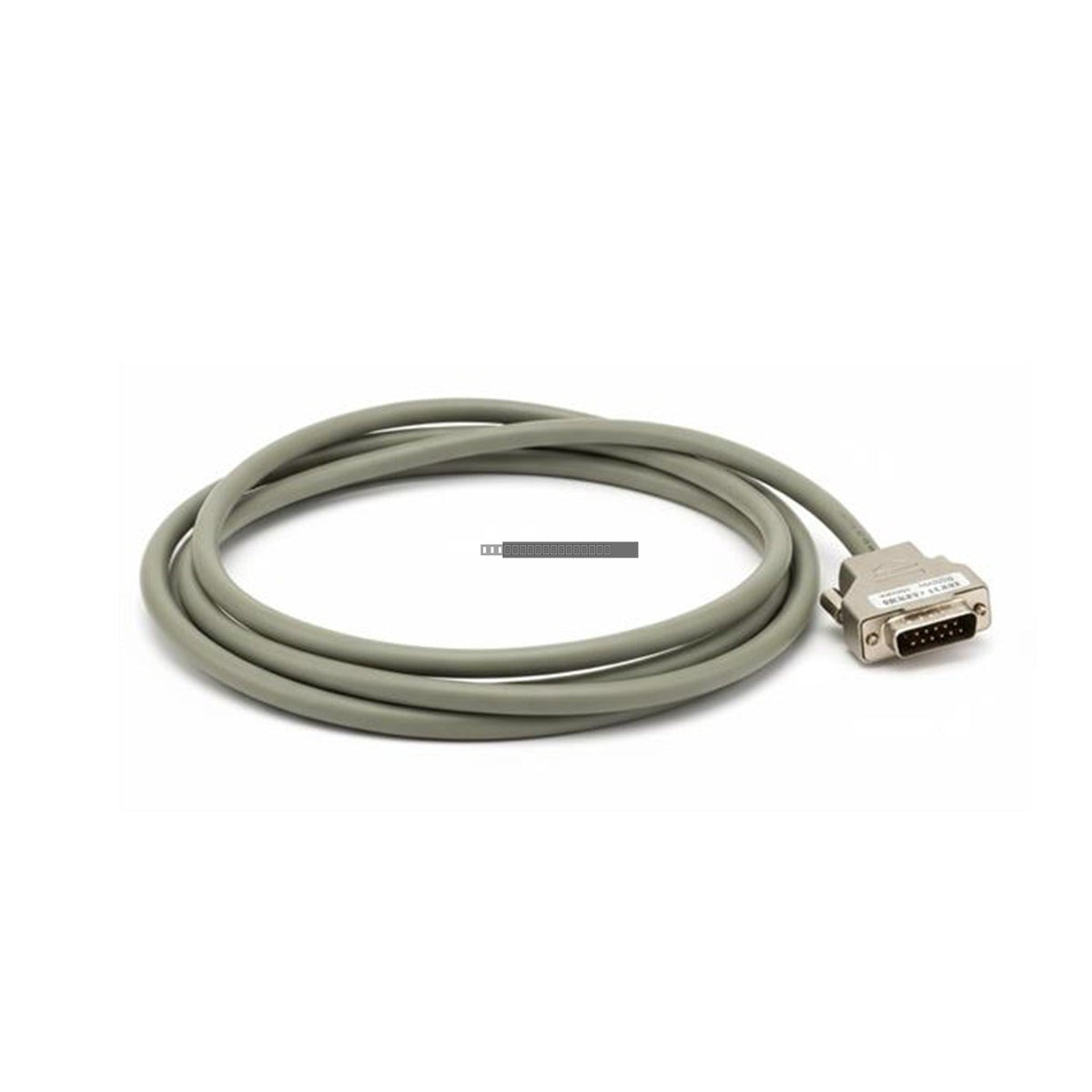

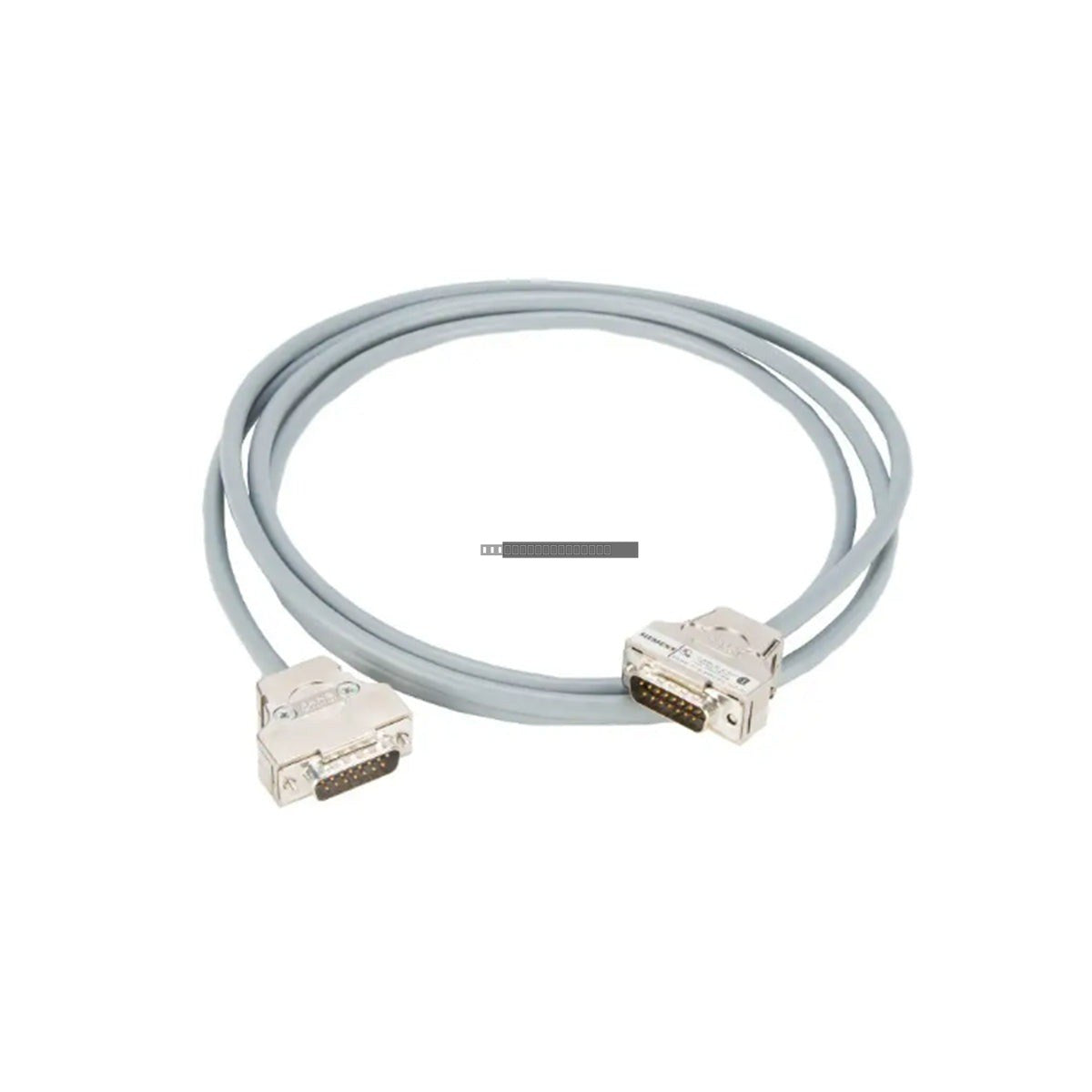

The Siemens 6ES5712-8BC50 is a 2.5-meter interconnecting cable designed for bridging IM 316 interface modules within Siemens Simatic S5 expansion racks. This cable facilitates high-speed parallel backplane signal transmission between central racks and expansion frames, ensuring reliable communication in multi-tier S5 chassis configurations. It is engineered to maintain signal integrity and minimize latency in demanding industrial environments such as chemical processing, water treatment, and continuous manufacturing lines.
Features
- Designed specifically for IM 316 to IM 316 interface module connectivity.
- High-grade multi-conductor shielding to protect against electromagnetic interference (EMI).
- Robust multi-pin connectors with mechanical locking screws for secure, vibration-resistant coupling.
- Pre-assembled construction ensures impedance matching and signal synchronization.
- Passive design requiring no external power supply.
Applications
This cable is essential for expanding I/O density in Siemens Simatic S5 systems. It is primarily used to connect expansion racks to the central controller rack, maintaining deterministic I/O updates and data frame integrity across distributed chassis setups.
Technical Specifications
| Model |
6ES5712-8BC50 |
| Brand |
Siemens |
| Cable Length |
2.5 m |
| Compatibility |
IM 316 to IM 316 |
| Operating Temperature |
-20 to 60 deg C |
| Power Consumption |
0.0 W (Passive) |
Installation Guidelines
- Ensure the system is powered down before connecting or disconnecting the cable to prevent electrical surges or data corruption.
- Align the multi-pin connectors carefully with the IM 316 interface ports to avoid pin damage.
- Tighten the mechanical locking screws securely to maintain a vibration-proof connection.
- Route the cable away from high-voltage power lines and heavy EMI sources to prevent signal degradation.
- Ensure the cable is not subjected to sharp bends or excessive tensile stress during installation.
FAQ
Is this cable compatible with other S5 interface modules?
No, this cable is specifically designed for the IM 316 interface module architecture.
Does this cable require external power?
No, the 6ES5712-8BC50 is a passive interconnecting cable and does not consume power.
Can this cable be used in high-vibration environments?
Yes, the cable features robust mechanical locking screws designed to prevent accidental disconnection in industrial settings.
