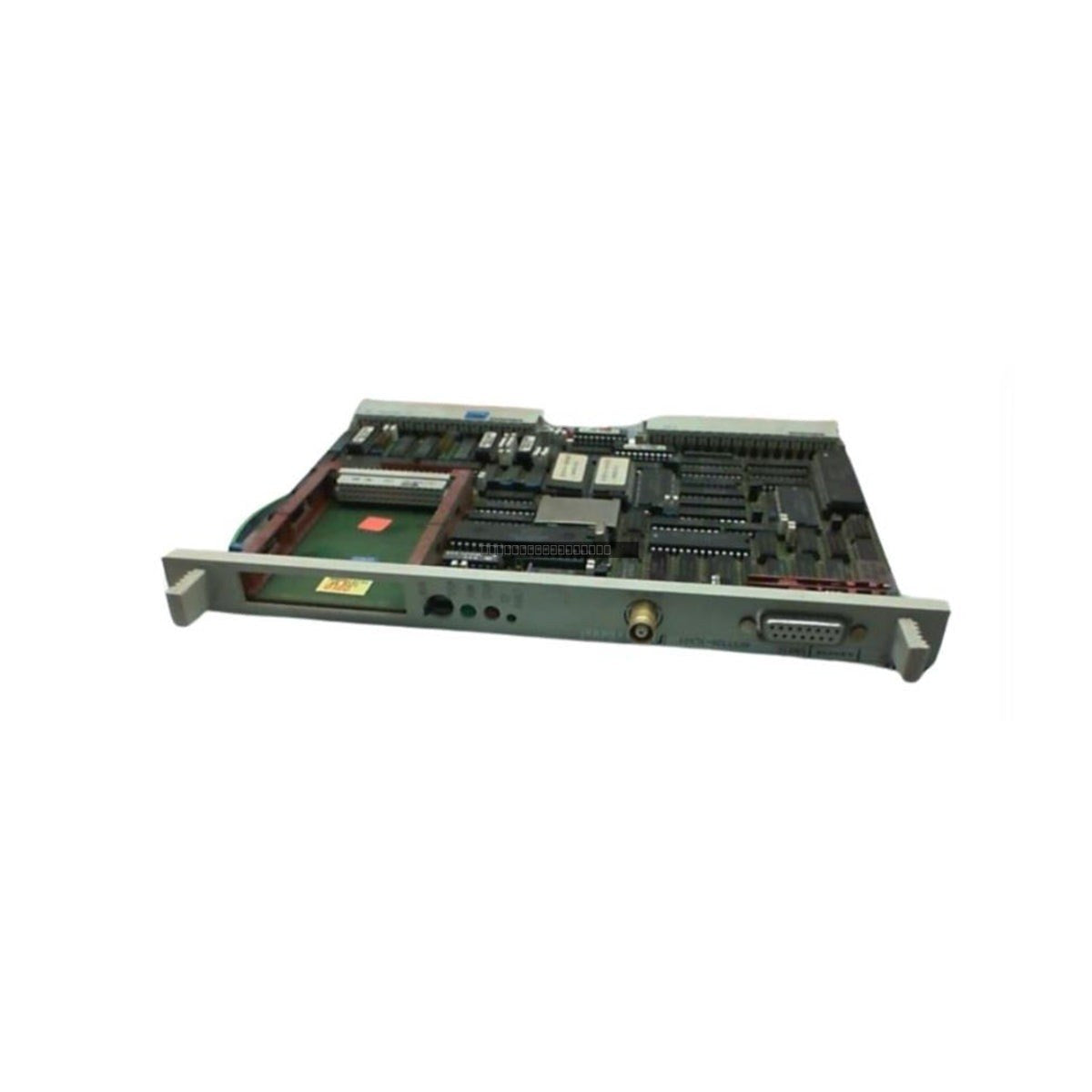

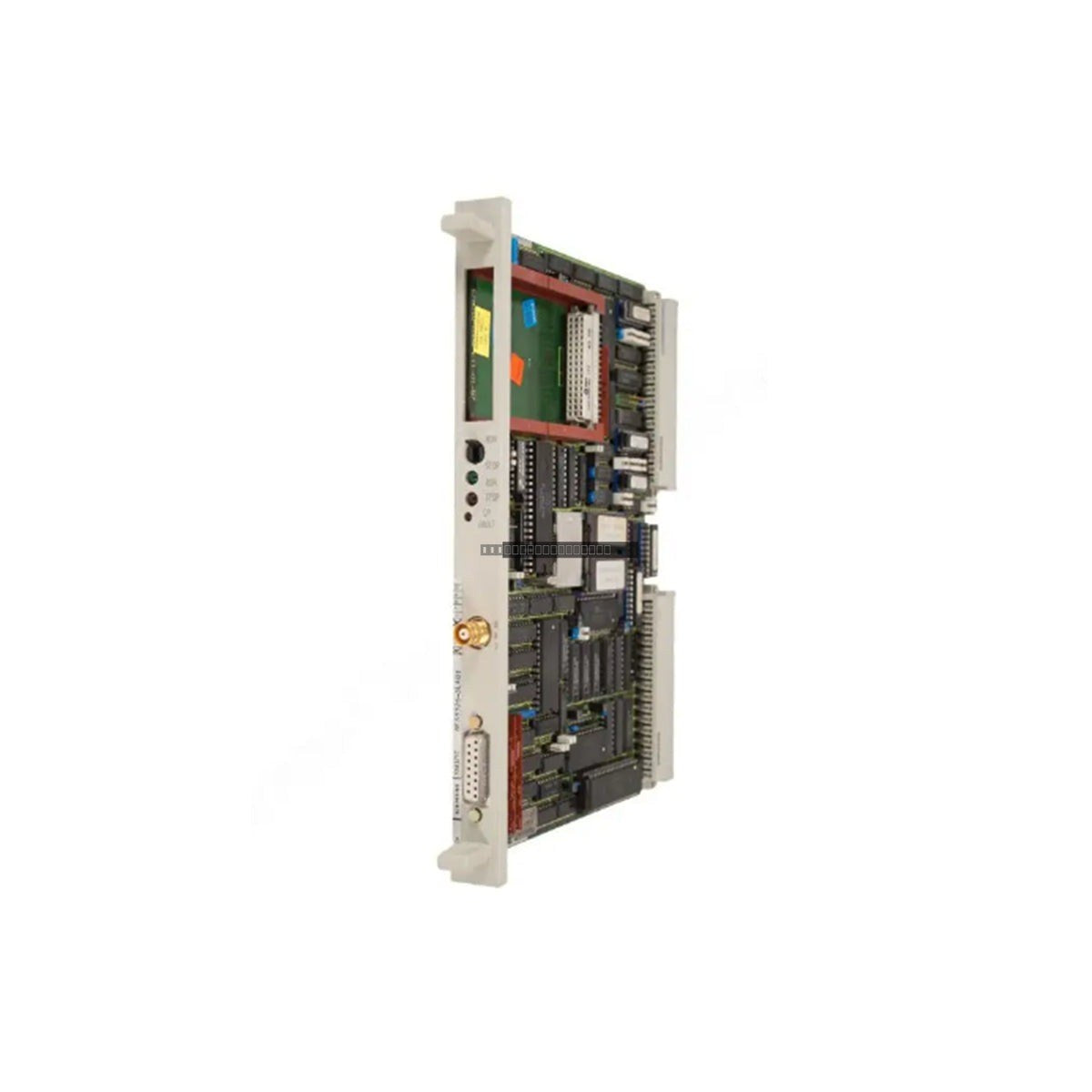

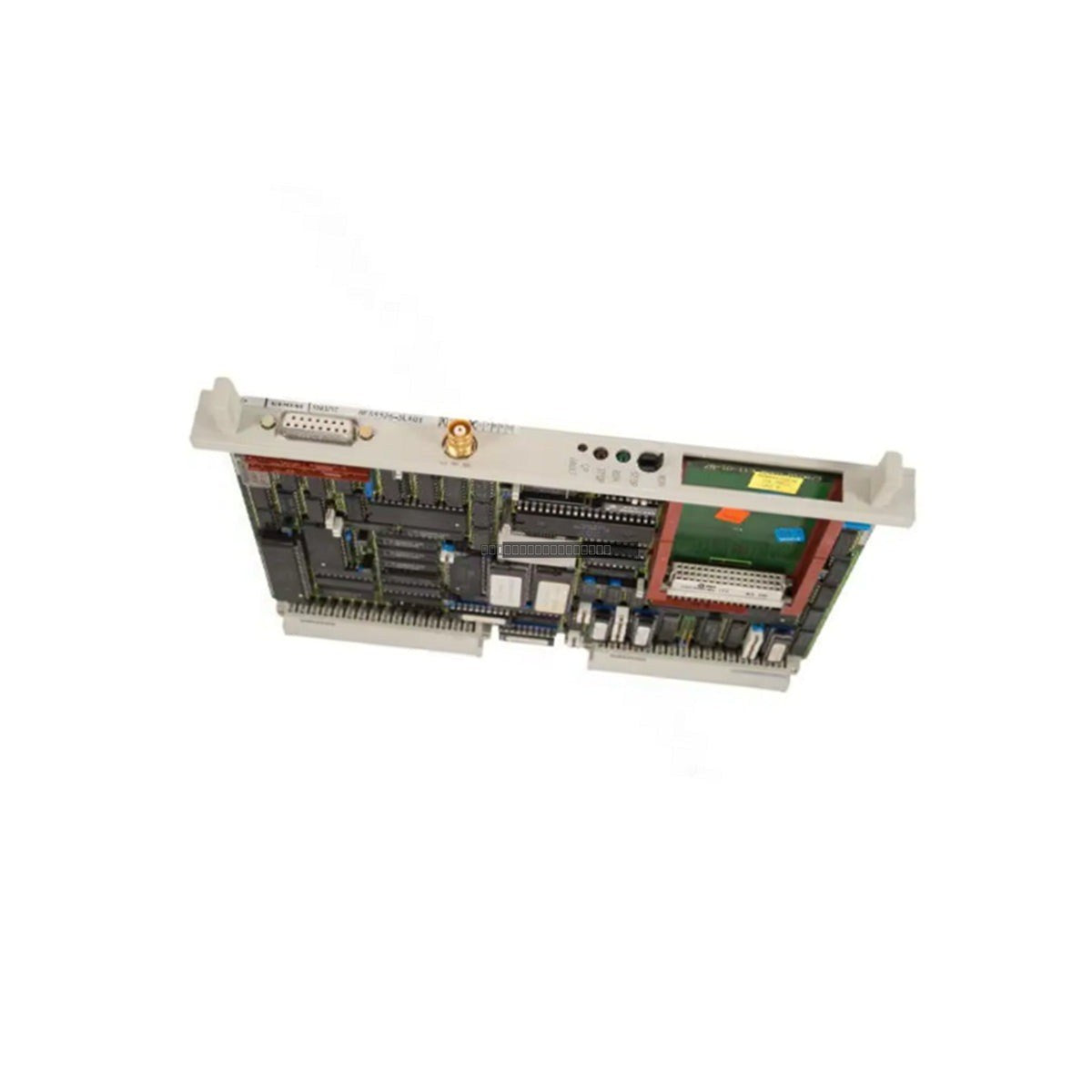

The Siemens Simatic S5 6ES5526-3LA01 is a high-performance CP 526 communications processor engineered to interface monochrome monitors with legacy Simatic S5 automation systems. This specialized module provides dedicated graphic processing and memory allocation, offloading display rendering tasks from the central processing unit to ensure efficient system performance. It is widely utilized in industrial environments such as metal processing mills, mining operations, and maritime propulsion control systems for real-time process visualization and alarm logging.
Features
- Dedicated graphic processing for monochrome display units.
- Onboard memory support for screen text, character sets, and static background forms.
- Direct Simatic S5 backplane bus interface via parallel register mapping.
- High-reliability signal transmission designed to resist electromagnetic interference.
- Optimized for continuous operation in demanding industrial environments.
Technical Specifications
| Model |
6ES5526-3LA01 |
| Brand |
Siemens |
| Product Range |
Simatic S5 |
| Module Type |
CP 526 Communications Processor |
| Display Compatibility |
Monochrome Monitors |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
5 VDC (1.8 A nominal) |
| Relative Humidity |
5 to 95 percent (non-condensing) |
Installation Guidelines
- Ensure the rack is equipped with functional forced ventilation units, as this module generates significant thermal output from high-density logic components.
- Always power down the S5 rack before inserting or removing the CP 526 module to prevent electrical damage to the backplane or module pins.
- Handle the module by the edges; avoid touching the PCB components to prevent ESD damage.
- Ensure the module is fully seated in the backplane slot and secured with the provided locking mechanisms.
- Verify that all signal cables are properly shielded and routed away from high-voltage power lines to maintain signal integrity.
FAQ
Is this module compatible with color monitors?
No, the 6ES5526-3LA01 is specifically designed for monochrome monitor interfaces only.
What is the primary function of the CP 526?
The CP 526 serves as a communications processor that offloads graphic rendering and display management tasks from the main S5 CPU, allowing for efficient visualization of process data and alarms.
Is this part still in production?
No, this module was discontinued by the manufacturer on January 10, 2004. We provide these units as tested, functional spares to support legacy system maintenance.
