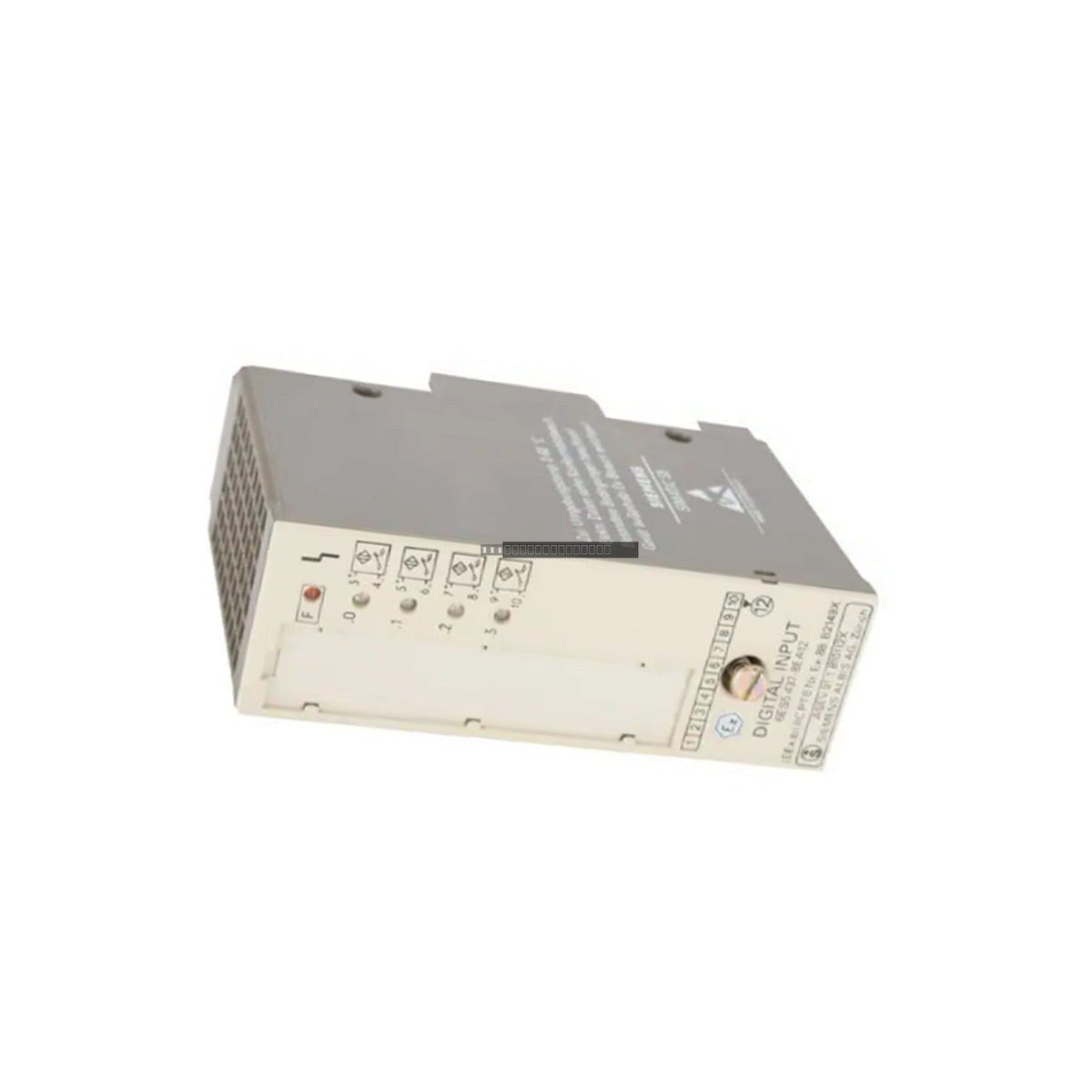

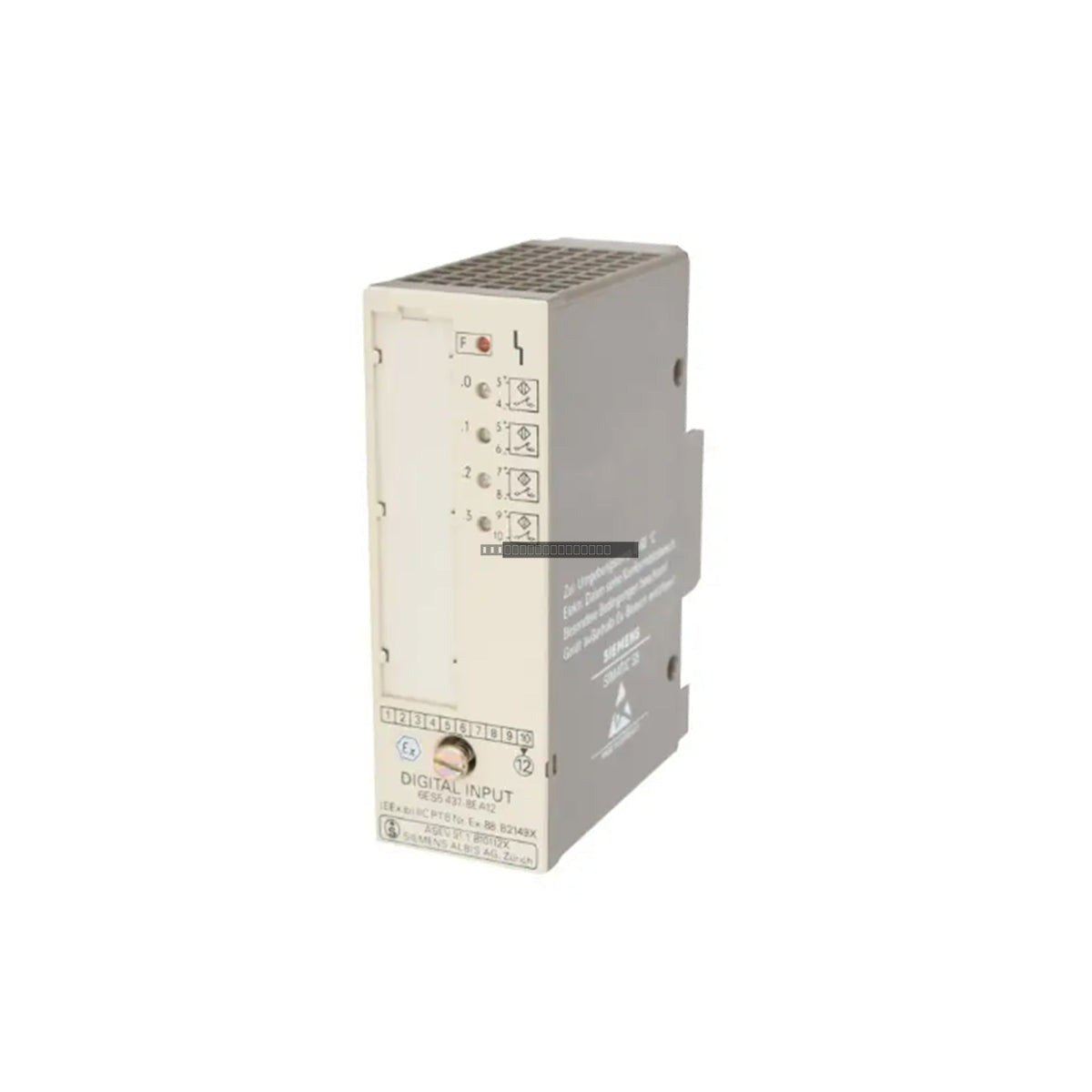

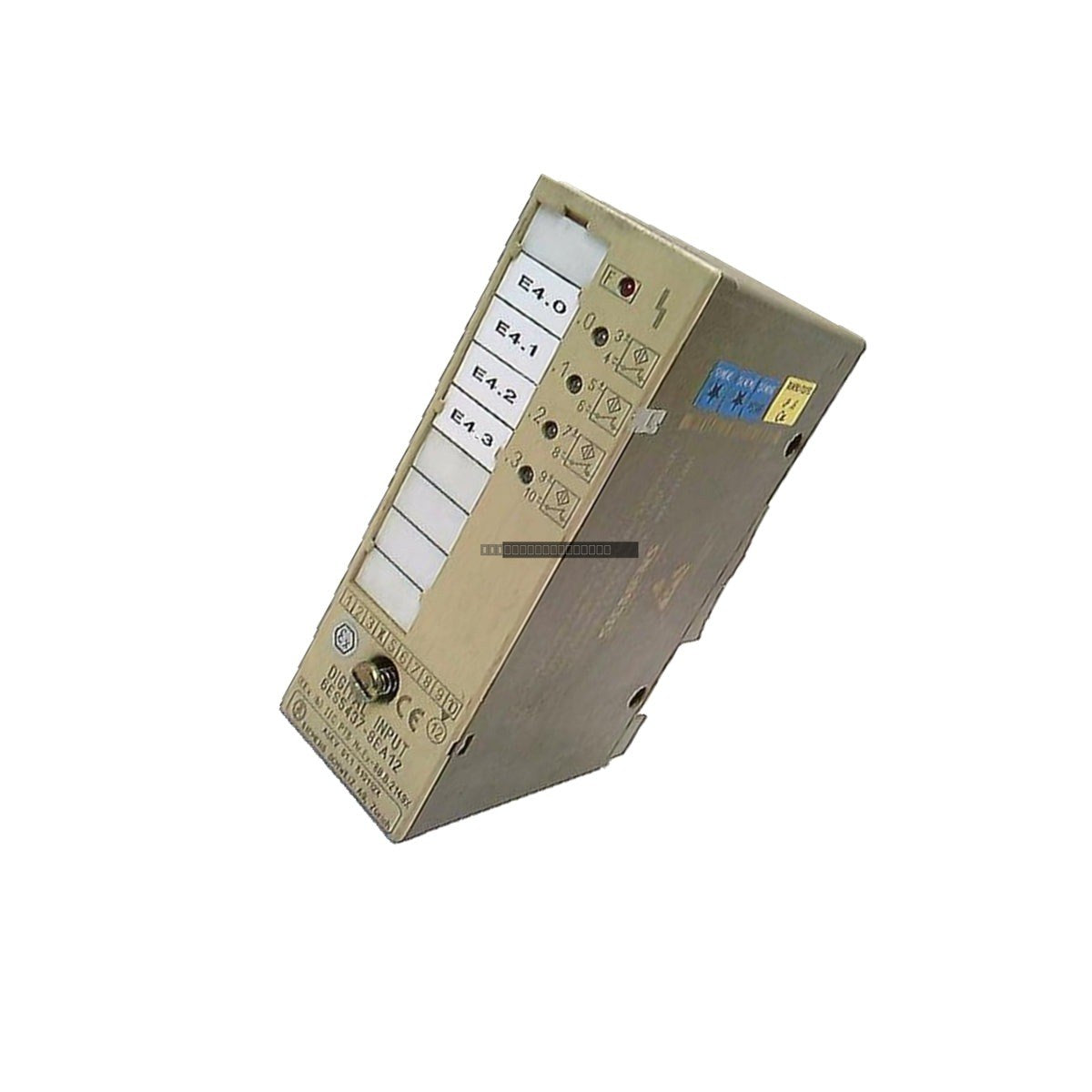

The Siemens 6ES5437-8EA12 is a dedicated digital input module designed for integration with the Simatic S5-090, S5-095, and S5-100U programmable logic controller systems. This module provides 4 discrete input channels, enabling the PLC to interface with field-level devices such as proximity switches, limit switches, and mechanical pushbuttons. Engineered for robust performance in industrial environments, this unit facilitates reliable signal acquisition and synchronization with the CPU scan cycle, supporting consistent operation in automation applications.
Features
-
Channel Density: 4 discrete input channels for standard binary signal acquisition.
-
Electrical Isolation: Integrated optocouplers provide galvanic isolation between field-side signals and the internal CPU backplane, protecting sensitive logic components from voltage spikes and ground loops.
-
Signal Conditioning: Built-in passive RC filtering stages effectively suppress contact bounce from electromechanical field devices, ensuring clean and reliable state detection.
-
System Compatibility: Designed specifically for the S5-090/095/100U rack architecture, ensuring seamless mechanical and electrical integration.
Applications
This module is suitable for various industrial automation tasks, including:
- Process control and monitoring in refinery and power generation facilities.
- Machine status monitoring in mining and heavy equipment sectors.
- General-purpose digital signal acquisition for legacy Simatic S5 control systems.
Technical Specifications
| Model |
6ES5437-8EA12 |
| Brand |
Siemens |
| Product Family |
Simatic S5 |
| Module Type |
Digital Input Module |
| Number of Inputs |
4 |
| Power Consumption |
1.0 W (typical) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the S5 backplane slot to ensure reliable communication with the CPU.
- Route field wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
- Ensure adequate ventilation around the PLC rack to maintain operating temperatures within the specified 0-60 deg C range.
- Use shielded cabling for field inputs where long cable runs are required or in high-noise environments.
FAQ
Is this module compatible with S5-115U systems?
No, this module is specifically designed for the S5-090, S5-095, and S5-100U product families. It is not intended for use in S5-115U or larger rack systems.
Does this module require external power for the inputs?
The module typically draws its internal logic power from the backplane; however, field sensors must be powered according to the specific voltage requirements of the input circuit as defined in the technical documentation for the 6ES5437-8EA12.
