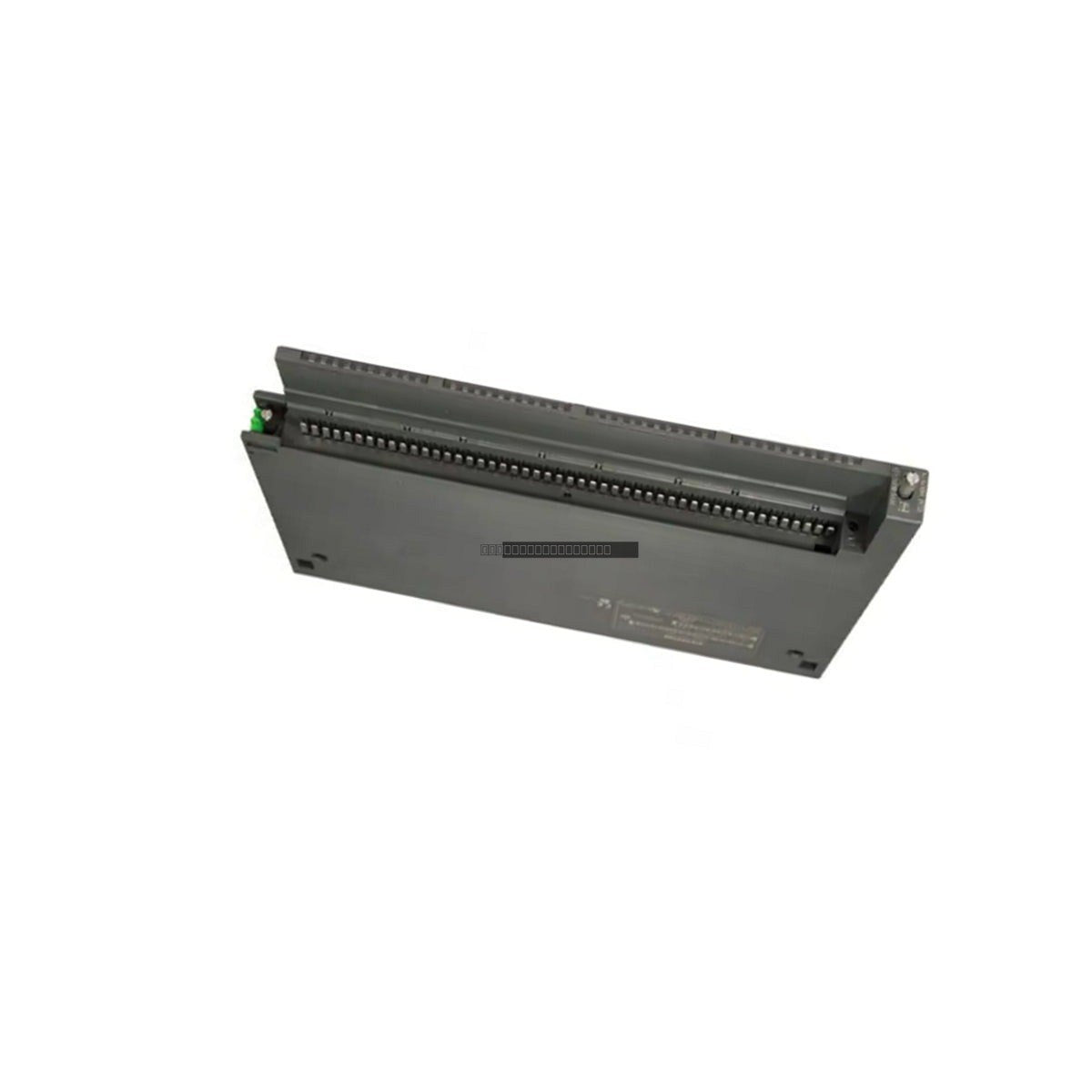

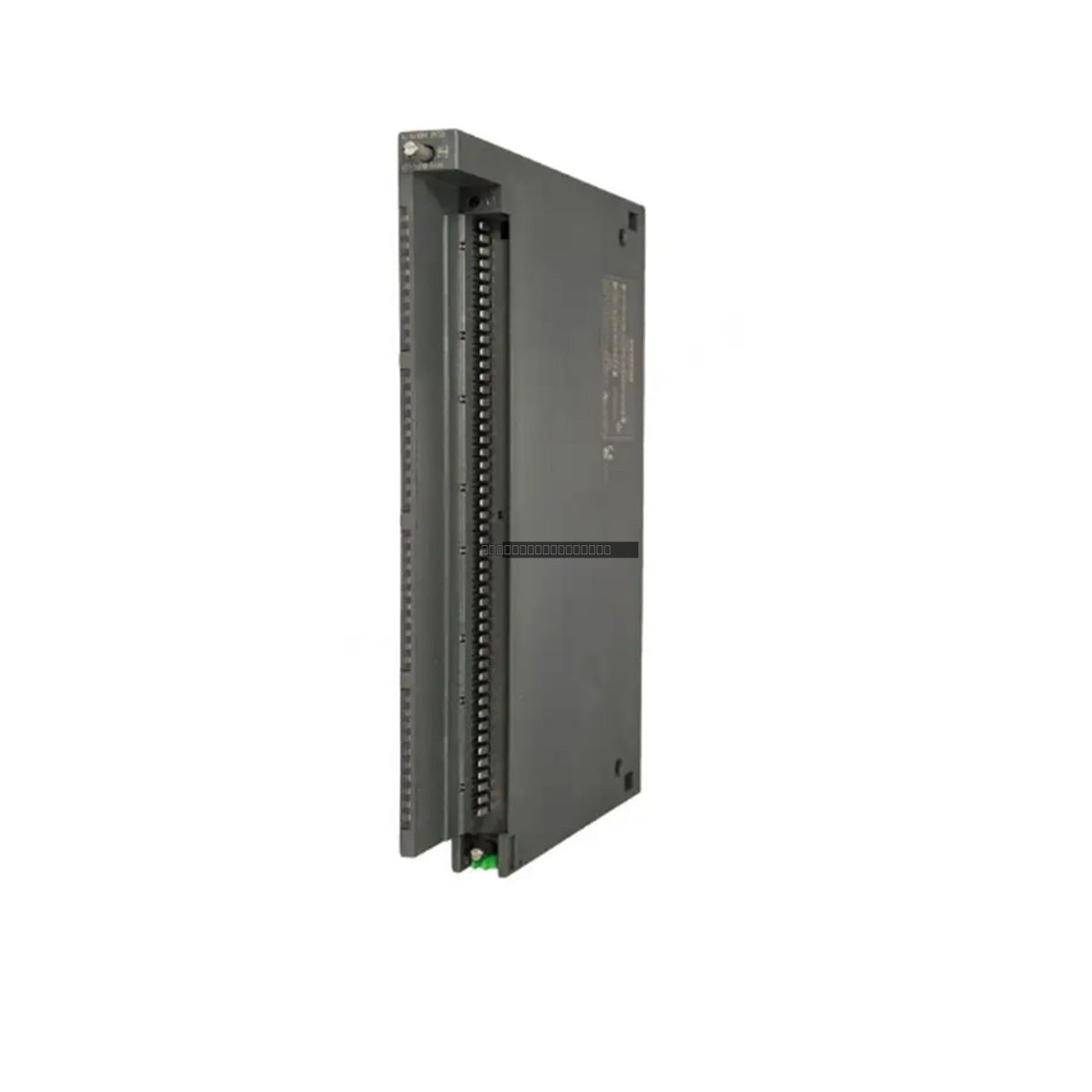

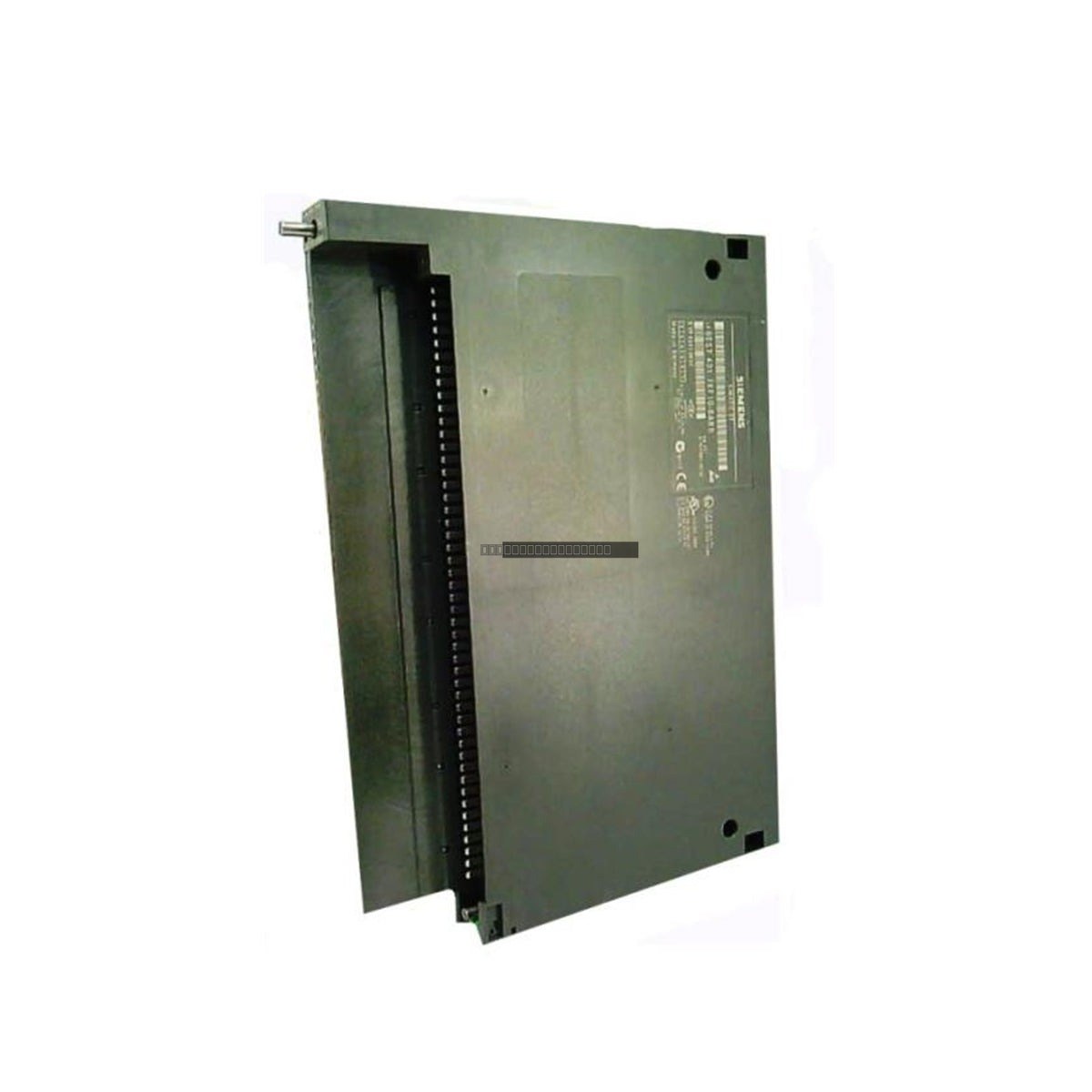

The Siemens 6ES7431-7KF10-0AB0 is a high-performance analog input module designed for the SIMATIC S7-400 automation system. This SM 431 module provides 8 channels of analog input specifically optimized for temperature measurement using resistance temperature detectors (RTDs). It supports various sensor types, including PT100 and NI100, and features high-precision 16-bit resolution to ensure accurate process data acquisition in industrial environments.
Features
- 8 analog input channels for RTD measurement.
- Supports PT100 and NI100 sensor types.
- 16-bit resolution for high-accuracy signal processing.
- Integrated diagnostic functions for system monitoring.
- Alarm signaling capabilities to support rapid fault detection.
- Optical isolation to protect against electrical interference.
- Fast module update cycle of 20 ms.
Applications
This module is ideal for industrial control applications requiring precise temperature monitoring within an S7-400 rack-based PLC system. It is commonly utilized in HVAC, process engineering, and thermal management systems where reliable, isolated analog input data is critical for operational safety and efficiency.
Technical Specifications
| Model |
6ES7431-7KF10-0AB0 |
| Manufacturer |
Siemens |
| Series |
SIMATIC S7-400 |
| Module Type |
Analog Input (RTD) |
| Channels |
8 |
| Resolution |
16-bit |
| Update Rate |
20 ms |
| Isolation |
Optically isolated |
| Diagnostic/Alarm |
Supported |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Mount the module securely in the designated S7-400 slot and confirm that the backplane connector is fully seated.
- Use shielded cables for all analog input signals to minimize the impact of electromagnetic interference (EMI).
- Ensure proper grounding of the cable shields at the control cabinet entry point.
- Maintain adequate ventilation within the cabinet to stay within the module's operating temperature limits.
FAQ
Is the 6ES7431-7KF10-0AB0 compatible with other S7 series? No, this module is specifically engineered for the SIMATIC S7-400 backplane architecture.
Does this module require external power? The module is powered via the S7-400 rack backplane; however, ensure your power supply module is sized correctly for the total current draw of all installed modules.
