Description

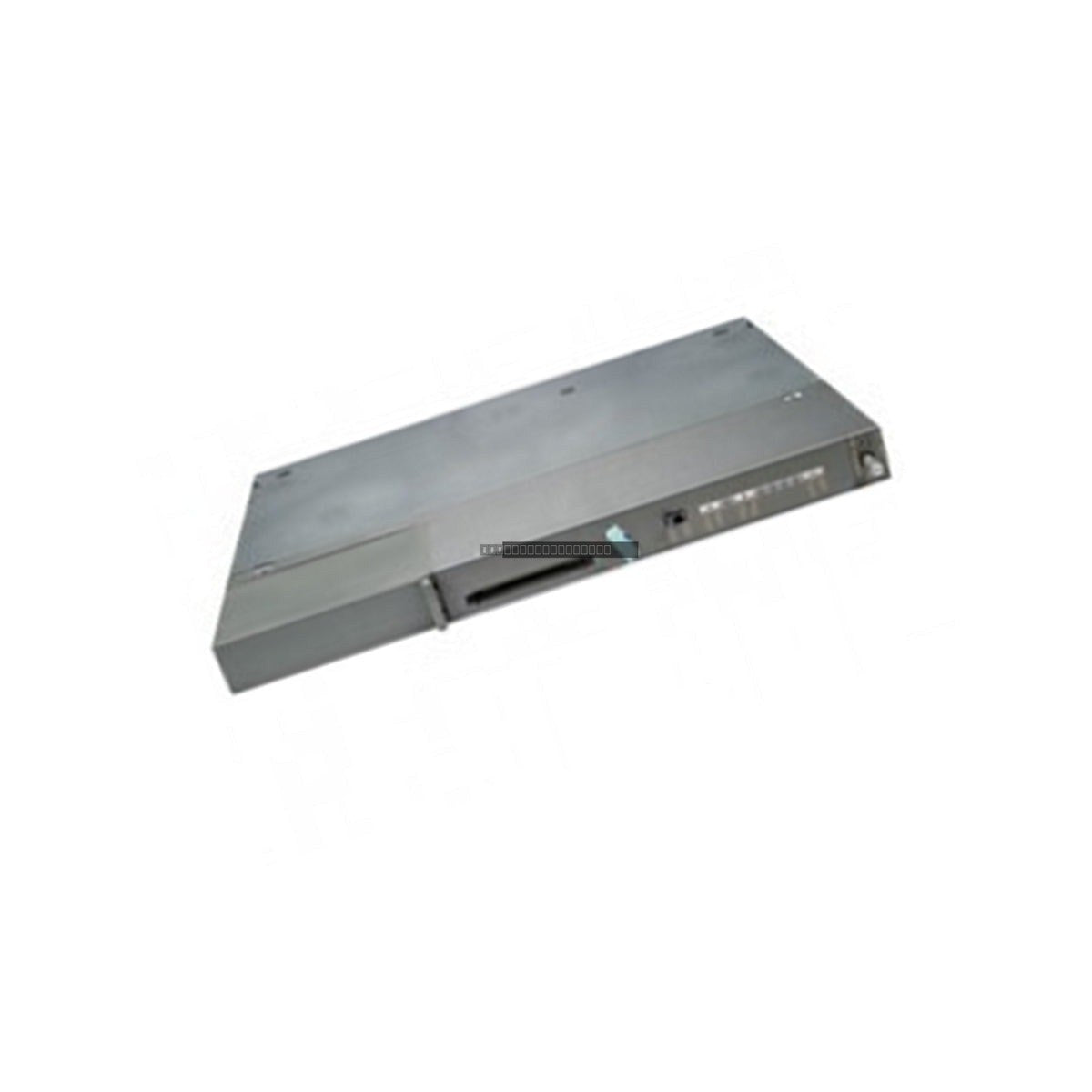

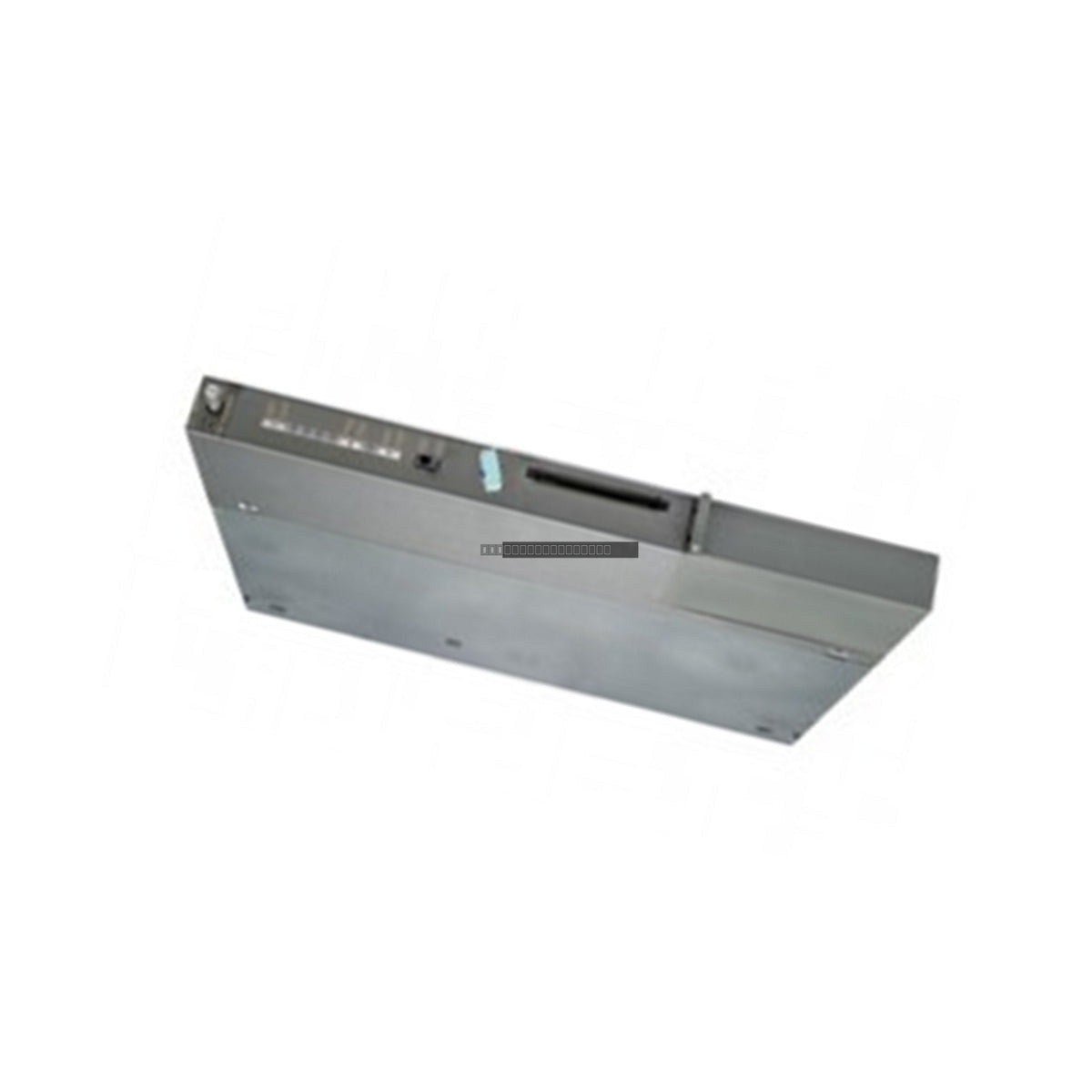

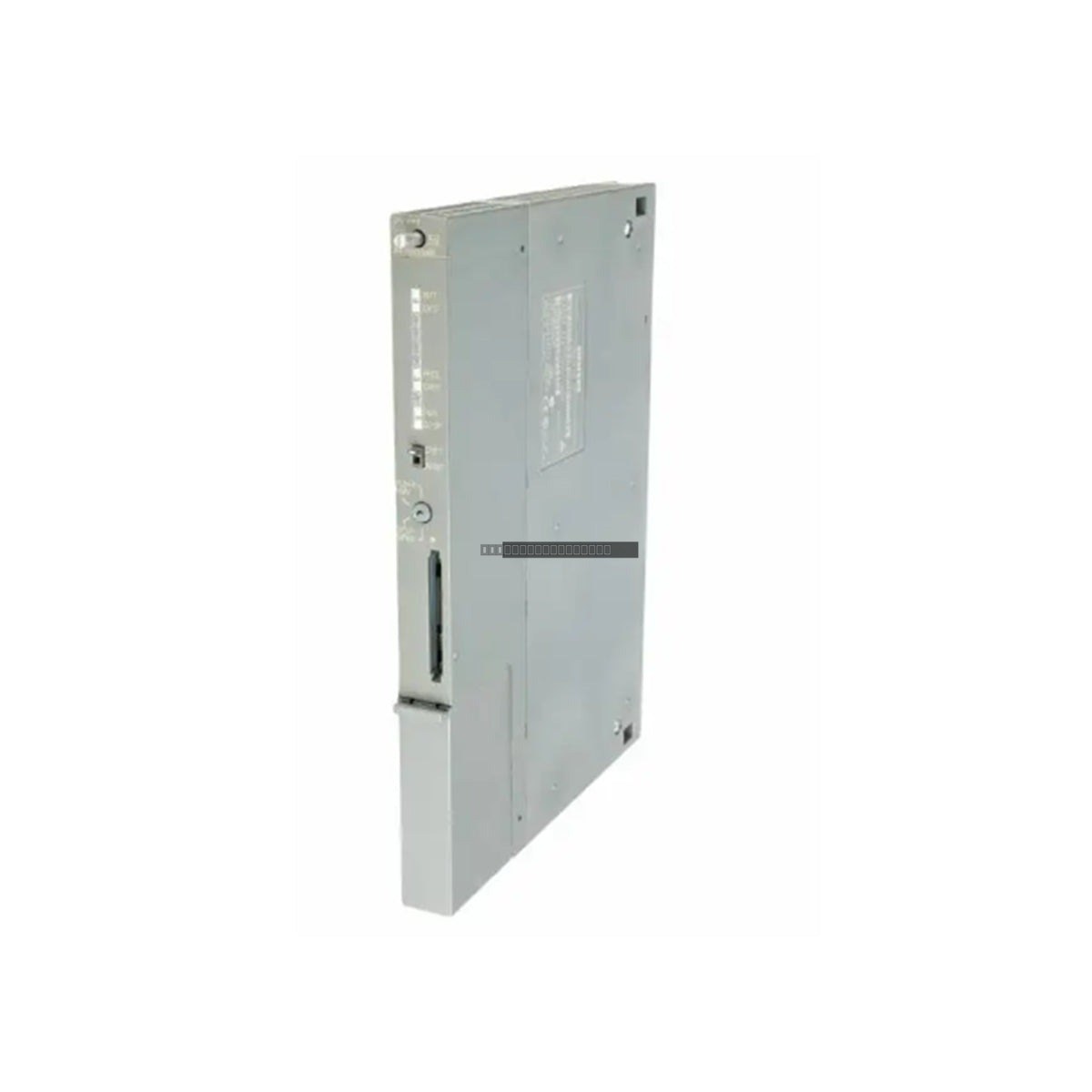

The Siemens 6ES7414-1XG02-0AB0 is a central processing unit designed for the SIMATIC S7-400 automation system. This processor module serves as a core component for industrial control applications, providing reliable logic execution and system management. Please note that this specific model was discontinued by the manufacturer as of January 2012.
Features
- Integrated MPI (Multi-Point Interface) for communication and programming tasks.
- Equipped with 128 KB of internal working memory for user programs and data.
- Engineered for integration within the robust S7-400 rack-based modular architecture.
- Designed for demanding industrial environments requiring stable PLC performance.
Applications
This CPU module is primarily utilized in large-scale automation projects, including process control, manufacturing lines, and infrastructure management systems where the S7-400 platform is deployed. It is typically used for retrofitting existing systems or as a replacement unit for legacy installations.
Technical Specifications
| Product Model |
6ES7414-1XG02-0AB0 |
| Manufacturer |
Siemens |
| Series |
SIMATIC S7-400 |
| Interface |
MPI (Multi-Point Interface) |
| Working Memory |
128 KB |
| Status |
Discontinued (Effective 01/10/12) |
Installation Guidelines
- Ensure the power supply is disconnected from the S7-400 rack before attempting to install or remove the CPU module.
- Handle the module by its edges to prevent electrostatic discharge (ESD) damage to the internal circuitry.
- Verify that the module is correctly seated in the backplane connector before powering the system.
- Maintain proper ventilation in the control cabinet to prevent overheating, ensuring clear airflow around the rack.
- Use shielded cables for MPI communication to minimize electromagnetic interference (EMI) in high-noise industrial environments.
FAQ
Is this CPU still supported by Siemens? No, this model is officially discontinued. Support is generally limited to legacy system maintenance and third-party spare parts providers.
Can this module replace a 6ES7414-1XG00? Compatibility depends on the specific hardware revision and software configuration of your existing system. Consult your original project documentation or migration manuals before attempting a direct swap.
