Description

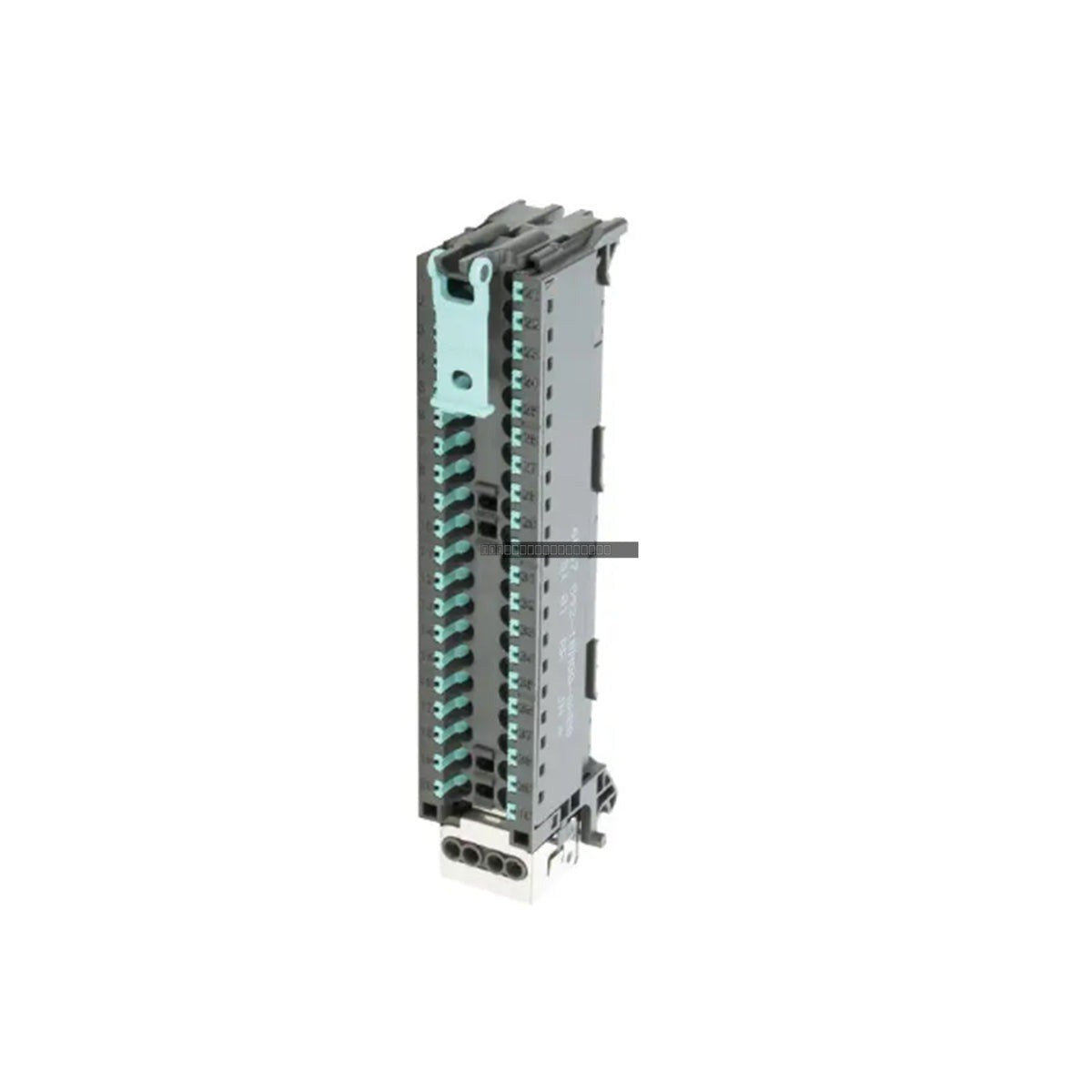

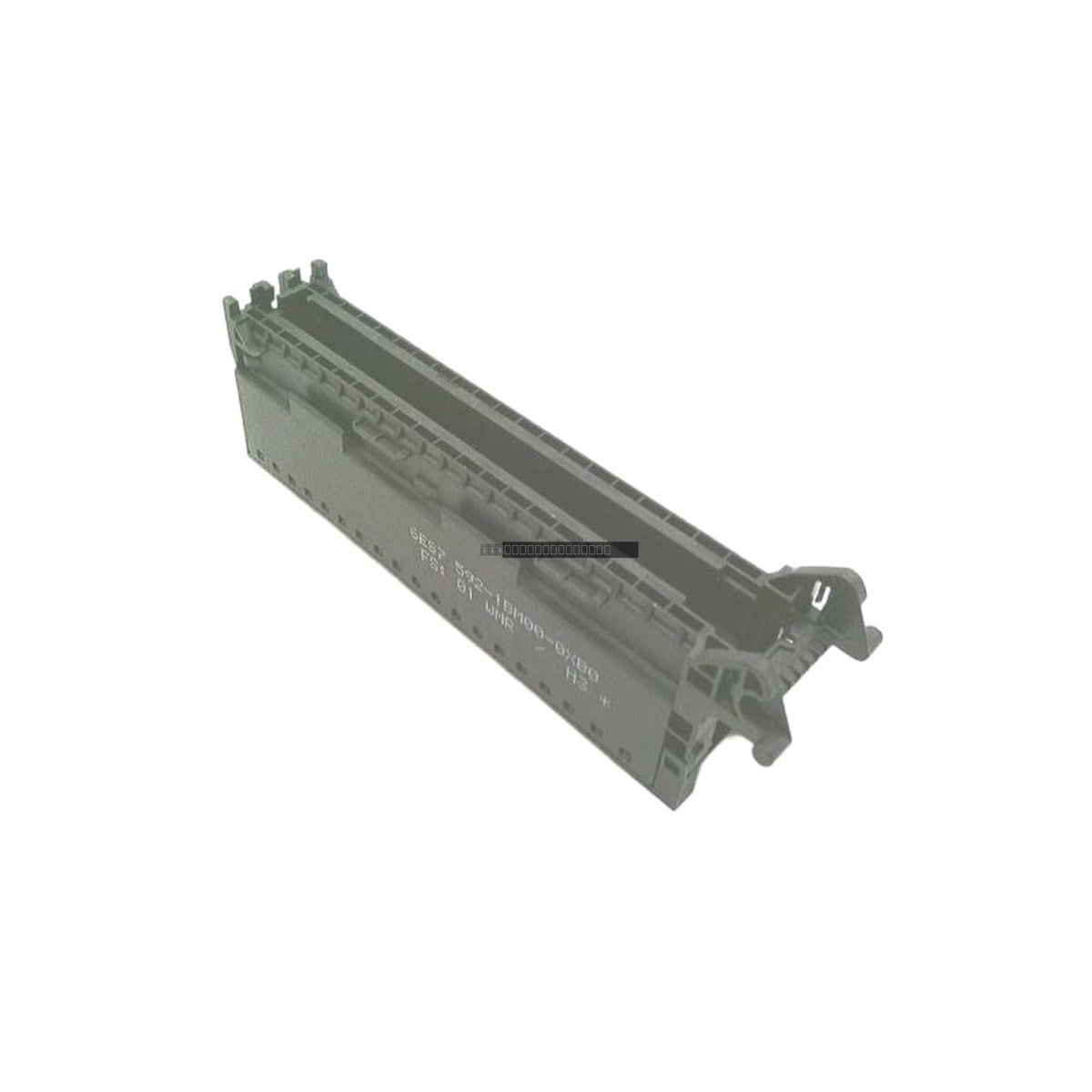

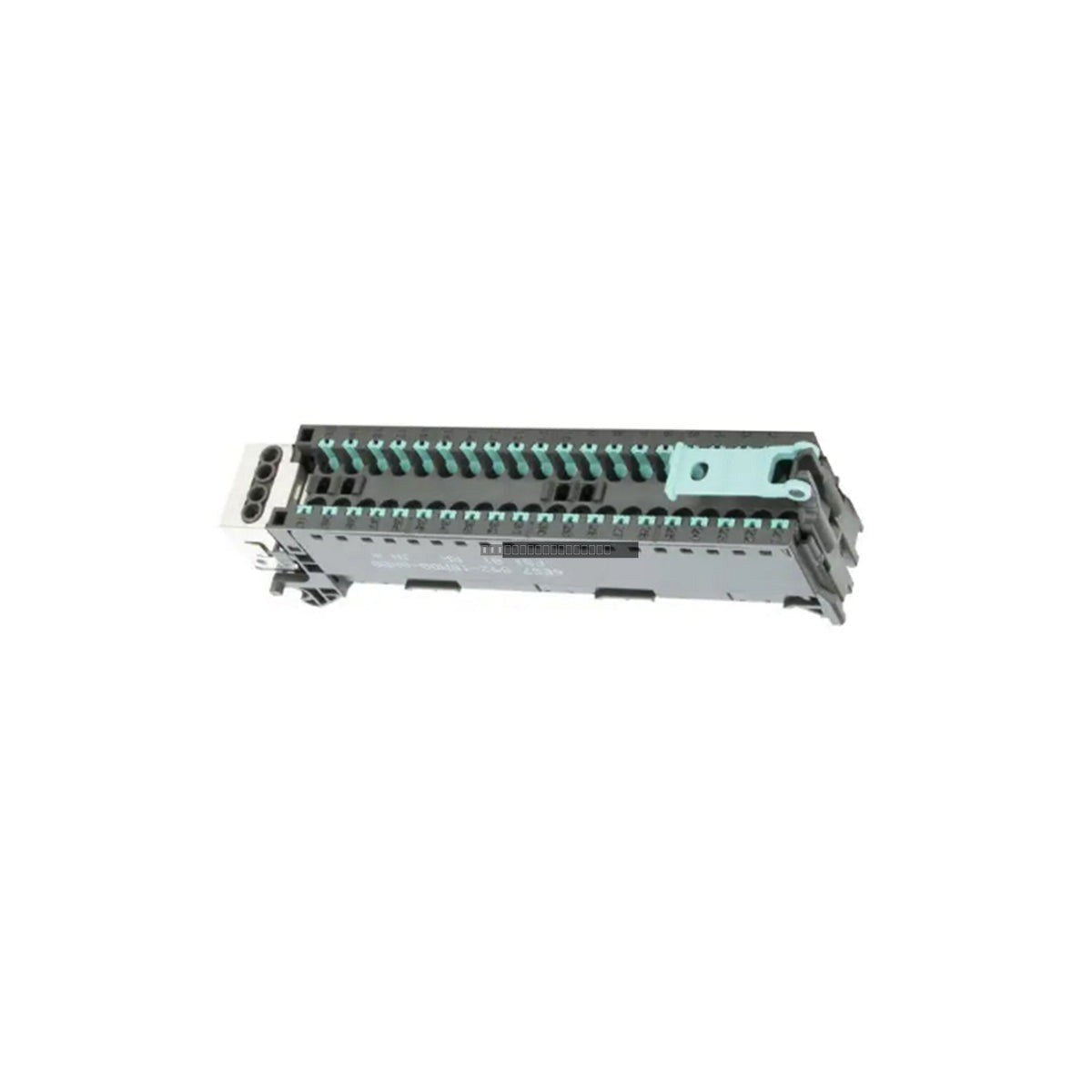

The Siemens 6ES7592-1BM00-0XB0 is a 40-pole front connector designed for the Simatic S7-1500 automation system. This component utilizes advanced push-in technology to facilitate rapid, tool-free wiring of signal modules. Engineered for high-density I/O configurations, it ensures reliable electrical contact in demanding industrial environments, including power generation, manufacturing, and process control facilities. The connector is specifically optimized for 35 mm wide S7-1500 modules, providing a secure, vibration-resistant interface that simplifies both initial system commissioning and ongoing maintenance.
Features
- 40-pole design for high-density signal module connectivity.
- Tool-free push-in terminal technology for efficient conductor termination.
- Supports solid and ferruled stranded conductors (0.25 mm² to 1.5 mm²).
- Integrated strain relief slots for secure cable management using included ties.
- Includes four potential bridges for simplified power distribution.
- Vibration-resistant contact force ensures long-term signal integrity.
- Fast, latching mechanical connection to the module front face.
Technical Specifications
| Model |
6ES7592-1BM00-0XB0 |
| Series |
Simatic S7-1500 |
| Number of Poles |
40 |
| Connection Technology |
Push-in |
| Conductor Cross Section |
0.25 mm² to 1.5 mm² |
| Stripping Length |
8 mm to 11 mm |
| Module Compatibility |
35 mm wide S7-1500 modules |
| Operating Temperature |
-30 deg C to 60 deg C |
| Included Accessories |
4 potential bridges, cable ties |
Installation Guidelines
- Ensure the signal module is powered down before attempting to attach or remove the front connector.
- Strip conductors to the specified length (8 mm to 11 mm) to ensure proper insertion depth.
- When using ferrules, ensure they comply with DIN 46228 standards for optimal contact.
- Insert the conductor into the terminal until it reaches the mechanical stop; no screwdriver is required for push-in terminals.
- Utilize the integrated cable tie slots to secure field wiring and prevent mechanical strain on the connector pins.
- Verify that the connector is fully latched into the S7-1500 module housing to maintain electrical continuity.
FAQ
Does this connector require special tools for wiring? No, this unit features push-in technology, allowing for tool-free conductor insertion.
Can I use this with any S7-1500 module? This connector is designed for 35 mm wide S7-1500 signal modules. Please verify your specific module's documentation to ensure compatibility.
Are potential bridges included? Yes, the package includes four potential bridges to assist with internal power distribution.
