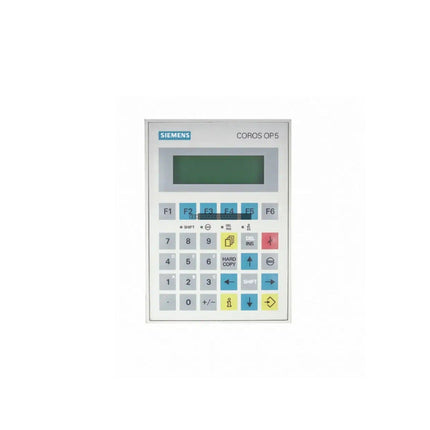

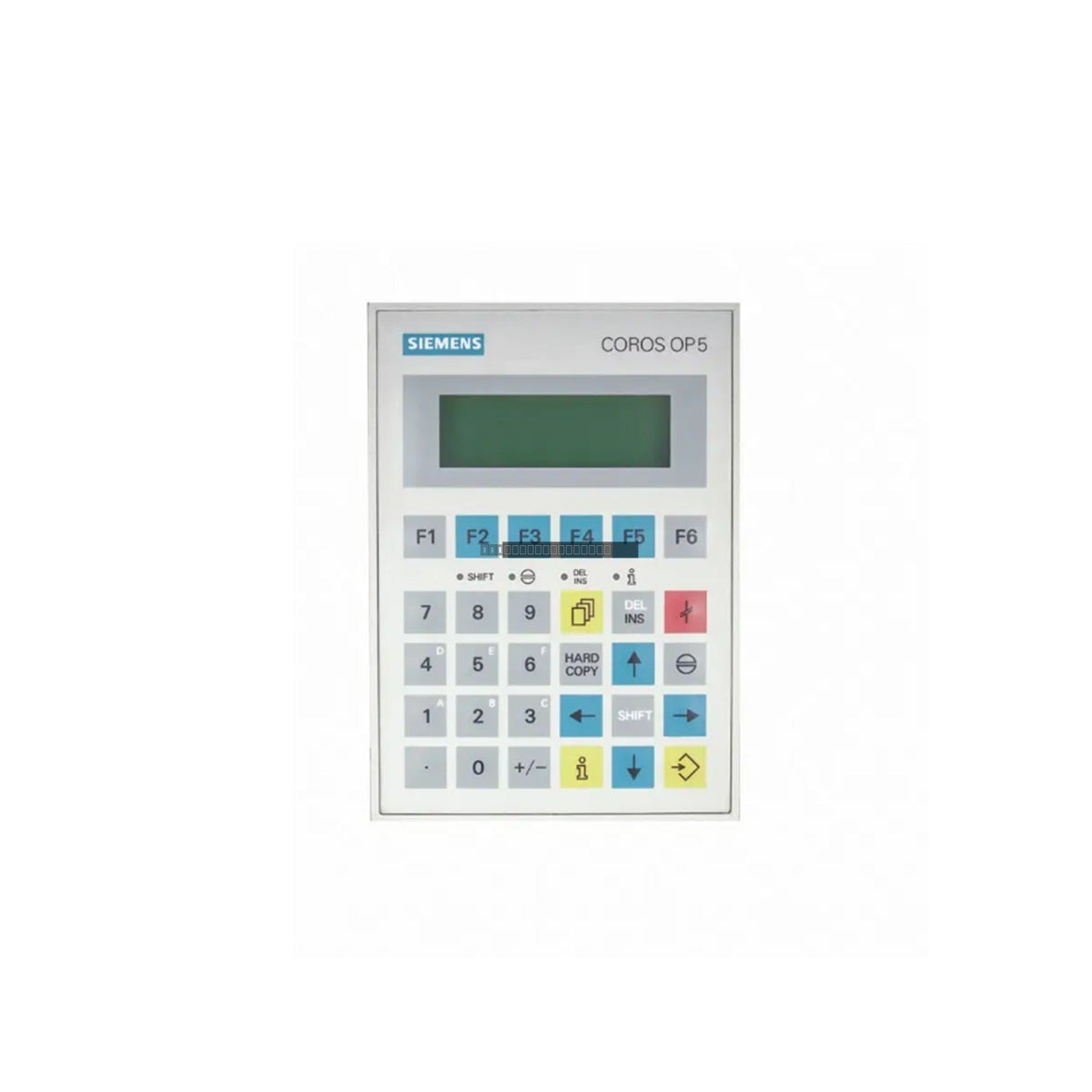

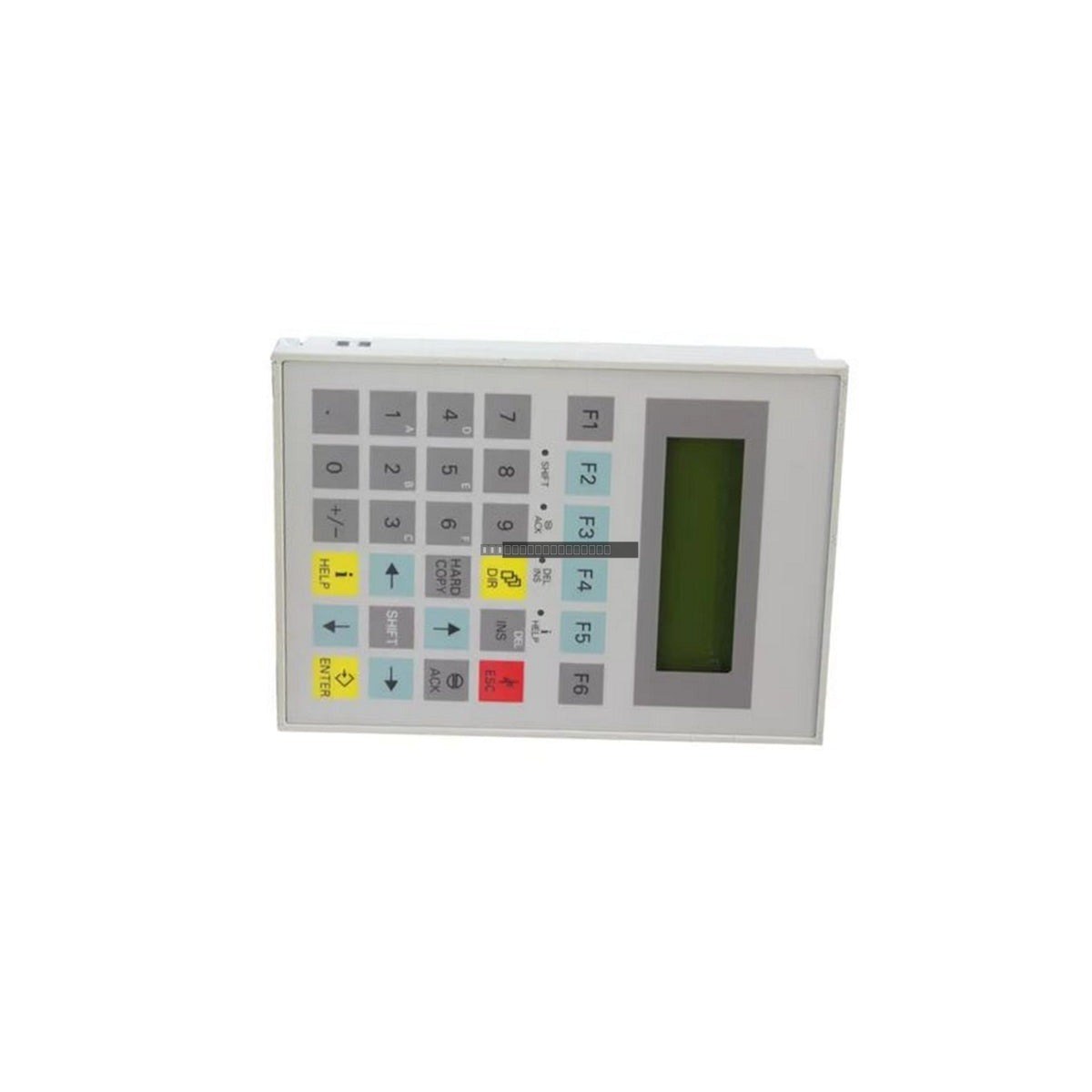

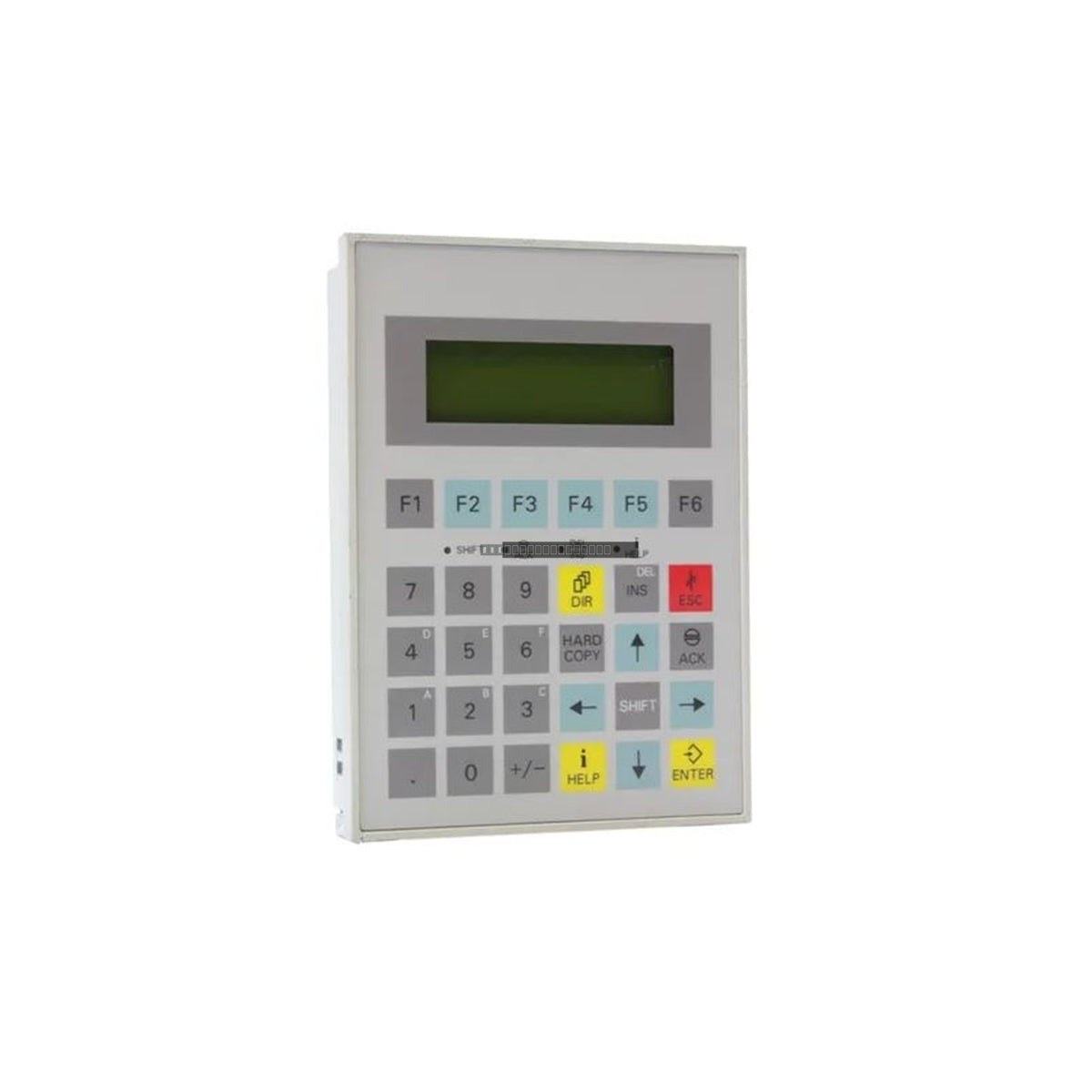

The Siemens 6AV3505-1FB00 is a dedicated operator interface unit designed for integration with legacy Simatic S5 programmable logic controller systems. This panel serves as a critical bridge between the control logic and the plant floor, facilitating real-time process monitoring, alarm management, and parameter configuration in demanding industrial environments.
Features
- High-visibility 4-line by 20-character backlit LC display for clear status reporting.
- Integrated membrane keypad for robust, tactile operator input.
- Supports standard Siemens AS511 communication protocols.
- Versatile serial connectivity including TTY (20 mA current loop), RS-232, and RS-422 interfaces.
- Ruggedized front panel design with IP65 ingress protection rating against dust and moisture.
Applications
This operator panel is widely utilized in legacy automation architectures, including automotive assembly lines, water treatment facilities, and heavy manufacturing plants where reliable, direct interaction with S5-series PLC hardware is required for system maintenance and process control.
Technical Specifications
| Model |
6AV3505-1FB00 |
| Brand |
Siemens Simatic S5 |
| Display |
4-line x 20-character LC display |
| Communication |
TTY (20 mA), RS-232, RS-422 |
| Protocol |
Siemens AS511 |
| Power Supply |
24 VDC |
| Power Consumption |
5.0 W (max) |
| Operating Temperature |
0 to 50 deg C |
| Protection Rating |
IP65 (front) |
Installation Guidelines
- Ensure the panel is mounted in a clean, dry location with adequate ventilation to maintain operating temperatures within the 0 to 50 deg C range.
- Verify that the power supply is stable at 24 VDC before connection to prevent damage to internal logic circuits.
- Use shielded communication cables for TTY or RS-232/422 links to minimize electromagnetic interference (EMI) from high-voltage machinery.
- Always power down the system before connecting or disconnecting the serial interface cables.
- Ensure the front panel gasket is properly seated during installation to maintain the IP65 seal against environmental contaminants.
FAQ
Is this panel compatible with modern S7 series PLCs?
No, this unit is specifically designed for the legacy Simatic S5 series and utilizes the AS511 protocol. It is not natively compatible with modern S7-series controllers.
What is the primary communication method for this device?
The unit supports TTY (20 mA current loop) as well as RS-232 and RS-422 serial standards, allowing it to interface directly with the S5 PLC programming port.
