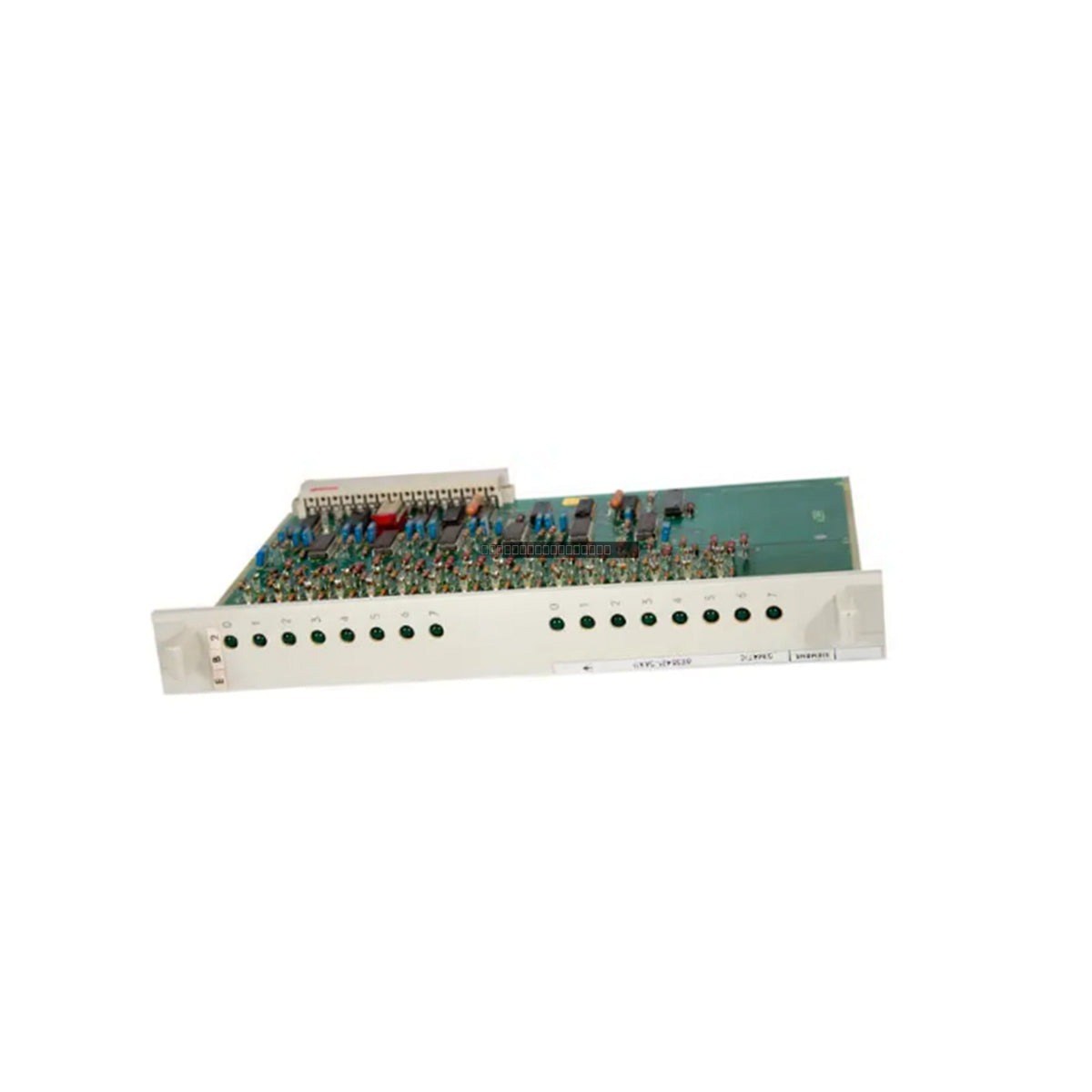

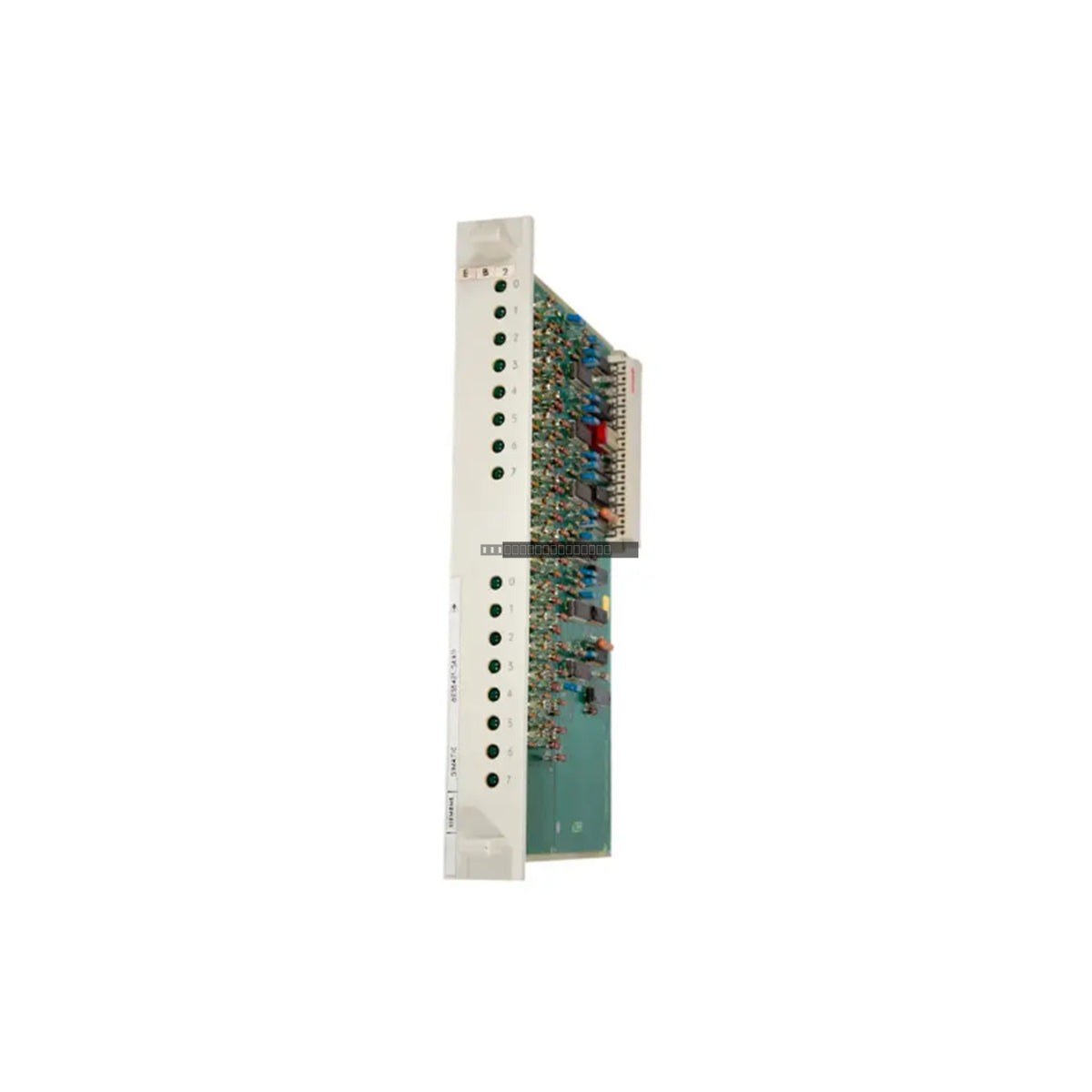

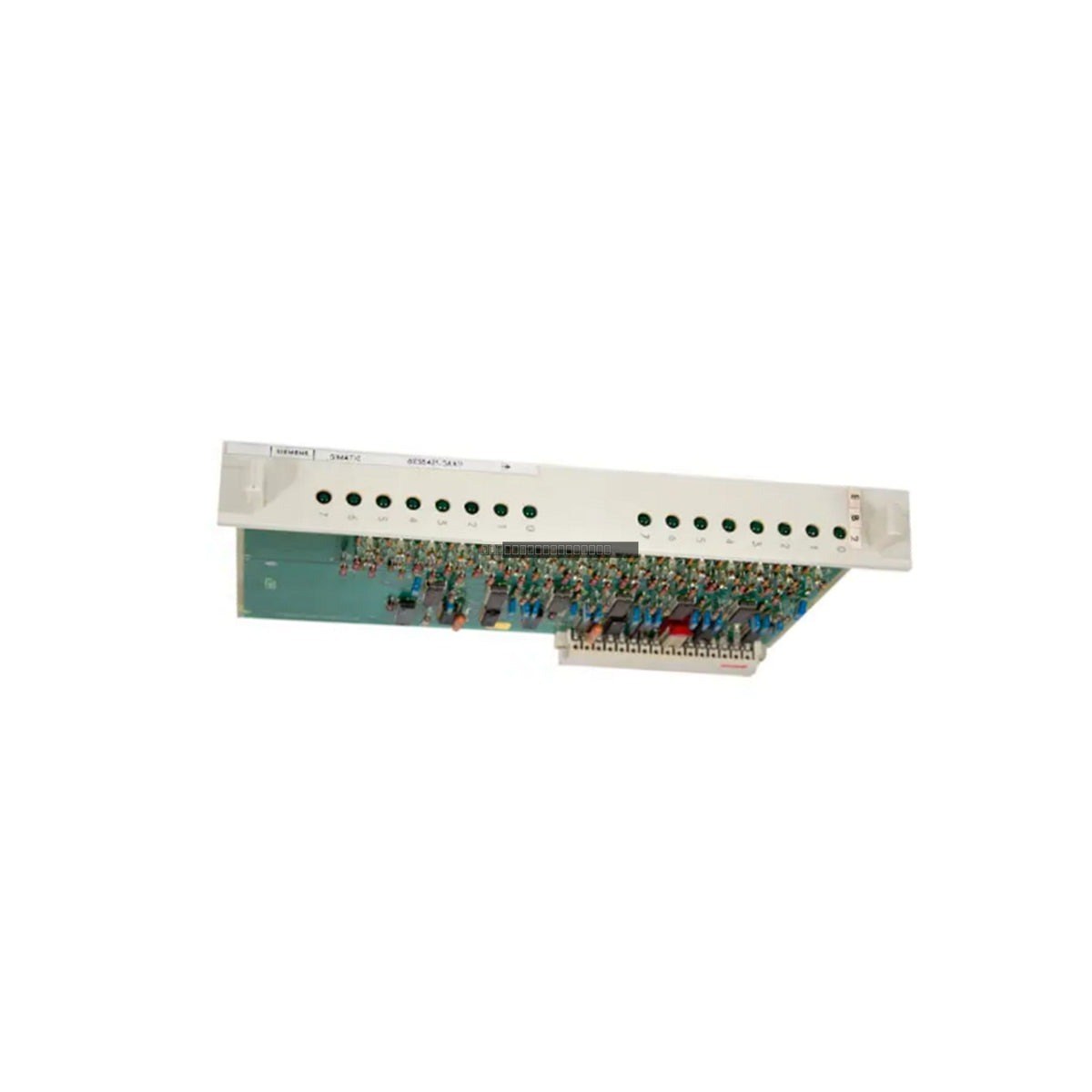

The Siemens 6ES5421-5AA11 is a robust digital input module designed for the Simatic S5 automation series. This unit is engineered to interface field-level binary signals with the central control system, providing reliable data acquisition for industrial automation tasks. It is specifically built for integration into S5-130 and S5-150 rack systems, ensuring high-speed signal processing and consistent performance in demanding manufacturing environments.
Features
- 32 digital input channels for high-density signal monitoring.
- Galvanic isolation via optocouplers to protect the backplane bus from field-side voltage transients.
- Integrated RC filtering to mitigate contact bounce and high-frequency electrical noise.
- Front-panel LED indicators for immediate visual status verification of each input channel.
- Optimized for low power consumption, drawing 1.2 W from the system backplane.
Applications
This module is suitable for a wide range of industrial applications, including automotive assembly lines, water treatment infrastructure, and heavy manufacturing processes. It is designed to reliably monitor field switches, sensors, and limit switches while maintaining electrical integrity through its isolated architecture.
Technical Specifications
| Model |
6ES5421-5AA11 |
| Product Family |
Simatic S5-130 / S5-150 |
| Input Voltage |
24 VDC |
| Input Channels |
32 |
| Input Current |
8 mA typical per channel |
| Power Consumption |
1.2 W |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the rack slot to ensure proper backplane communication.
- Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
- Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
Is this module compatible with all S5 racks?
The 6ES5421-5AA11 is designed for the Simatic S5-130 and S5-150 series. Please verify your specific rack configuration and CPU compatibility before installation.
Does this module require external power for the inputs?
Yes, the module requires a 24 VDC supply to power the input channels. The 1.2 W power consumption listed refers to the draw from the internal backplane bus.
