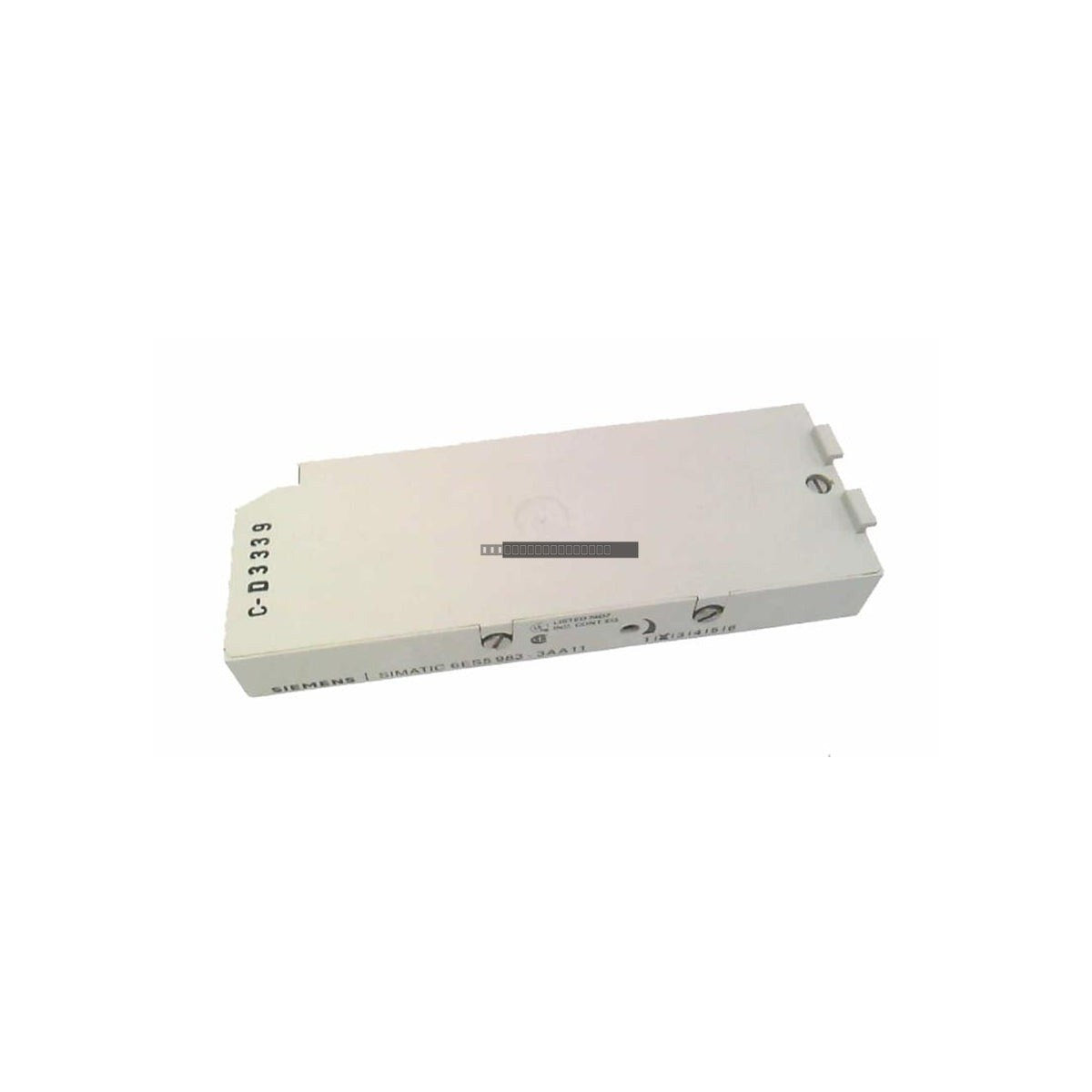

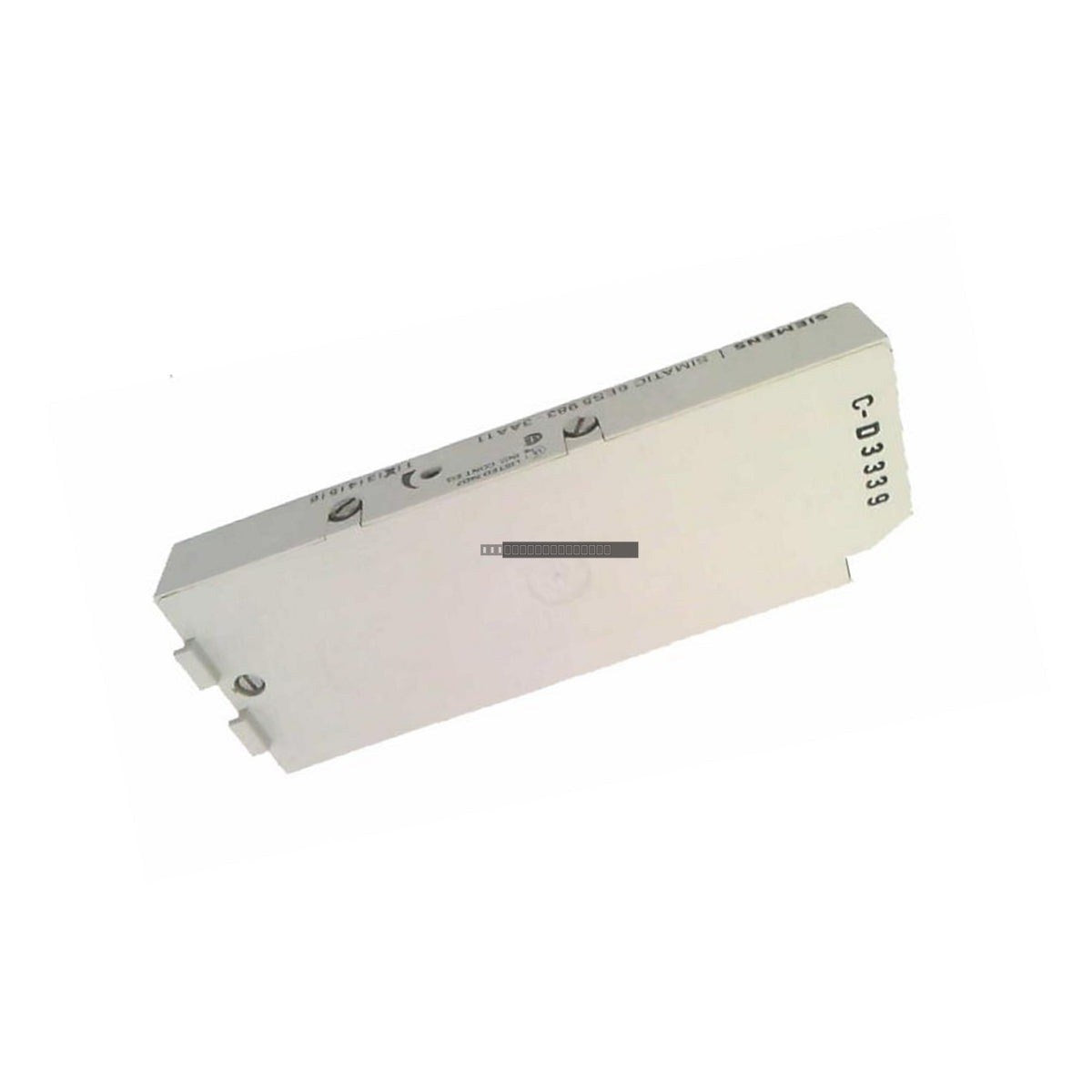

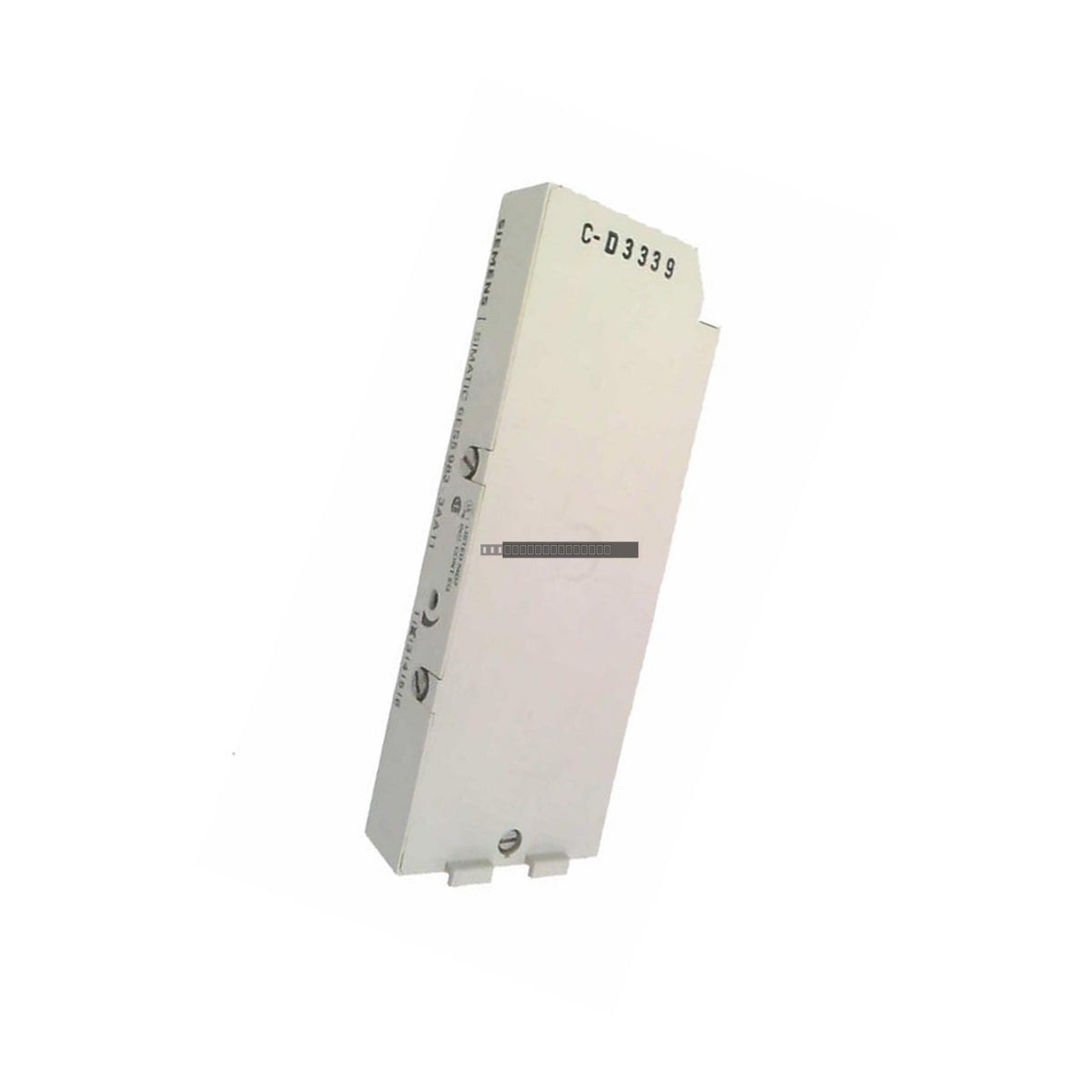

The Siemens 6ES5983-3AA11 is a robust cable connector assembly engineered for the Simatic S5 automation environment. Featuring a high-density 25-pin female D-Sub interface, this unit serves as a critical connection point for signal transmission, feedback loops, and programming interfaces within S5 rack-based systems. Designed for longevity in demanding industrial environments, this component provides reliable connectivity in legacy control architectures, including steel mills and maritime automation systems.
Features
- High-density 25-pin female D-Sub interface for secure signal routing.
- Engineered for high structural integrity to withstand industrial vibration.
- Corrosion-resistant pin plating ensures low contact resistance and signal stability.
- Integrated housing design facilitates effective EMI shielding when used with appropriate shielded cabling.
- Supports closed-loop diagnostic configurations to detect line breaks and signal faults.
Applications
This connector is widely utilized in legacy Siemens S5 installations where reliable, shielded communication is required. It is frequently employed for connecting peripheral programming panels, external sensor feedback loops, and specialized communication modules within the S5 rack chassis.
Technical Specifications
| Model |
6ES5983-3AA11 |
| Brand |
Siemens |
| Product Series |
Simatic S5 |
| Connector Type |
25-Pin Female D-Sub |
| Max Current Rating |
1 A per pin (continuous) |
| Max Working Voltage |
60 VDC / 42 VAC |
| Operating Temp |
0 to 60 degC |
| Storage Temp |
-40 to 70 degC |
Installation Guidelines
- Ensure the system is fully powered down before connecting or disconnecting the module to prevent electrical arcing or damage to the communication pins.
- Use appropriate shielded cabling and ensure the connector housing is properly grounded to maintain the integrity of the EMI shield.
- Verify pin alignment before insertion to avoid bending the high-density pins.
- Secure the connector using the integrated locking mechanism to maintain contact pressure under machine vibration.
- Avoid routing communication cables near high-voltage power lines or heavy inductive loads to minimize potential interference.
FAQ
Is this connector compatible with modern S7 systems? No, this part is specifically designed for the Siemens Simatic S5 legacy series.
What is the primary function of the 25-pin interface? It is typically used for serial data communication and feedback loop monitoring within the S5 rack environment.
Does this unit require special tools for installation? No special tools are required, though standard ESD precautions should be observed when handling the connector assembly.
