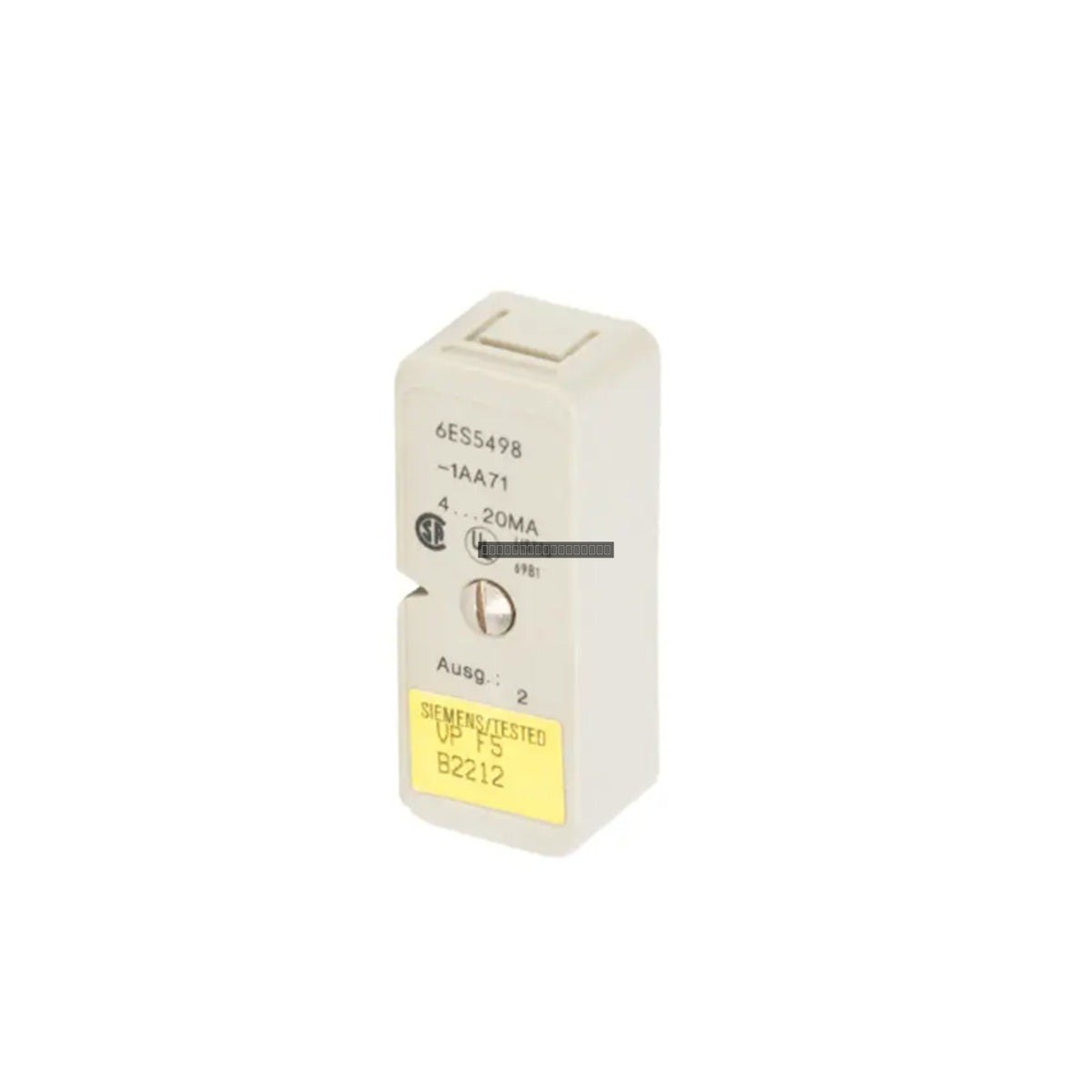

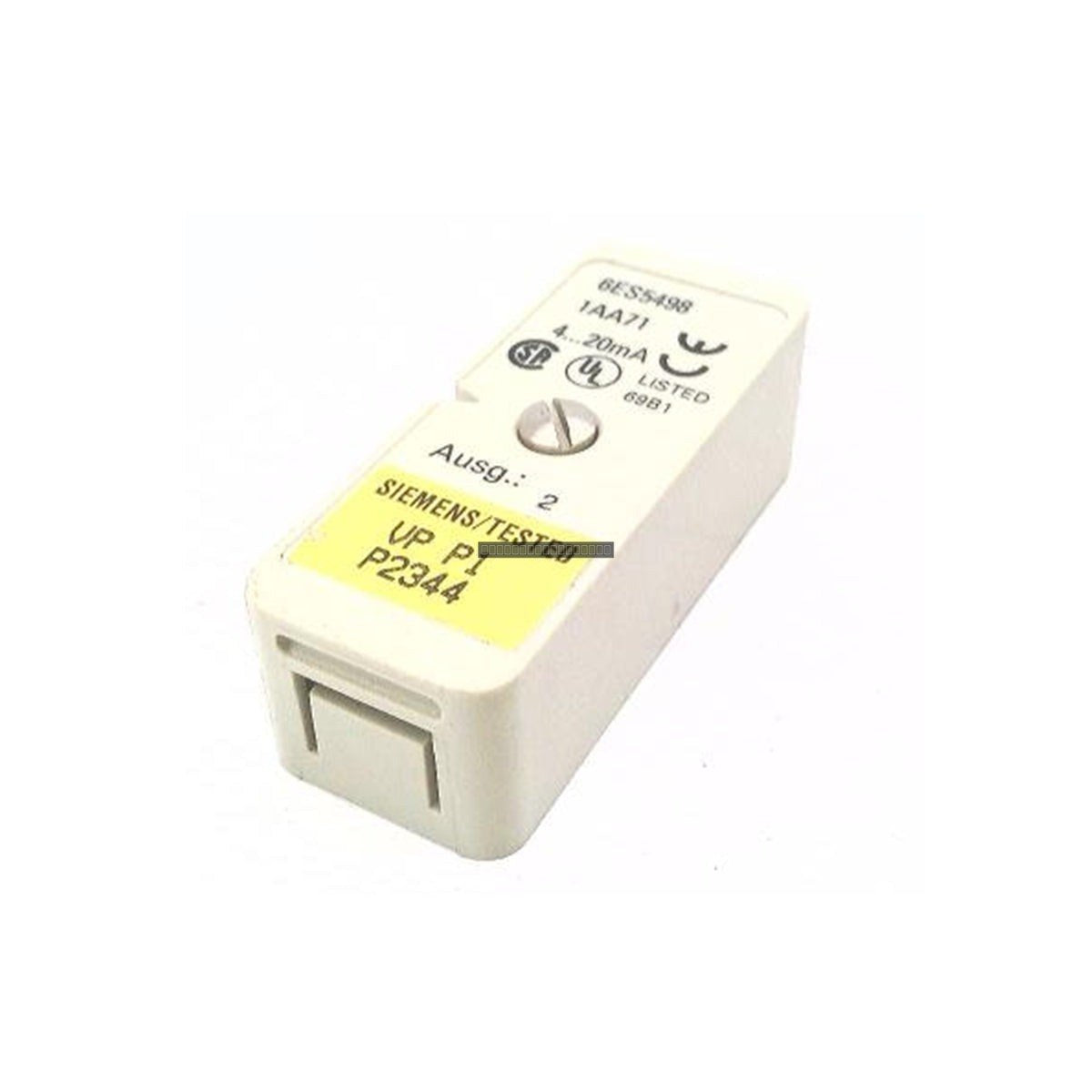

The Siemens SIMATIC S5 6ES5498-1AA71 is a precision measuring range sub-module engineered to facilitate signal adaptation for analog input channels within the S5 automation system. This component is specifically configured to interface with 4-20 mA current signals derived from 4-wire measuring transducers (MUS). By providing hardware-level signal conditioning, the module ensures that incoming process signals are accurately translated for the host PLC, eliminating the requirement for external signal conversion or complex software-based scaling. Its robust design is suitable for demanding industrial environments, including chemical processing, water management, and energy infrastructure.
Features
- Designed for seamless integration with SIMATIC S5 analog input modules.
- Optimized for 4-20 mA current loop signals from 4-wire transmitters.
- Precision shunt circuitry ensures high signal integrity and accurate A/D conversion.
- Compact plug-in form factor allows for efficient installation and rapid replacement.
- Hardware-based signal matching reduces the need for external converters and recalibration.
- Built-in noise suppression to mitigate common-mode interference and ground loops.
Applications
This module is primarily utilized in industrial control systems where precise analog signal acquisition is critical. Typical applications include monitoring flow, pressure, temperature, and level sensors in heavy industrial sectors such as oil and gas, manufacturing, and municipal utility plants.
Technical Specifications
| Model |
6ES5498-1AA71 |
| Brand |
Siemens SIMATIC S5 |
| Input Signal Range |
4-20 mA |
| Compatibility |
4-Wire Measuring Transducers (MUS) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95% non-condensing |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the measuring range module to prevent electrical damage.
- Verify the module is correctly seated in the designated keying slot of the analog input card to ensure proper mechanical and electrical contact.
- Handle the module using ESD-safe practices to prevent damage to internal precision components.
- Ensure that wiring from the 4-wire transmitter is correctly terminated to the corresponding input channels to maintain loop integrity.
- Maintain adequate ventilation in the control cabinet to ensure the operating temperature remains within the specified 0-60 deg C range.
FAQ
What is the primary function of the 6ES5498-1AA71?
This module serves as a hardware-level range adapter that allows a standard SIMATIC S5 analog input channel to accept 4-20 mA signals from 4-wire transmitters.
Is this module compatible with 2-wire sensors?
No, this specific model is designed for 4-wire measuring transducers (MUS). Using it with incompatible sensor types may result in incorrect readings or damage to the input circuitry.
