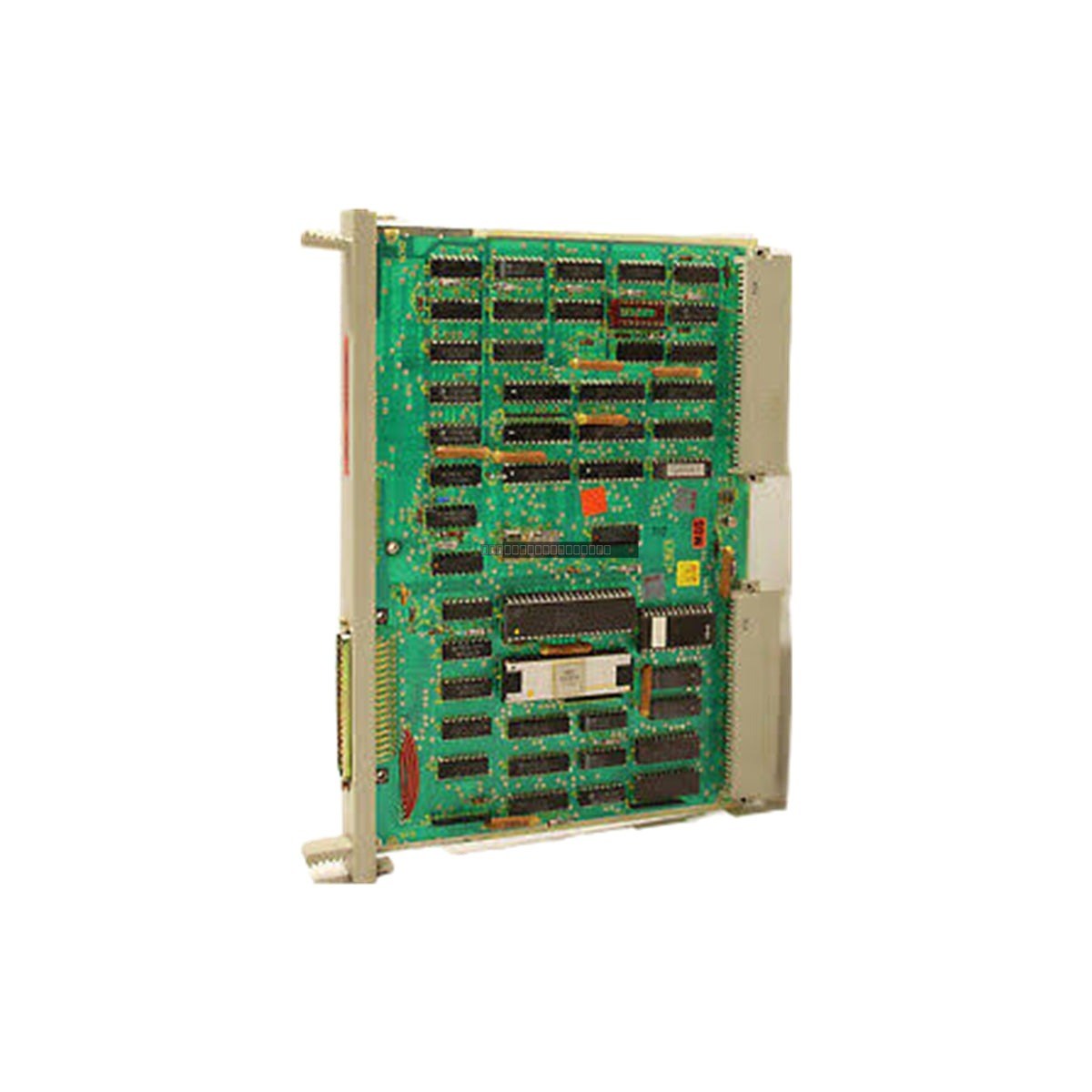

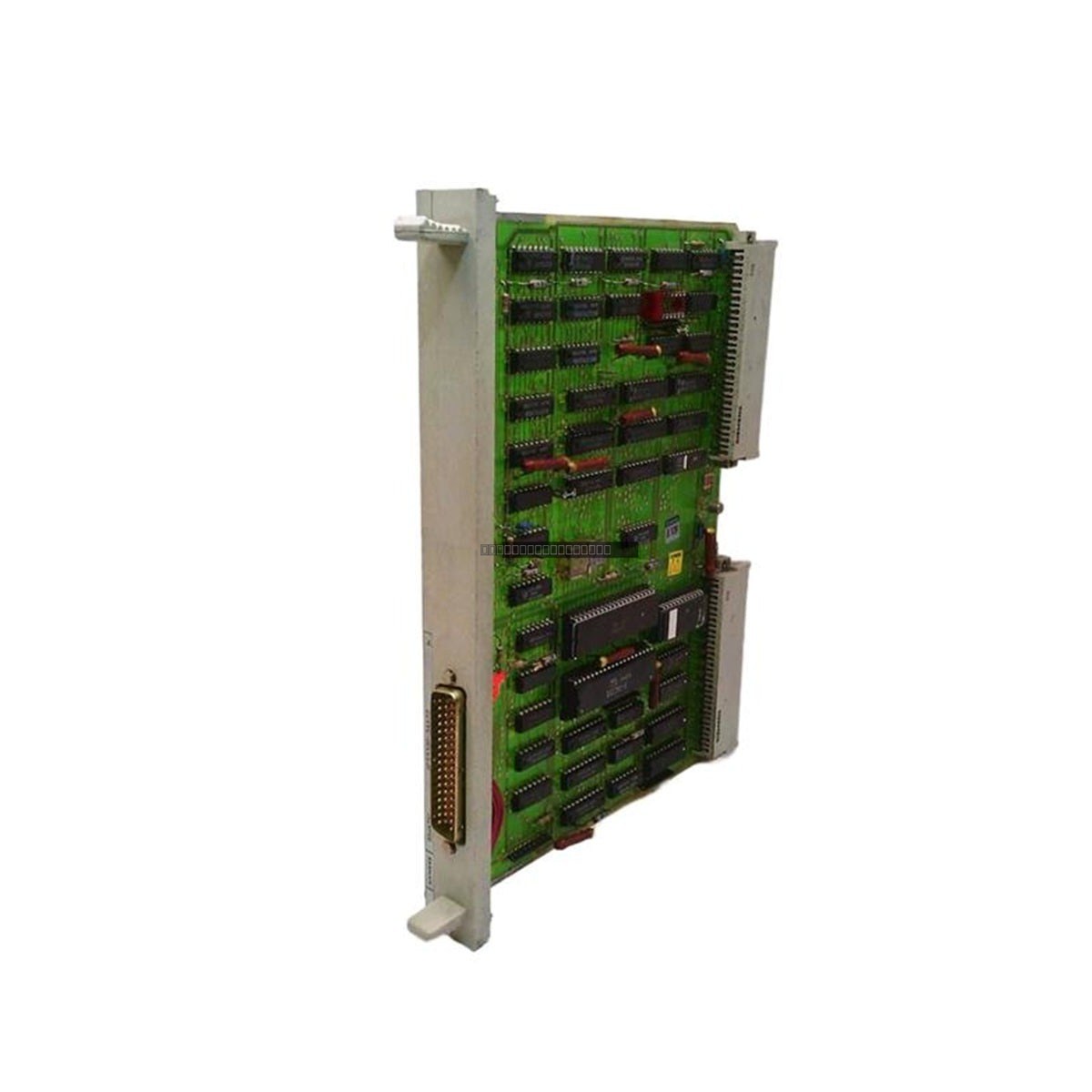

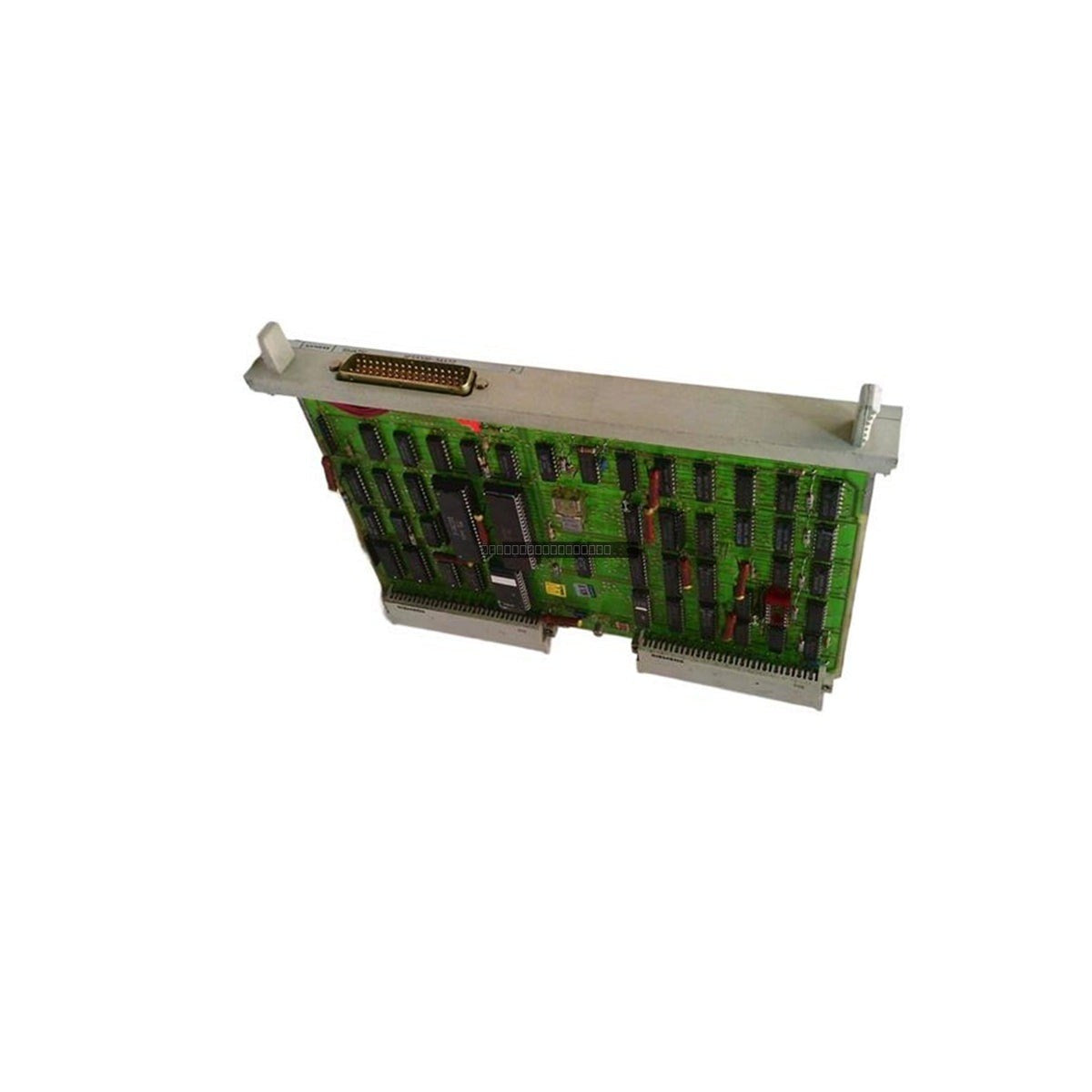

The Siemens 6ES5390-5AA22 is a specialized timer and counter expansion module designed for the legacy Simatic S5-130 and S5-150 programmable logic controller (PLC) systems. This module is engineered to offload time-critical operations and high-speed event-counting tasks from the central processing unit, ensuring precise execution of machine sequencing and process control without taxing CPU cycles.
Features
- Integrated 64 digital timers for complex delay processing.
- 16 dedicated hardware counters for high-speed event registration.
- Independent signal processing architecture to prevent CPU cycle delays.
- Rugged design optimized for standard Simatic S5 backplane bus integration.
- High immunity to electromagnetic interference common in industrial environments.
Applications
This module is suitable for demanding industrial automation environments, including automotive assembly lines, steel processing facilities, power generation plants, and material handling systems where precise timing and pulse counting are critical to operational efficiency.
Technical Specifications
| Model |
6ES5390-5AA22 |
| Brand |
Siemens |
| Series |
Simatic S5-130 / S5-150 |
| Integrated Timers |
64 Digital Timers |
| Integrated Counters |
16 Hardware Counters |
| Power Supply |
5 VDC via Backplane |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Mounting Type |
Rack Mount / Subrack Slot |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the module from the subrack.
- Verify that the module is correctly seated in the backplane slot to ensure secure electrical contact.
- Maintain adequate spacing within the cabinet to allow for proper thermal dissipation.
- Route signal cables away from high-voltage lines and high-EMI sources to maintain signal integrity.
- Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.
FAQ
What systems is the 6ES5390-5AA22 compatible with?
This module is specifically designed for use with the Siemens Simatic S5-130 and S5-150 PLC systems.
Does this module require external power?
No, the module draws its required 5 VDC power directly from the Simatic S5 backplane bus.
