Description
Description

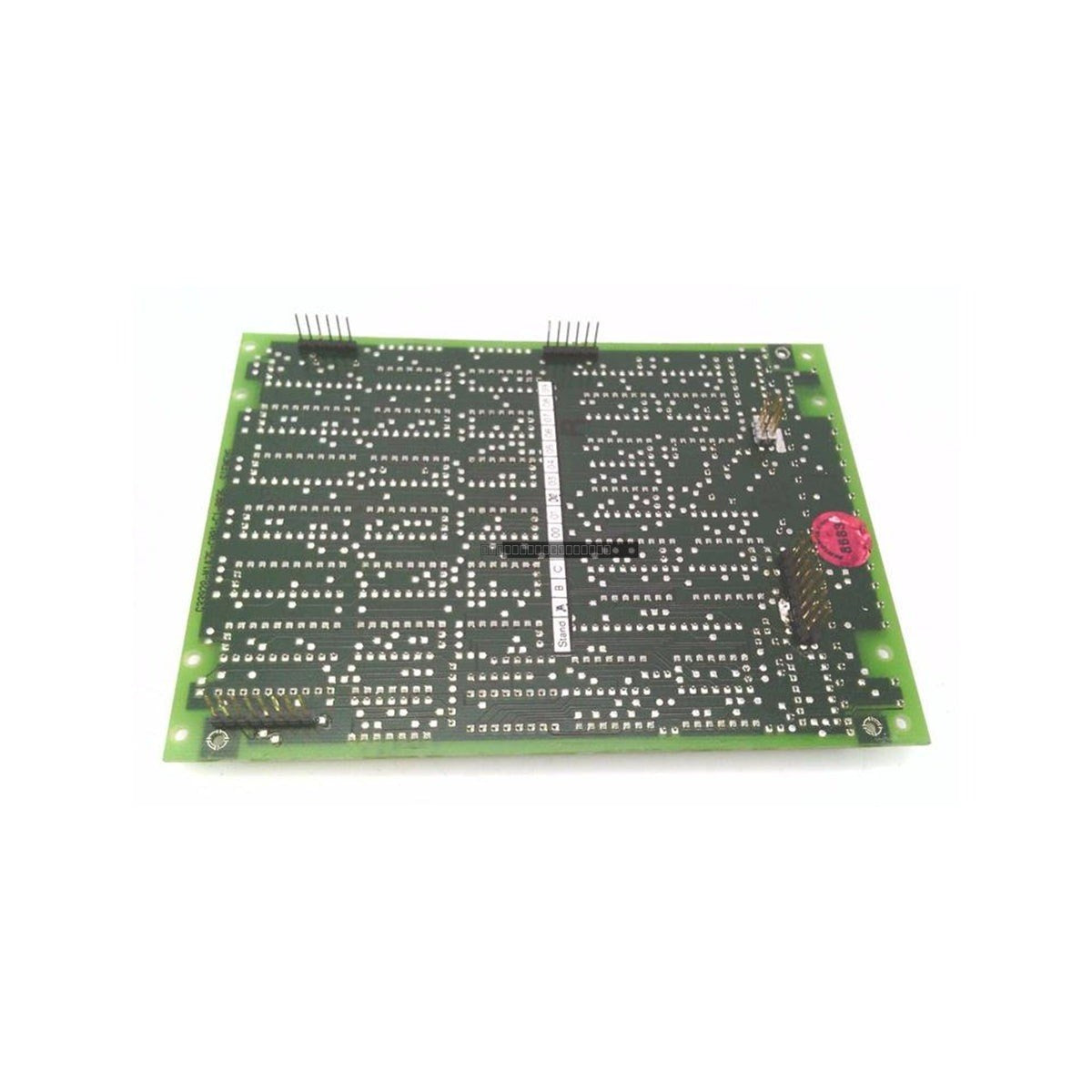

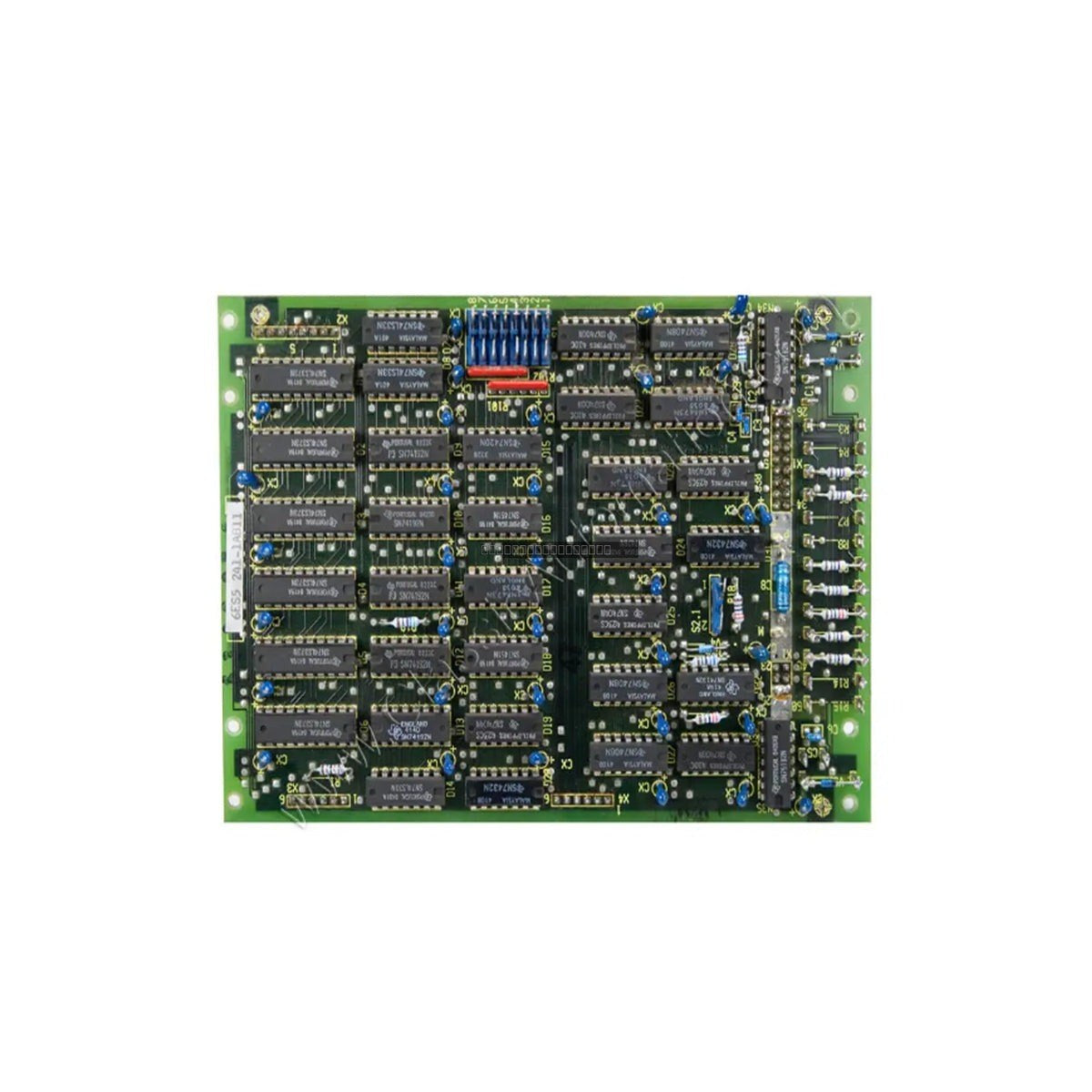

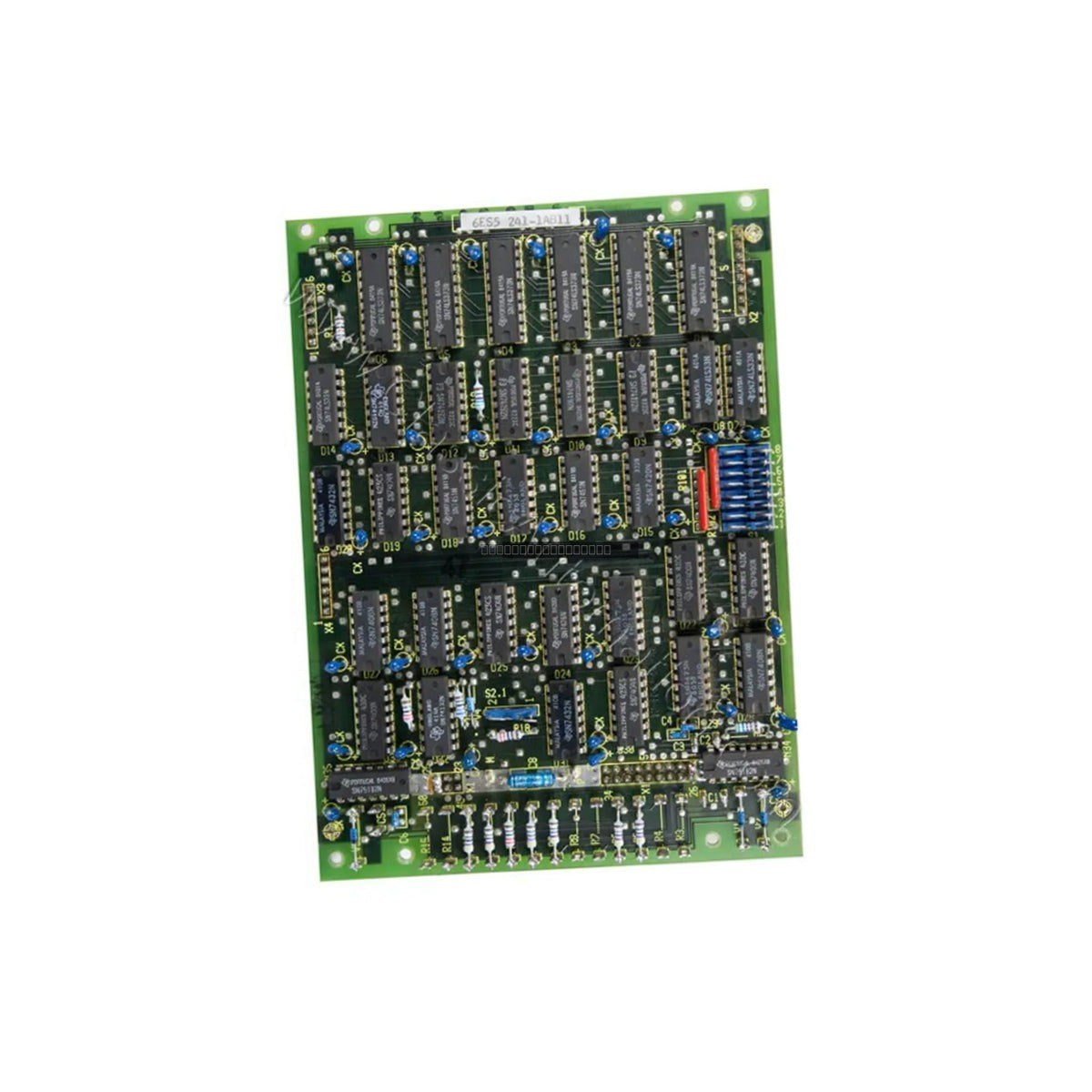

The Siemens 6ES5241-1AB11 (IP 241) is a specialized positioning module designed for the Simatic S5 automation system. It serves as an intelligent interface for high-precision axis motion monitoring and digital feedback evaluation. By processing incremental encoder signals directly, the module calculates mechanical travel paths, velocities, and absolute positions, providing critical closed-loop feedback for legacy industrial control applications.
Features
- Dedicated IP 241 intelligence for independent pulse counting and position calculation.
- High-frequency receiver channels compatible with differential incremental encoder signals.
- Supports symmetrical and asymmetrical A, B, and zero-marker pulse tracks.
- Optocoupler isolation on all digital input lines to protect backplane electronics from ground loops and EMI.
- Reduces CPU overhead by offloading high-speed pulse-counting math to the module's internal microcontroller.
Applications
This module is engineered for demanding industrial environments requiring precise motion control, including multi-axis mining hoists, automated material handling cranes, metal stamping lines, and other legacy closed-loop positioning systems.
Technical Specifications
| Model |
6ES5241-1AB11 |
| Brand |
Siemens Simatic S5 |
| Function |
IP 241 Digital Position Decoder |
| Input Signal |
Incremental Encoder (A/B Tracks + Zero Marker) |
| Power Consumption |
8.5 W |
| Operating Temperature |
0 to 55 deg C |
Installation Guidelines
- Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the backplane connector before applying power.
- Use shielded cabling for encoder connections to minimize EMI interference; ensure the shield is properly grounded at the designated terminal.
- Maintain proper ventilation within the control cabinet to ensure the ambient temperature remains within the 0 to 55 deg C range.
- Handle with standard ESD precautions to protect sensitive internal electronic components.
FAQ
What is the primary function of the 6ES5241-1AB11?
The 6ES5241-1AB11 is an IP 241 positioning module used to decode incremental encoder signals for precise position and velocity tracking in Simatic S5 systems.
Does this module require external power for the encoders?
The module is designed to interface with 24 VDC or 54 VDC differential signals; ensure your encoder voltage matches the module's input specifications during wiring.
