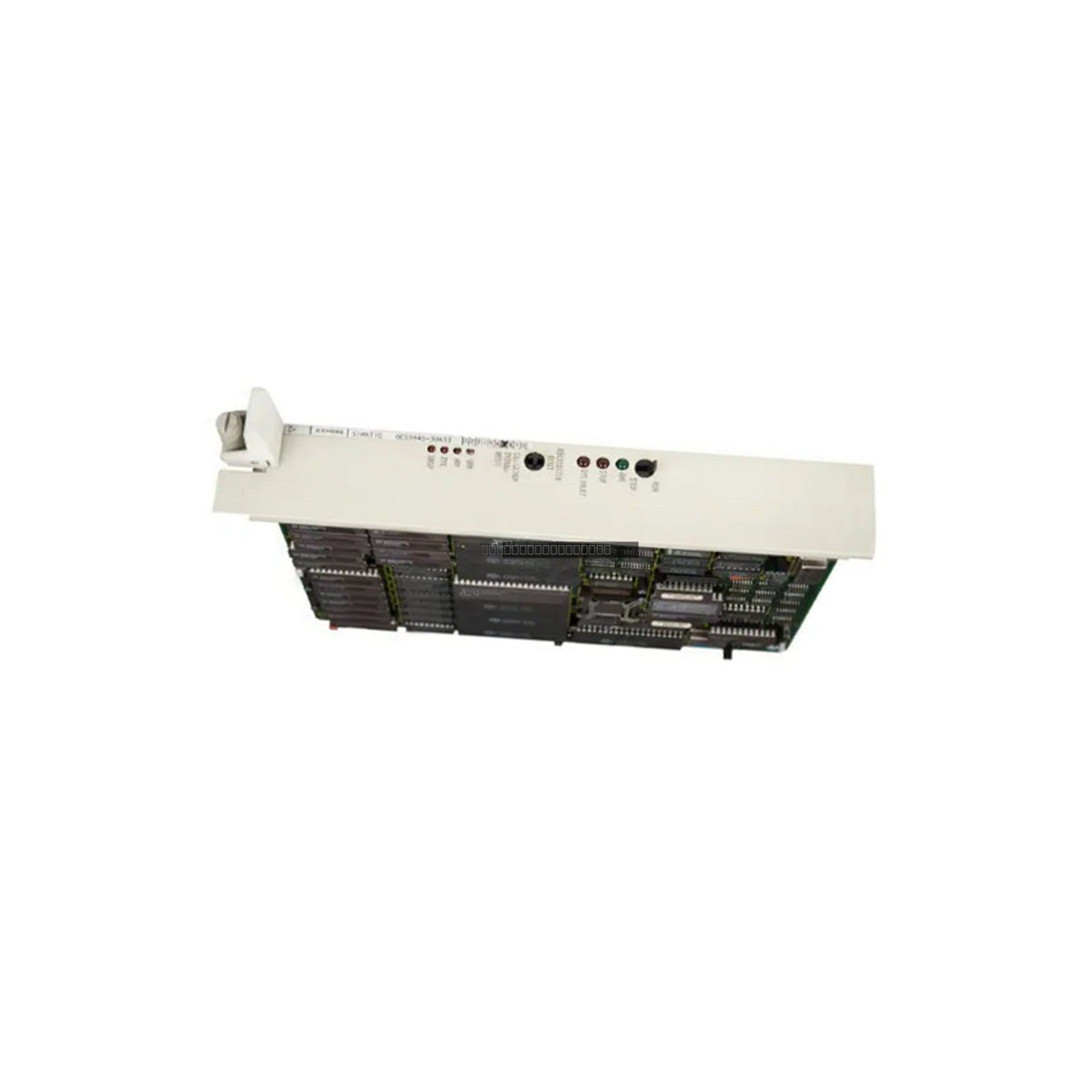

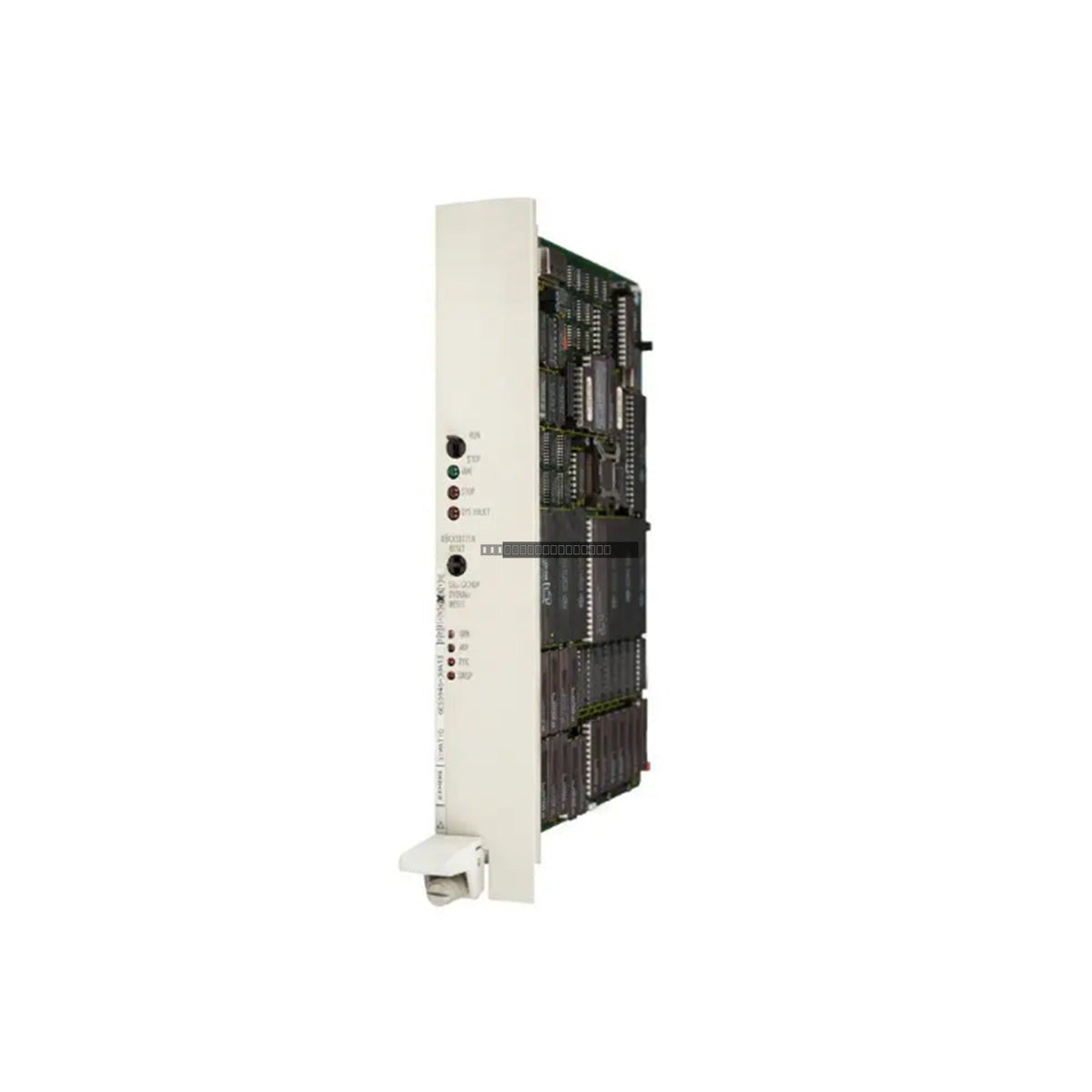

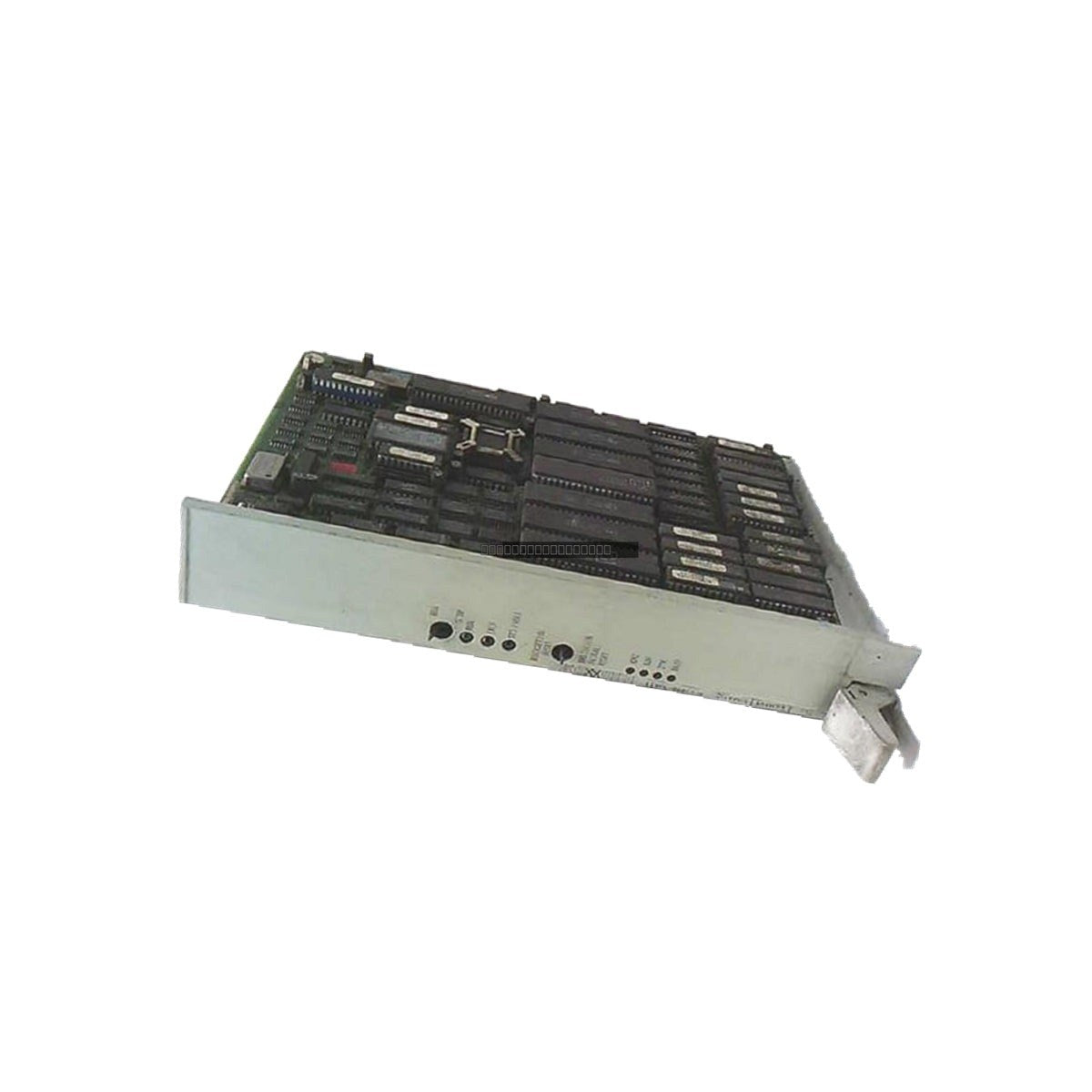

The Siemens Simatic S5 6ES5 946-3UA11 (CPU 946) is a high-performance central processing unit designed for the Simatic S5-155U programmable logic controller system. Engineered for monoprocessor configurations, this module provides robust control capabilities for large-scale industrial automation, including complex binary logic, data processing, and closed-loop control tasks. It is widely utilized in demanding environments such as thermal power plants, oil and gas refineries, and heavy mining operations where high-speed cycle execution and system reliability are critical to maintaining process continuity.
Features
-
Monoprocessor Architecture: Optimized for independent control of the S5-155U chassis, providing efficient execution without the overhead of multi-processor synchronization.
-
Advanced Instruction Set: Supports complex bit, word, and floating-point operations, enabling precise PID regulation and intricate control algorithms.
-
High-Speed Backplane Communication: Ensures seamless integration with digital, analog, and intelligent function modules across the S5 backplane bus.
-
Connectivity: Features dedicated ports for PG (programmer) connections and operator panel interfaces to facilitate system diagnostics and monitoring.
Applications
This CPU module is designed for large-scale industrial automation systems requiring high-tier processing power. Typical applications include:
- Large-scale process control in oil and gas facilities.
- Thermal power generation and distribution control.
- Deep-pit mining automation and material handling.
- Complex manufacturing lines requiring high-speed I/O network management.
Technical Specifications
| Model |
6ES5 946-3UA11 (CPU 946) |
| Brand |
Siemens |
| Product Family |
Simatic S5-135 / 155 |
| Module Type |
CPU / Main Control Board |
| System Architecture |
Monoprocessor System for S5-155U |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
15.0 W (typical) |
Installation Guidelines
-
Power Down: Always ensure the S5-155U chassis power supply is disconnected before inserting or removing the CPU module to prevent electrical damage.
-
ESD Protection: Handle the module by its edges or front panel; avoid touching the backplane connectors or internal components to prevent electrostatic discharge damage.
-
Seating: Ensure the module is fully seated in the designated CPU slot of the S5-155U rack and that the locking mechanisms are engaged to maintain a secure connection to the backplane.
-
Environment: Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within the specified 0-60 deg C range.
-
Grounding: Verify that the S5-155U rack is properly grounded according to industrial standards to minimize EMI interference and ensure signal integrity.
FAQ
Is the 6ES5 946-3UA11 compatible with multi-processor S5-155U systems?
No, this specific model (CPU 946) is engineered specifically for monoprocessor configurations. It is not designed to operate in a multi-processor environment.
What is the primary function of this module?
The CPU 946 serves as the central processing unit for the S5-155U, managing the execution of control logic, I/O communication, and data processing for the entire PLC system.
