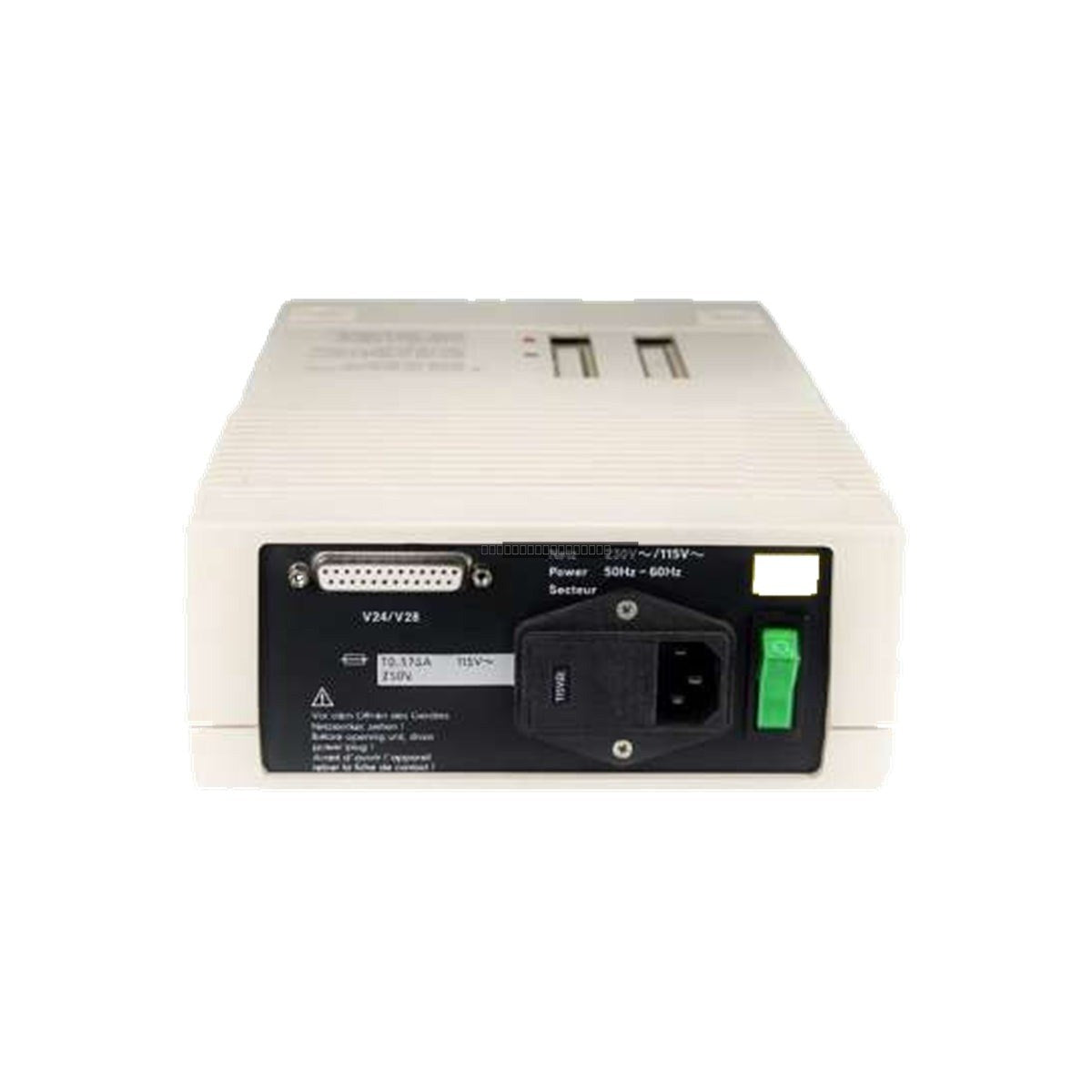

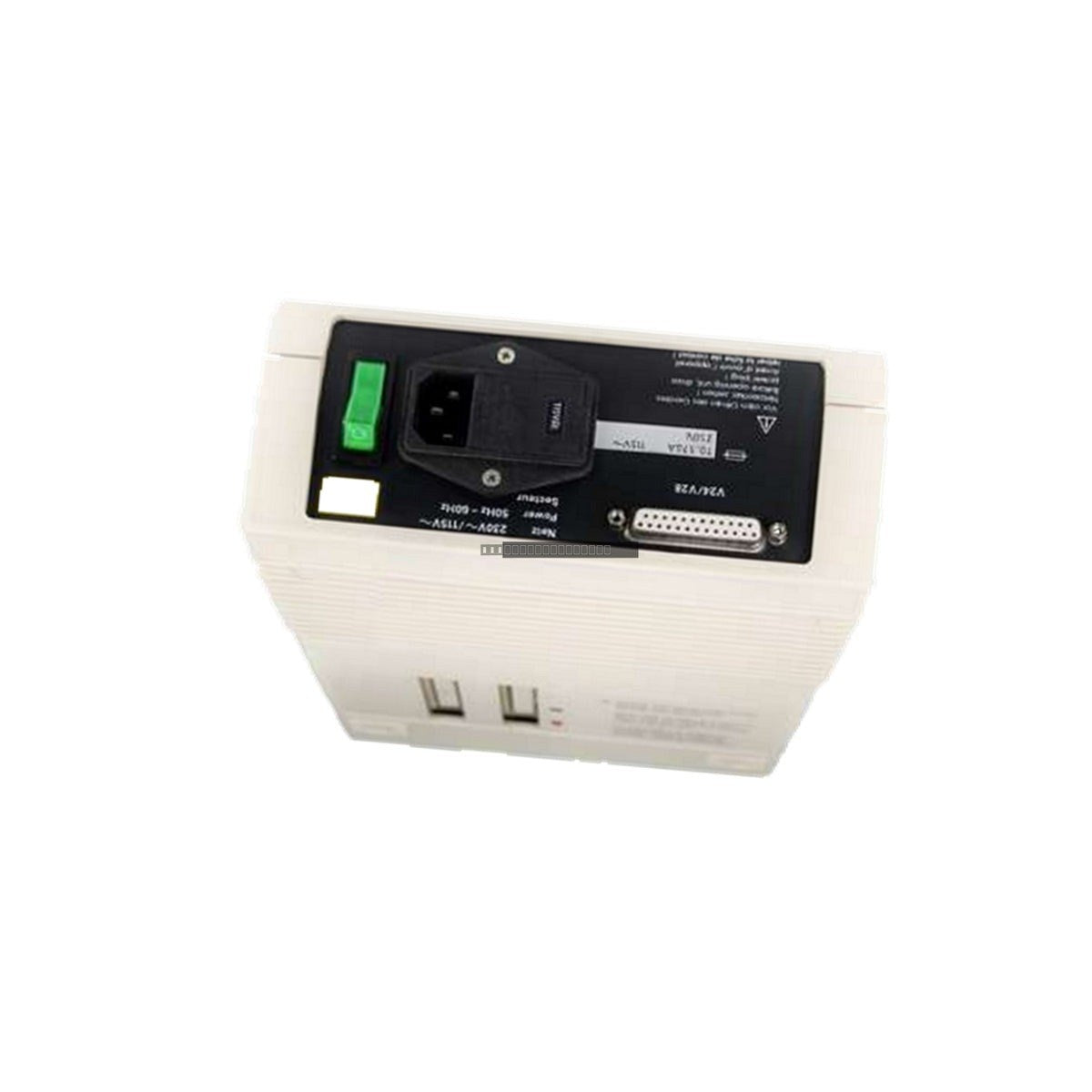

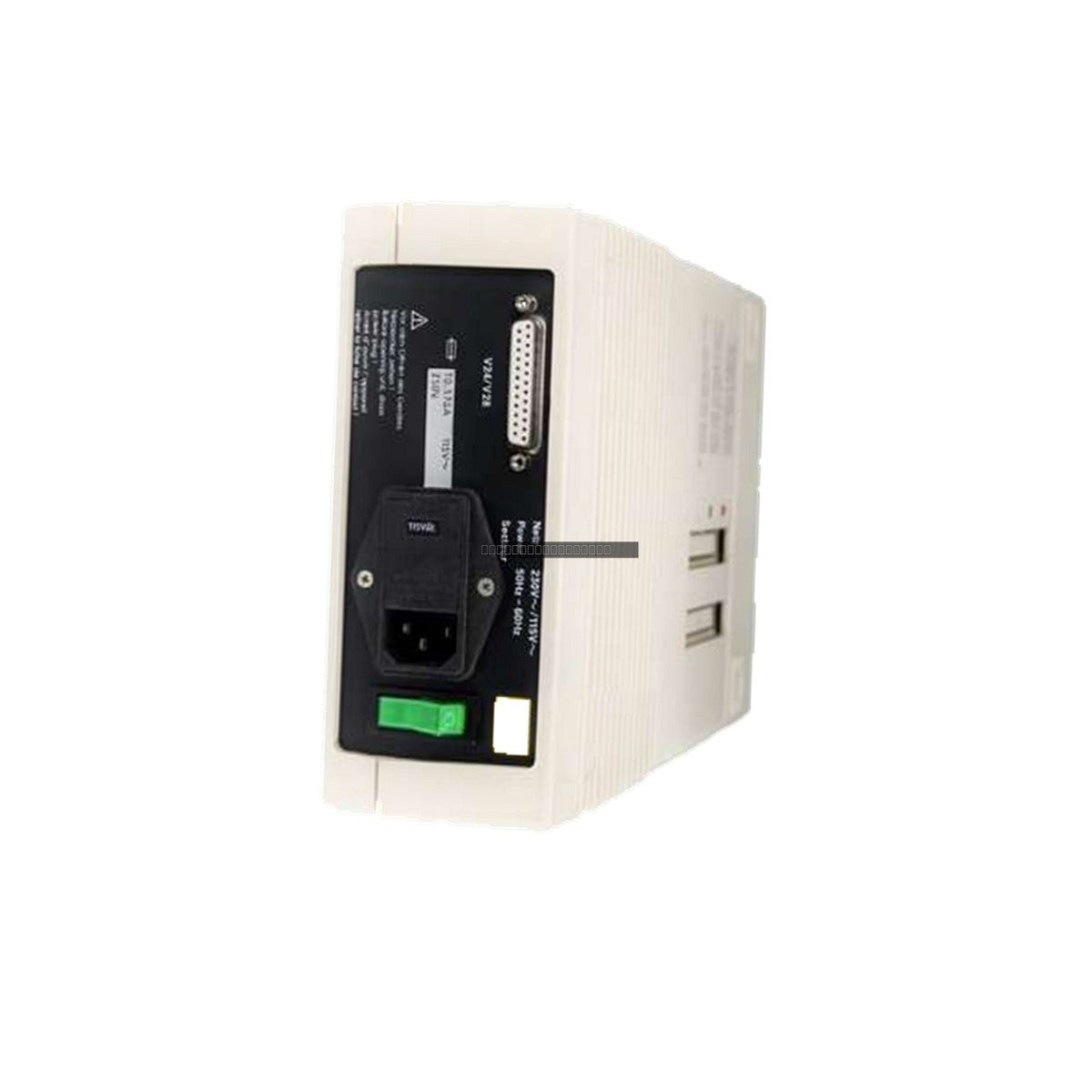

The Siemens 6ES5 695-0AA11 is a dedicated EPROM programmer module engineered for the Simatic S5 automation ecosystem. This hardware interface is designed to facilitate the programming and verification of non-volatile memory sub-modules used in legacy S5 PLC systems. By providing a reliable method to burn compiled ladder logic and statement lists onto EPROM/EEPROM chips, this unit is essential for maintenance, backup creation, and rapid restoration of control logic in industrial environments.
Features
- Optimized zero-insertion-force (ZIF) socket to ensure secure chip seating and prevent pin damage.
- Precision voltage-stepping circuitry for accurate Vpp and Vcc pulse control during programming cycles.
- Integrated LED status indicators for real-time monitoring of power, burning activity, and checksum verification.
- Designed for integration with PG 695 programming terminals and AT-compatible industrial PCs.
- Robust construction suitable for long-term use in demanding industrial maintenance settings.
Applications
This programmer module is widely utilized in legacy industrial facilities, including metallurgical processing plants, municipal power generation sites, and oil and gas refineries. It is primarily used by engineering teams to maintain system uptime by ensuring that critical PLC program backups are correctly written and verified on non-volatile memory media.
Technical Specifications
| Model |
6ES5 695-0AA11 |
| Brand |
Siemens |
| Series |
Simatic S5 |
| Host Compatibility |
PG 695 / AT-Compatible Industrial PCs |
| Supported Media |
Simatic S5 EPROM / EEPROM sub-modules |
| Operating Voltage |
120-230 VAC |
| Operating Temperature |
5 to 40 deg C |
| Storage Temperature |
-20 to 60 deg C |
| Relative Humidity |
85% non-condensing |
Installation Guidelines
- Ensure the host workstation is powered down before connecting or disconnecting the programmer module.
- Handle EPROM/EEPROM chips with care, utilizing anti-static measures to prevent electrostatic discharge (ESD) damage to the silicon components.
- Verify that the ZIF socket lever is in the open position before inserting the memory module and ensure it is locked securely before initiating any programming sequence.
- Keep the unit in a clean, dry environment within the specified operating temperature range to ensure long-term reliability of the internal circuitry.
- Ensure proper ventilation around the unit during operation to prevent heat buildup during extended burning cycles.
FAQ
Is this module compatible with modern Windows-based PCs?
The 6ES5 695-0AA11 is designed specifically for legacy PG 695 terminals and AT-compatible industrial PCs. Compatibility with modern operating systems may require specialized legacy hardware adapters or virtualized environments, which are not standard.
What types of memory modules does this programmer support?
This unit supports standard Simatic S5 EPROM and EEPROM memory sub-modules used for storing PLC user programs and data blocks.
