Description

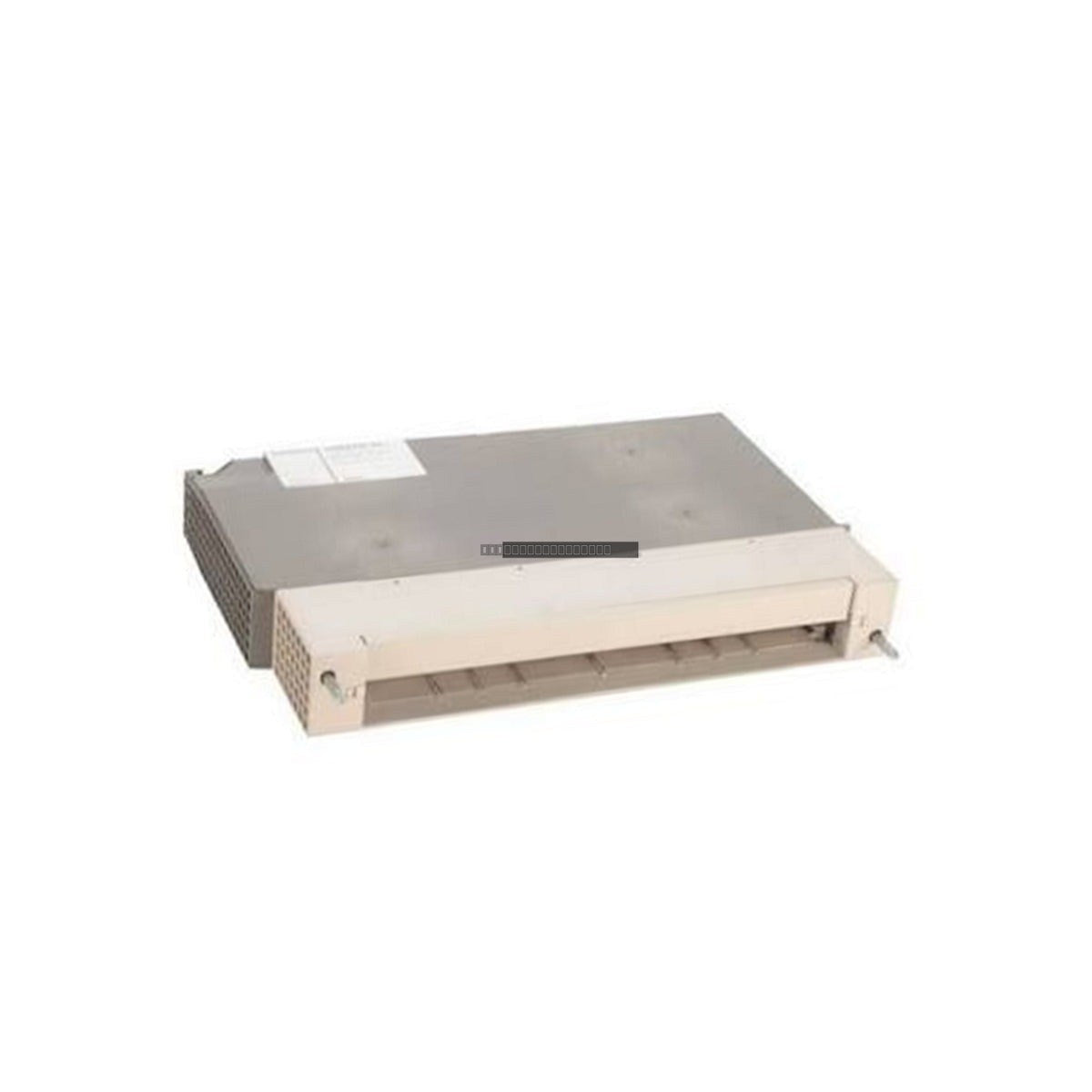

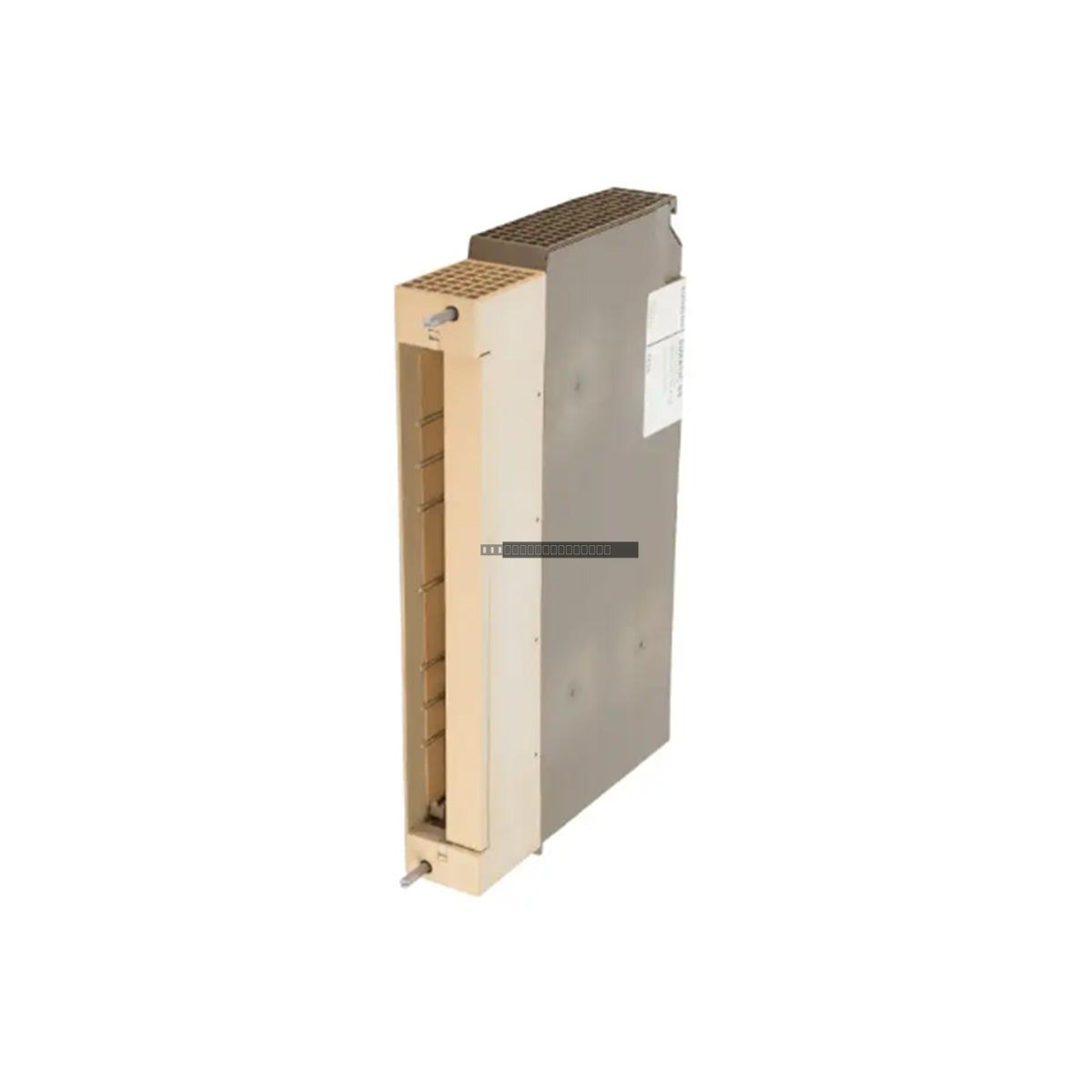

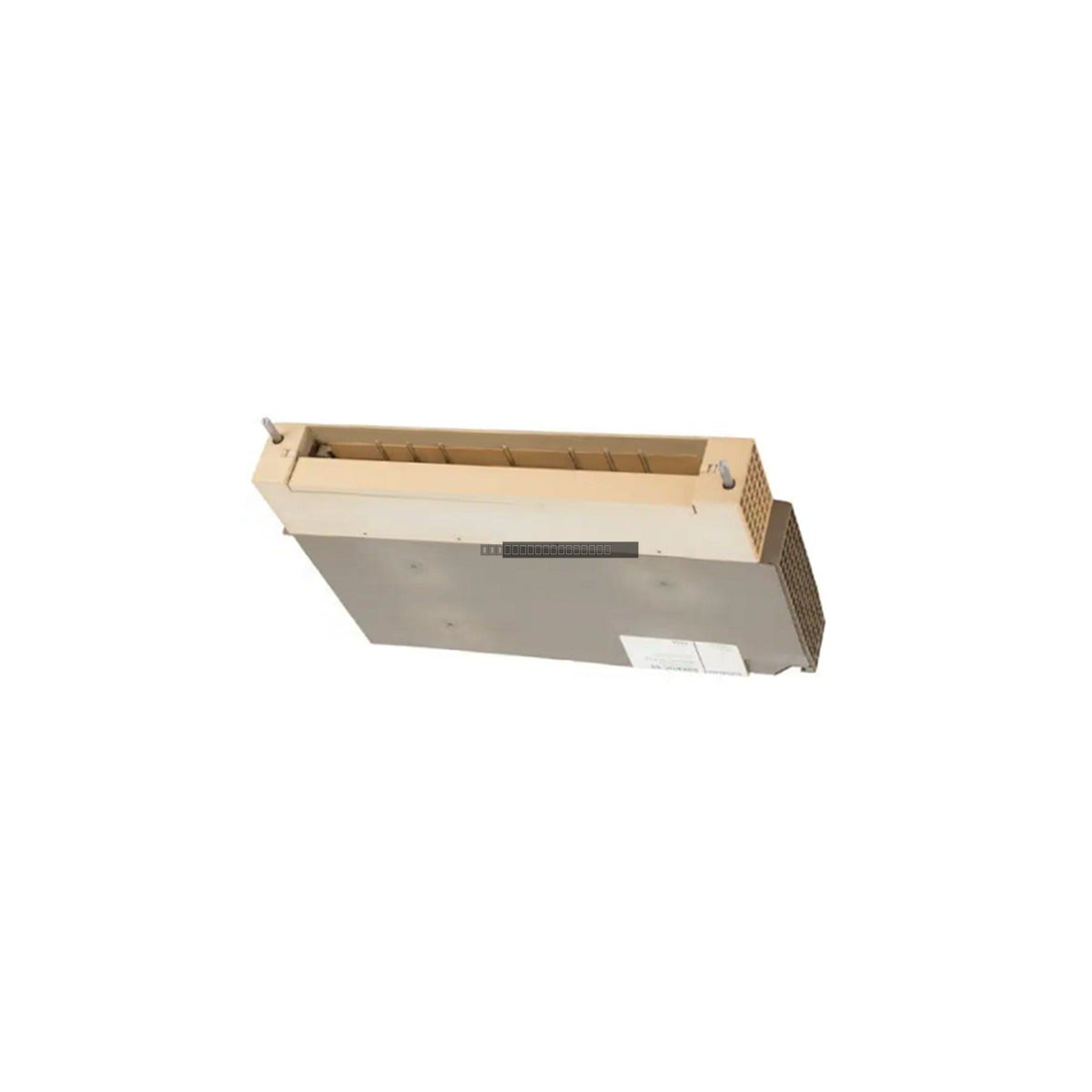

The Siemens 6ES5491-0LA12 is an essential adaptation casing engineered for the Simatic S5-115U automation system. This component serves as a mechanical and electrical interface, allowing for the integration of specific expansion modules into standard rack configurations. By ensuring precise pin alignment and maintaining backplane bus continuity, this adapter supports the reliability of legacy control systems in demanding industrial environments such as power generation and chemical processing.
Features
-
Mechanical Compatibility: Designed specifically for the S5-115U series to ensure seamless module seating within existing rack footprints.
-
Signal Integrity: Utilizes robust multi-point ribbon connector interfaces to maintain parallel bus communication without signal degradation.
-
EMI Protection: Features a durable metal frame construction that assists in grounding and shielding against electromagnetic interference.
-
Secure Mounting: Equipped with integrated screw-retention slots for top and bottom mounting, providing resistance against vibration-induced loosening.
Applications
This adaptation casing is primarily utilized in legacy Simatic S5-115U PLC architectures. It is commonly deployed during system maintenance or expansion projects where specific module form factors must be adapted to standard backplane slots without requiring extensive rewiring of the existing control cabinet.
Technical Specifications
| Model |
6ES5491-0LA12 |
| Brand |
Siemens |
| Product Family |
Simatic S5-115 |
| Component Type |
Adaptation Casing |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
Passive (0 W) |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing any modules or adaptation casings.
- Verify that the backplane connector pins are free of debris or oxidation before seating the casing.
- Align the module carefully with the guide rails to prevent bending of the ribbon connector pins.
- Tighten the top and bottom retention screws securely to ensure proper grounding contact and vibration resistance.
- Handle with standard ESD precautions to protect sensitive electronic components within the rack environment.
FAQ
Is this module active or passive?
The 6ES5491-0LA12 is a passive mechanical and electrical pass-through component; it does not require external power or internal logic processing.
Does this casing support all S5 modules?
This casing is designed specifically for the S5-115U series. Please verify your specific module form factor against the S5-115U rack specifications before installation.
