Description

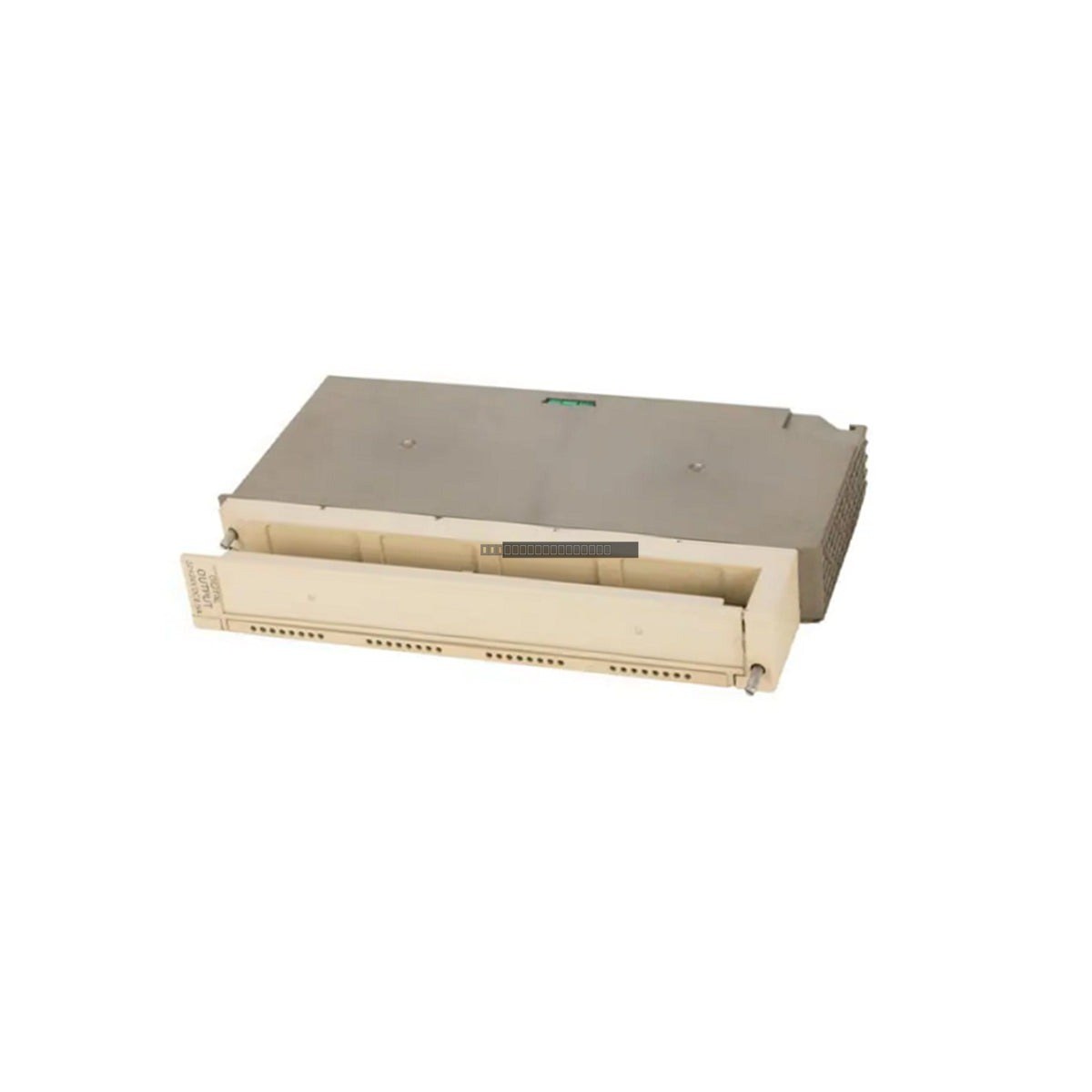

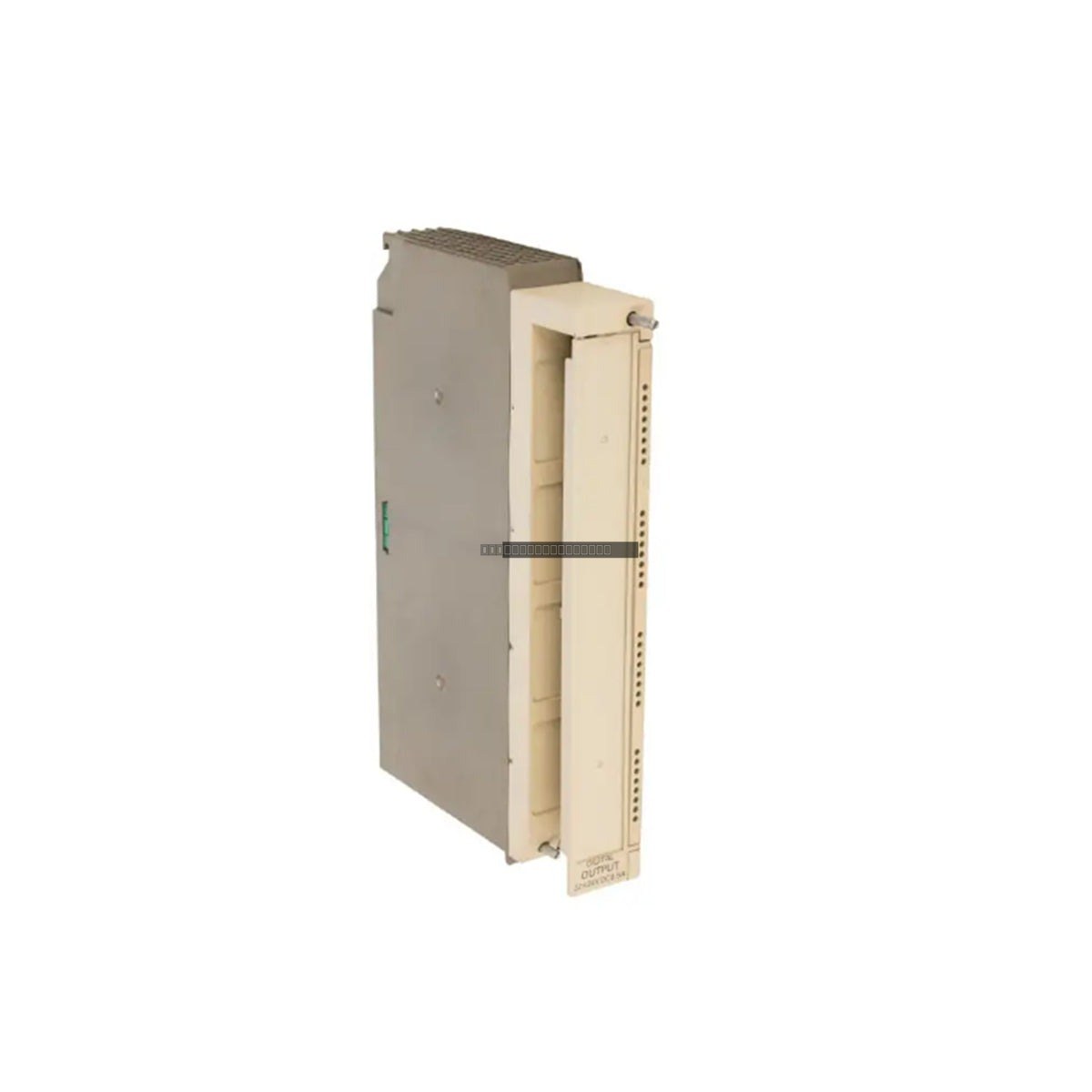

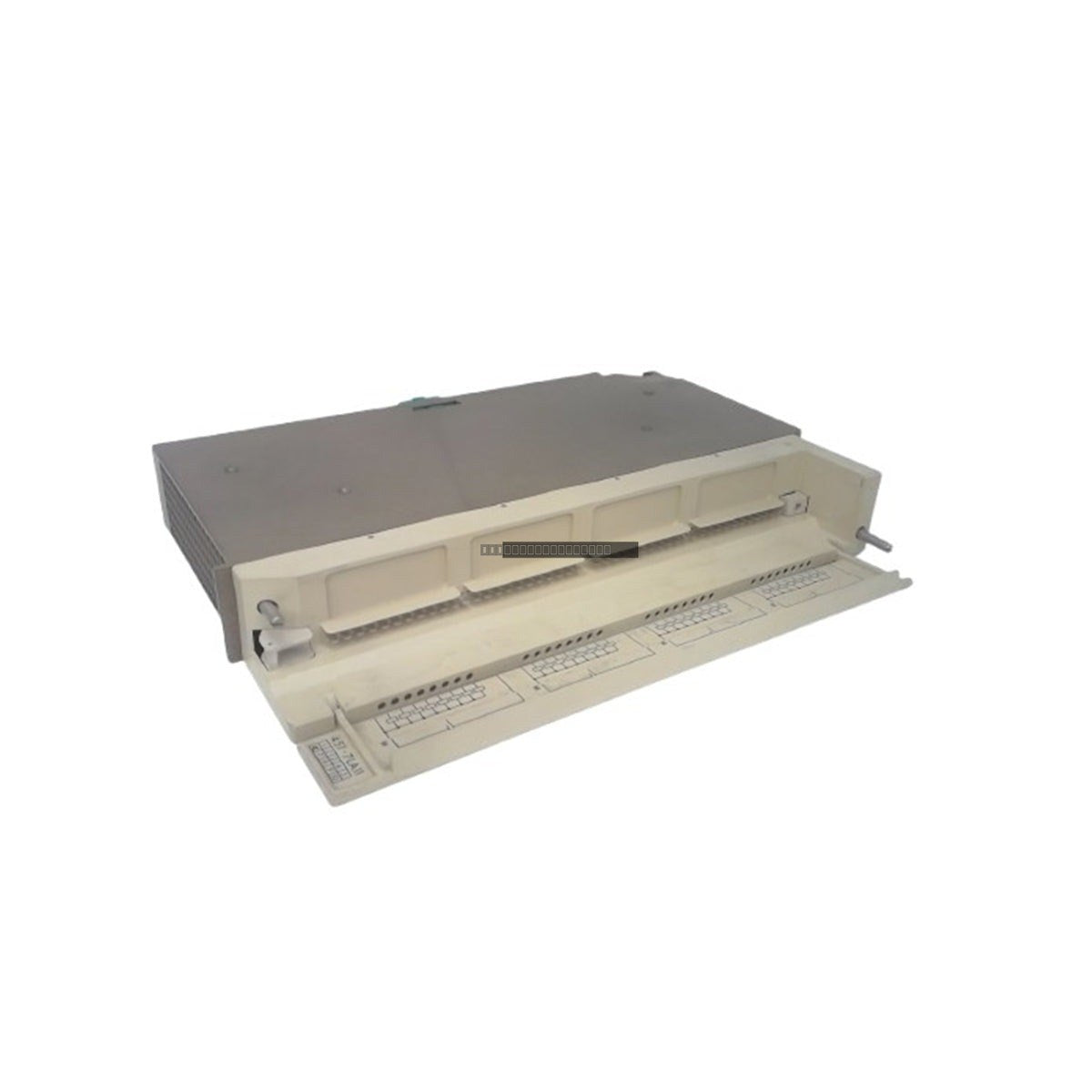

The Siemens 6ES5451-7LA11 is a high-density digital output module engineered for the Simatic S5-115 automation system. This unit provides 32 solid-state switching outputs, each rated for 24 VDC operation with a load capacity of 0.5 A per channel. It is a critical component for maintaining legacy industrial control systems, enabling the reliable operation of field devices such as solenoid valves, relays, and status indicators in demanding environments including manufacturing and municipal infrastructure.
Features
- 32-channel digital output density for high-volume control applications.
- Optocoupler isolation between field signals and internal rack electronics for enhanced system protection.
- Integrated short-circuit protection and flyback current suppression for inductive loads.
- Grouped output architecture to support flexible power distribution and thermal management.
- Direct interface with the S5-115 CPU for real-time diagnostic reporting and status monitoring.
- Front-access terminal design to facilitate efficient maintenance and module replacement.
Applications
This module is designed for integration into Siemens Simatic S5-115 rack-based systems. Typical applications include the control of pilot lamps, contactors, and small solenoid actuators in automated production lines, water treatment facilities, and legacy process control loops.
Technical Specifications
| Model |
6ES5 451-7LA11 |
| Product Family |
Simatic S5-115 |
| Output Points |
32 |
| Switching Capacity |
24 VDC @ 0.5 A per channel |
| Internal Power Consumption |
4.5 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the S5-115 rack power is fully disconnected before inserting or removing the module to prevent electrical damage.
- Verify that field wiring is properly secured to the front terminal block; ensure that inductive loads are correctly suppressed if external conditions exceed module specifications.
- Maintain adequate ventilation within the cabinet to stay within the 0 to 60 deg C operating range.
- Use shielded cabling for field connections to minimize EMI interference in high-noise industrial environments.
- Handle the module by the edges to prevent ESD damage to the internal circuitry.
FAQ
Is this module compatible with all S5 systems?
This module is specifically designed for the Simatic S5-115 series. Please verify your rack configuration and CPU compatibility before installation.
Does the module include short-circuit protection?
Yes, the 6ES5451-7LA11 features integrated electronic short-circuit protection and surge clipping diodes to protect against inductive flyback currents.
