Description
Description

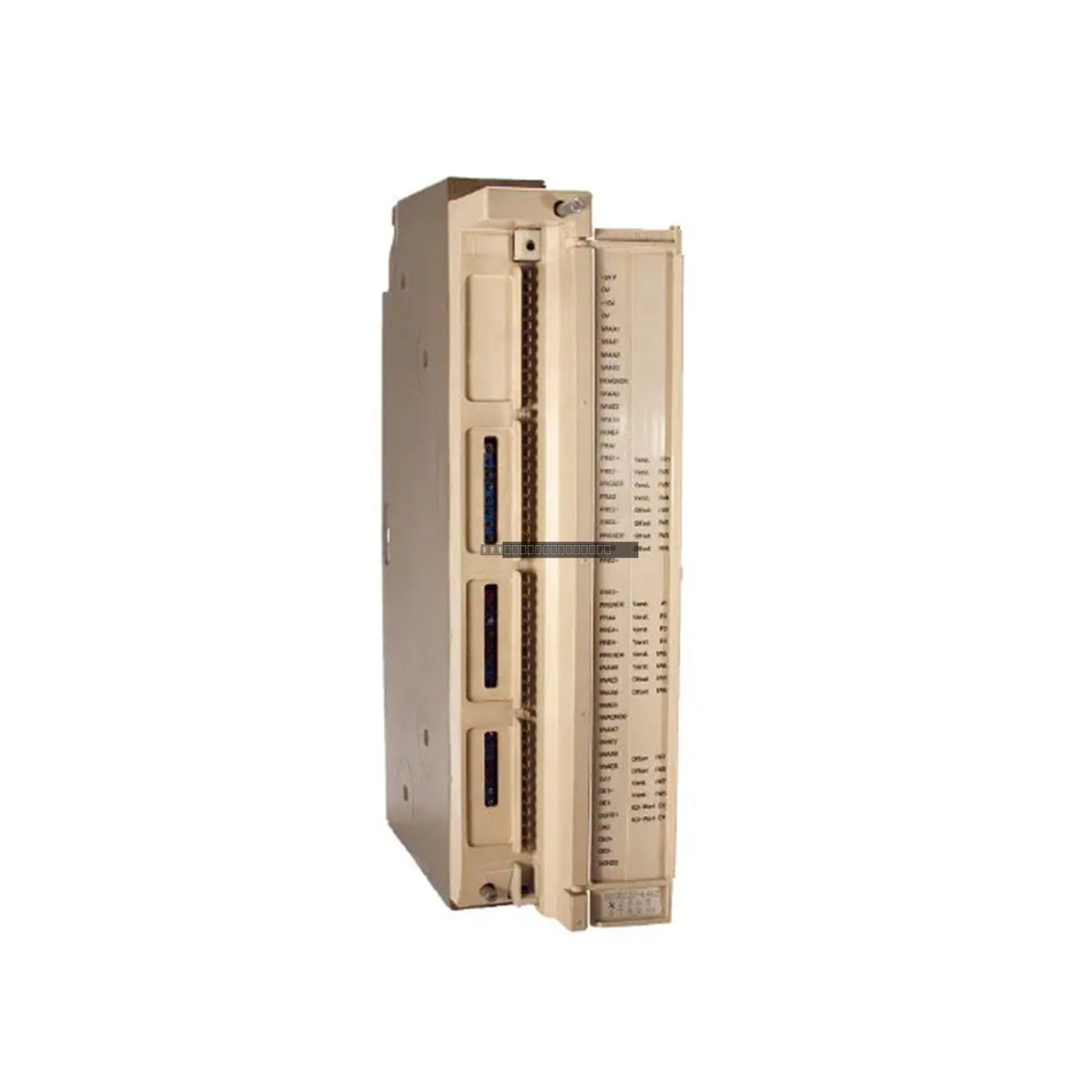

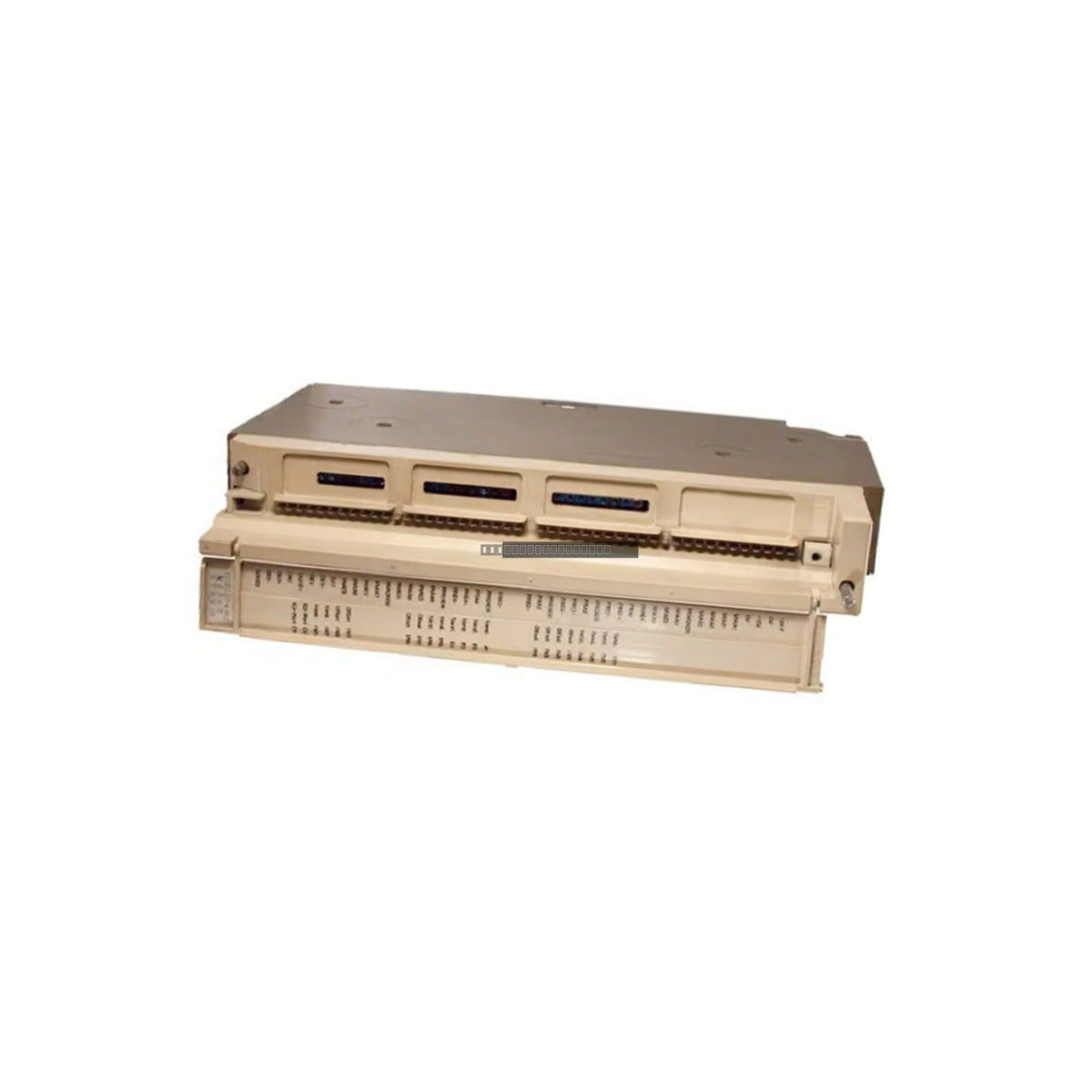

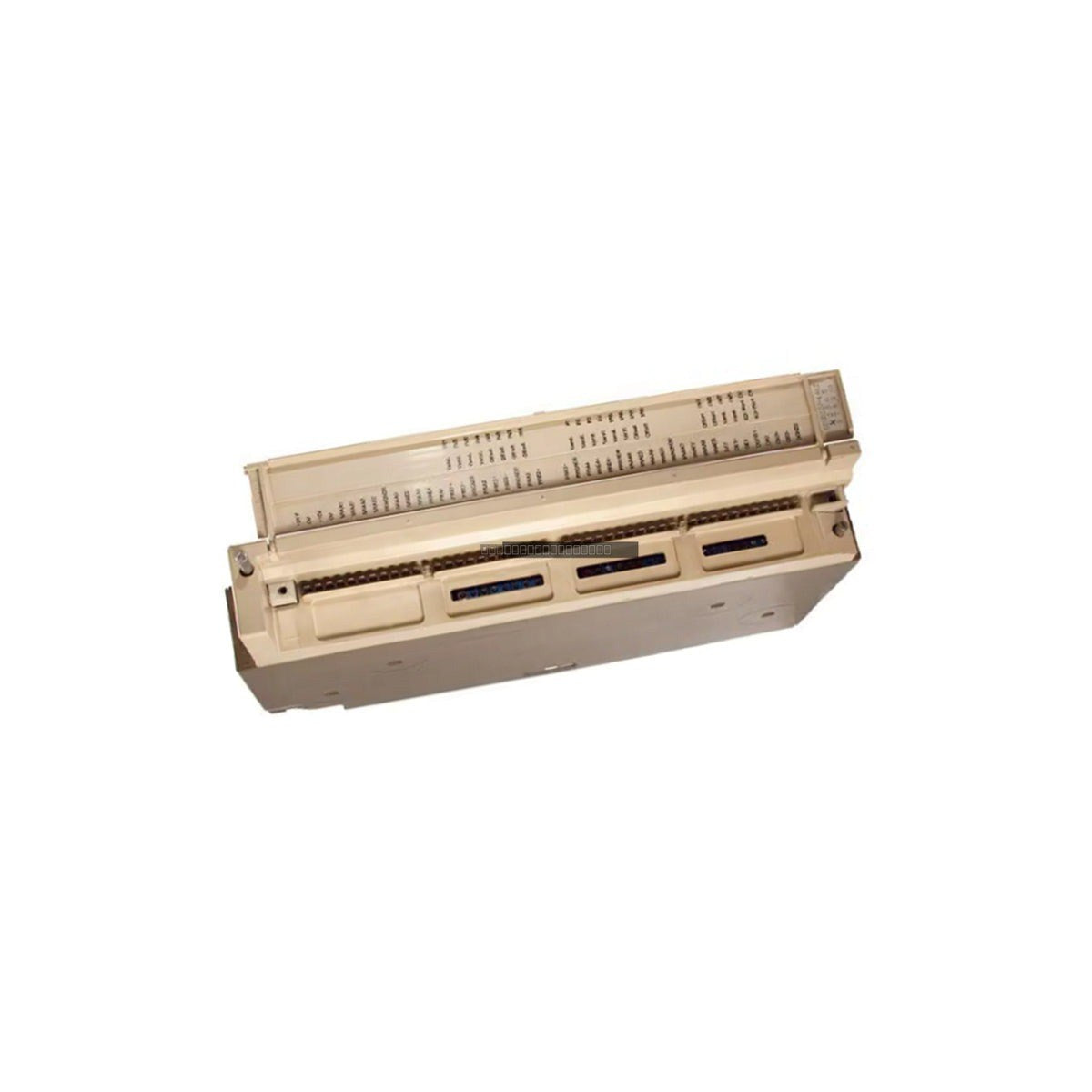

The Siemens 6ES5327-7LA12 is an adaptor module engineered for integration within the Simatic S5 industrial automation ecosystem. Specifically designed to interface with the IP252 intelligent processor, this module serves as a critical bridge for signal processing and communication within the S5 rack architecture. It is built to maintain system integrity in challenging industrial settings, including power generation, petrochemical processing, and heavy manufacturing, by ensuring reliable data exchange between the processor and field-level signals.
Features
- Direct interface compatibility with the Simatic S5 IP252 intelligent processor.
- Hardware-level signal mapping to reduce latency and enhance control loop response.
- Robust backplane bus interconnection for stable, high-density signal transmission.
- Designed for high-reliability operation in environments prone to electromagnetic interference.
- Optimized for seamless integration into existing S5 rack frameworks.
Applications
This adaptor module is primarily utilized in legacy Simatic S5 automation systems where the IP252 processor is deployed for complex control tasks. It is suitable for applications requiring high-speed, transparent data transmission between the backplane and specialized process I/O, such as in large-scale thermal power plants and automated refinery control loops.
Technical Specifications
| Model |
6ES5 327-7LA12 |
| Brand |
Siemens Simatic S5 |
| Module Type |
Adaptor Module for IP252 |
| Operating Temperature |
0 to 60 deg C |
| Power Supply |
5 VDC (via S5 backplane) |
| Power Consumption |
2.5 W (max) |
Installation Guidelines
- Ensure the S5 rack power is completely disconnected before attempting to install or remove the module to prevent electrical damage.
- Verify that the module is correctly aligned with the backplane connector pins before applying pressure to seat it into the rack.
- Use appropriate ESD protection when handling the module to prevent damage to internal sensitive components.
- Ensure the environment is within the specified temperature range (0-60 deg C) and free from excessive dust or moisture.
- Check that all backplane connections are secure to avoid intermittent signal loss or communication errors.
FAQ
What is the primary function of the 6ES5327-7LA12?
This module acts as an adaptor specifically for the IP252 intelligent processor within the Siemens Simatic S5 system, facilitating direct communication between the processor and the system backplane.
Can this module be used in high-EMI environments?
Yes, the module is designed with internal circuitry for impedance matching and electrical isolation, allowing it to maintain data integrity in industrial environments subject to electromagnetic interference.
