Description
Product Overview

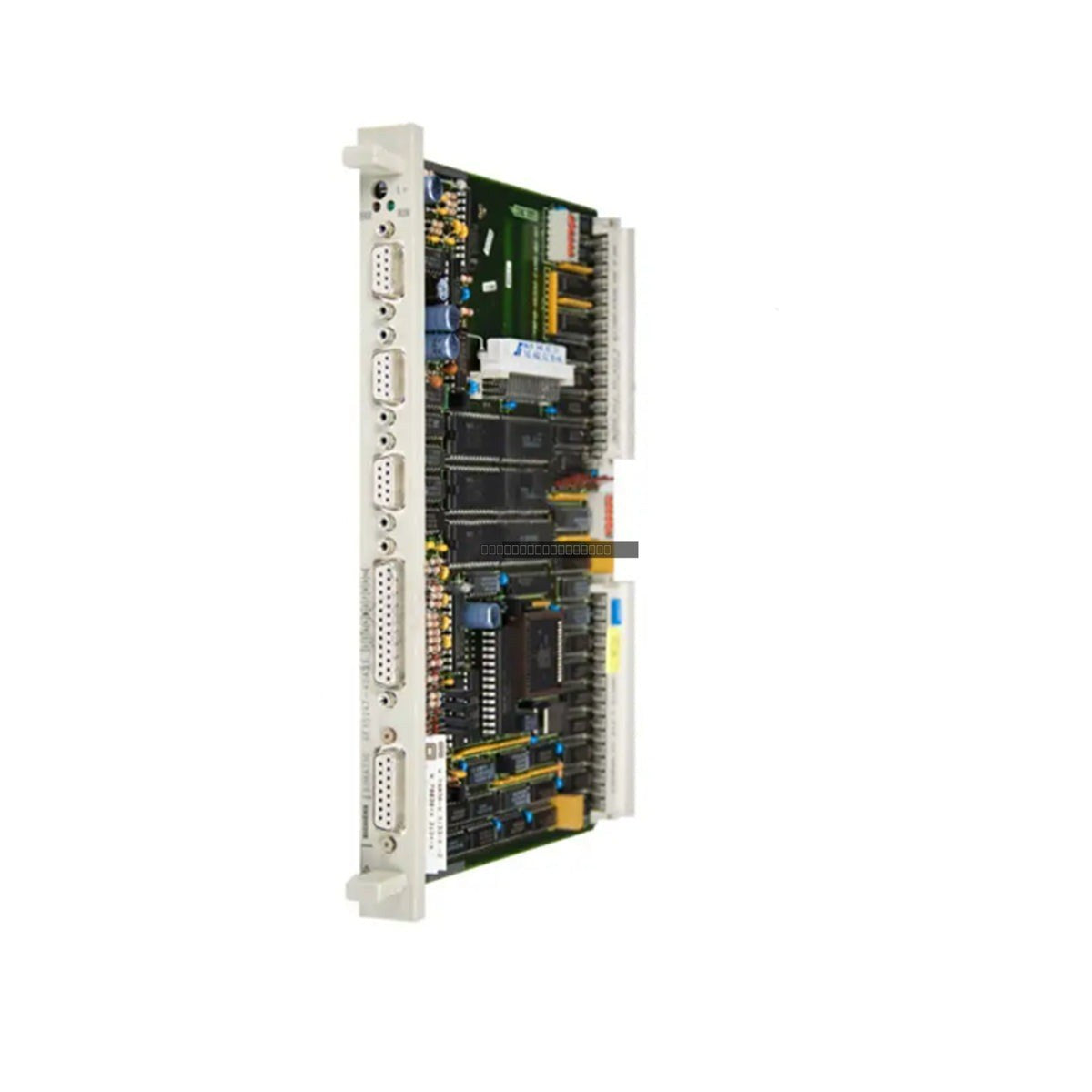

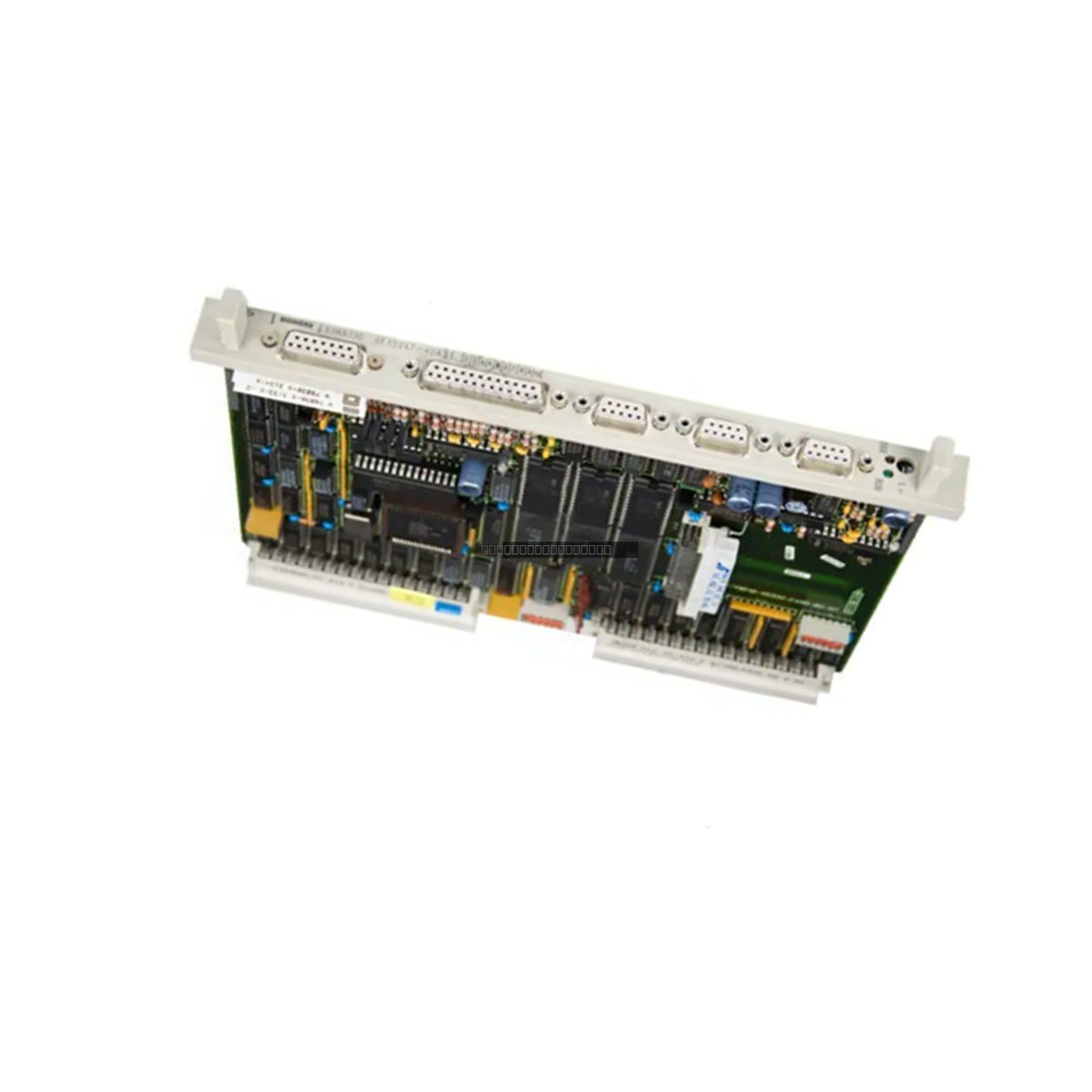

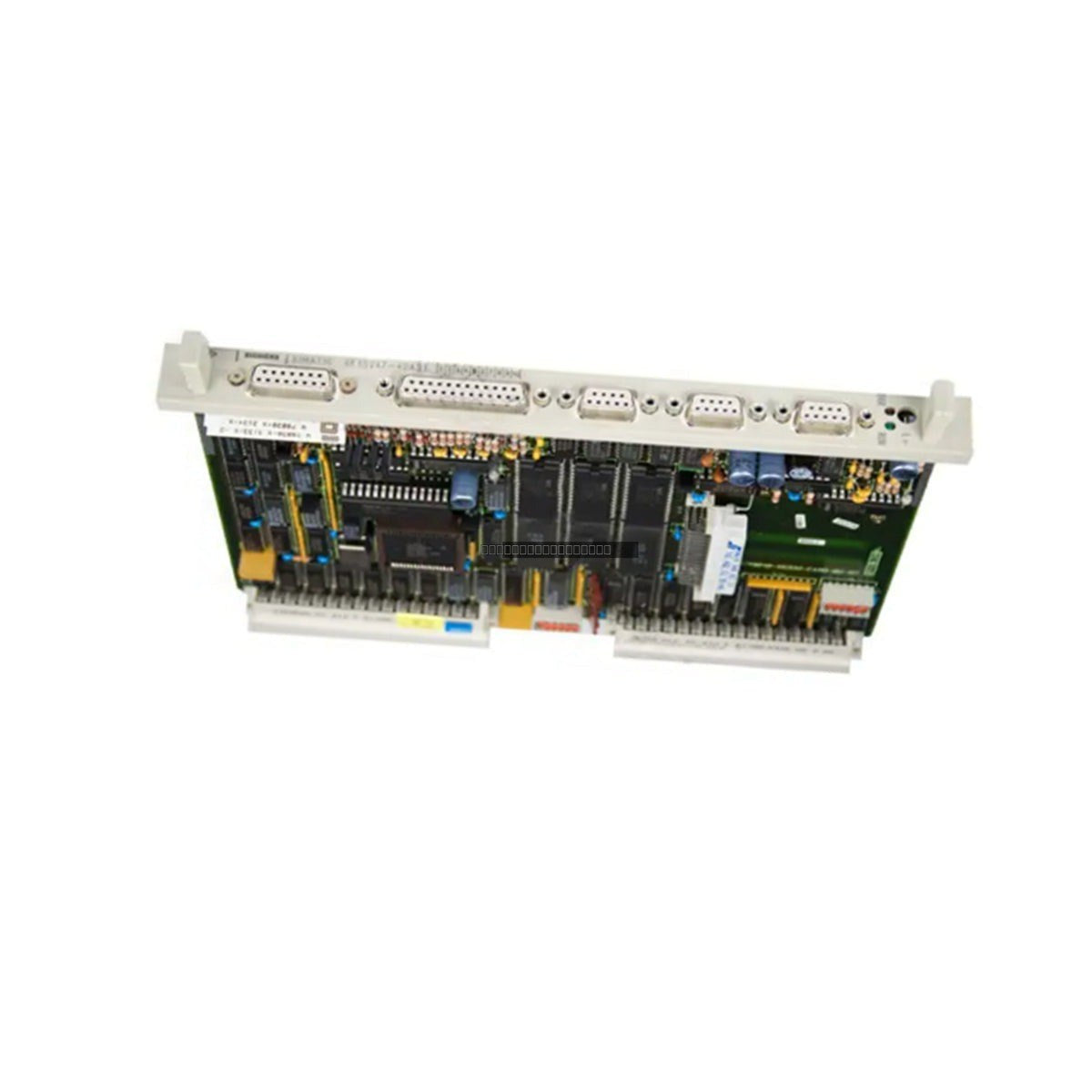

The Siemens 6ES5247-4UA31 is a specialized IP 247 positioning module engineered for the Simatic S5-135U and S5-155U PLC platforms. This single-axis controller is designed to manage stepper motor operations by offloading pulse-train generation from the main CPU, ensuring high-precision motion control. By handling acceleration and deceleration ramps locally, the module prevents CPU cycle delays, providing reliable performance for applications such as automated material handling, textile processing, and industrial assembly lines.
Features
- Single-axis control for stepper motor applications.
- Dedicated onboard microprocessor for independent motion profile execution.
- High-speed dual-port RAM interface for efficient communication with the S5 backplane.
- Differential signal output to ensure high noise immunity in demanding industrial environments.
- Integrated monitoring for external limit switches, reference sensors, and drive ready signals.
- Dynamic parameter updates, including velocity and target coordinates, via the host PLC.
Applications
This module is ideal for point-to-point positioning tasks where mechanical precision and cycle time optimization are required. It is commonly deployed in systems requiring synchronized movement, such as automated storage and retrieval systems, conveyor positioning, and specialized manufacturing machinery integrated within the S5-135U/155U ecosystem.
Technical Specifications
| Model |
6ES5247-4UA31 |
| Series |
Simatic S5 |
| Compatibility |
S5-135U / S5-155U |
| Control Channels |
1 Axis |
| Max Pulse Frequency |
100 kHz |
| Signal Levels |
5 VDC differential / 24 VDC single-ended |
| Power Consumption |
5.5 W (from backplane) |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the module from the rack.
- Verify that the backplane connection is secure to prevent intermittent communication errors.
- Use shielded cabling for all pulse outputs to minimize electromagnetic interference (EMI) in high-noise factory environments.
- Maintain proper ventilation in the control cabinet to ensure the operating temperature remains within the 0-55 deg C range.
- Handle the module using standard ESD (Electrostatic Discharge) safety practices to protect internal circuitry.
FAQ
What is the primary function of the 6ES5247-4UA31?
This module acts as a dedicated motion controller that offloads pulse-generation tasks from the S5 CPU, allowing for precise, single-axis stepper motor positioning.
Is this module compatible with other Simatic series?
The 6ES5247-4UA31 is specifically designed for the S5-135U and S5-155U rack systems. It is not compatible with S7 or later generation PLC platforms.
