Description

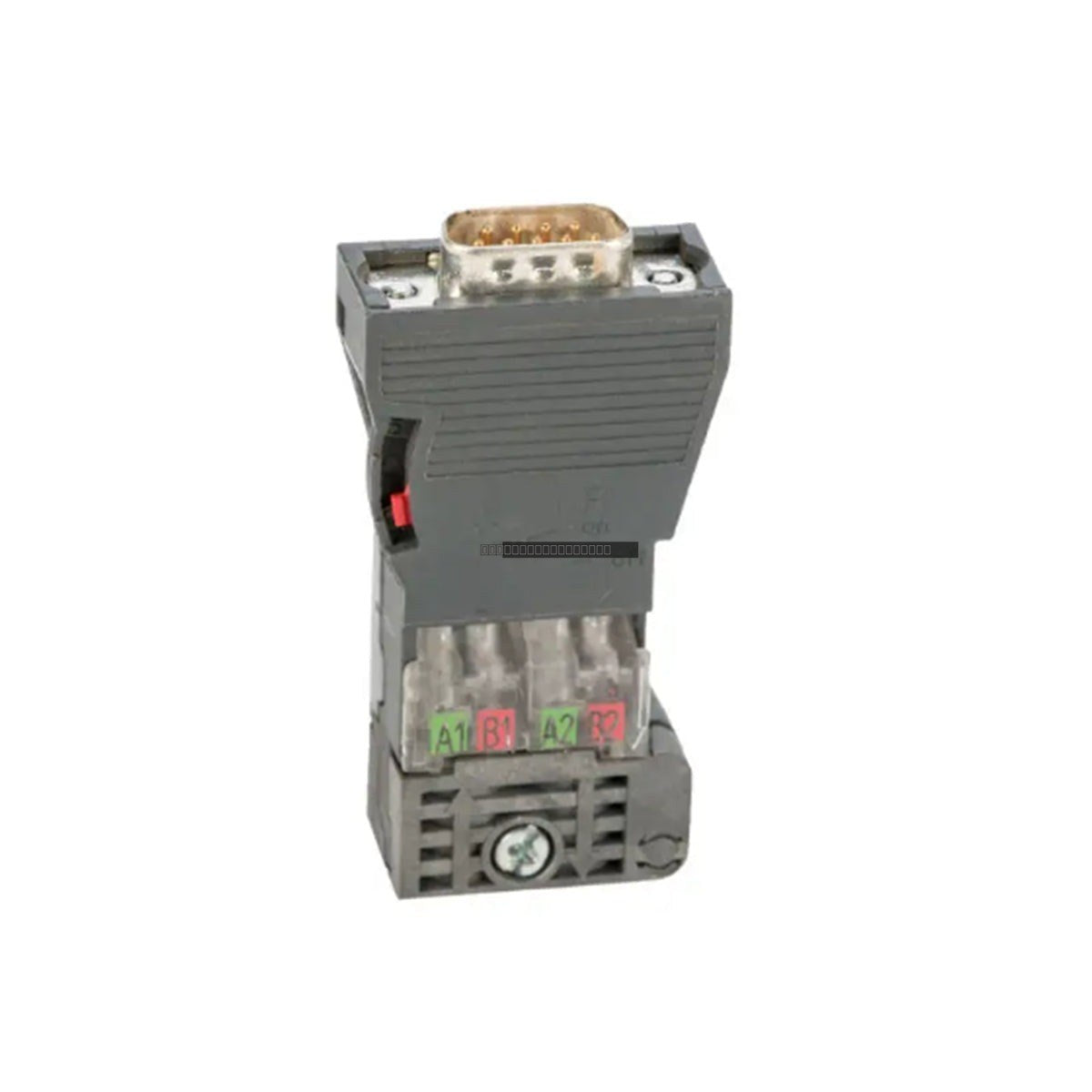

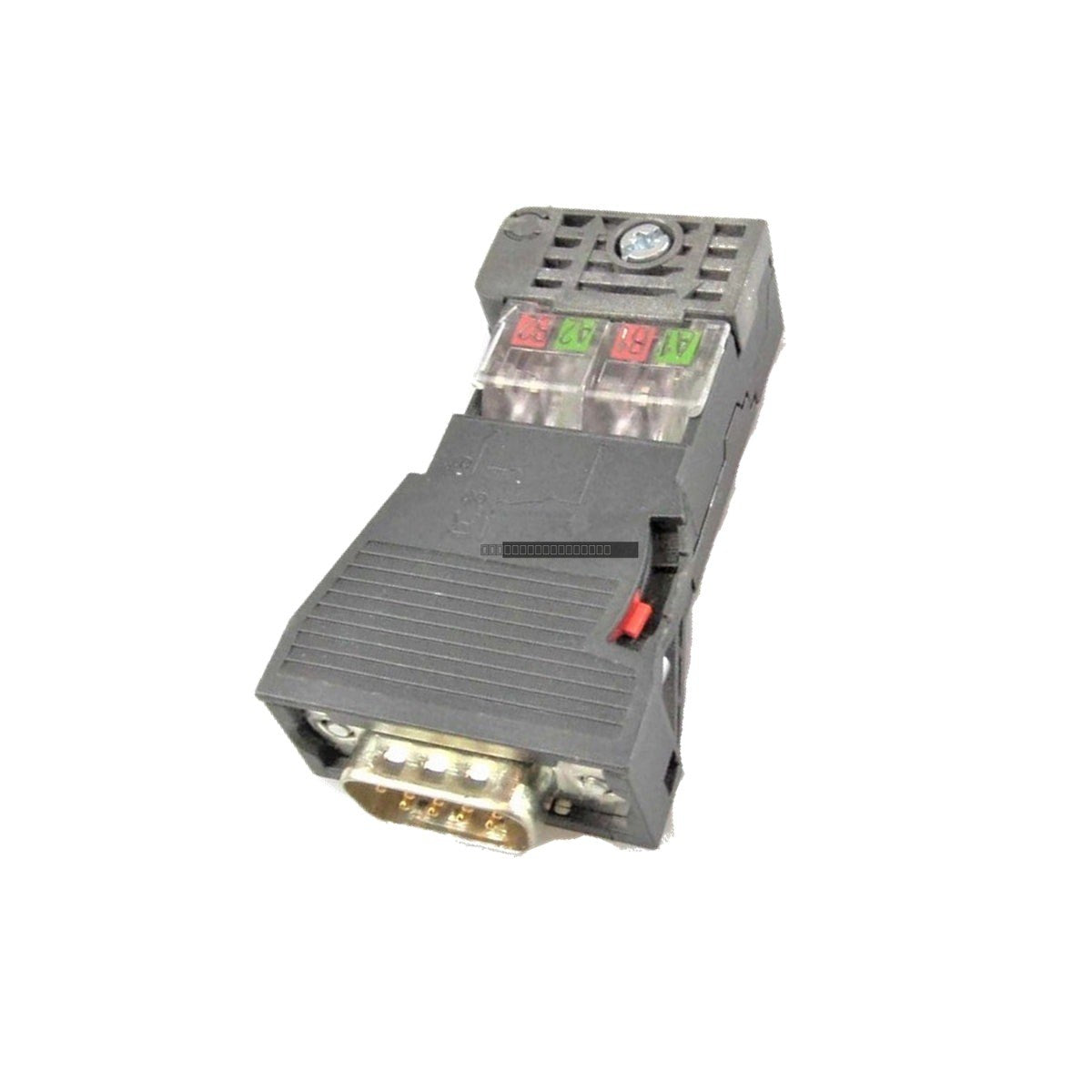

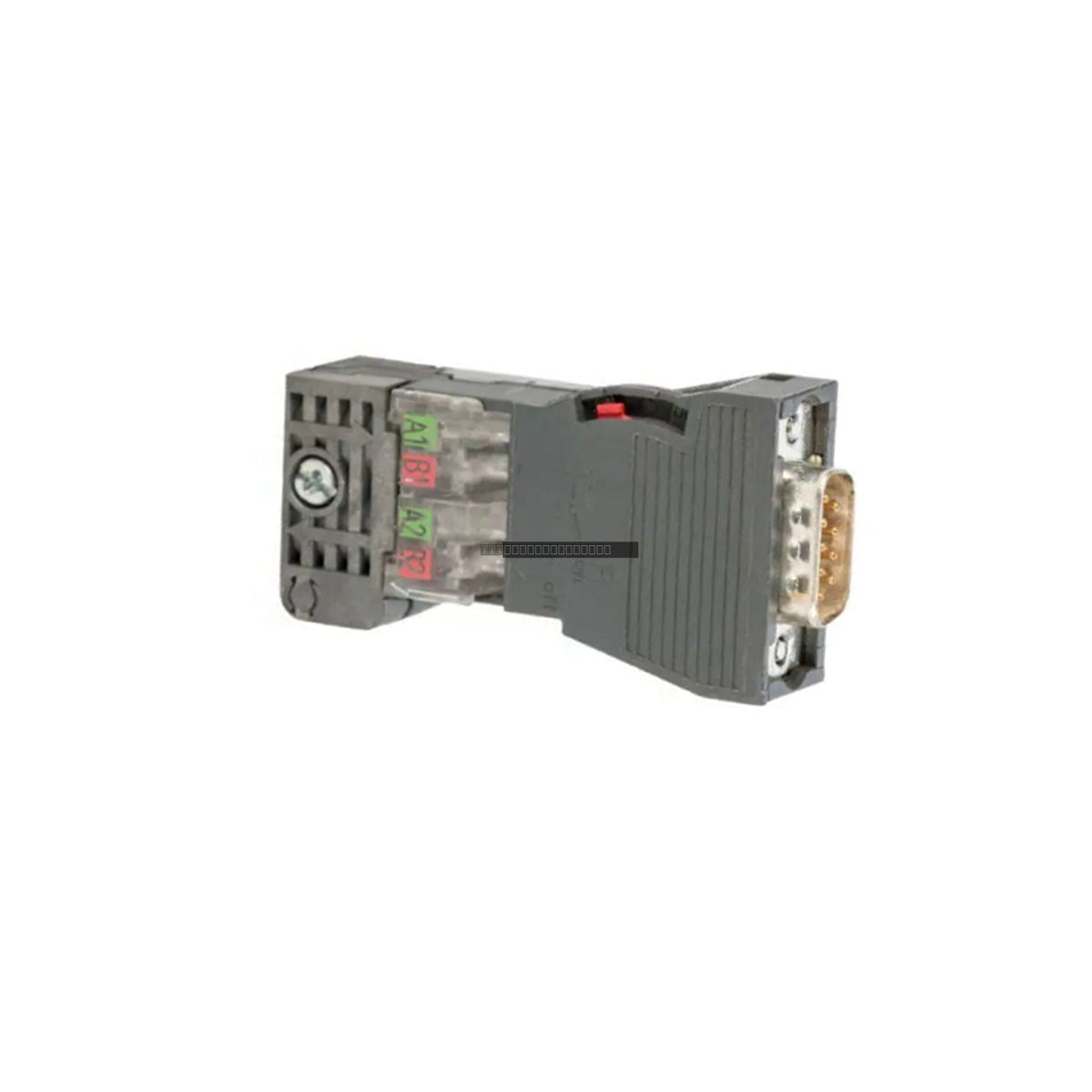

The Siemens 6GK1500-0FC00 is a high-performance PROFIBUS bus connector engineered for reliable fieldbus connectivity in industrial automation environments. Designed as part of the SIMATIC NET series, this component facilitates the connection of PROFIBUS DP and MPI nodes to the network bus, supporting communication speeds up to 12 Mbps. Its robust design ensures signal integrity and minimizes network interference in demanding industrial applications.
Features
-
FastConnect Technology: Utilizes insulation-displacement contact (IDC) technology, allowing for quick, reliable cable termination without the need to strip individual conductors.
-
Axial Cable Exit: Features a 180-degree cable exit, ideal for space-constrained installations where depth is a factor.
-
High-Speed Support: Compatible with transmission rates from 9.6 Kbps to 12 Mbps, suitable for complex, high-speed control networks.
-
Robust Interface: Equipped with a standard 9-pin Sub-D male connector for secure, vibration-resistant mating with controllers and field devices.
-
Integrated Termination: Designed to maintain network stability and prevent signal reflections in PROFIBUS segments.
Applications
This bus connector is widely utilized in industrial automation sectors including automotive manufacturing, power distribution, water management, and chemical processing. It is specifically designed for use with PROFIBUS DP and MPI network topologies where reliable, high-speed data exchange between PLCs, HMIs, and remote I/O is critical.
Technical Specifications
| Model |
6GK1500-0FC00 |
| Brand |
Siemens SIMATIC NET |
| Interface |
9-Pin Sub-D Male |
| Cable Exit |
180-Degree Axial |
| Transmission Rate |
9.6 Kbps to 12 Mbps |
| Connection Technology |
FastConnect (IDC) |
| Operating Temperature |
-25 to 60 deg C |
| Power Consumption |
Passive (0 W) |
Installation Guidelines
- Ensure the PROFIBUS cable is cut cleanly before inserting it into the FastConnect housing.
- Verify that the cable shielding is correctly positioned to contact the internal metal housing for effective grounding.
- Snap the housing shut firmly to ensure the insulation-displacement contacts fully penetrate the wire insulation.
- Avoid sharp bending radii for the PROFIBUS cable immediately adjacent to the connector to prevent signal degradation.
- Always power down the network segment or follow site-specific safety protocols before performing maintenance or connector replacement.
FAQ
Does this connector require specialized tools for installation? No, the FastConnect system is designed for tool-free installation, though a standard cable cutter is recommended for preparing the cable ends.
Can this be used for MPI networks? Yes, the 6GK1500-0FC00 is fully compatible with both PROFIBUS DP and MPI network architectures.
