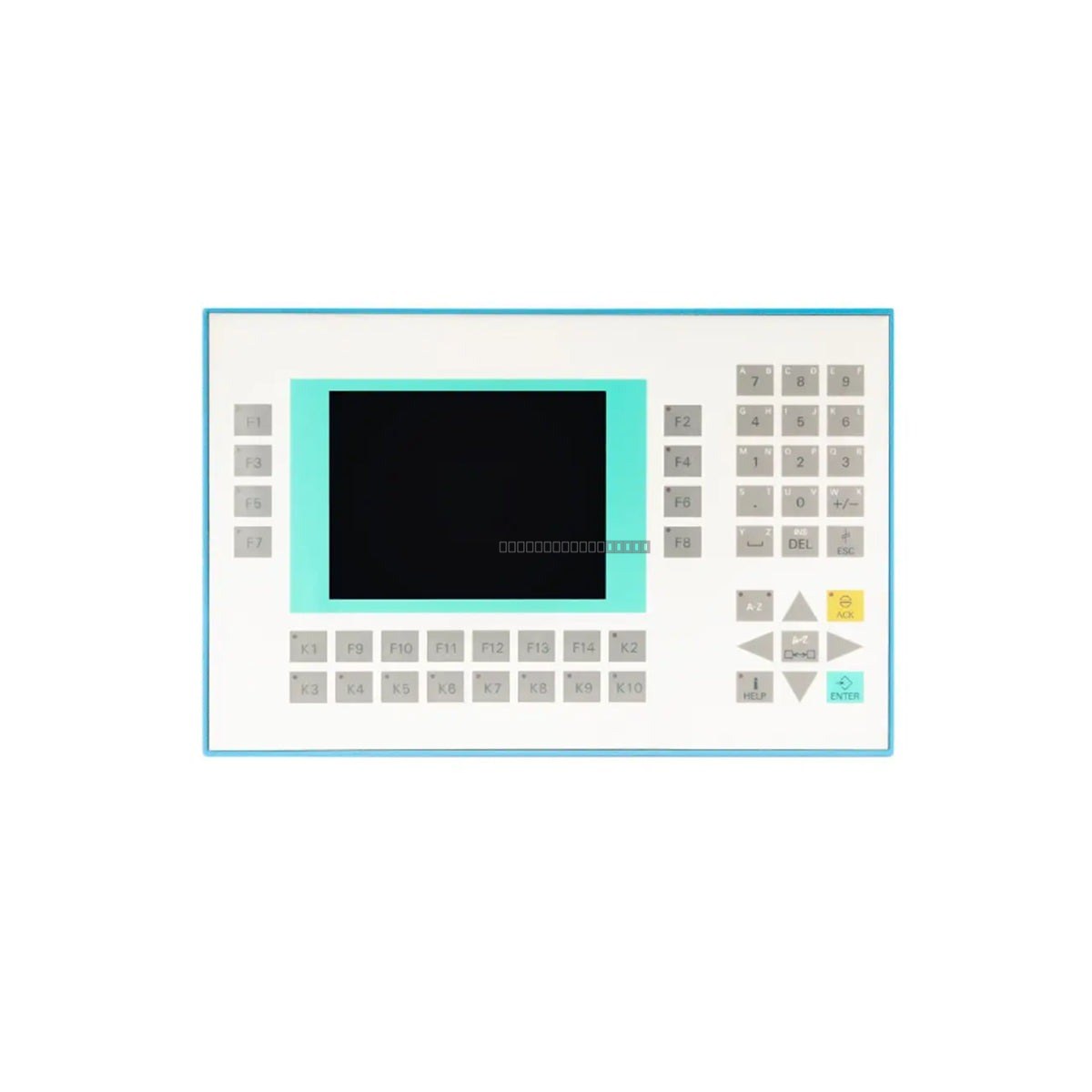

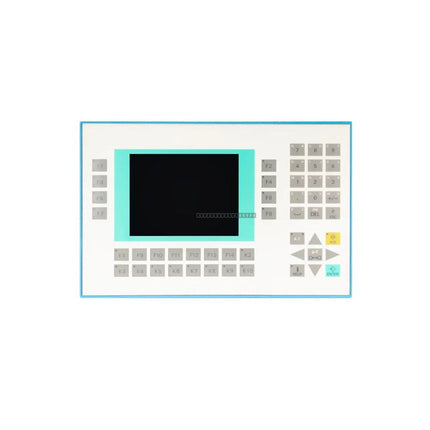

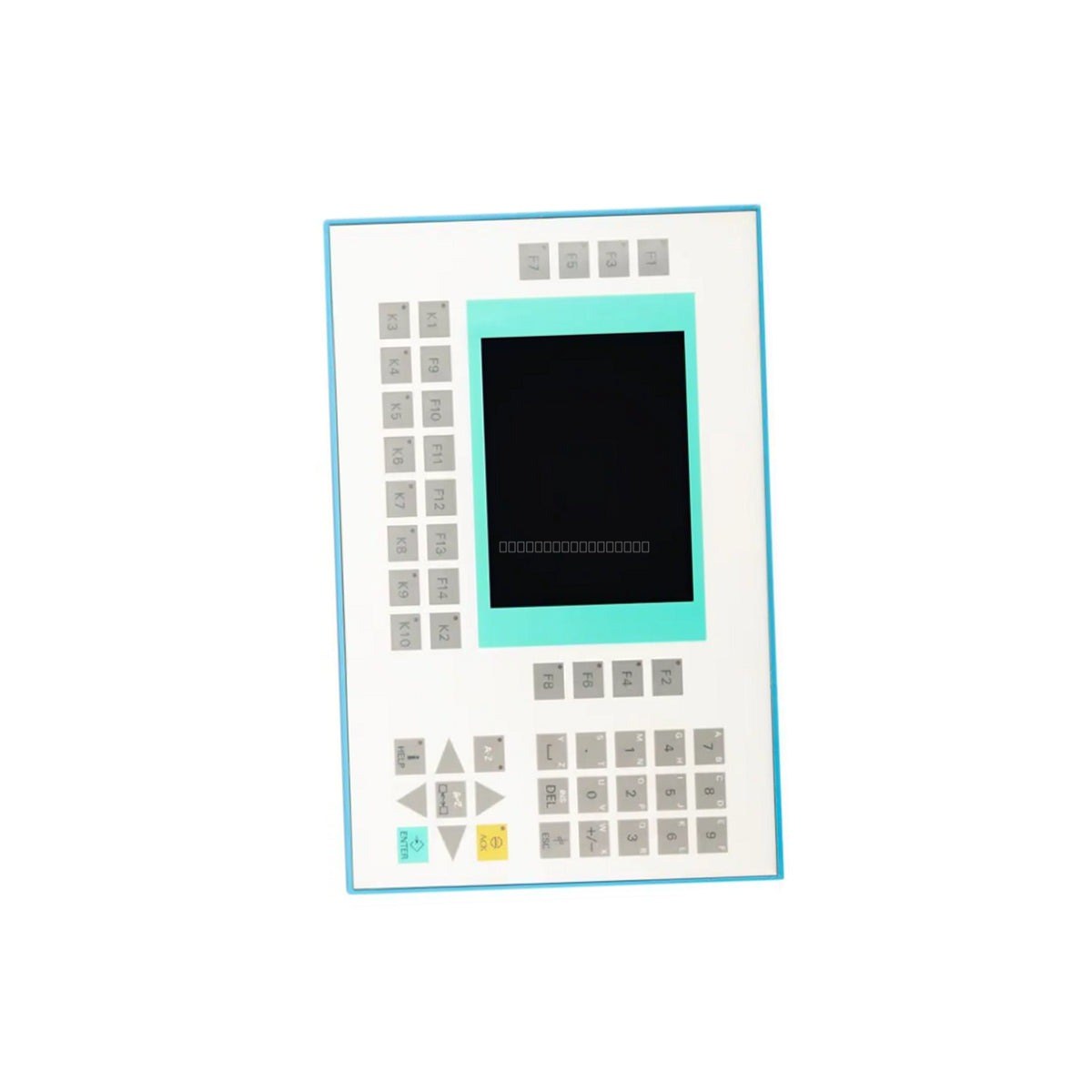

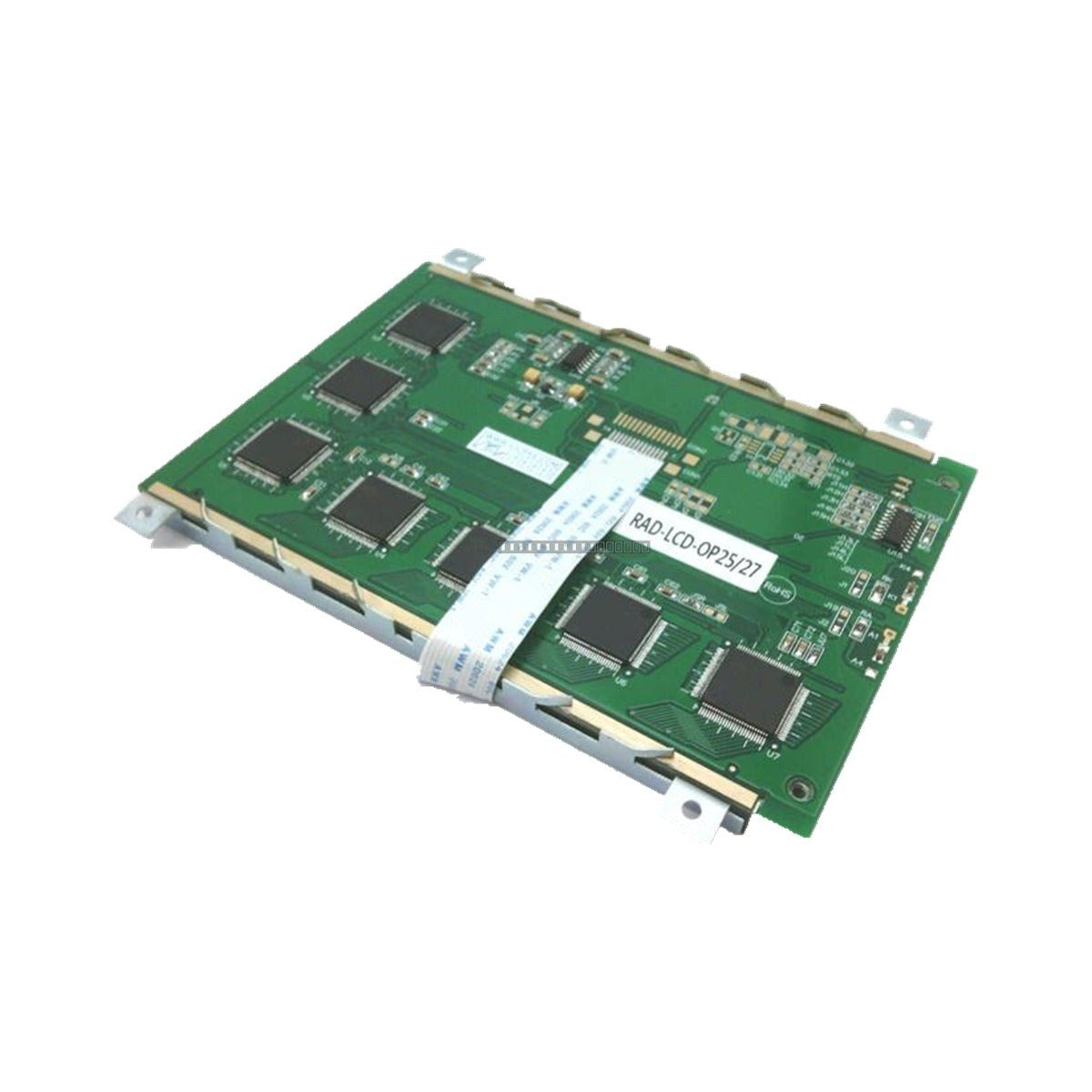

The 6AV3525-4EA01-0AX0-ZA03-SUB-LCD is a high-grade engineered replacement LCD flat panel module designed specifically for the Siemens Simatic OP25 human-machine interface (HMI). This display component restores graphic visualization capabilities on the factory floor, enabling operators to monitor and interact with real-time machine data. It is suitable for use in heavy industrial sectors, including water treatment, chemical processing, and automotive manufacturing, where maintaining clear operator visibility is critical for process control.
Features
- Direct replacement for the original Simatic OP25 HMI display assembly.
- 5.7-inch monochrome active matrix LCD panel.
- Native resolution of 320 x 240 pixels for sharp text and vector graphics.
- High-efficiency backlighting circuitry for consistent luminance in industrial environments.
- Integrated flex-cable interface for seamless connection to existing legacy controller boards.
- Passive installation design requires no custom firmware or structural modifications to the operator console.
Applications
This replacement panel is intended for the maintenance and repair of legacy Siemens Simatic OP25 operator terminals. It is ideal for facilities looking to extend the service life of existing HMI hardware without the need for complete system migration or expensive console retrofits.
Technical Specifications
| Model |
6AV3525-4EA01-0AX0-ZA03-SUB-LCD |
| Brand |
Siemens |
| Target System |
Simatic OP25 HMI |
| Display Size |
5.7 inch |
| Resolution |
320 x 240 Pixels |
| Display Type |
Monochrome LCD |
| Power Consumption |
2.5 W |
| Operating Temperature |
0 to 50 deg C |
Installation Guidelines
- Ensure the HMI terminal is fully powered down and disconnected from the main power supply before attempting to open the chassis.
- Use appropriate ESD (Electrostatic Discharge) protection when handling the display module to prevent damage to sensitive internal circuitry.
- Carefully remove the legacy display assembly, noting the orientation of the flex-cable connection.
- Install the replacement panel into the existing metal chassis, ensuring all mounting points are aligned and secured.
- Connect the flex-cable interface to the controller board, ensuring the connector is fully seated and locked.
- Verify the display operation upon power-up before closing the terminal enclosure.
FAQ
Is this a genuine Siemens factory part?
This module is an engineered replacement component designed to be fully compatible with the Siemens Simatic OP25 HMI. It is designed to match the form, fit, and function of the original hardware to ensure seamless integration.
Does this replacement require any software changes?
No, this is a passive hardware replacement. The module is designed to interface with the existing controller drive boards without requiring firmware updates or configuration changes.
