Description

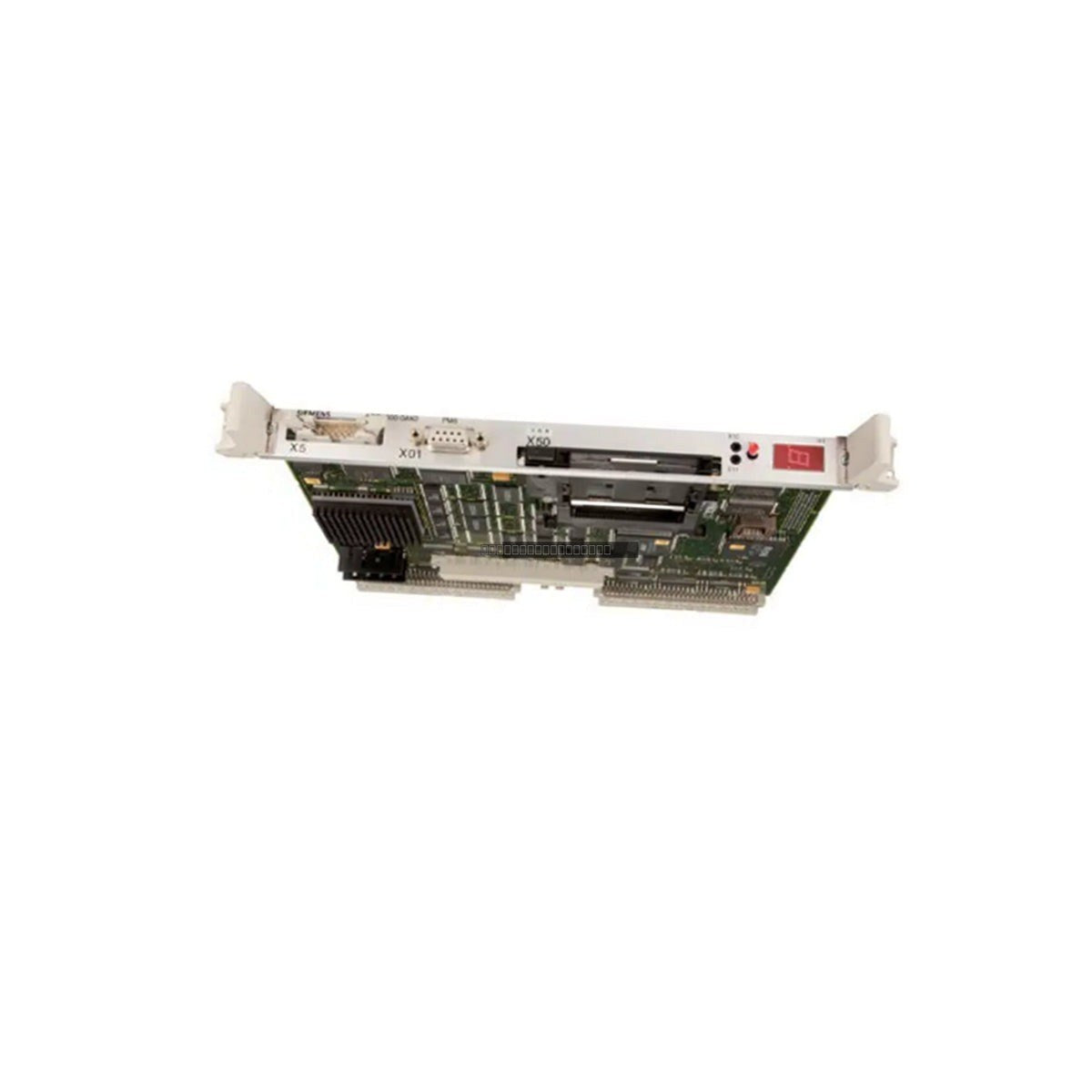

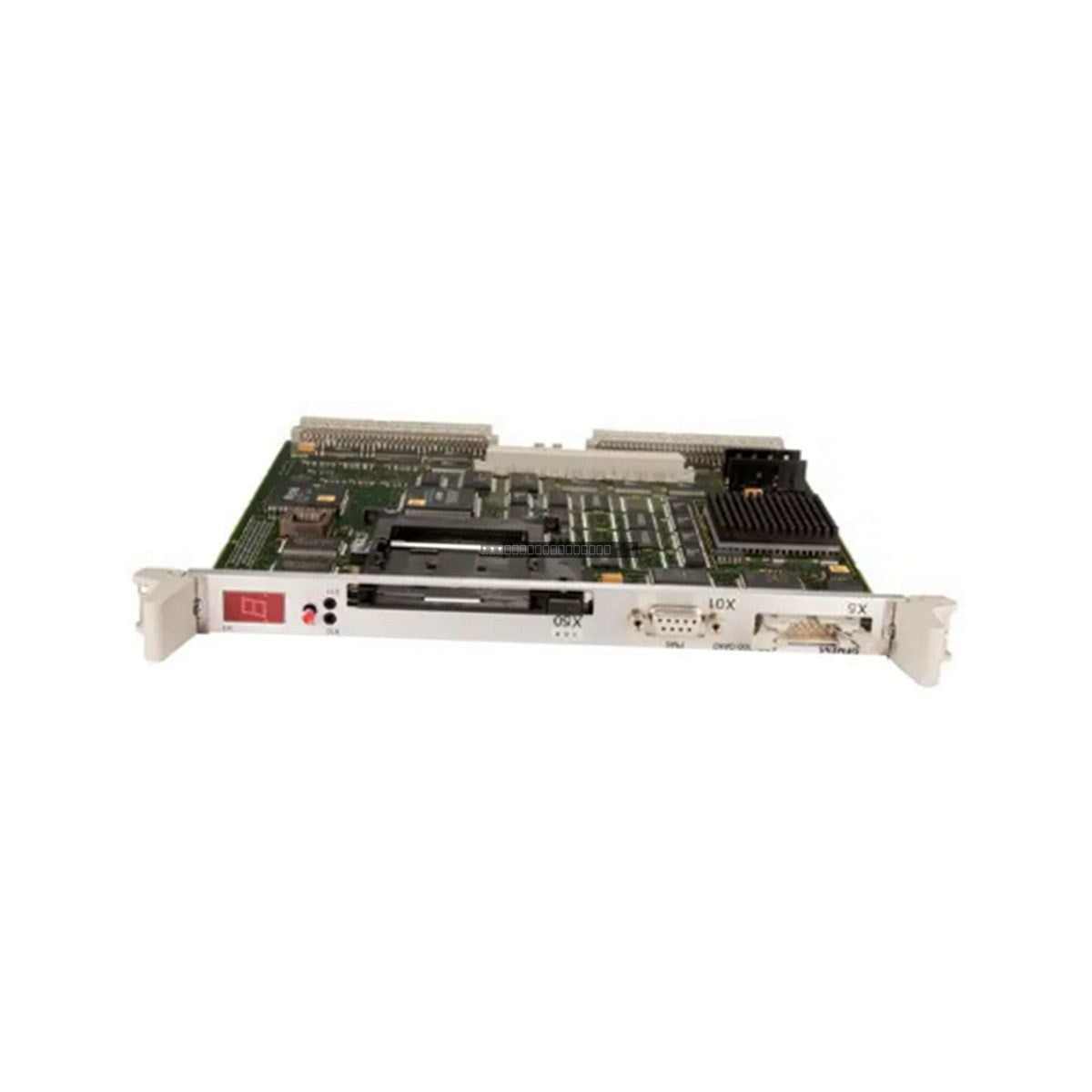

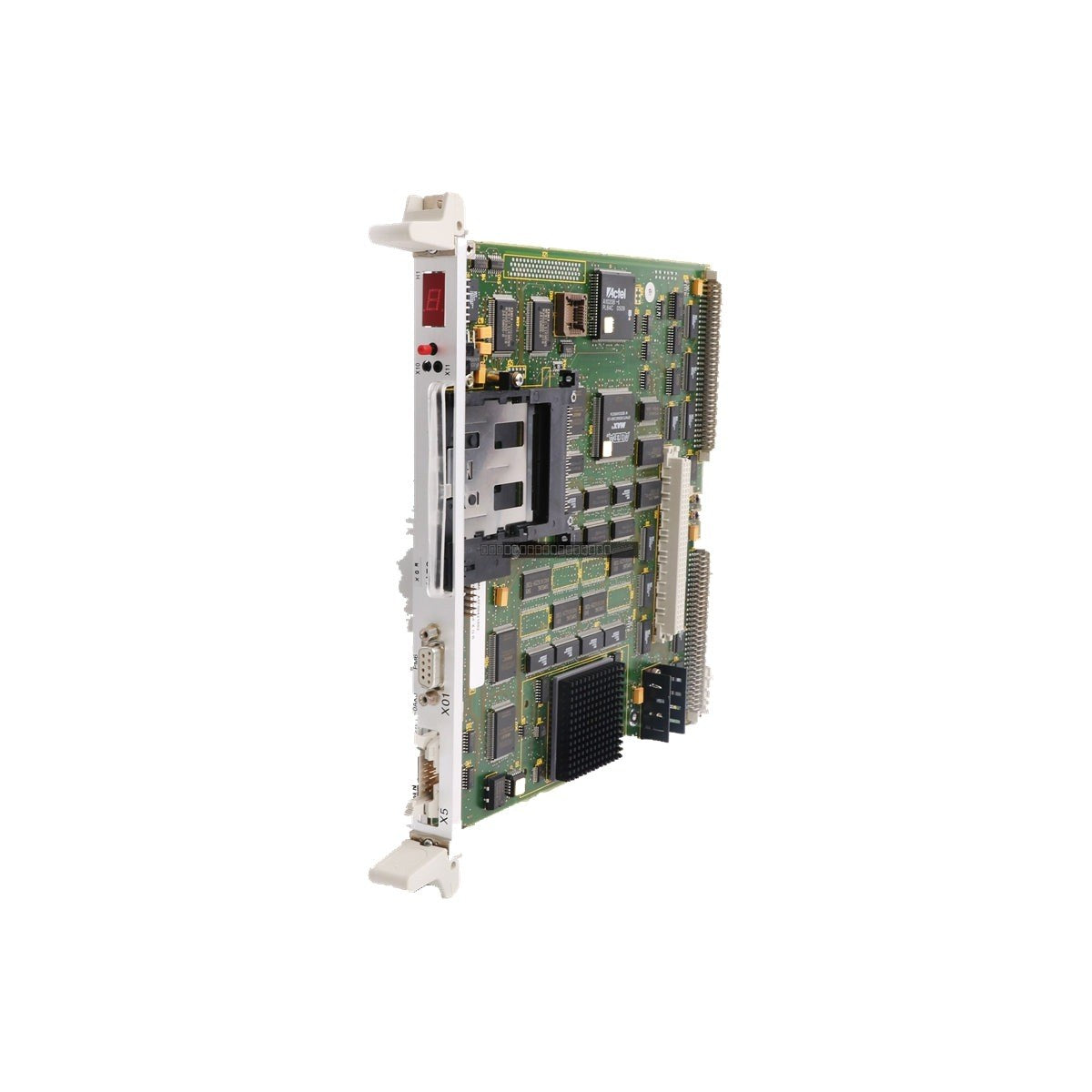

The Siemens 6DD1600-0AK0 is a high-performance PM6 processor module designed for the SIMADYN D industrial automation system. Engineered for demanding, high-speed, and deterministic real-time control applications, this 64-bit CPU module provides the computational power required for complex technological tasks. It serves as a central processing unit within the SIMADYN D and SIMATIC TDC (Technological Distributed Control) ecosystems, offering robust performance for critical industrial environments.
Features
- High-performance 32/64-bit RISC processor architecture.
- Operating frequency of 64/128 MHz.
- Integrated 8 MByte DRAM (with versions supporting 16 MByte).
- 256 KByte SRAM for reliable data storage.
- Includes 8 integrated binary/digital inputs.
- Support for absolute and incremental input signals.
- Compatible with L and C bus configurations for flexible system integration.
Applications
-
Steel and Metal Rolling Mills: Sub-millisecond coordination for thickness and tension control in drive systems.
-
Paper and Printing Plants: Synchronization of rollers in paper mills and high-speed printing presses.
-
Power Plants and Energy Distribution: Management of HVDC excitation to ensure stable energy flow.
-
Chemical and Processing Facilities: Monitoring of high-speed pressure and temperature fluctuations.
-
Automotive and Manufacturing: Multi-axis robotic and Cartesian synchronization for production lines.
-
Water Treatment Facilities: Cascading high-capacity pumps for optimized flow and utilization.
Technical Specifications
| Model |
6DD1600-0AK0 |
| Processor |
32/64-bit RISC |
| Clock Speed |
64/128 MHz |
| DRAM |
8 MByte (up to 16 MByte) |
| SRAM |
256 KByte |
| Rated Input Voltage |
+24 V |
| 0 Signal Range |
-1 V to +6 V |
| 1 Signal Range |
+13 V to +33 V |
| Configuration Software |
SIMATIC D7-SYS or STRUC V4.x |
Installation Guidelines
-
Handling: Ensure proper ESD (Electrostatic Discharge) precautions are taken when handling the module to prevent damage to sensitive internal components.
-
Power Requirements: Verify that the subrack power supply provides stable +5V, +15V, and -15V levels within specified tolerances before installation.
-
Mounting: Ensure the module is fully seated in the subrack. If the module is part of a multi-processor chain, ensure all U-connectors are properly inserted and secured.
-
Commissioning: Observe the front-panel LED indicators during the initial power-up sequence to verify system status and identify potential error codes.
-
Environment: Ensure adequate ventilation within the cabinet to maintain operating temperatures within the manufacturer's specified range.
FAQ
What is the 6DD1600-0AK0?
The Siemens 6DD1600-0AK0 is a SIMADYN D PM6 processor module designed for high-performance industrial automation, featuring a 64-bit CPU, integrated binary inputs, and support for L and C bus configurations.
What is the function of the 6DD1600-0AK0?
It acts as a central processing unit (CPU) module for the SIMADYN D system, used for demanding industrial automation tasks, such as high-speed control and monitoring in production environments.
What systems is it compatible with?
It is part of the SIMADYN D system and functions within the SIMATIC TDC (Technological Distributed Control) ecosystem.
What are its primary technical features?
It features a high-performance 64-bit CPU, integrated binary inputs, and supports both L and C bus configurations for flexible connectivity.
