Description

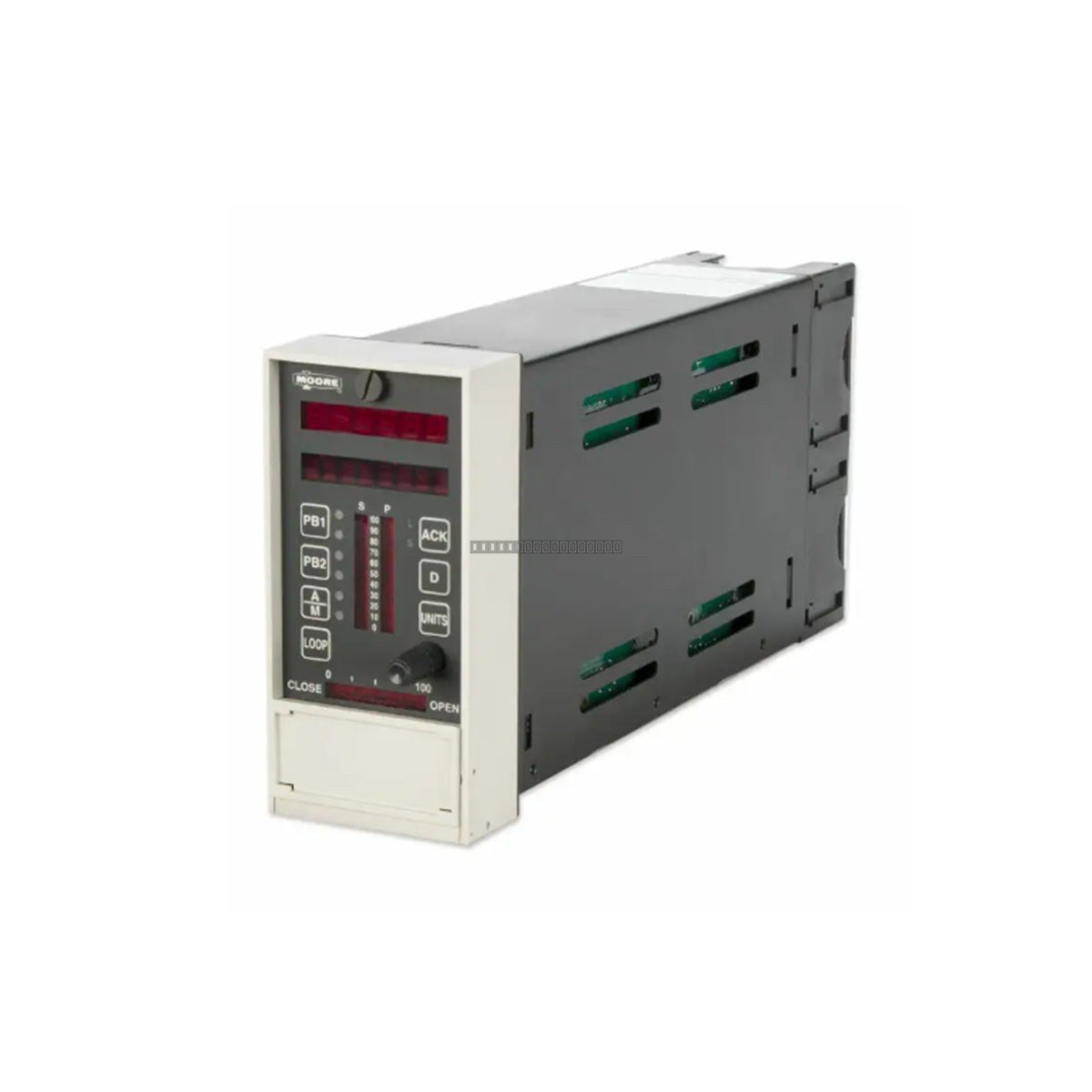

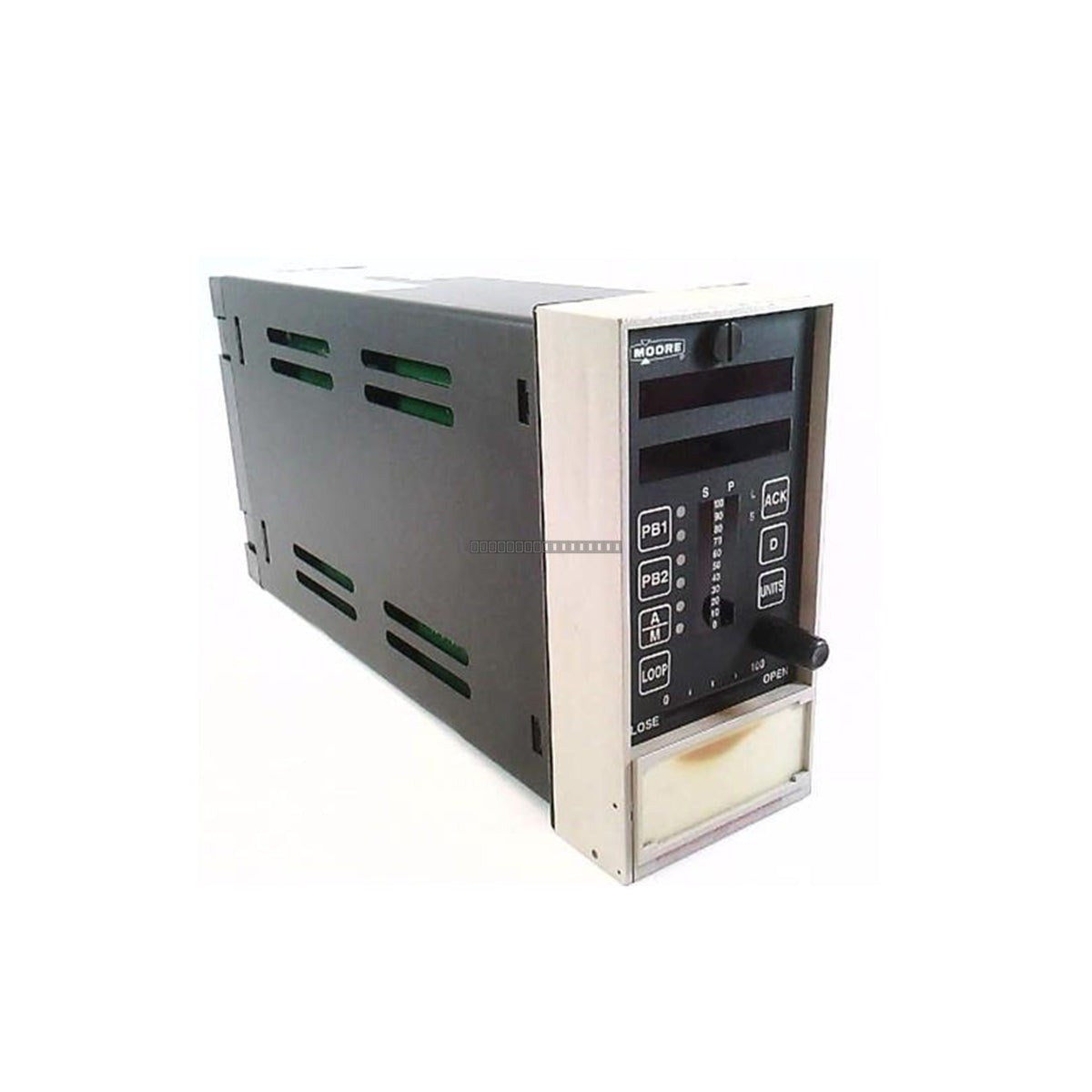

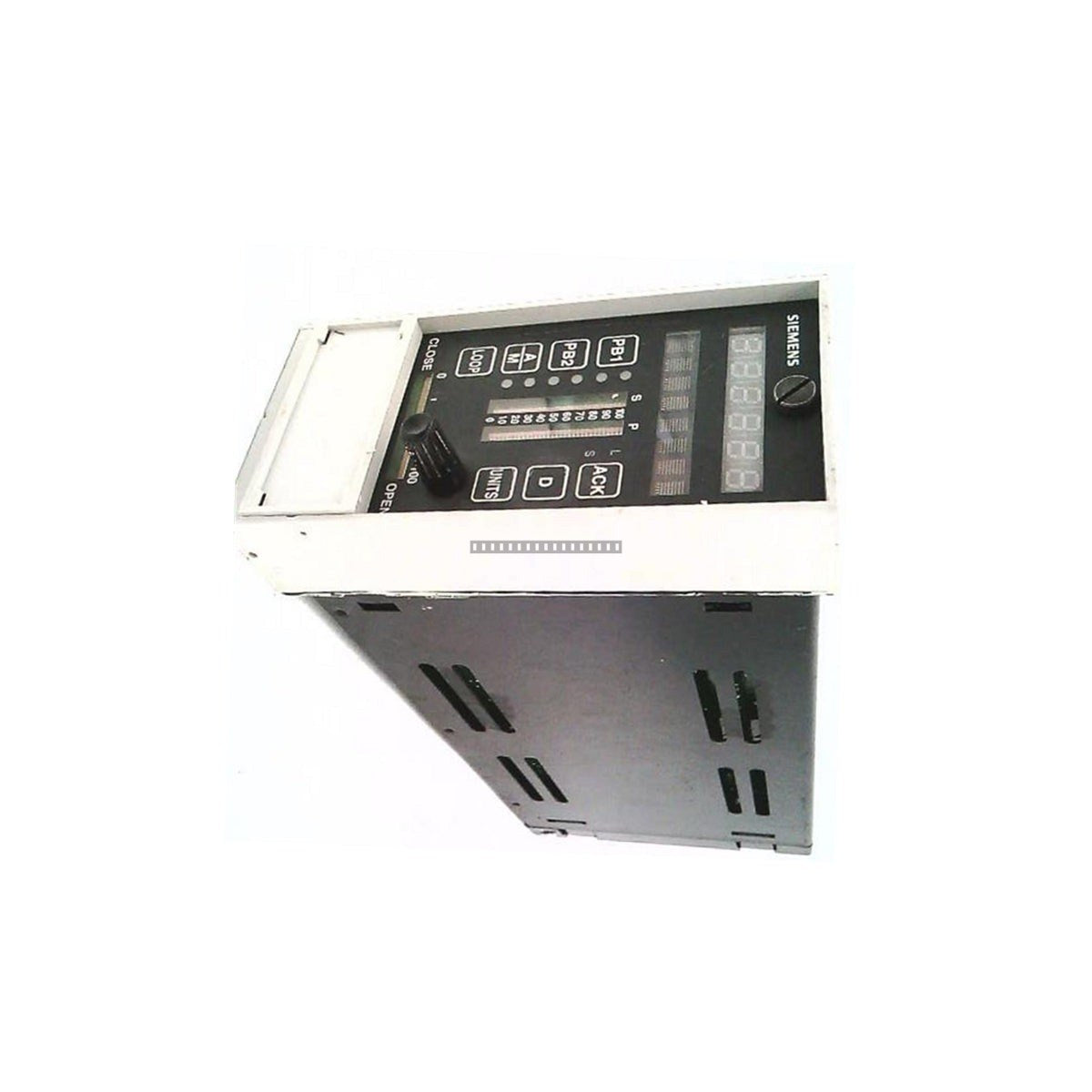

The Siemens Moore 353-A4F1NNNNNNA4 is a high-performance, microprocessor-based process automation controller. Originally engineered by Moore Products and integrated into the Siemens portfolio, this unit is designed for demanding industrial applications requiring precise regulatory and logic control. It serves as a robust solution for managing complex control loops in oil refineries, chemical processing, and power generation facilities, effectively replacing multiple discrete devices by consolidating PID control, batch sequencing, and arithmetic functions into a single, reliable platform.
Features
-
Versatile Control Logic: Supports advanced Function Block programming for customized control strategies, including flow, pressure, and temperature loops.
-
Integrated Operator Interface: Features a high-visibility front faceplate display for real-time process monitoring, local setpoint adjustment, and manual override capabilities.
-
Rugged Design: Built for industrial environments with a NEMA 4X rated front faceplate to ensure protection against dust and moisture.
-
System Integration: Operates as a stand-alone controller or integrates seamlessly into larger Distributed Control Systems (DCS) for supervisory control and data acquisition.
Applications
This controller is ideal for critical process loops where continuous operation and high reliability are required. Common applications include:
- Flow, pressure, and temperature regulation in chemical plants.
- Batch sequencing and process management in manufacturing.
- Boiler and turbine control in power generation.
- Supervisory control in oil and gas midstream operations.
Technical Specifications
| Model |
353-A4F1NNNNNNA4 |
| Brand |
Siemens Moore |
| Input Voltage |
120-240 VAC |
| Frequency |
47-63 Hz |
| Power Consumption |
40 VA |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Enclosure Rating |
NEMA 4X (Front Faceplate) |
Installation Guidelines
-
Mounting: Ensure the controller is mounted in a panel cutout that provides adequate clearance for the chassis depth and allows for proper airflow.
-
Power Wiring: Connect to a stable 120-240 VAC source. Ensure the power supply is properly grounded to minimize electrical noise interference.
-
ESD Precautions: Handle the module using standard electrostatic discharge (ESD) prevention practices to protect internal circuitry.
-
Environment: Install in an area free from excessive vibration and corrosive gases. Ensure the operating ambient temperature remains within the specified 0 to 50 deg C range.
-
Maintenance: Always power down the unit before performing any wiring changes or removing the controller from the rack.
FAQ
Is this controller compatible with legacy Moore 353 systems?
Yes, the 353-A4F1NNNNNNA4 is part of the established 353 series and is designed to be compatible with existing Moore 353 infrastructure, making it a suitable replacement for older units in established control loops.
Does this unit require external software for configuration?
While the unit features a front faceplate for local adjustments, advanced configuration and complex function block programming are typically performed using Siemens/Moore configuration software tools compatible with the 353 series.
