Description

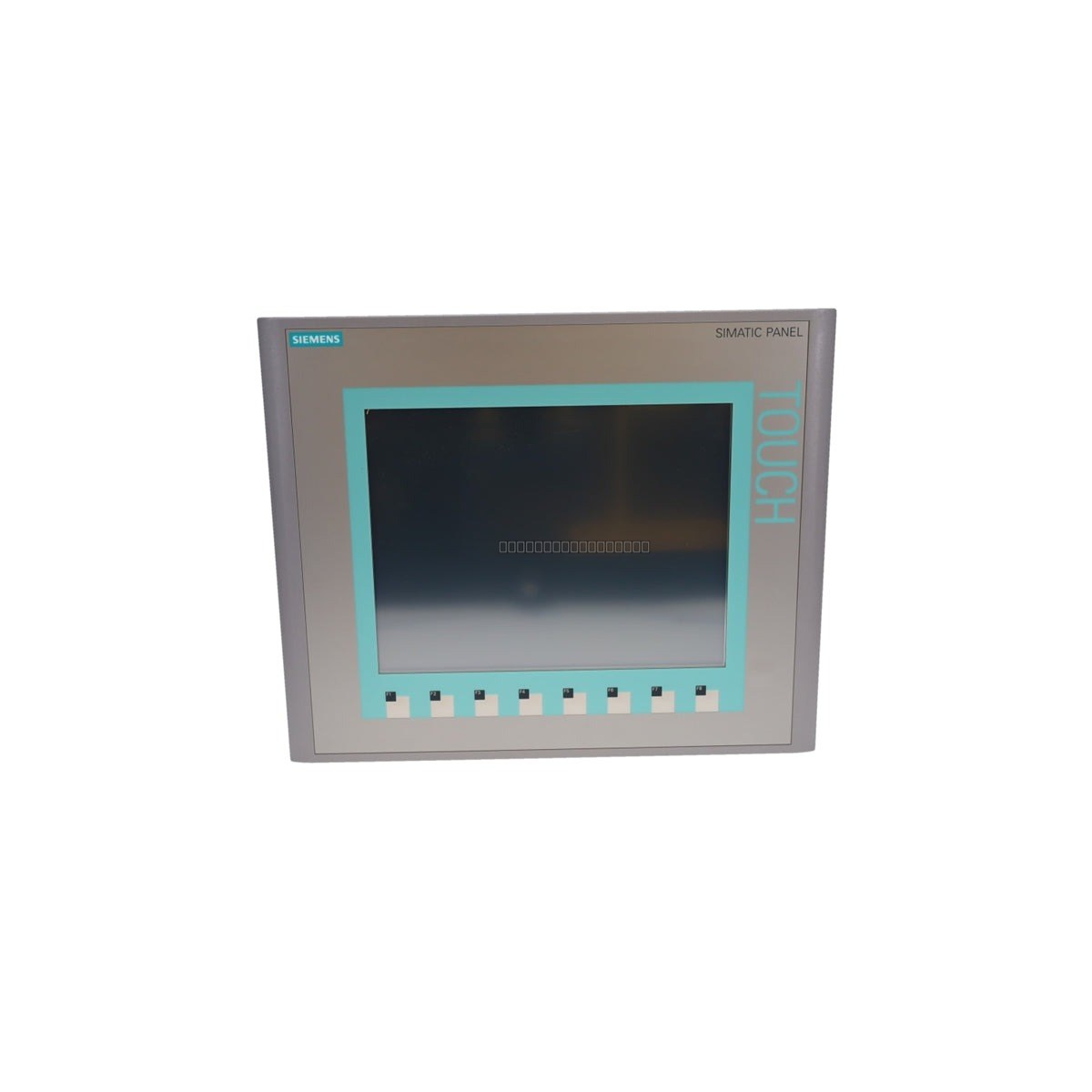

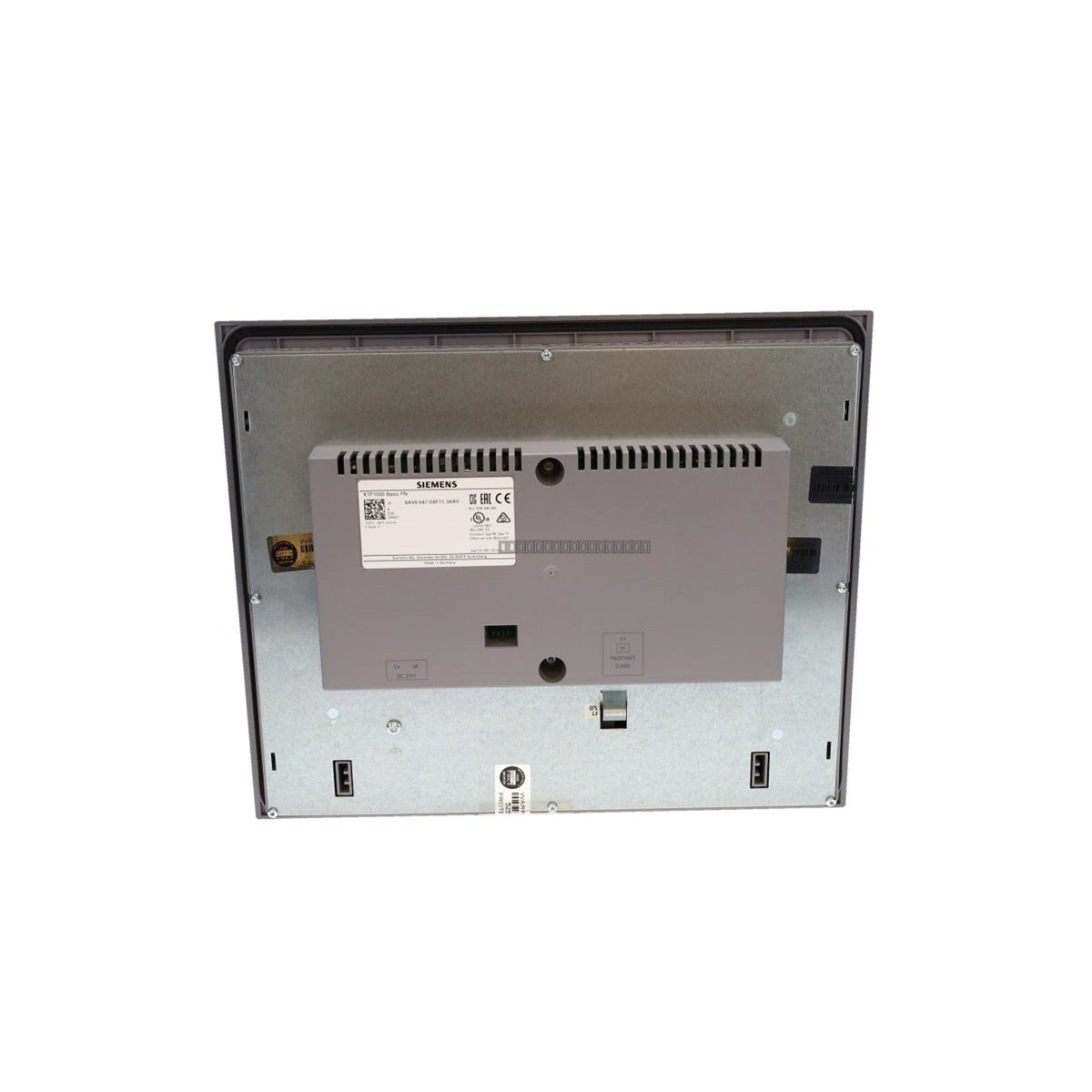

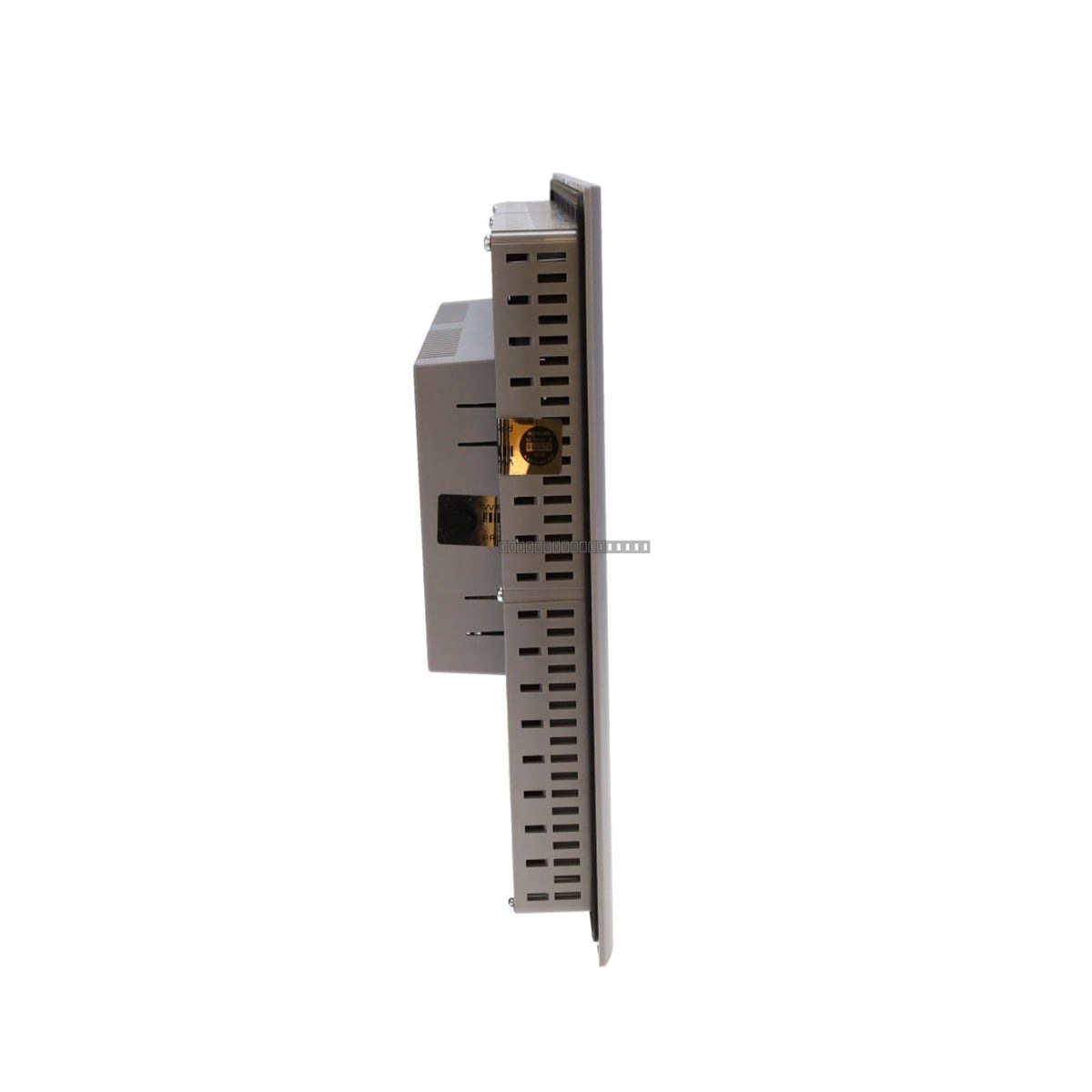

The Siemens 6AV6647-0AF11-3AX0 is a SIMATIC HMI KTP1000 Basic Color PN operator panel. As part of the Siemens Basic Panel series, this unit is designed for cost-effective operator control and monitoring of machines and industrial plants. It features a 10.4-inch TFT display with 256 colors and provides a dual-input interface combining a resistive touchscreen with tactile function keys. This model is equipped with a PROFINET interface, allowing for high-speed, Ethernet-based communication with SIMATIC controllers such as the S7-1200, S7-1500, S7-300, and S7-400 series.
Features
- 10.4-inch TFT display with 640 x 480 pixel resolution.
- Dual-mode operation: Resistive touch screen and 8 tactile function keys.
- Integrated PROFINET interface for seamless integration into industrial Ethernet networks.
- Supports configuration via WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5.
- Robust design suitable for standard machine-level HMI applications.
Applications
- General Manufacturing: Visualization for assembly lines and conveyor control.
- Packaging Machinery: Monitoring of speed, temperature, and motion parameters.
- Food & Beverage Processing: Recipe management and filling process control.
- Process Automation: Auxiliary process monitoring, pump control, and tank level management.
- Machine Building: Standardized HMI interface for custom industrial equipment.
Technical Specifications
| Product Model |
6AV6647-0AF11-3AX0 |
| Display Type |
TFT |
| Screen Diagonal |
10.4 in |
| Resolution |
640 x 480 pixels |
| Color Depth |
256 colors |
| MTBF Backlighting (at 25 degC) |
50,000 h |
| Supply Voltage (DC) |
24 V (19.2 V to 28.8 V) |
| Current Consumption |
0.6 A |
| Active Power Input |
15 W |
| Interface |
PROFINET |
| Weight |
2.24 kg |
Installation Guidelines
-
Mounting: Designed for horizontal mounting. Note that vertical mounting reduces the maximum allowable ambient temperature by 10 degC.
-
Panel Cutout: Prepare a precise cutout of 310 mm (width) x 248 mm (height).
-
Clearance: Maintain at least 50 mm of free space around all sides of the device to ensure adequate natural convection cooling.
-
Panel Thickness: Compatible with cabinet walls between 1.5 mm and 6.0 mm thick.
-
Sealing: Ensure the rubber seal is seated perfectly flat in the groove to maintain the IP65 front-face protection rating.
-
Clamping: Tighten mounting clamps evenly to a torque of 0.2 Nm. Avoid over-tightening to prevent damage to the plastic housing.
FAQ
What is the 6AV6647-0AF11-3AX0?
The Siemens SIMATIC HMI KTP1000 Basic Color is a 1st generation operator panel used for industrial automation and man-machine interaction.
What PLC types can it communicate with?
It is primarily used with S7-1200 and S7-1500 PLCs, but supports S7-300/400 series controllers over PROFINET.
What are the key display specifications?
The unit features a 10.4-inch TFT display with 256 colors and a resolution of 640 x 480 pixels. It features a resistive touchscreen complemented by 8 tactile function keys.
What are the power requirements?
It operates on 24 V DC electrical power, with a typical active power input of 15 W and a rated current consumption of 0.6 A.
