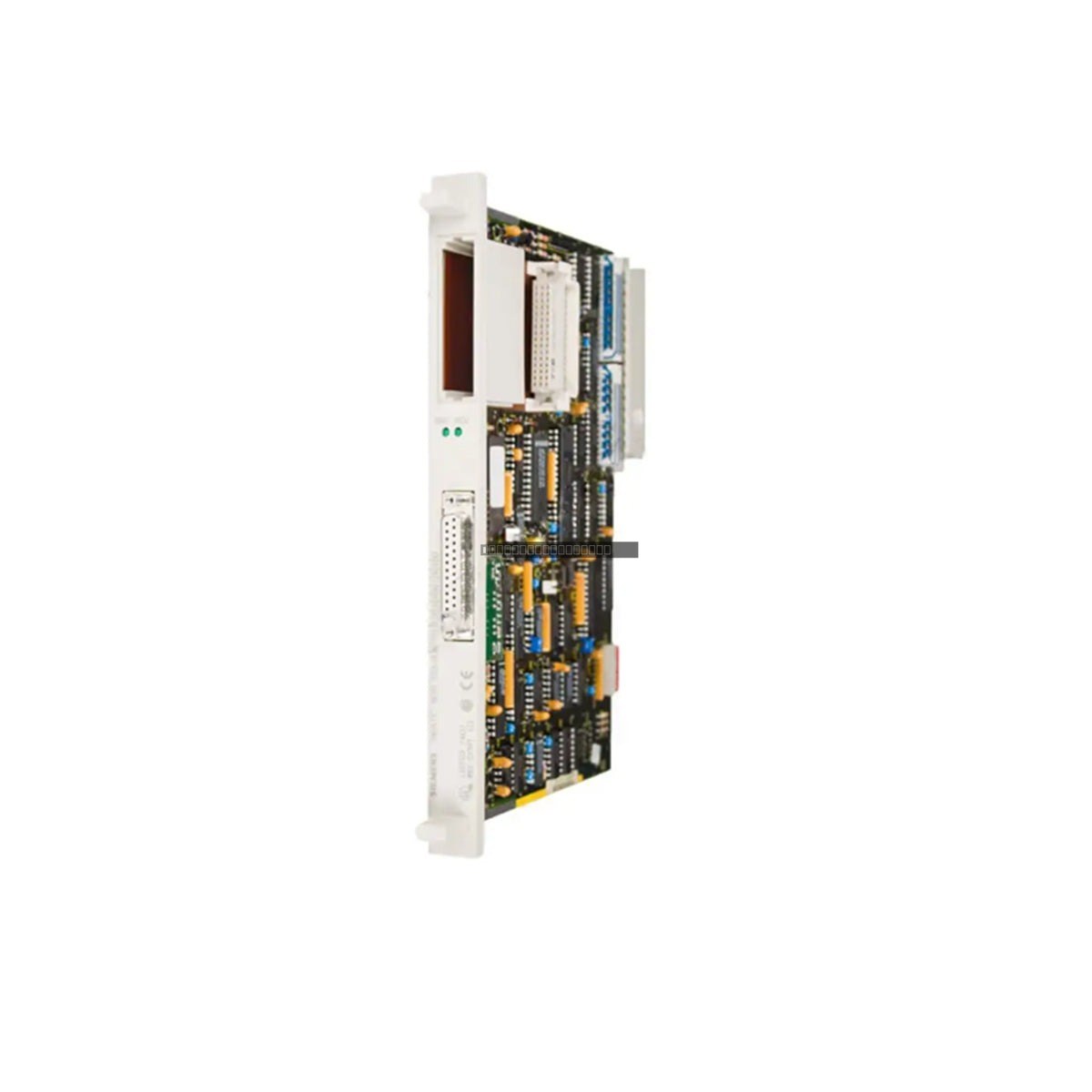

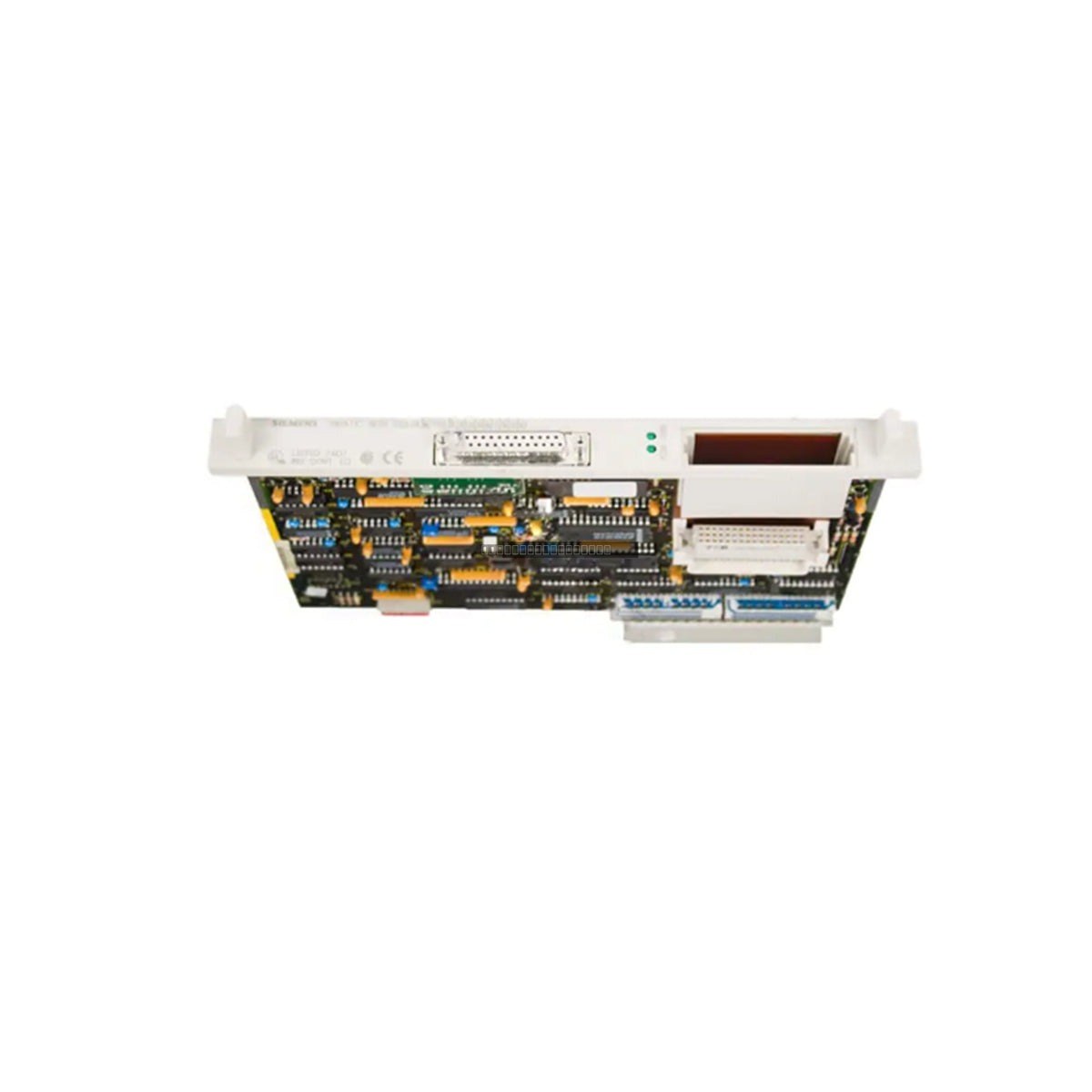

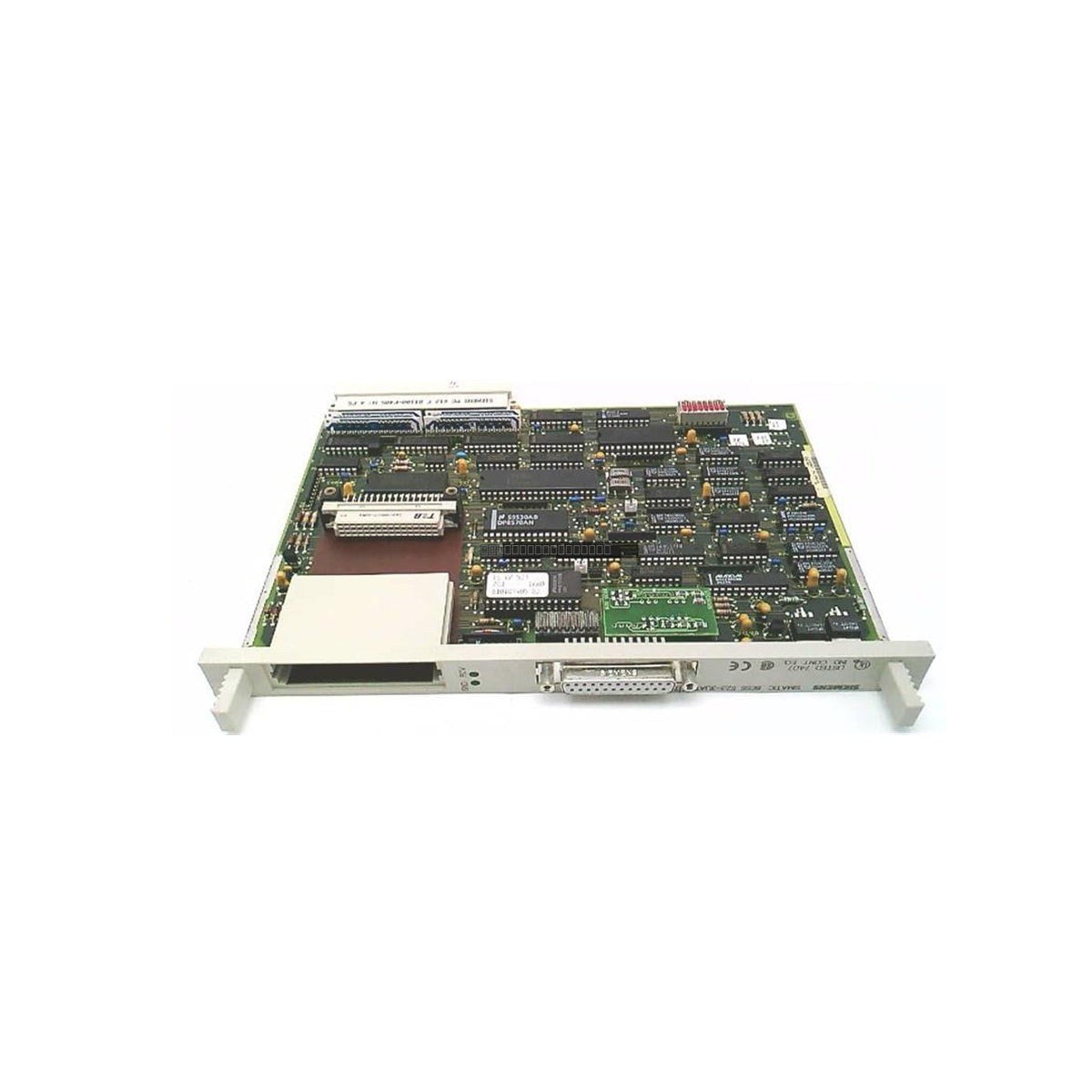

The Siemens CP 523, identified by order code 6ES5523-3UA11, is a specialized communication processor designed for the Simatic S5 automation system. This module acts as an intelligent interface for serial communication, enabling the integration of various peripheral devices such as printers, scanners, and operator interfaces into the PLC environment. By managing serial data streams locally, the CP 523 offloads communication overhead from the main CPU, ensuring efficient execution of control logic and maintaining system performance in legacy industrial applications.
Features
- Supports asynchronous serial data transmission for versatile peripheral connectivity.
- Configurable character frames (10-bit or 11-bit) to accommodate diverse serial protocols.
- Integrated diagnostic capabilities for monitoring parity and framing errors.
- Buffers data streams to prevent CPU processing bottlenecks during high-traffic communication.
- Designed specifically for seamless integration within the Siemens Simatic S5 backplane architecture.
Applications
This communication processor is widely utilized in legacy process automation, material handling systems, and industrial monitoring environments where serial-based communication with third-party hardware is required. It is an essential component for maintaining connectivity in aging infrastructure where modern fieldbus protocols may not be supported.
Technical Specifications
| Model |
6ES5523-3UA11 (CP 523) |
| System Compatibility |
Siemens Simatic S5 |
| Communication Mode |
Serial Input/Output |
| Character Format |
10-bit or 11-bit (configurable) |
| Operating Temperature |
0 to 60 degC |
| Power Supply |
Internal S5 backplane |
| Data Integrity |
Parity and framing error detection |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the CP 523 module to prevent electrical damage.
- Verify that the module is securely seated in the S5 rack slot to ensure proper backplane contact.
- Use shielded serial cabling to minimize electromagnetic interference (EMI), especially in high-noise industrial environments.
- Route communication cables away from high-voltage power lines to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
Does this module require external power?
No, the CP 523 draws its operating power directly from the Simatic S5 backplane once correctly installed in the rack.
Can this module interface with non-Siemens peripherals?
Yes, the CP 523 is designed to interface with a wide range of third-party serial devices, provided the communication parameters (parity, stop bits, and baud rate) are configured to match the peripheral requirements.
How are communication errors handled?
The module features internal diagnostic registers that detect parity and framing errors, which are then reported to the CPU for appropriate handling within the control program.
