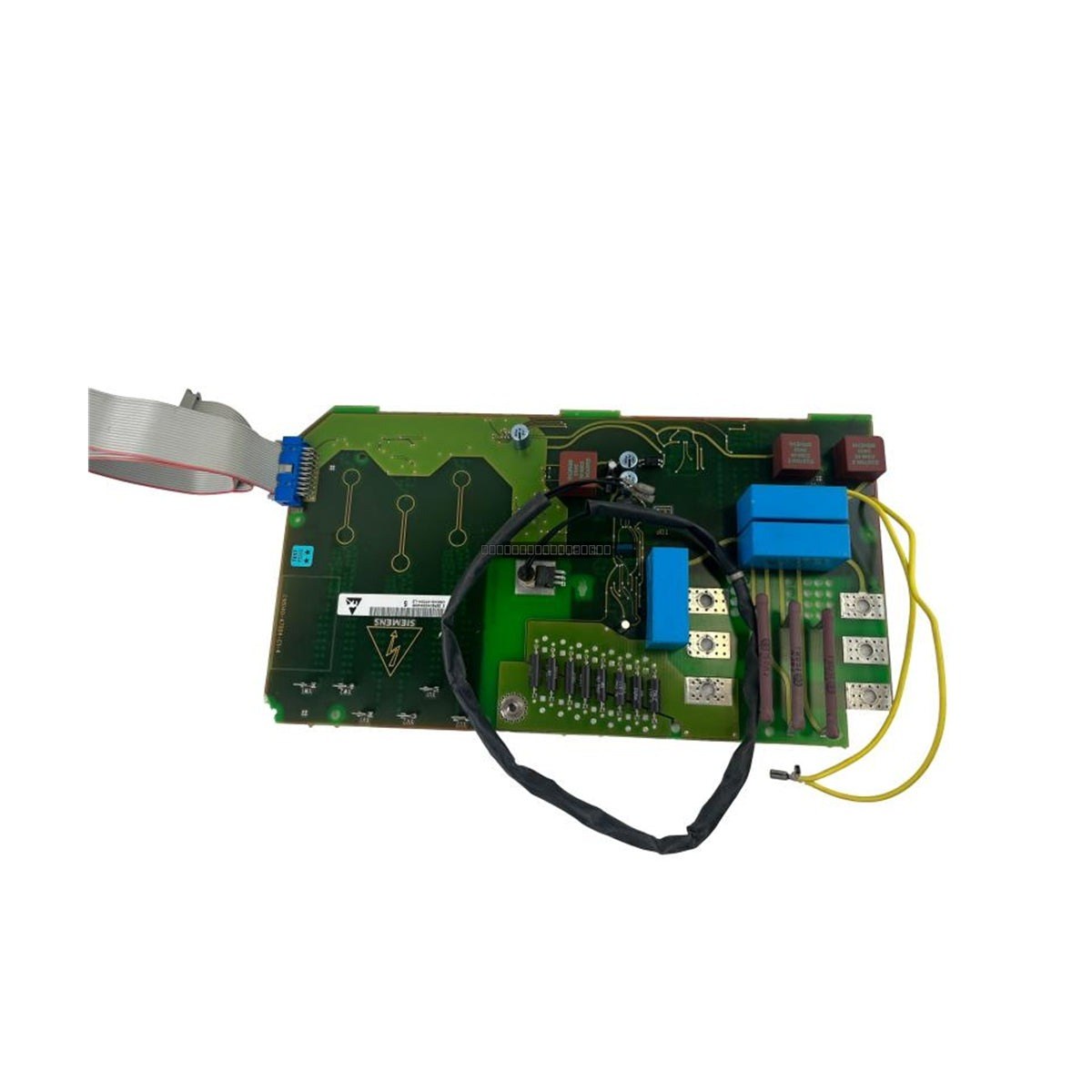

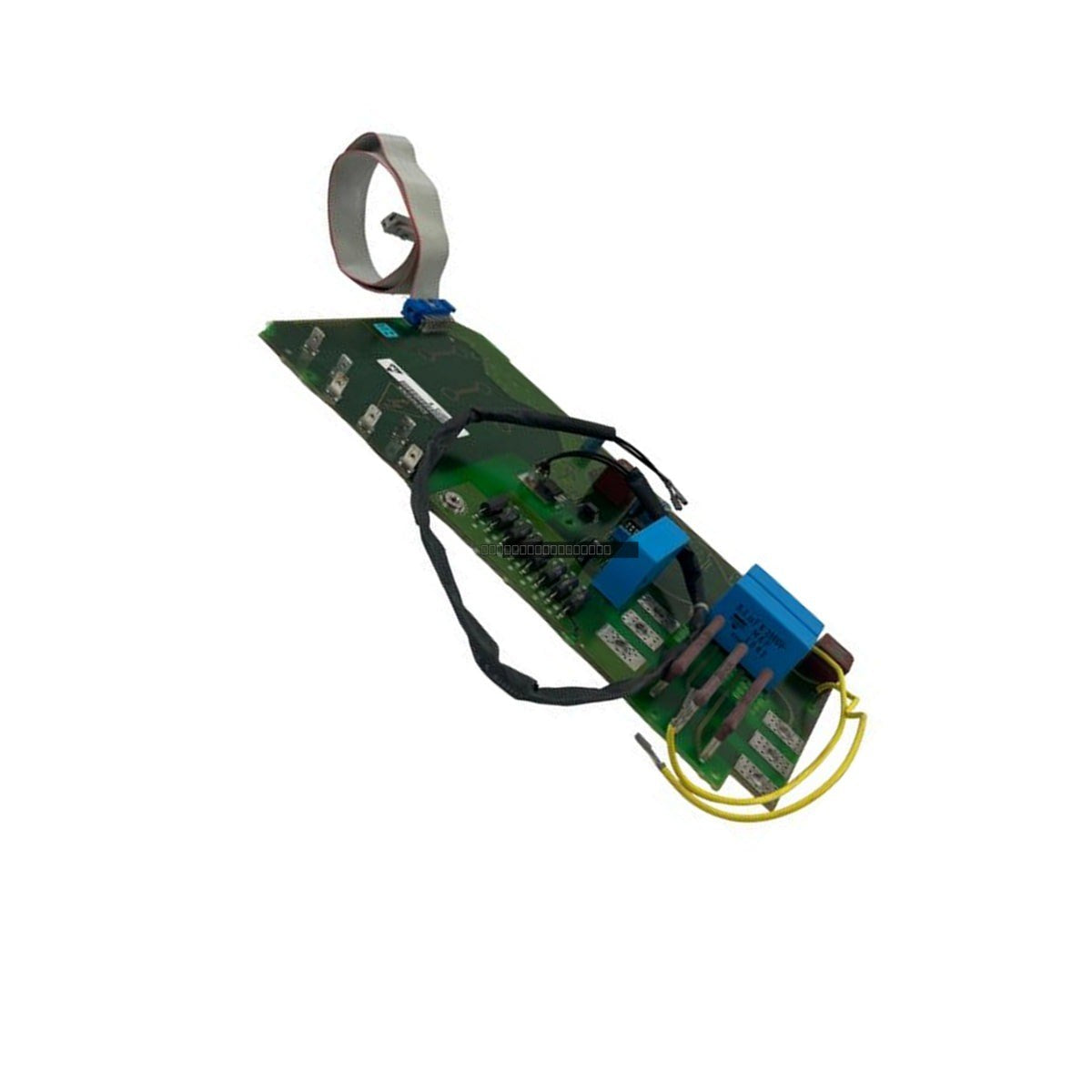

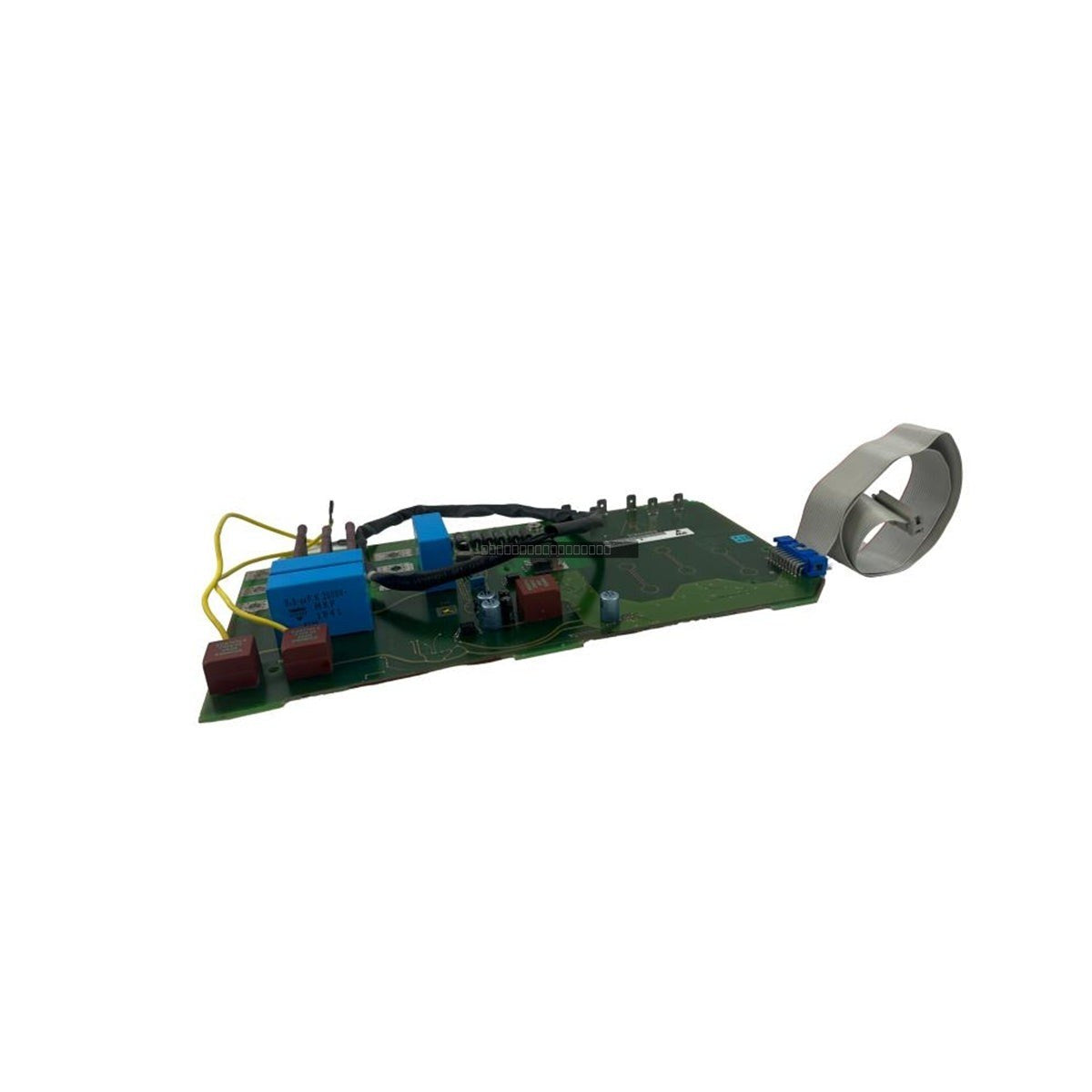

The Siemens C98043-A7004-L2 is a specialized excitation board designed for high-performance industrial drive systems. Often utilized in conjunction with the 6RY1703-0EA02 spare model, this component serves as a critical link in field supply regulation for SINAMICS drive configurations. It is engineered to maintain precise control over excitation currents, ensuring stable operation and reliable performance in demanding power conversion environments.
Features
- Engineered for robust field supply management in industrial drive applications.
- Designed for high-voltage insulation environments up to 690 VAC or 1000 VDC.
- Optimized for integration within the SINAMICS product ecosystem.
- High-reliability construction suitable for continuous operation in variable speed drive systems.
Technical Specifications
| Product Model |
C98043-A7004-L2 |
| Spare Model |
6RY1703-0EA02 |
| Component Type |
Excitation Board |
| Insulation Rating |
690 VAC / 1000 VDC |
| Operational Temperature |
0 degC to +55 degC (derate above 40 degC) |
| Storage Temperature |
-40 degC to +80 degC |
| Weight |
0.82 kg |
Installation Guidelines
- Ensure all power sources are disconnected and locked out before attempting installation or removal of the board.
- Handle the module using proper ESD precautions to prevent damage to sensitive electronic components.
- Verify that the mounting location provides adequate ventilation to maintain operating temperatures below the derating threshold of 40 degC.
- Ensure all cable connections are secure and routed away from high-noise EMI sources to maintain signal integrity.
- Regularly inspect the board for signs of thermal stress or dust accumulation in high-ambient-temperature environments.
FAQ
What is the primary function of the C98043-A7004-L2?
This board acts as a field supply module, managing the excitation current required for the operation of SINAMICS drive systems.
Is there a specific derating requirement for this board?
Yes, while it operates up to 55 degC, you must apply derating factors if the ambient temperature exceeds 40 degC to ensure long-term component reliability.
Can I use this as a replacement for the 6RY1703-0EA02?
Yes, the C98043-A7004-L2 is associated with the 6RY1703-0EA02 spare model designation, making it the appropriate replacement part for that specific configuration.
