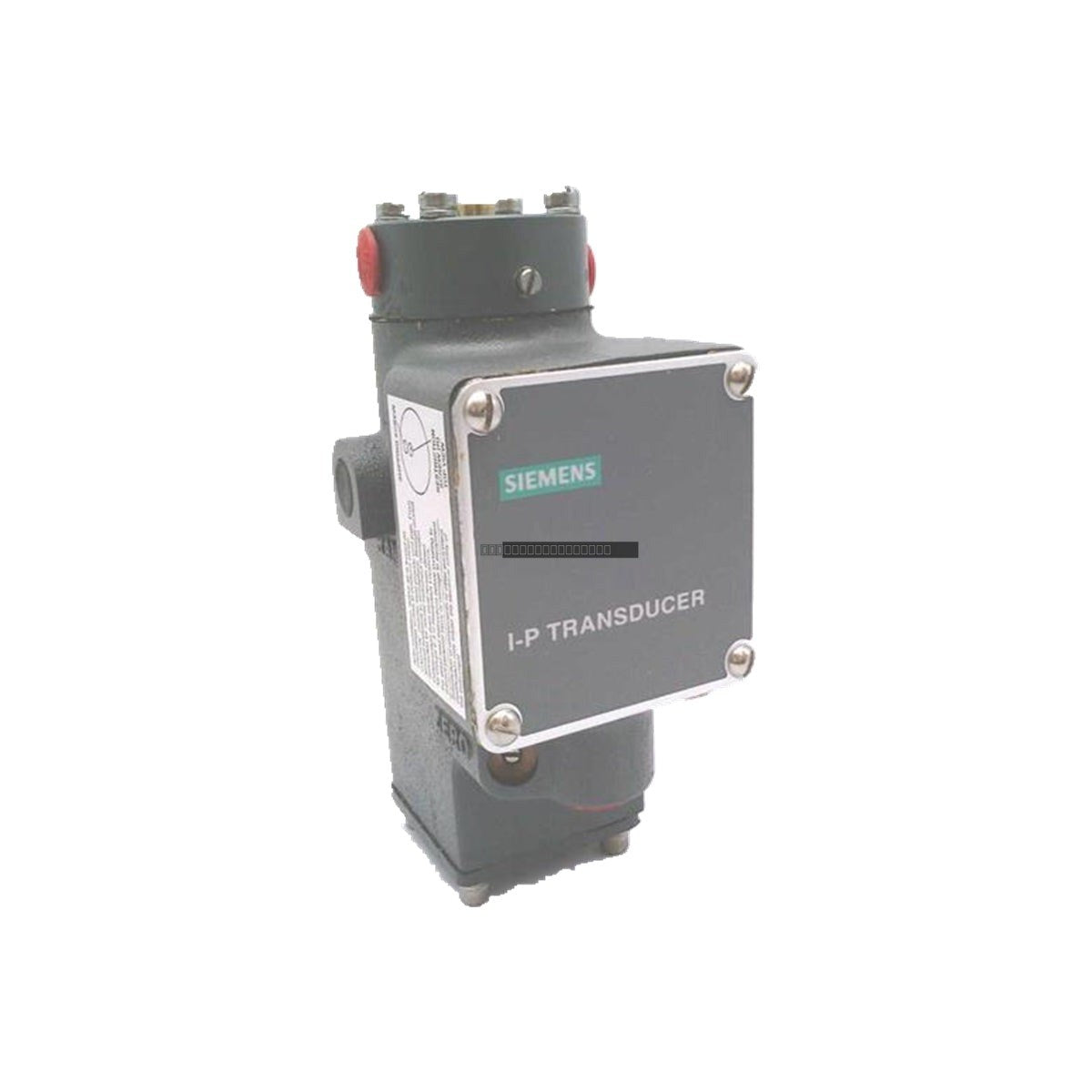

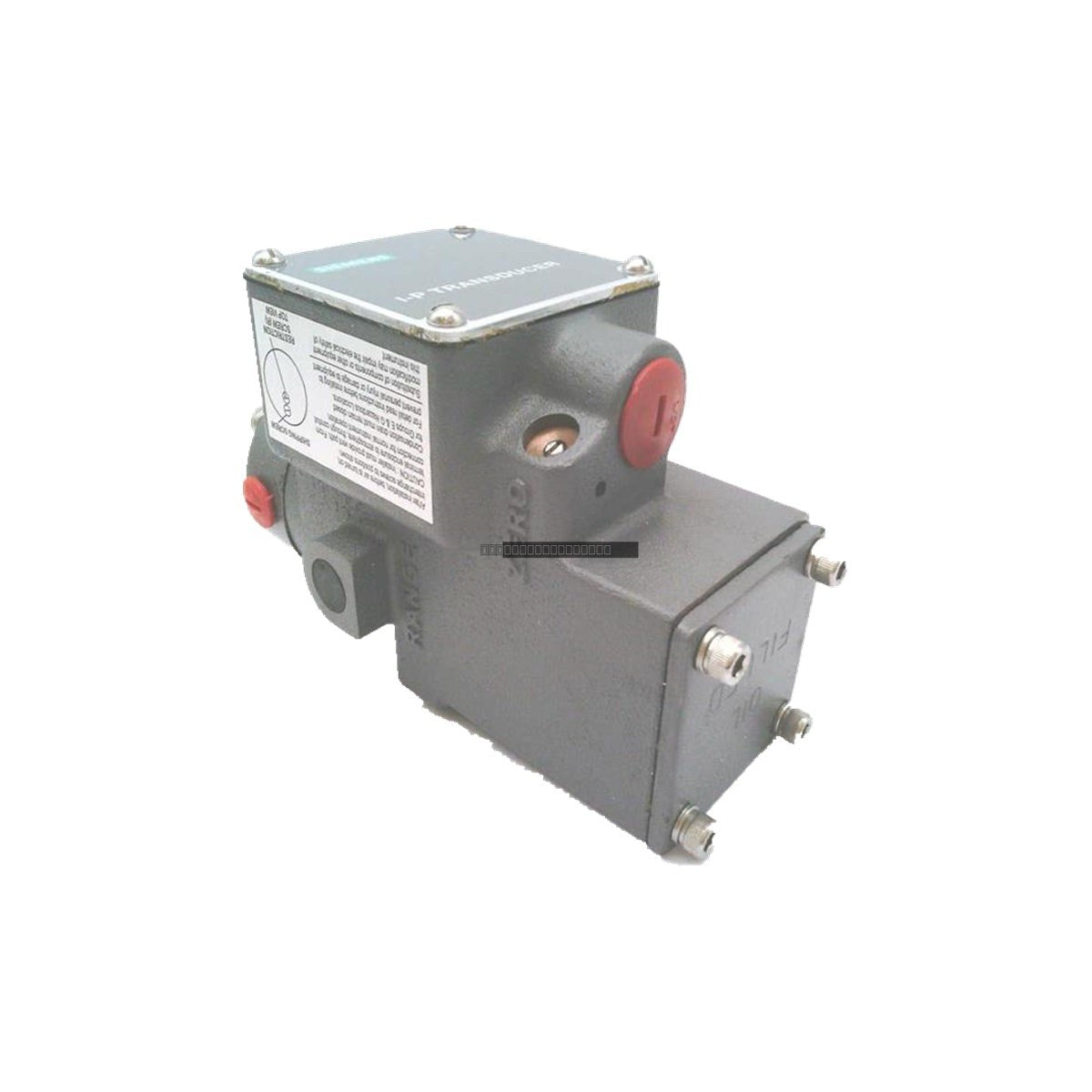

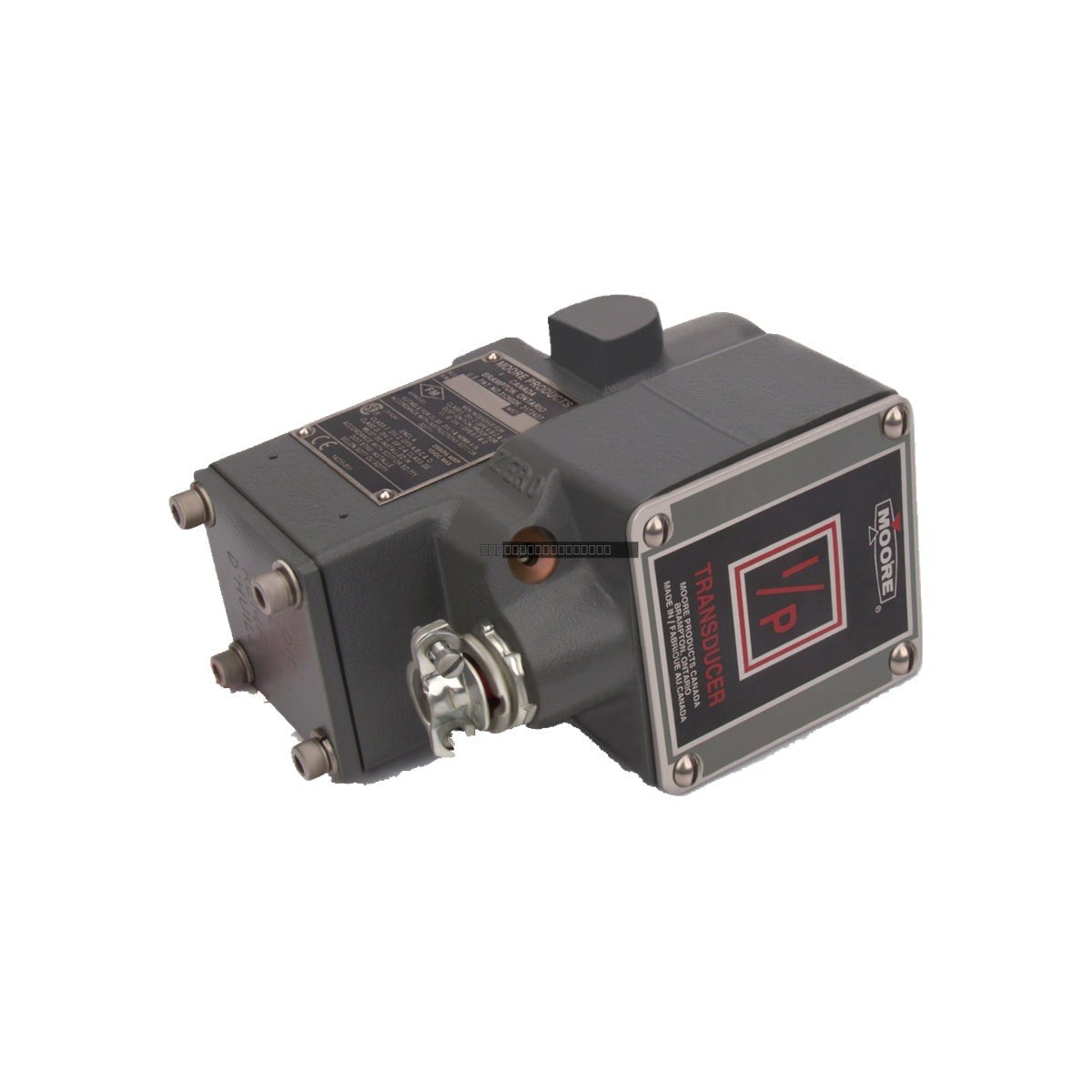

The Siemens 771-3STF2 is a high-precision Current-to-Pressure (I/P) transducer engineered to translate electronic control signals into pneumatic actuation. This device acts as an essential interface between modern or legacy electronic control systems and pneumatic final control elements, such as valves and dampers. By converting a 1-5 mA DC input into a precise 3-15 PSIG pneumatic output, the unit enables accurate process modulation in demanding industrial environments including power generation, chemical processing, and oil and gas facilities.
Functional Characteristics
Utilizing a robust force-balance mechanism, the 771-3STF2 ensures reliable signal conversion with minimal hysteresis. The internal coil assembly generates a magnetic field that interacts with a flapper-nozzle arrangement to modulate pilot pressure, which is subsequently amplified to the required 3-15 PSIG output. Housed in a ruggedized industrial enclosure, this transducer is built to withstand atmospheric contaminants and mechanical vibration, maintaining output linearity and process stability over extended operational lifecycles.
Technical Specifications
| Model |
771-3STF2 |
| Alternative ID |
K60000-001/SC |
| Input Signal |
1-5 mA DC |
| Output Range |
3-15 PSIG |
| Supply Pressure |
20 PSIG |
| Pneumatic Connection |
1/4 inch NPT |
| Operating Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the supply air is clean, dry, and regulated to the required 20 PSIG to prevent internal clogging or erratic output.
- Mount the unit in a stable location, preferably away from excessive vibration sources, to maintain the accuracy of the force-balance mechanism.
- Verify correct polarity of the 1-5 mA DC input signal during wiring to ensure proper transducer response.
- Use appropriate thread sealant on 1/4 inch NPT pneumatic connections to prevent air leaks, which can degrade output pressure stability.
- Before installation or removal, isolate the pneumatic supply pressure to prevent accidental actuation of downstream field equipment.
FAQ
What is the primary function of the 771-3STF2?
The 771-3STF2 is designed to convert an electrical current signal (1-5 mA) into a proportional pneumatic pressure (3-15 PSIG) to drive pneumatic actuators.
Is this unit compatible with Moore Industries systems?
Yes, the 771-3STF2 is widely used in systems originally designed by Moore Industries and serves as a direct replacement or equivalent component for legacy Siemens/Moore instrumentation.
What supply pressure is required for operation?
This transducer requires a standard supply pressure of 20 PSIG to achieve its full 3-15 PSIG output range.
