Description
Product Overview

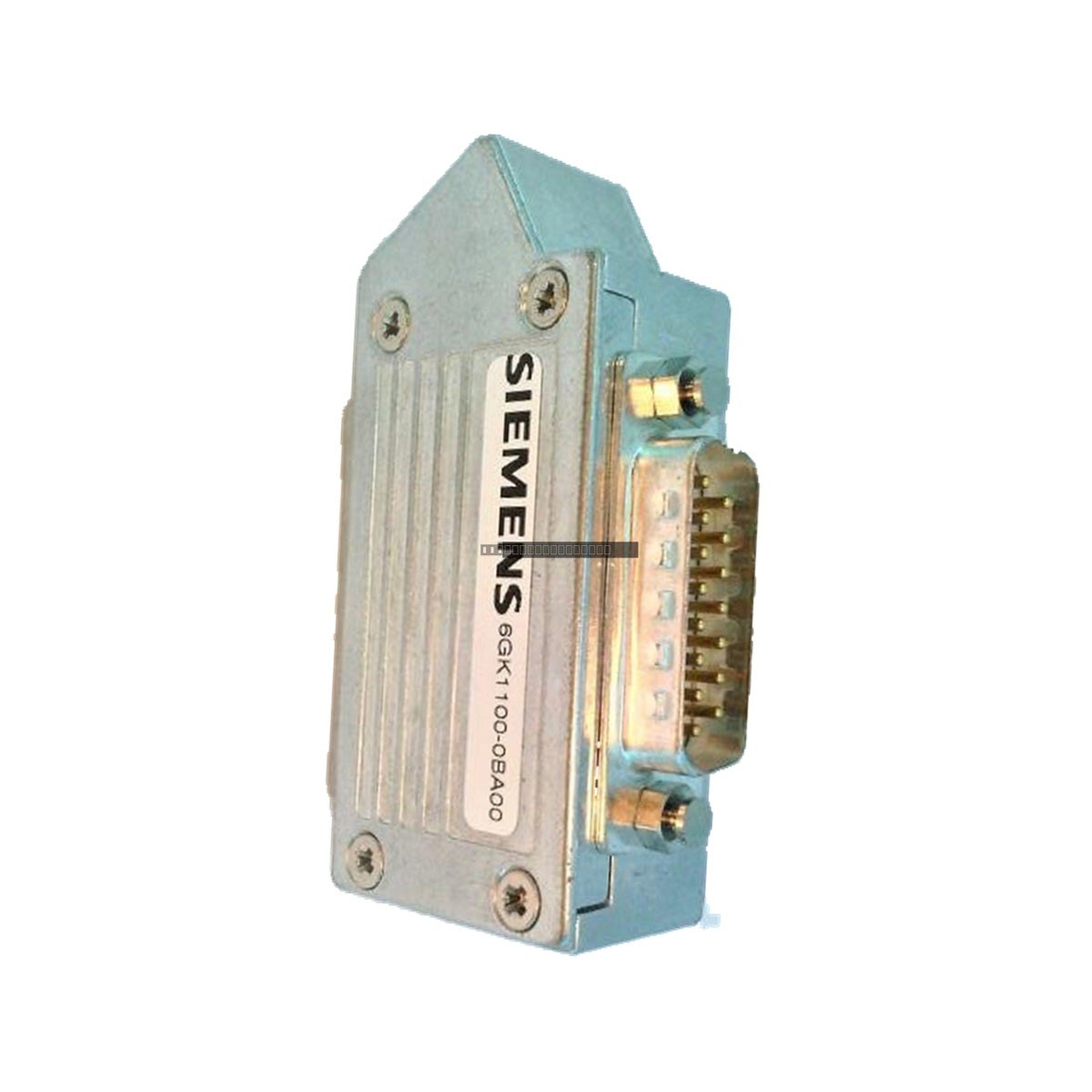

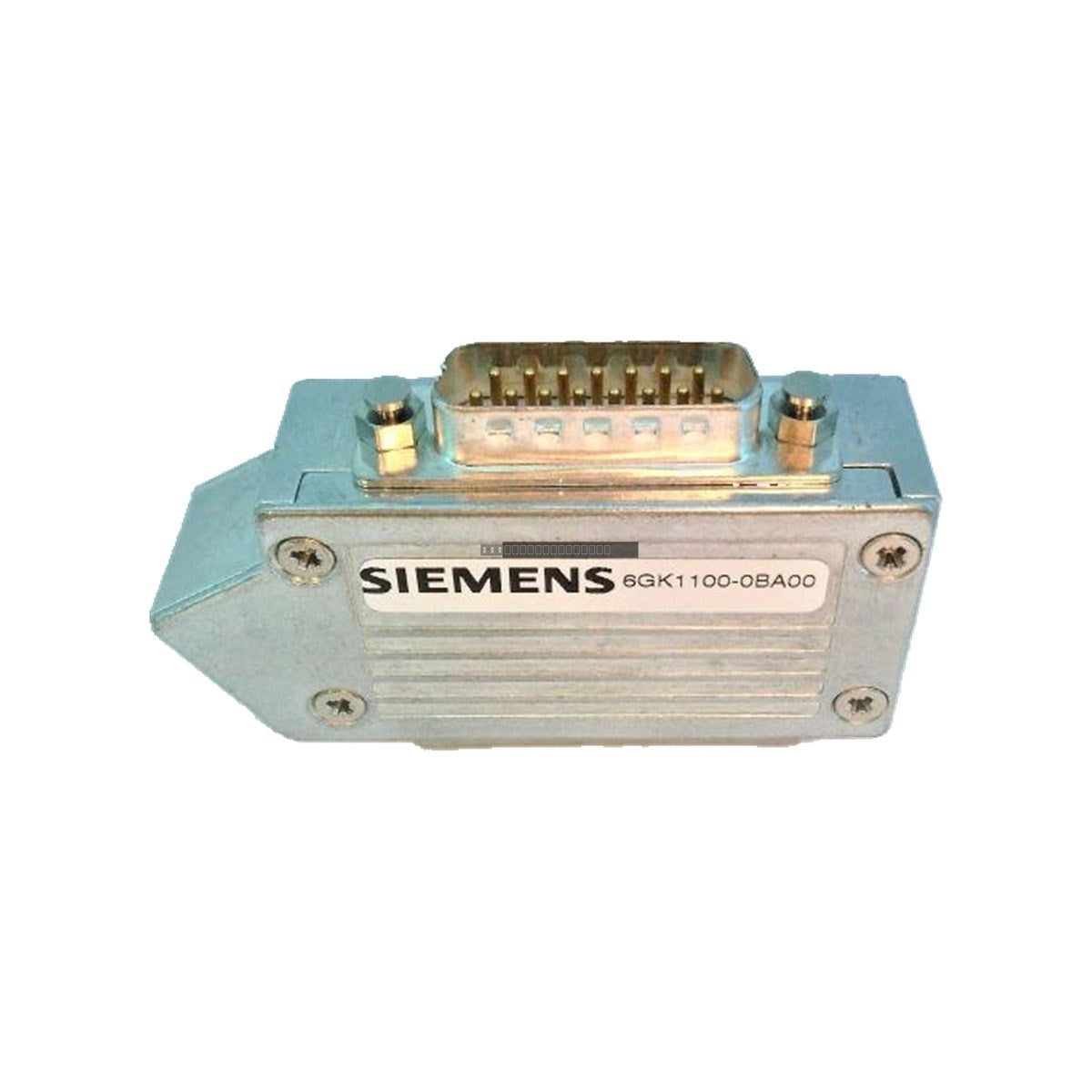

The Siemens 6GK1100-0BA00 is a dedicated transceiver plug designed for the Simatic Net industrial communication environment. This component serves as a robust physical layer interface, facilitating reliable data exchange within Industrial Ethernet and related network architectures. Engineered for demanding industrial settings, this transceiver module ensures consistent signal integrity for workstations, PLCs, and control systems, effectively minimizing communication errors and preventing costly downtime in automated manufacturing processes.
Features
- Designed for seamless integration with 15-pin Sub-D industrial communication interfaces.

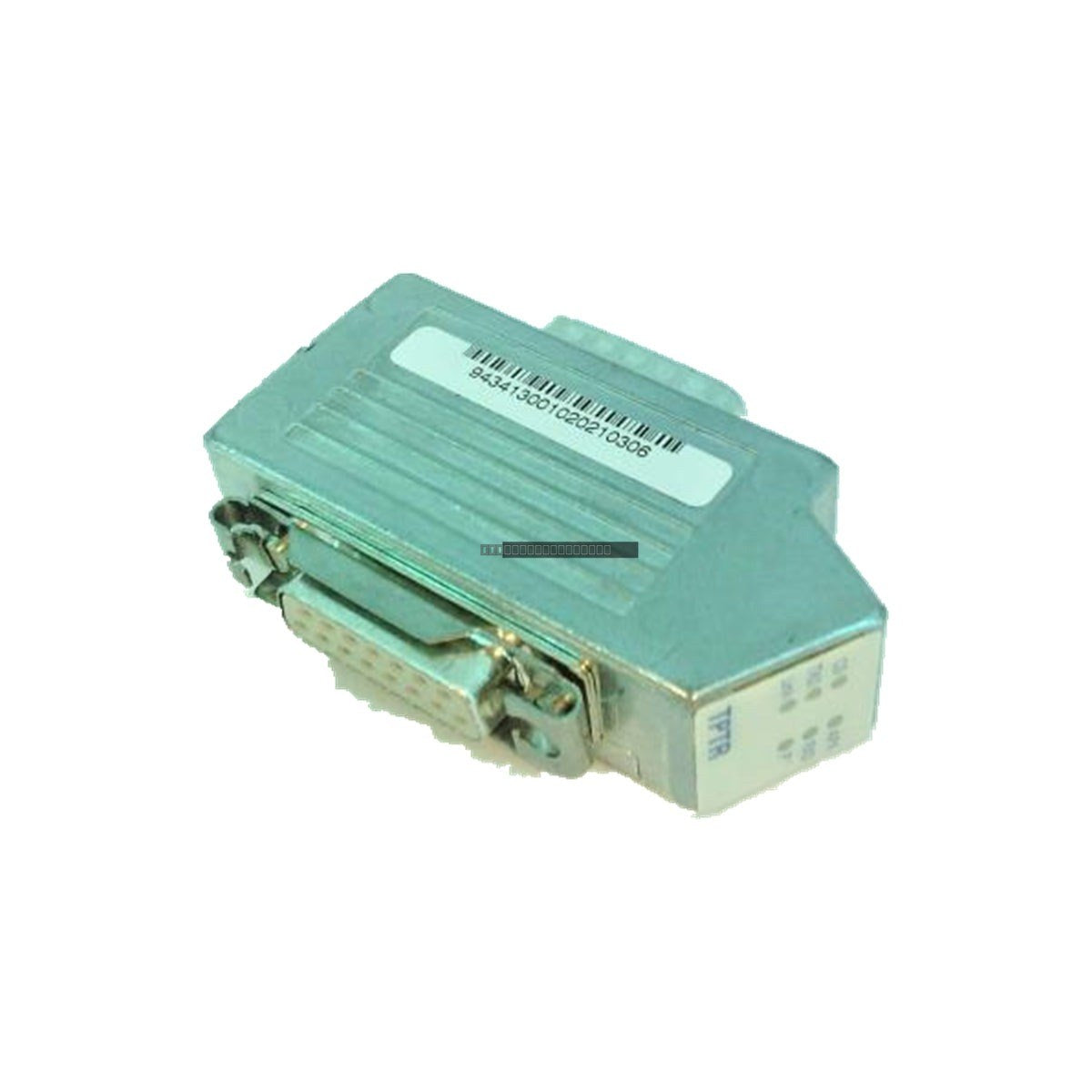

- Pass-through architecture featuring one 15-pin male and one 15-pin female connector for inline installation.
- Rugged mechanical design prevents signal pin degradation due to structural vibration or physical stress.
- Passive integration profile requires no external power source, simplifying network topology.
- Optimized for low-attenuation signal transfer in legacy LAN configurations.
Applications
This transceiver plug is widely utilized in industrial automation environments where reliable Sub-D communication links are required. Typical applications include municipal infrastructure control, automated logistics systems, and plant-floor PLC networking where signal stability is critical for continuous operation.
Technical Specifications
| Model |
6GK1100-0BA00 |
| Brand |
Siemens |
| Series |
Simatic Net |
| Interface A |
15-Pin Male Sub-D |
| Interface B |
15-Pin Female Sub-D |
| Operating Temperature |
0 to 60 deg C |
| Power Requirements |
Passive |
Installation Guidelines
- Ensure the system is powered down before installing or removing the transceiver plug to prevent electrical arcing or damage to the communication port.
- Verify that the Sub-D pins are aligned correctly during insertion to avoid bending or mechanical failure of the connector pins.
- Secure the plug firmly to the mating interface to maintain constant electrical contact and minimize the impact of ambient vibration.
- Route communication cables away from high-voltage lines or high-EMI sources to maintain signal clarity.
- Perform a visual inspection of the connector housing and pins for debris or oxidation during routine maintenance cycles.
FAQ
Is this a powered module?
No, the 6GK1100-0BA00 is a passive transceiver plug and does not require an external power supply to operate.
What type of connection does this module use?
This module uses a 15-pin Sub-D interface, featuring a male connector on one side and a female connector on the other for convenient pass-through connectivity.
