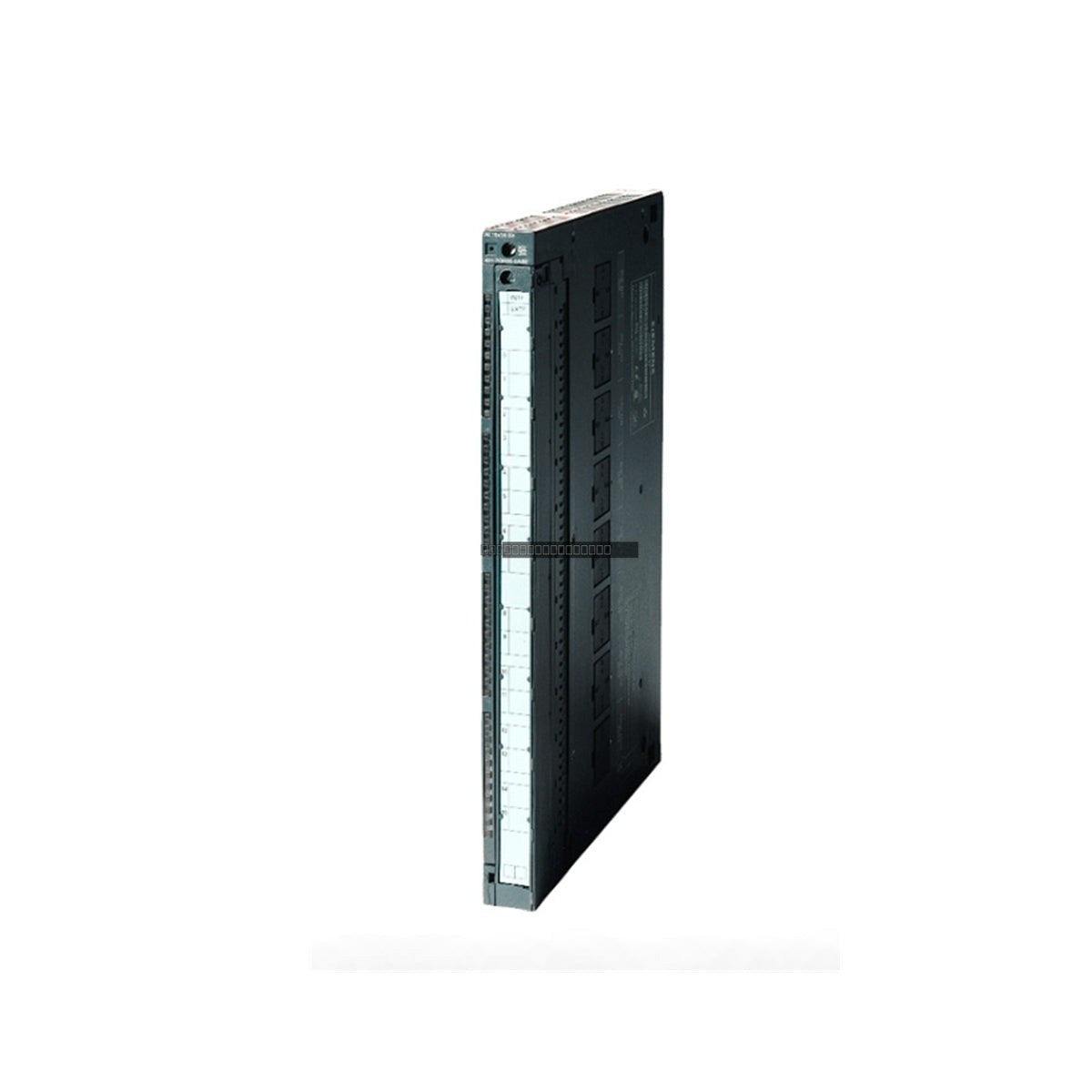

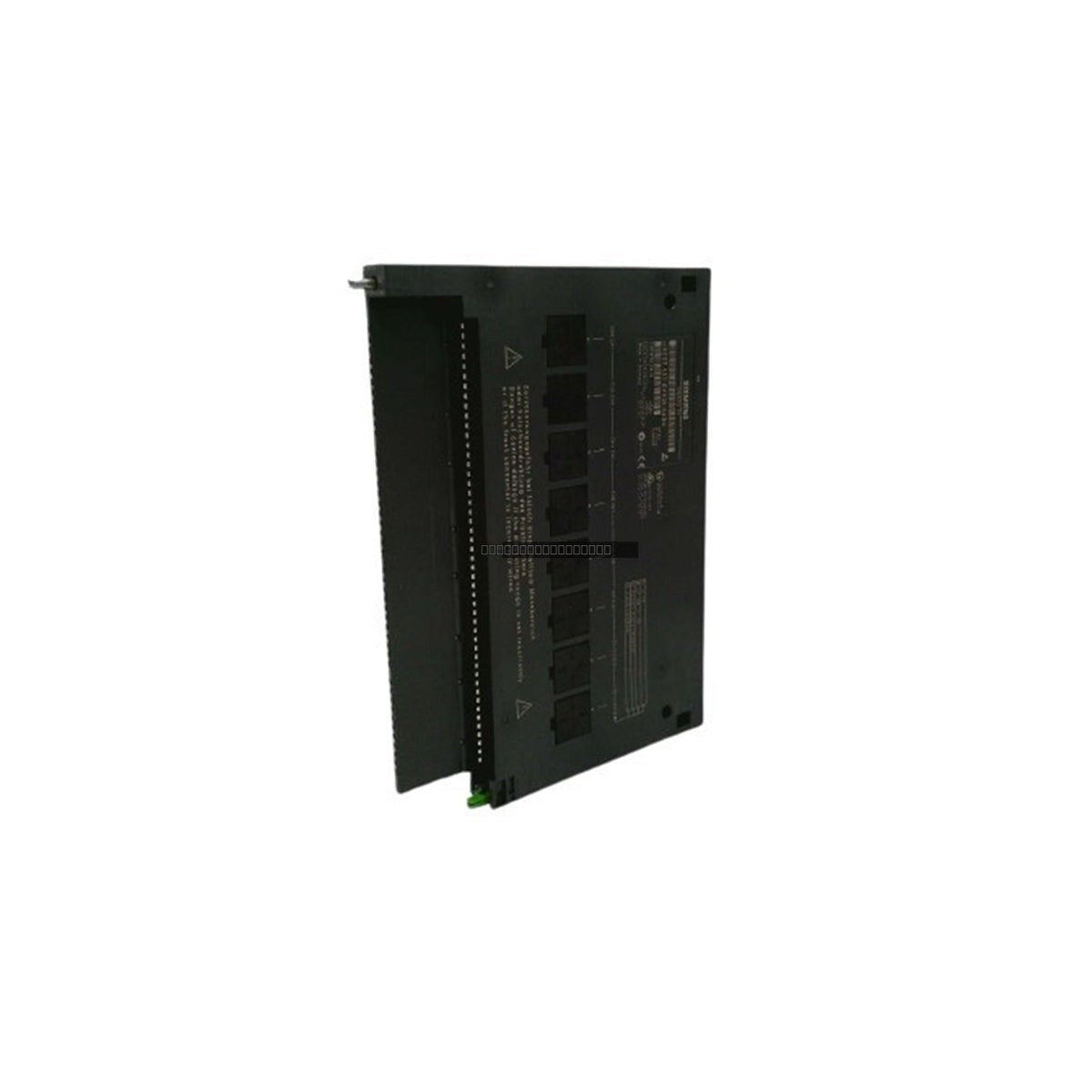

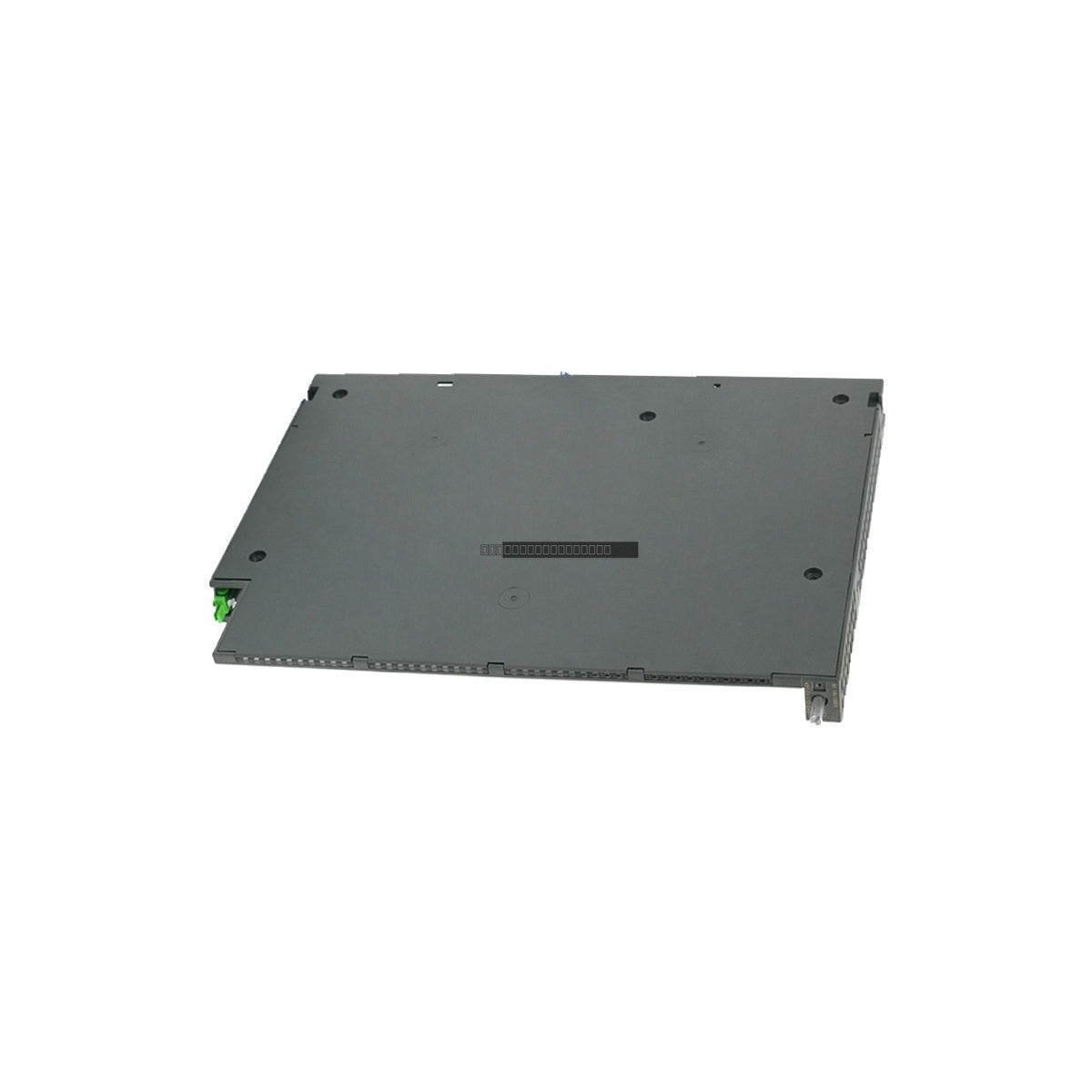

The Siemens 6ES7431-0HH00-0AB0 (SM 431) is a 16-channel analog input module engineered for the SIMATIC S7-400 automation system. This non-isolated module provides 13-bit resolution for converting analog process signals into digital values, facilitating precise industrial control. It supports various signal types including +/-10 V, +/-20 mA, and 4-20 mA, with a conversion time of 20 ms.
Features
- 16 analog inputs, non-isolated
- 13-bit resolution for high-precision signal conversion
- Supports voltage (U), current (2-wire/4-wire), and resistance measurement
- Integrated short-circuit protection for transducer supply (approx. 60 mA per channel pair)
- Parameterizable interrupts for immediate CPU response to process events
- Standard S7-400 diagnostic framework support
Applications
- Oil and Gas: Centralized monitoring of pressure, level, and flow in refineries and pipeline stations.
- Power Generation: Auxiliary control systems for power plants and electrical substations.
- Steel and Metallurgy: Sensor monitoring for blast furnaces and continuous rolling units.
- Chemical and Pharmaceutical: Process parameter monitoring for reaction vessels and distillation towers.
Technical Specifications
| Product Model |
6ES7431-0HH00-0AB0 |
| Module Type |
Analog Input (SM 431) |
| Channels |
16 |
| Resolution |
13-bit |
| Conversion Time |
20 ms |
| Rated Voltage (DC) |
24 V |
| Current Consumption (Backplane) |
100 mA (5 V DC) |
| Current Consumption (Load L+) |
400 mA max |
| Power Loss (typ.) |
2 W |
| Isolation (Type Test) |
500 V AC / 707 V DC |
Installation Guidelines
- Ensure the S7-400 rack power is disconnected before installing or removing the module to prevent electrical damage.
- The module must be seated securely in the backplane slot; ensure the front connector is fully engaged and locked.
- Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
- Route signal cables separately from high-voltage power lines and motor control cabling.
- Ensure proper grounding of the cable shields at the entry point or as specified by the S7-400 system grounding requirements.
- Handle with standard ESD precautions to protect sensitive electronic components.
FAQs
What is the 6ES7431-0HH00-0AB0?
The Siemens 6ES7431-0HH00-0AB0 is a SIMATIC S7-400 analog input module, specifically the SM 431; AI 16 x 13 Bit.
What measurement methods does this module support?
The module can be configured for voltage (U), current (two-wire and four-wire transmitters), and resistance (four-core connection) measurements.
Does this module provide diagnostic feedback?
Yes, it supports standard diagnostic functions for analog modules to detect and report internal errors and field device health.
