Description

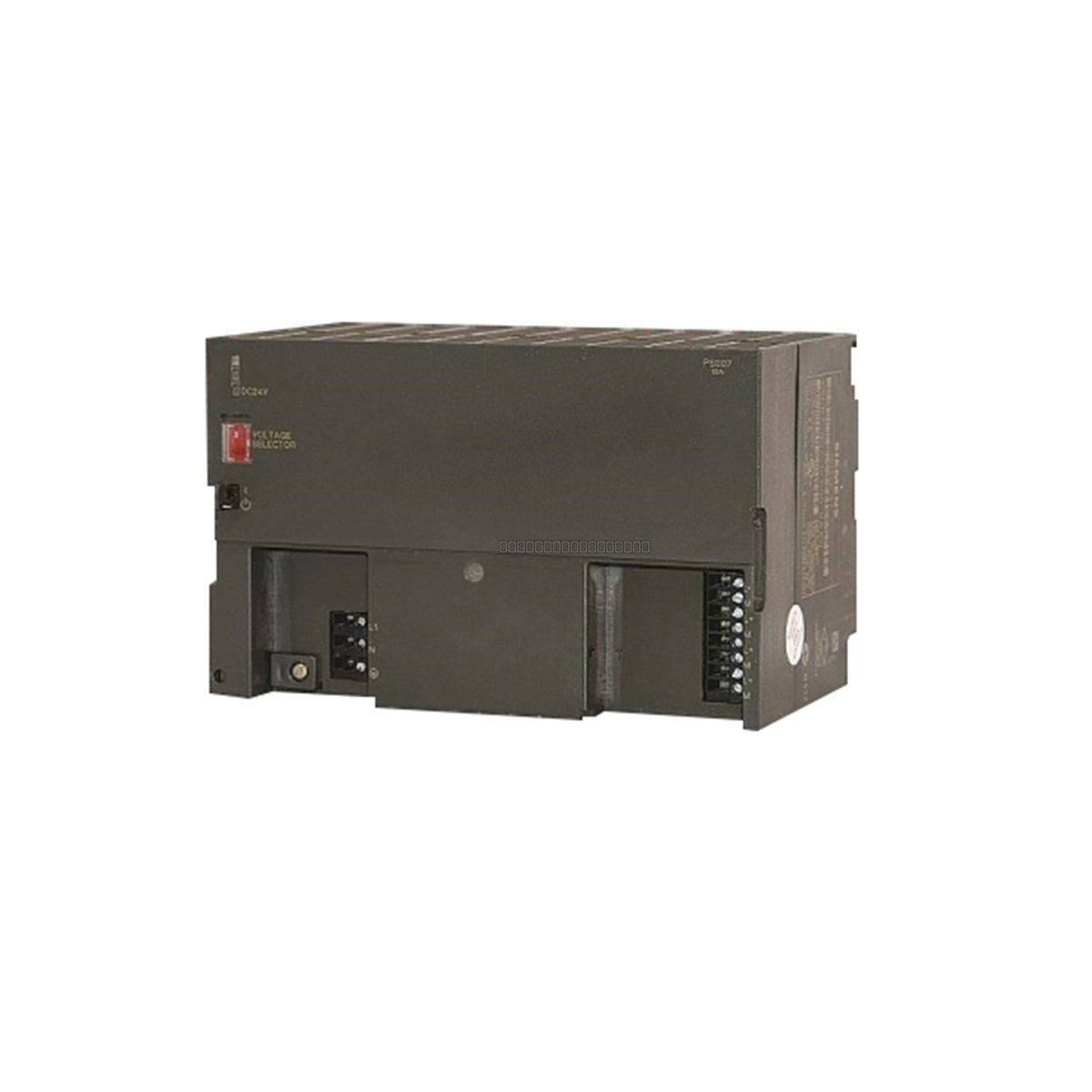

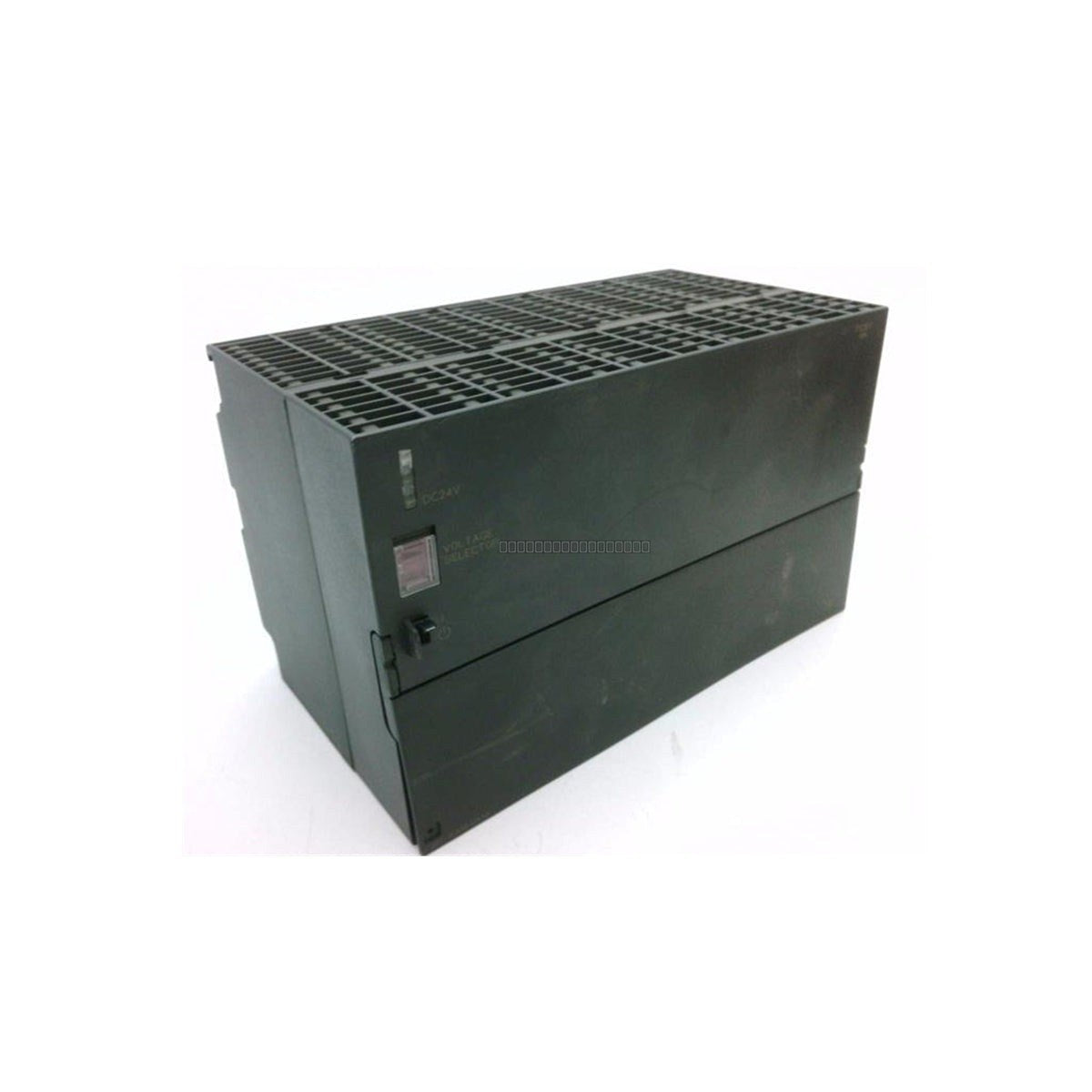

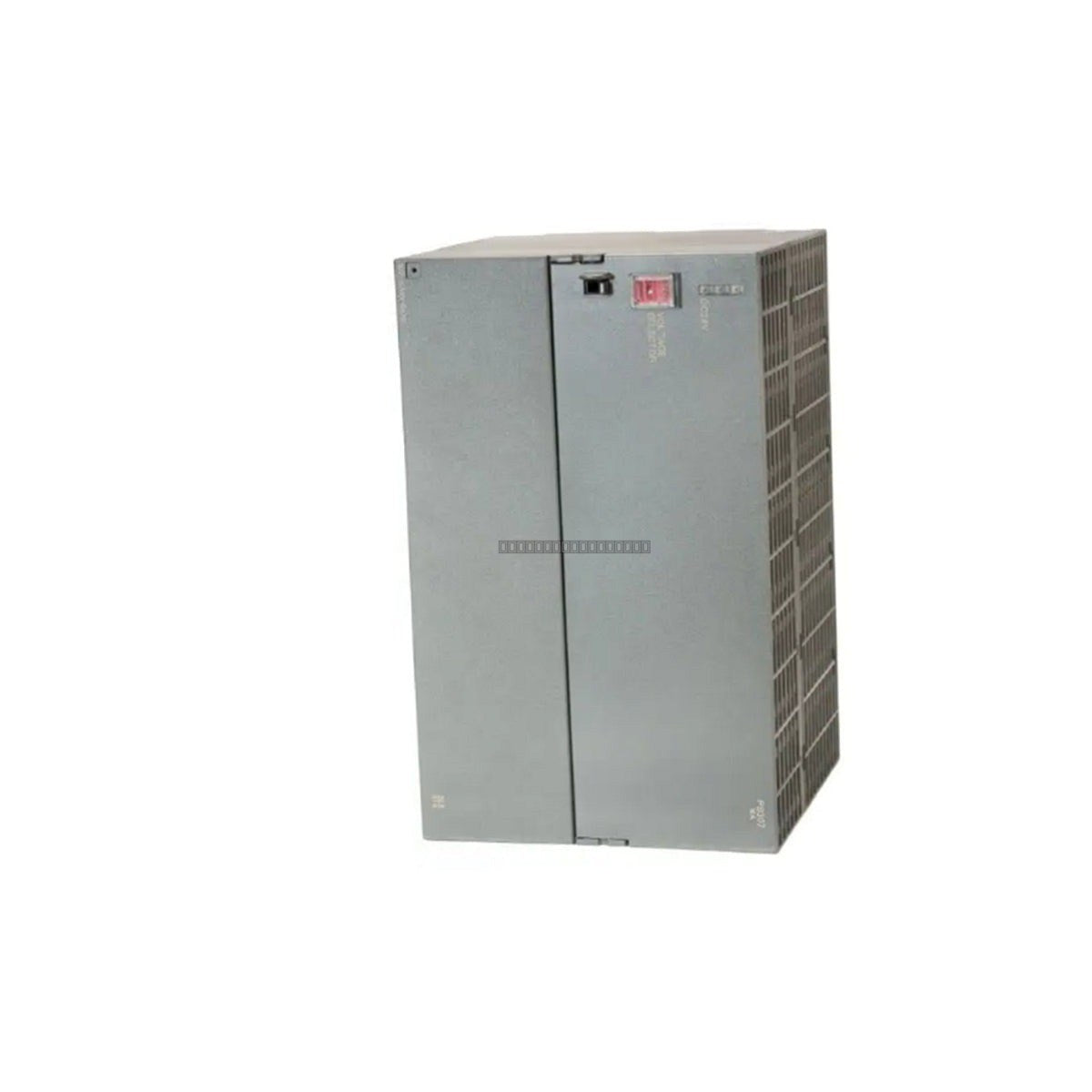

The Siemens 6ES7307-1KA00-0AA0 is a regulated power supply module designed for the SIMATIC S7-300 automation system. This unit provides a stable 24 VDC output with a 10 A current capacity, ensuring reliable operation for PLC CPUs, I/O modules, and associated field devices. It is engineered to operate with a wide-range input voltage of 120/230 VAC, making it suitable for various industrial power environments.
Features
- Designed specifically for integration with the S7-300 PLC backplane and rail system.
- Regulated output voltage ensures consistent performance for sensitive control electronics.
- 10 A output current capacity supports larger S7-300 configurations.
- Wide-range AC input (120/230 VAC) for global compatibility.
- Compact, DIN-rail mountable design for efficient cabinet space utilization.
Applications
This power supply is primarily used in industrial automation applications requiring a dedicated 24 VDC source for S7-300 PLC racks. It is commonly found in manufacturing lines, process control systems, and machine automation where reliable, regulated DC power is critical for system uptime.
Technical Specifications
| Model |
6ES7307-1KA00-0AA0 |
| Series |
SIMATIC S7-300 |
| Type |
Regulated Power Supply (PS307) |
| Input Voltage |
120/230 VAC |
| Output Voltage |
24 VDC |
| Output Current |
10 A |
| Status |
Discontinued by Manufacturer (01/01/2019) |
Installation Guidelines
- Ensure the power supply is mounted on a standard 35mm DIN rail.
- Maintain adequate clearance around the module to allow for proper convection cooling and heat dissipation.
- Always disconnect the main AC power source before installing or removing the module to prevent electrical shock or damage to the backplane.
- Use appropriate wire gauges for the input and output terminals to ensure secure connections and minimize voltage drop.
- Verify that the input voltage selector or auto-ranging configuration matches your local supply voltage before energizing.
- Ensure proper grounding of the power supply chassis to the control cabinet's protective earth (PE) bus.
FAQ
Is the 6ES7307-1KA00-0AA0 still in production?
No, this model was officially discontinued by Siemens on January 1, 2019. We provide high-quality surplus or refurbished units to support legacy system maintenance.
What is the primary function of this module?
The PS307 10A module converts standard AC line voltage into the 24 VDC required to power the S7-300 PLC CPU, signal modules, and communication processors.
