Description

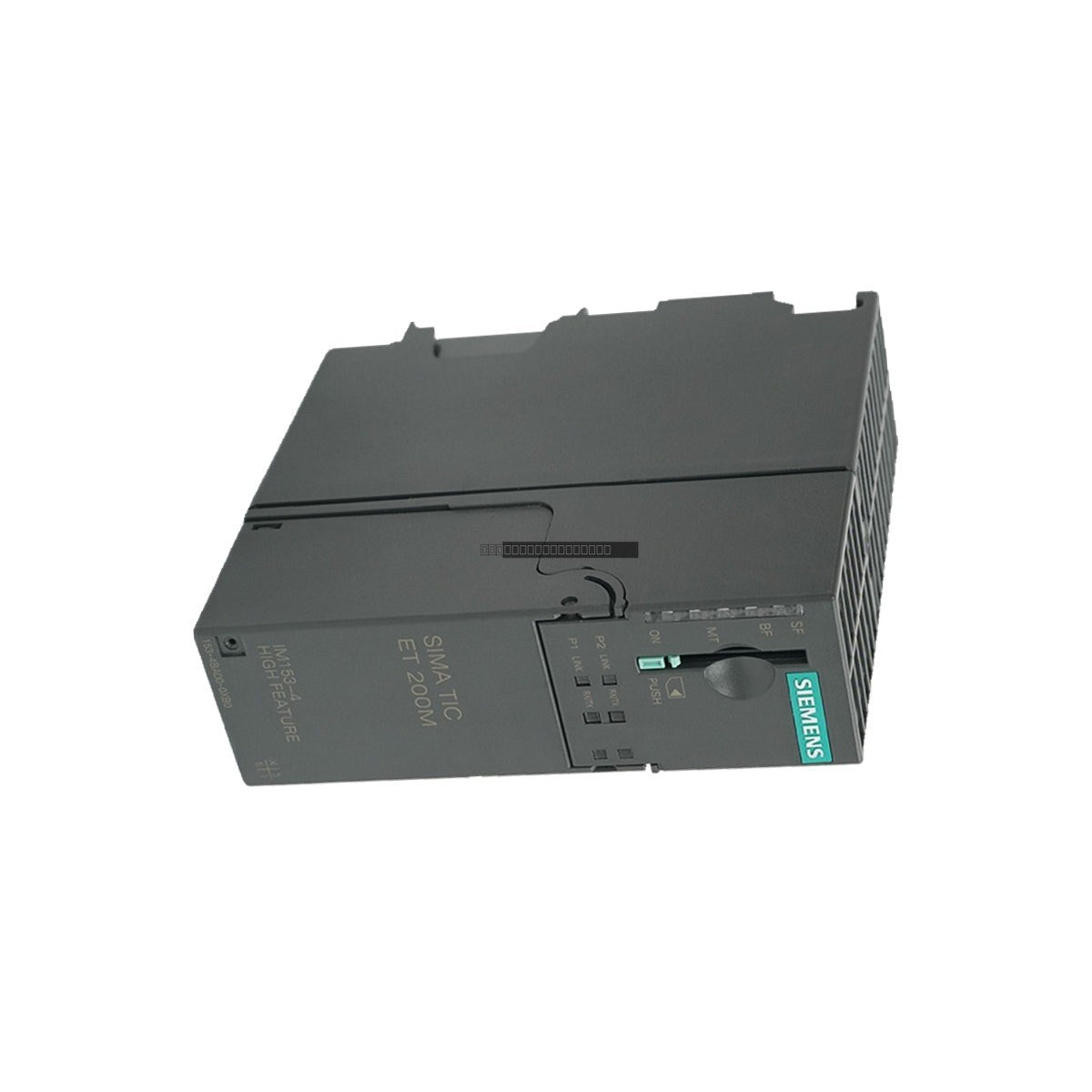

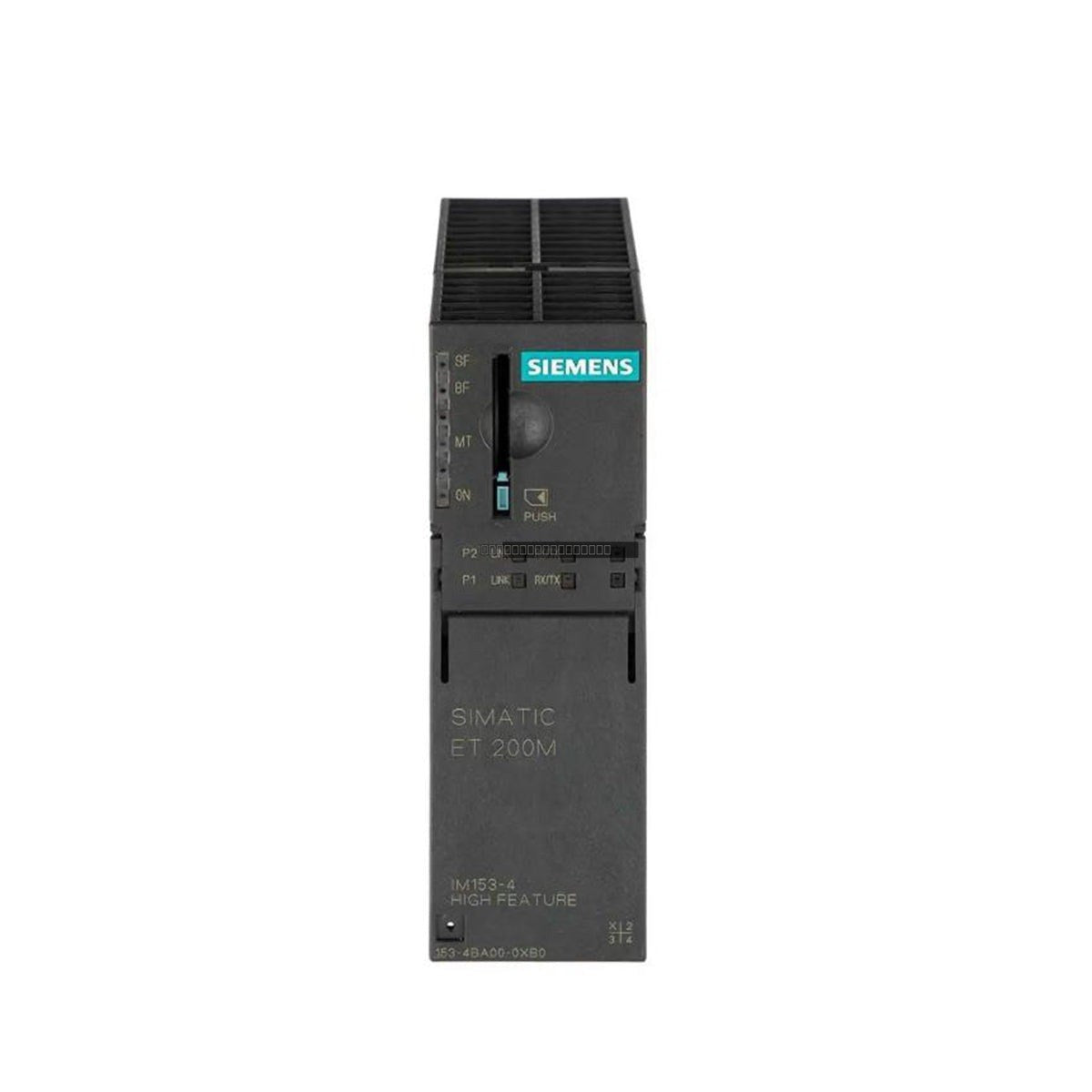

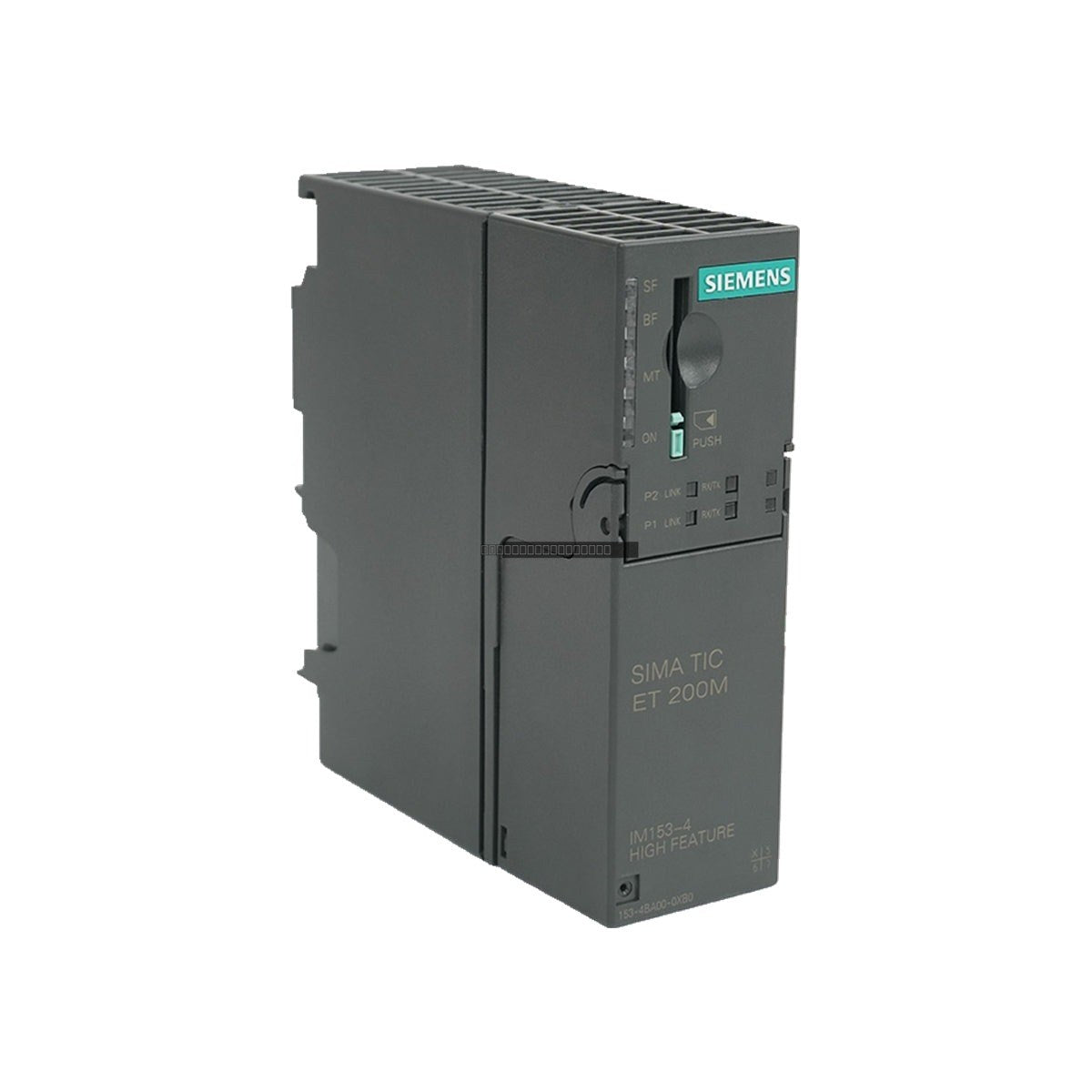

The Siemens 6ES7153-4BA00-0XB0 is a high-performance IM 153-4 PN IO interface module designed for the SIMATIC ET 200M distributed I/O system. This High Feature (HF) module enables seamless integration of S7-300 I/O components into PROFINET IO networks, providing robust communication capabilities for demanding industrial automation environments.
Features
- Supports up to 12 S7-300 signal, function, and communication modules.
- Integrated PROFINET switch with dual RJ45 ports for flexible network topologies, including ring configurations.
- Advanced support for Media Redundancy Protocol (MRP) and system redundancy for high availability.
- Compatible with fail-safe modules and HART-capable analog modules.
- Includes Shared Device functionality for multi-controller network architectures.
Applications
- Oil and Gas: Ensuring continuous operation in compressor and pump control skids through system redundancy.
- Wastewater and Chemical Processing: Facilitating HART protocol communication for monitoring critical process variables like pressure, temperature, and vibration.
- Thermal Processing: Managing complex analog signal profiles in industrial furnaces and kilns via PROFINET.
Technical Specifications
| Model |
6ES7153-4BA00-0XB0 |
| Product Type |
IM 153-4 PN HF Interface Module |
| Supply Voltage |
24 V DC |
| Current Consumption |
600 mA (max) |
| Network Protocol |
PROFINET IO |
| Vendor ID |
002AH |
| Mounting |
S7-300 DIN Rail |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the module.
- Mount the module onto a standard S7-300 DIN rail; hook the top of the module onto the rail and rotate downward until the locking mechanism engages.
- Connect the module to the first S7-300 I/O module on the right using the provided bus connector.
- For PROFINET connectivity, utilize the integrated RJ45 ports. If implementing MRP for redundancy, ensure both ports are connected according to the ring topology requirements.
- Maintain proper grounding and shielding practices to minimize EMI interference in sensitive process environments.
FAQ
What is the maximum I/O capacity for this module?
The IM 153-4 PN HF supports a maximum of 12 S7-300 series I/O modules connected to the backplane bus.
Does this module support network redundancy?
Yes, this interface module supports both Media Redundancy Protocol (MRP) and system redundancy (S2) to maintain network availability during cable or node failures.
Is this unit suitable for safety-critical applications?
The module is designed to support fail-safe modules, allowing for integration into safety-related automation tasks within the ET 200M system.
