Description

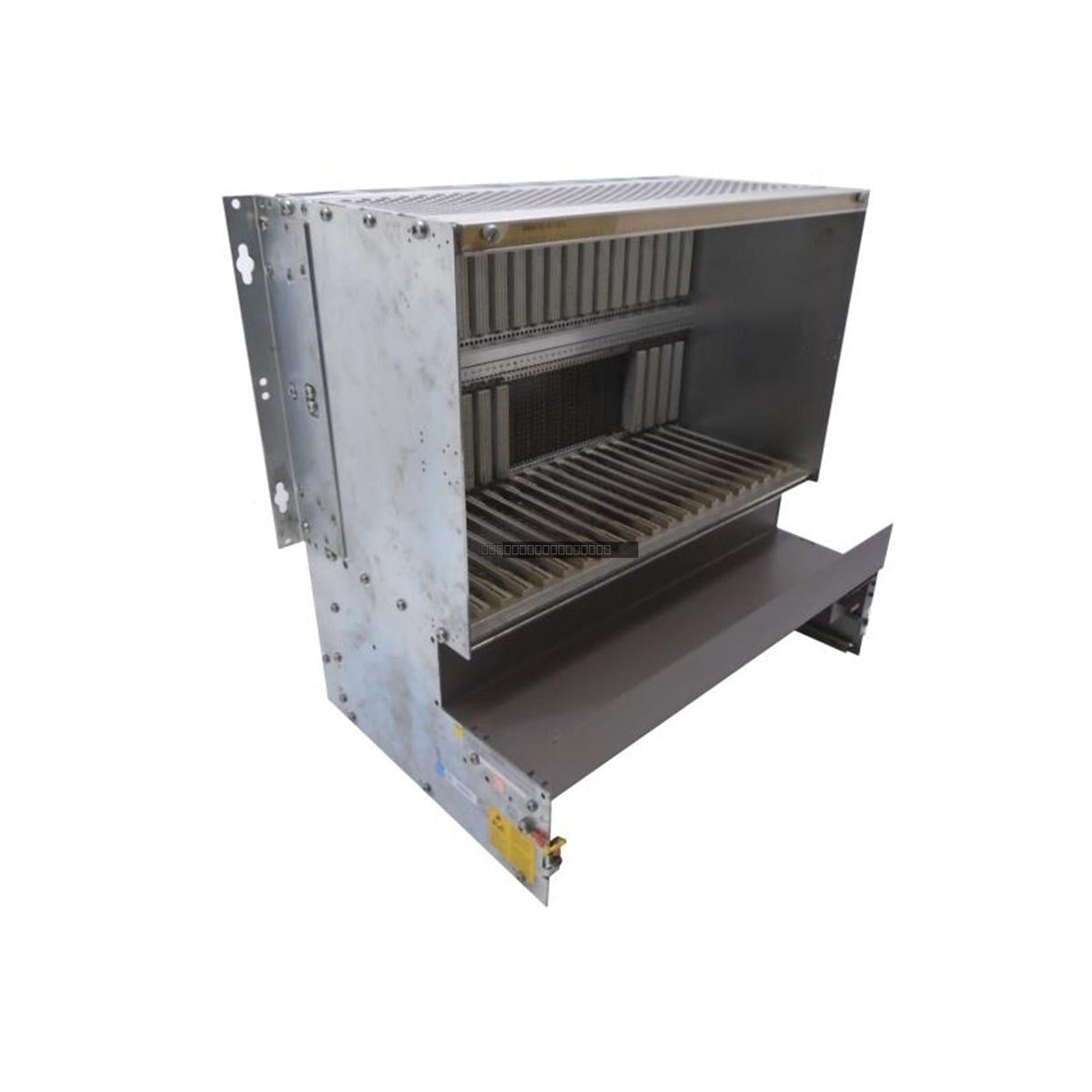

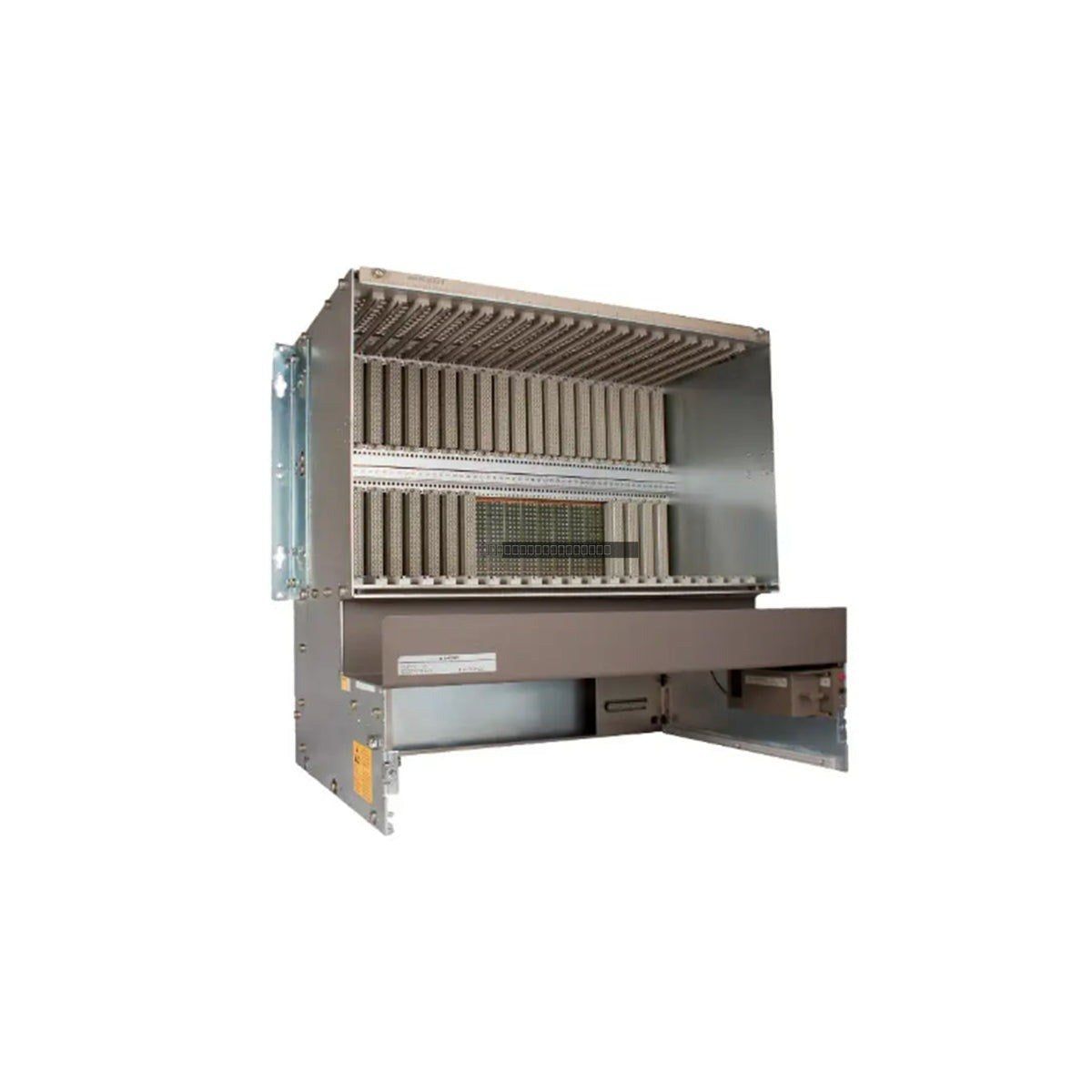

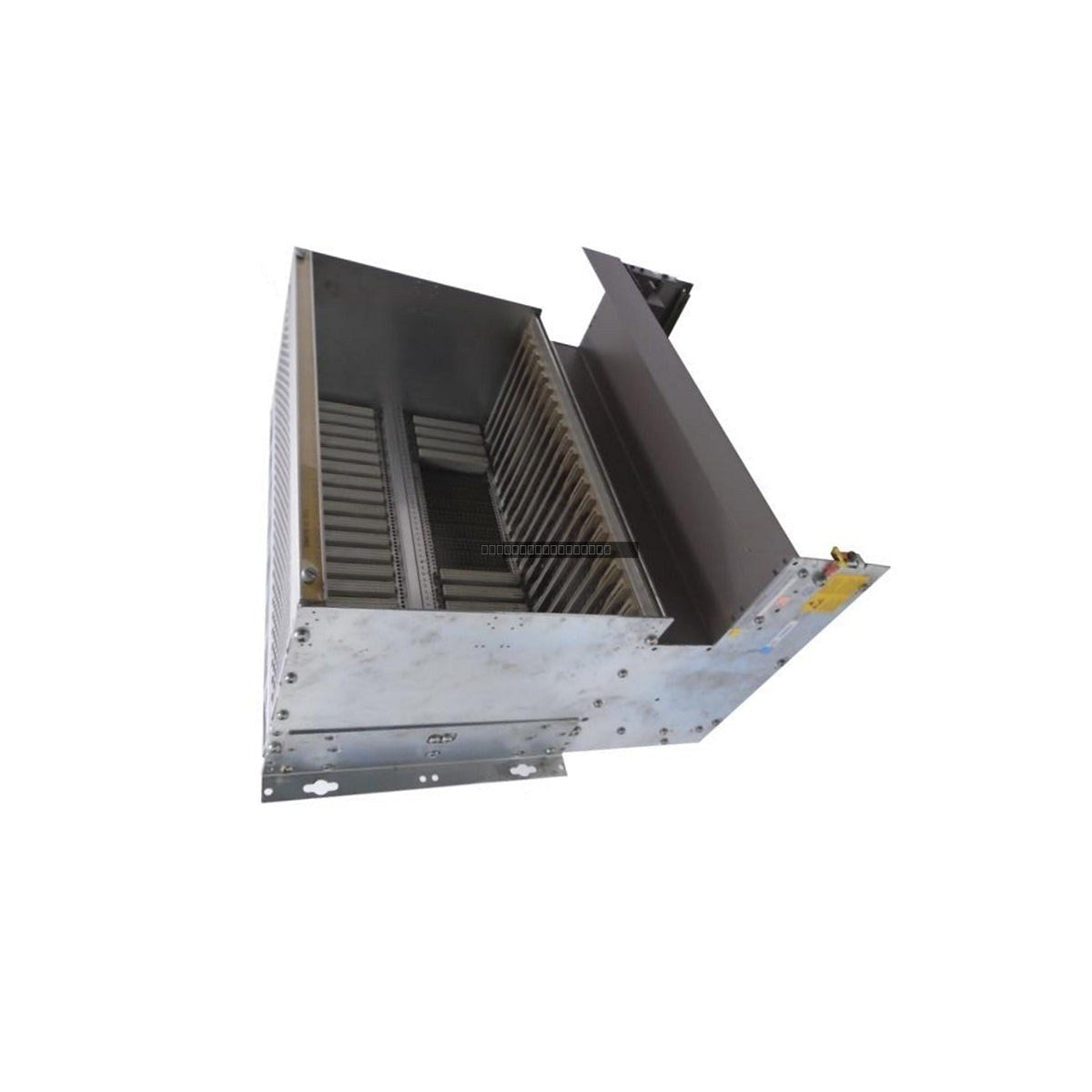

The Siemens 6ES5135-3KB13 is a central controller rack designed for the SIMATIC S5-135U automation platform. This 21-slot chassis provides the structural and electrical framework required to house high-performance CPU processors, I/O modules, and communication interfaces. It is intended for large-scale industrial applications such as automotive assembly lines, steel rolling mills, and power distribution substations, facilitating rapid signal processing and coherent system management.
Features
- 21-slot high-density layout for expansive system customization.
- High-speed backplane architecture for deterministic data transfer between the central S-processor and peripheral modules.
- Robust industrial-grade enclosure designed to withstand vibration and thermal stressors.
- Modular design to support component upgrades and maintenance.
- Supports high-current requirements up to 18 A.
Applications
This rack is widely utilized in heavy industrial environments where centralized control and high-density I/O configurations are required. Typical applications include complex manufacturing processes, automated assembly lines, and power generation control systems within the SIMATIC S5-135/155 family.
Technical Specifications
| Model |
6ES5135-3KB13 |
| Series |
SIMATIC S5-135/155 |
| Slot Capacity |
21 Slots |
| Rated Current |
18 A |
| Voltage Compatibility |
115 VAC to 240 VAC (via compatible power modules) |
| Operating Temperature |
0 deg C to 55 deg C |
| Mounting |
Standard Rack Mount |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry, and vibration-dampened environment to maintain long-term reliability.
- Maintain adequate clearance around the rack to allow for proper airflow and cooling, preventing thermal buildup.
- Ensure all power is disconnected before installing or removing any modules from the rack slots.
- Use appropriate grounding techniques to minimize EMI interference, following standard industrial electrical safety practices.
- Verify that all modules are fully seated and secured in their respective slots to ensure reliable backplane connectivity.
FAQ
Is the power supply included with the 6ES5135-3KB13?
No, this rack is provided as a chassis without an integrated power supply. It is designed to accommodate compatible power modules that support 115 VAC to 240 VAC input ranges.
What series is this rack compatible with?
This rack is specifically designed for the Siemens SIMATIC S5-135U and S5-155U automation systems.
