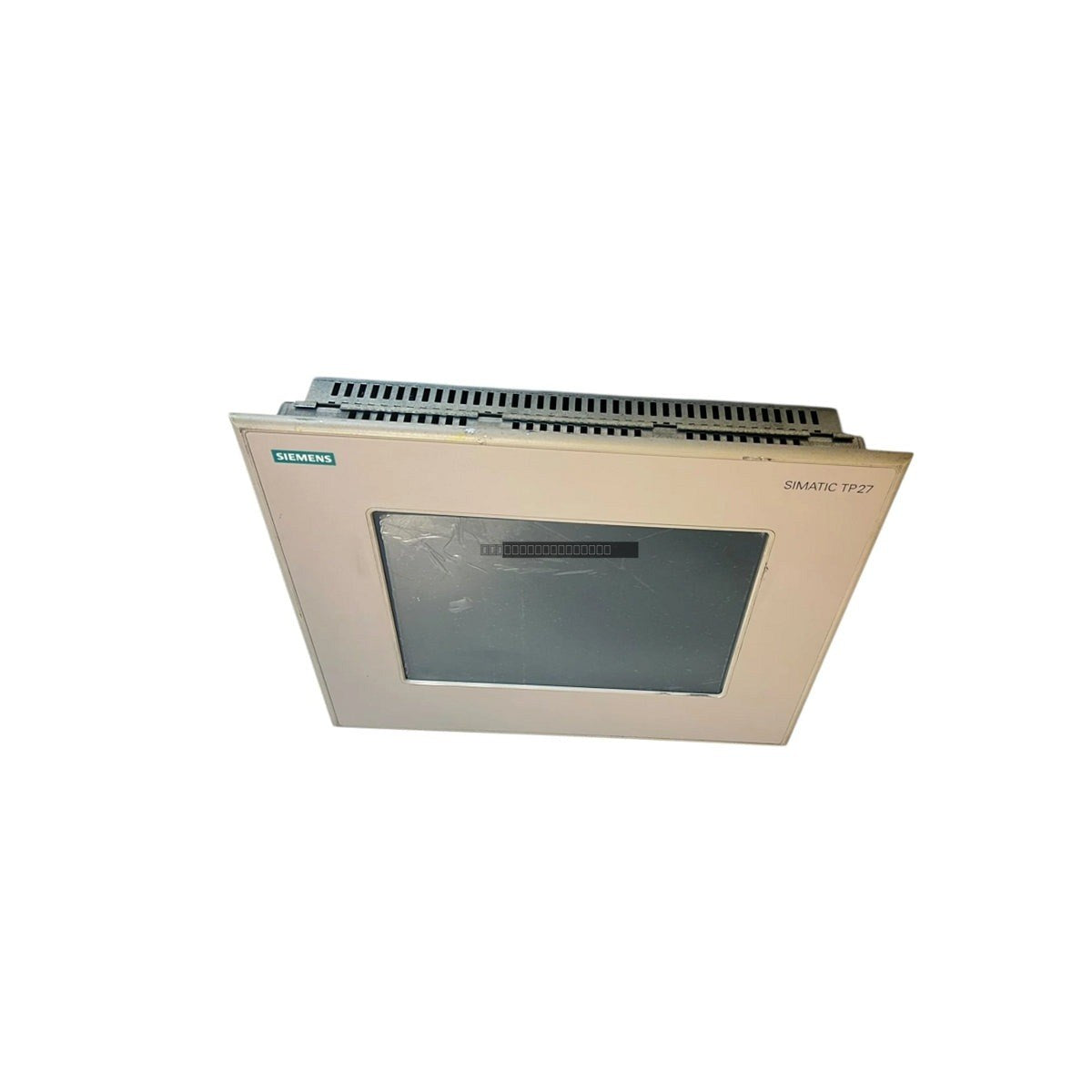

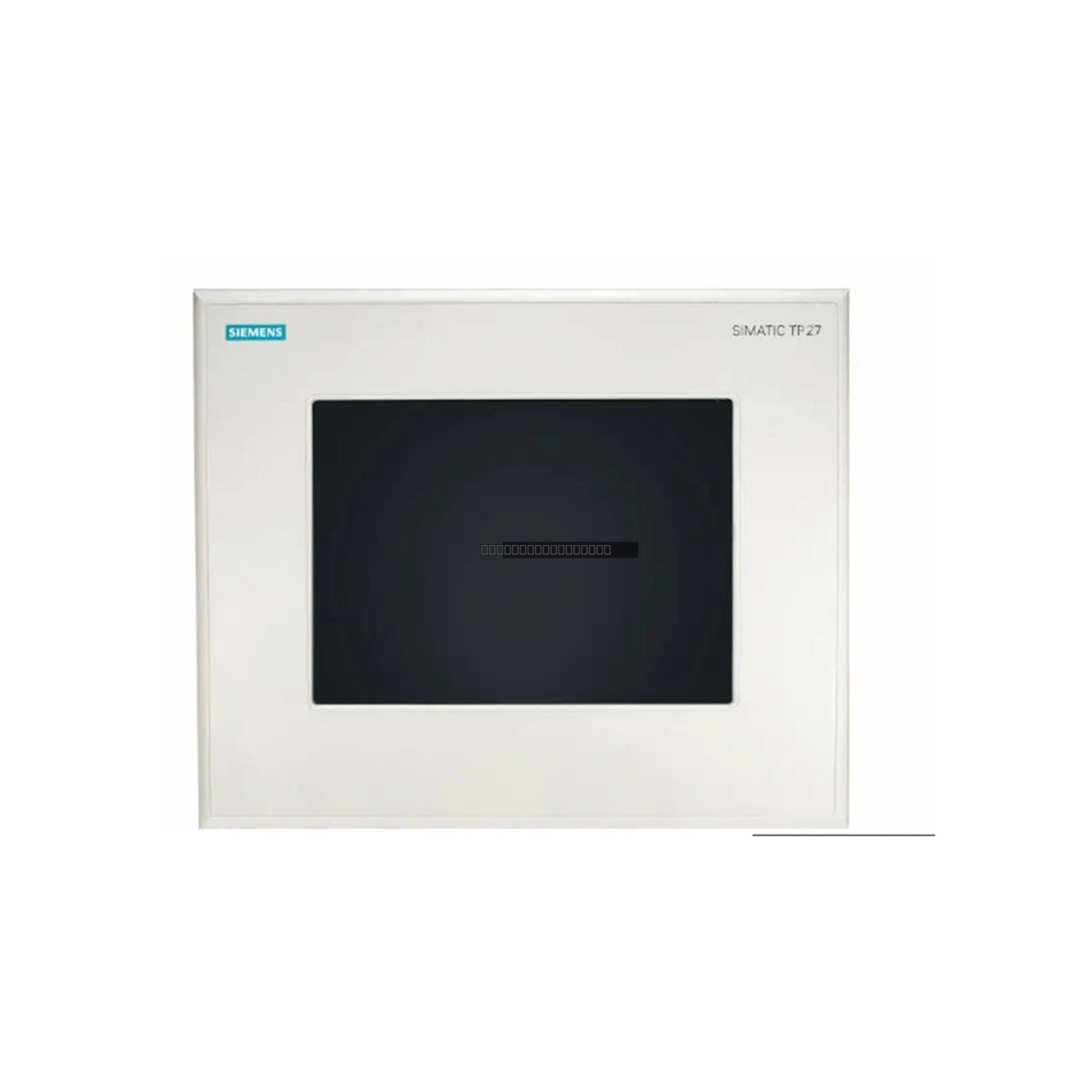

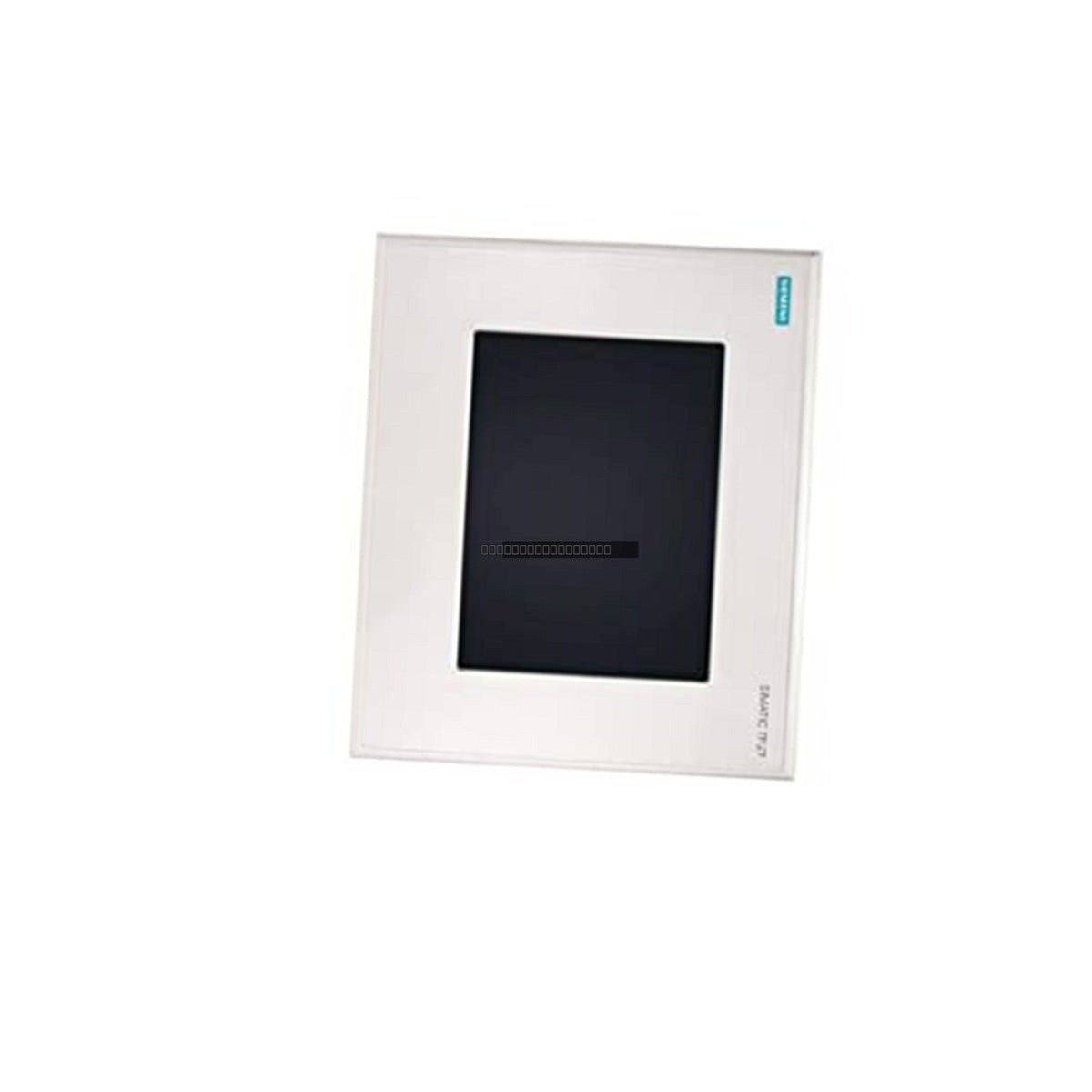

The Siemens 6AV3627-1QL00-0AX0 is a TP27-10 operator interface terminal designed for industrial visualization and control applications. This unit features a 10.4-inch STN color LC display, providing clear graphical feedback for machine operators. As part of the legacy SIMATIC HMI product line, this device is equipped with 1 MB of onboard Flash-EPROM memory to store projects and configuration data.
Features
- 10.4-inch STN color liquid crystal display for effective process monitoring.
- Integrated touch-sensitive screen for intuitive operator input.
- 1 MB Flash-EPROM memory for reliable project storage.
- Robust industrial design suitable for panel mounting in control cabinets.
- Standardized interface for integration with Siemens automation systems.
Technical Specifications
| Model Number |
6AV3627-1QL00-0AX0 |
| Display Type |
STN-Color-LC-Display |
| Display Size |
10.4 inch |
| Memory |
1 MB Flash-EPROM |
| Manufacturer |
Siemens |
| Tariff Code |
8528510000 |
Installation Guidelines
- Ensure the control panel cutout dimensions are verified before installation to maintain proper ingress protection.
- Use the provided mounting clips to secure the unit firmly to the panel, ensuring an even seal against the gasket.
- Maintain adequate clearance around the unit for airflow to prevent overheating during operation.
- Ensure the power supply is disconnected before wiring the terminal to the power source.
- Follow standard ESD precautions when handling the device to prevent damage to internal electronics.
- Keep communication cables shielded and routed away from high-voltage lines or high-EMI noise sources to ensure stable data transmission.
FAQ
Is this unit currently in production?
No, the 6AV3627-1QL00-0AX0 has been discontinued by the manufacturer. We supply these units as tested surplus or refurbished components.
What is the primary application for this HMI?
This panel is typically used for human-machine interaction in legacy automation environments, allowing operators to monitor system status and input process commands.
