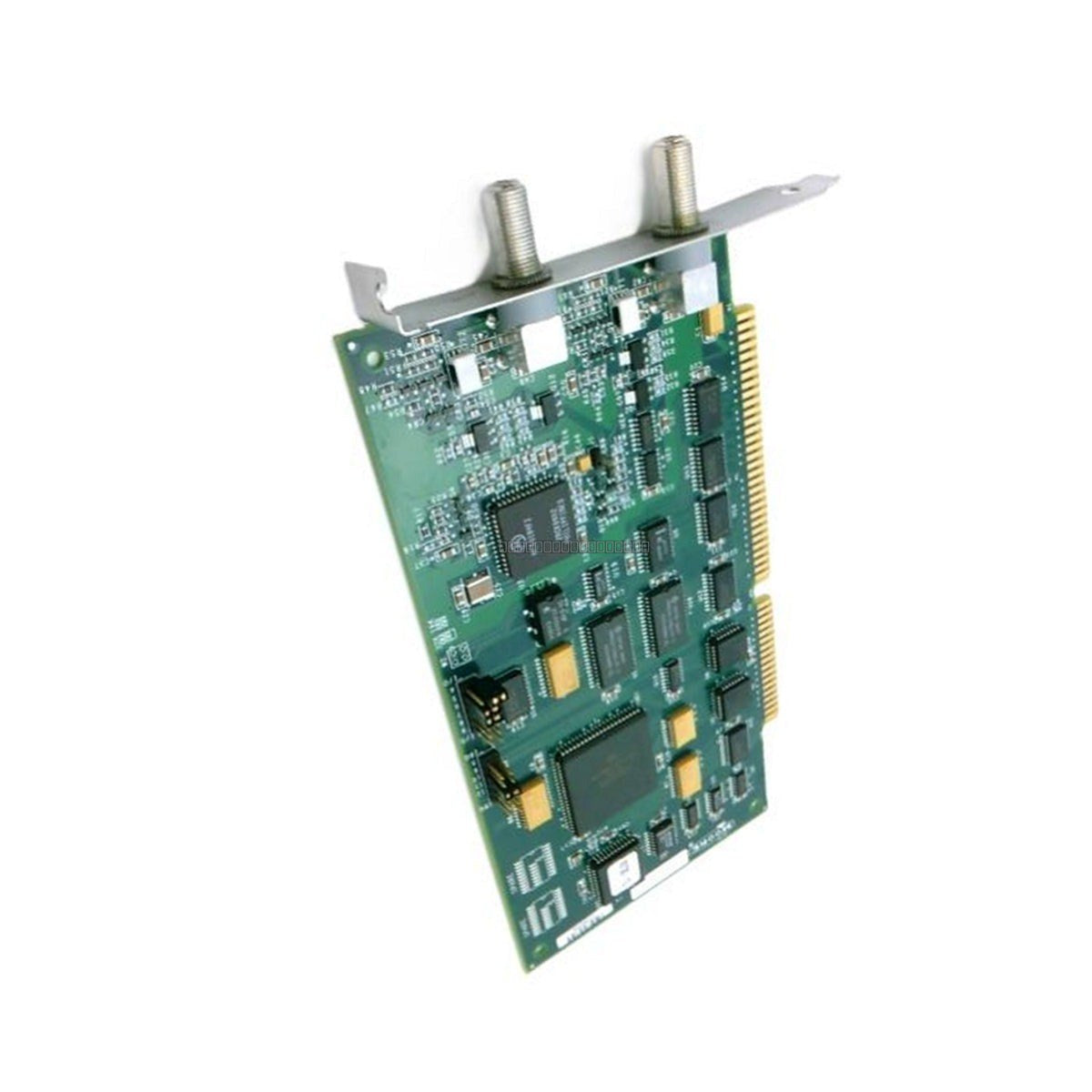

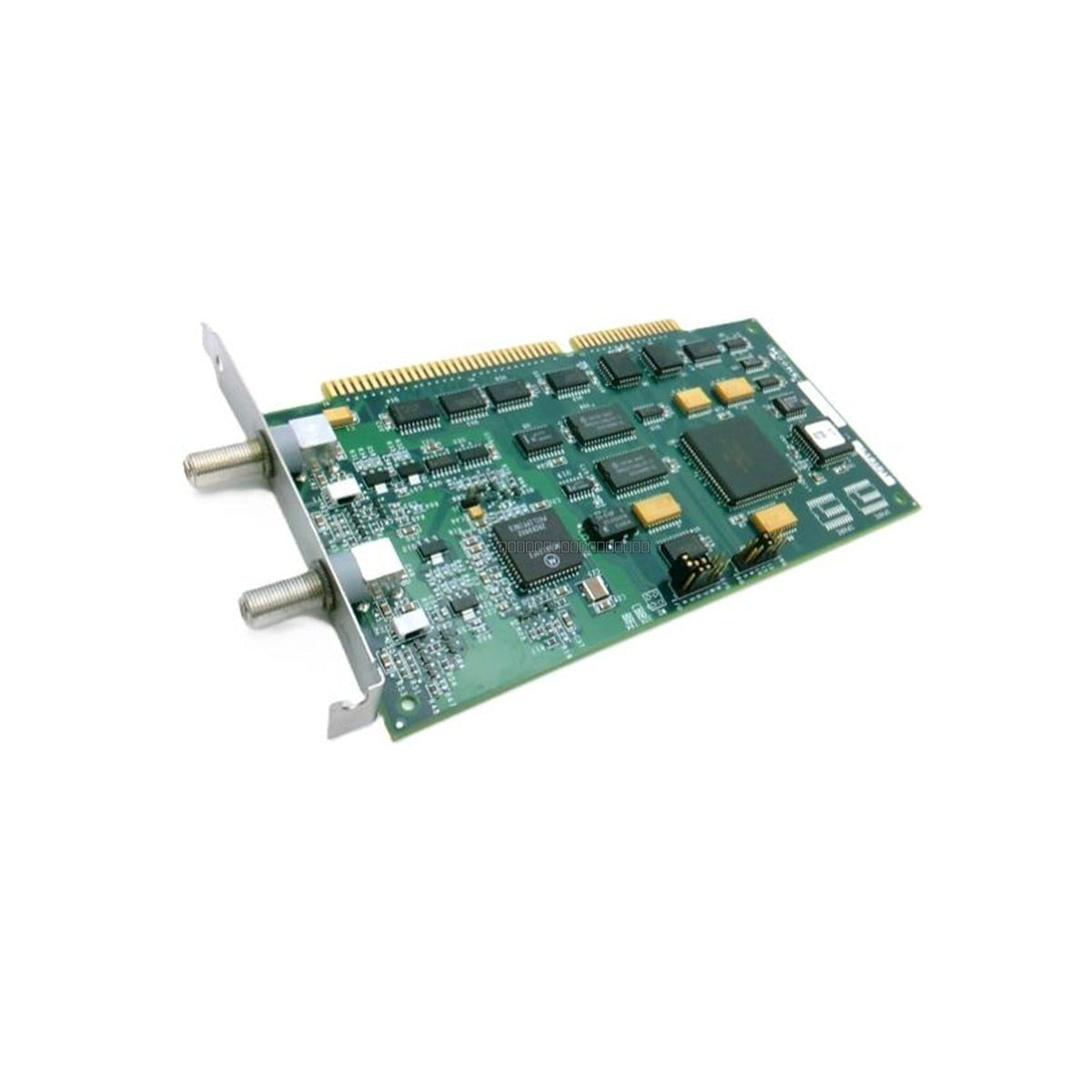

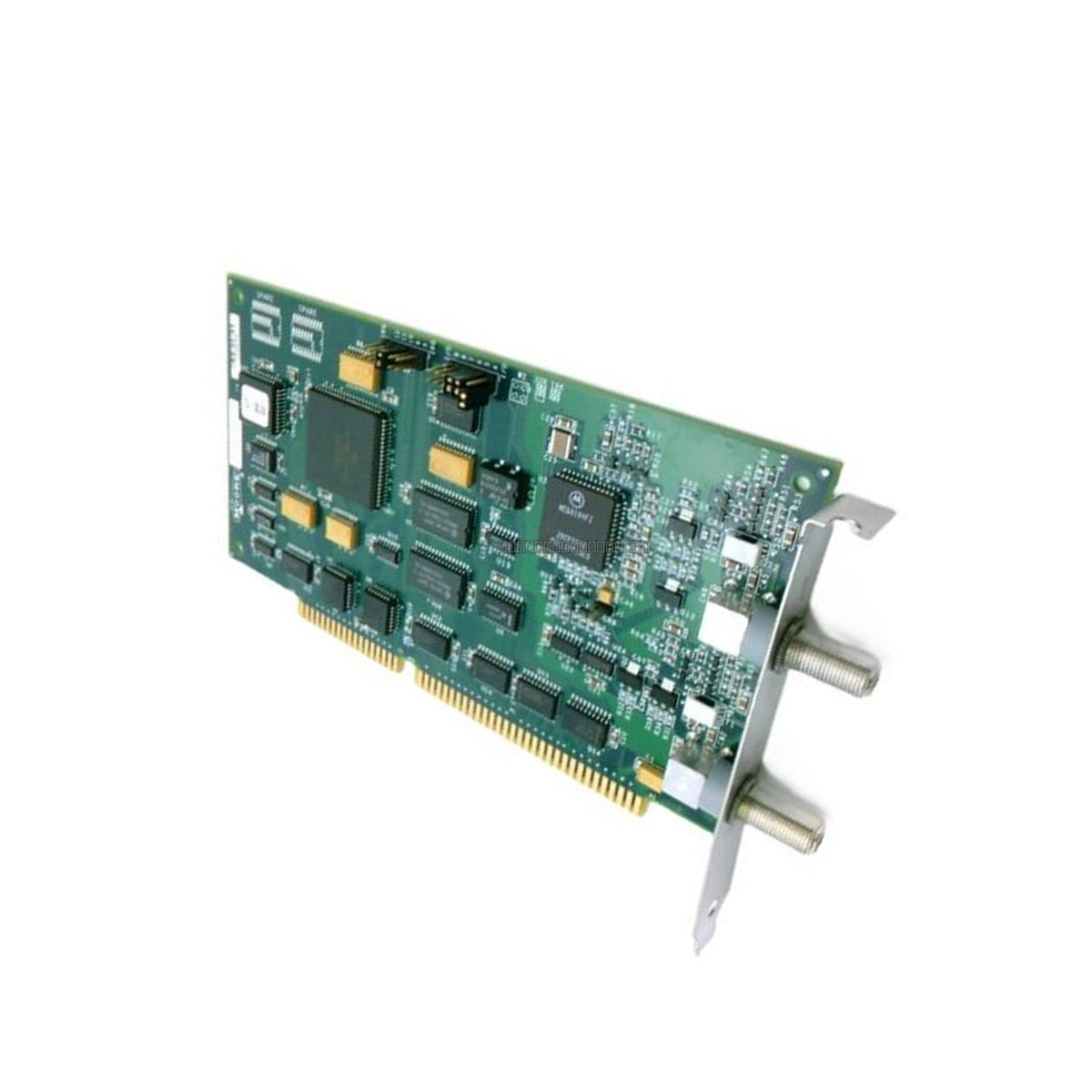

The 16267-1/4 (1626714) is a specialized Modulnet Communication Interface Module designed for the Siemens Moore APACS+ Distributed Control System (DCS). This module serves as the primary physical and logical bridge for MNET (Modulnet) peer-to-peer data exchange, connecting process automation controllers to high-level operator consoles. It is engineered for mission-critical industrial environments, including petrochemical refineries, power generation, and chemical processing, where deterministic, high-speed communication is required to maintain process integrity and minimize data latency.
Features
- Facilitates reliable peer-to-peer communication across the APACS+ MNET backbone.
- Manages proprietary token-passing mechanisms and integrated error-checking routines.
- Provides high-integrity electrical isolation to protect backplane electronics from network-induced surges and ground loops.
- Supports redundant network architectures to ensure continuous control operations during cable faults or partial failures.
- Optimized for deterministic data transfer of process variables, alarms, and configuration data.
Applications
This communication interface is essential for maintaining legacy APACS+ control networks. It is typically deployed in large-scale industrial automation systems where real-time process visibility and high-availability communication between rack-mounted controllers are required.
Technical Specifications
| Model |
16267-1/4 |
| Brand |
Siemens (Moore APACS+) |
| Module Type |
MNET Modulnet Communication Interface |
| Protocol |
Modulnet (MNET) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Power Source |
APACS+ Rack Backplane |
Installation Guidelines
- Ensure the APACS+ rack power is disconnected before installing or removing the module to prevent electrical damage.
- The module is designed for a standard APACS+ single-slot footprint; ensure proper alignment with the backplane connector before seating.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
- Verify that all MNET cabling is properly shielded and routed away from high-voltage lines or significant EMI sources to maintain signal integrity.
- Ensure the module is fully seated and the locking mechanism is engaged to maintain a secure connection to the backplane.
FAQ
What is the primary function of the 16267-1/4 module?
The 16267-1/4 acts as the communication interface for the Modulnet (MNET) protocol within the Siemens Moore APACS+ DCS, enabling data exchange between controllers and operator stations.
Is this module compatible with redundant systems?
Yes, the 16267-1/4 is designed to operate within redundant network architectures, supporting seamless failover capabilities in the event of a communication path fault.
How is the module powered?
The module receives its operating power directly from the APACS+ rack backplane; no external power supply is required for the module itself.
