Description

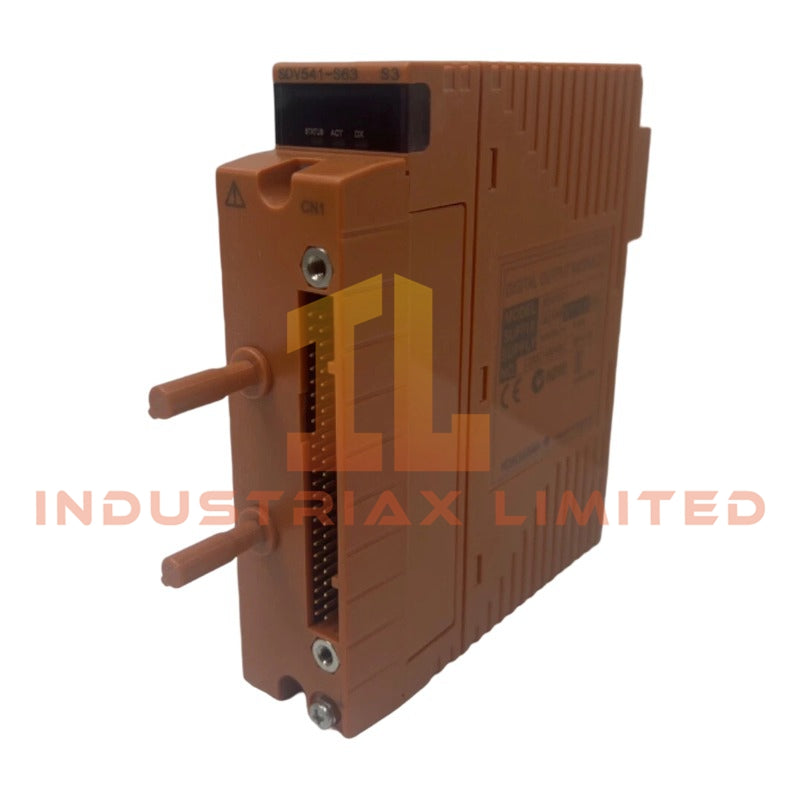

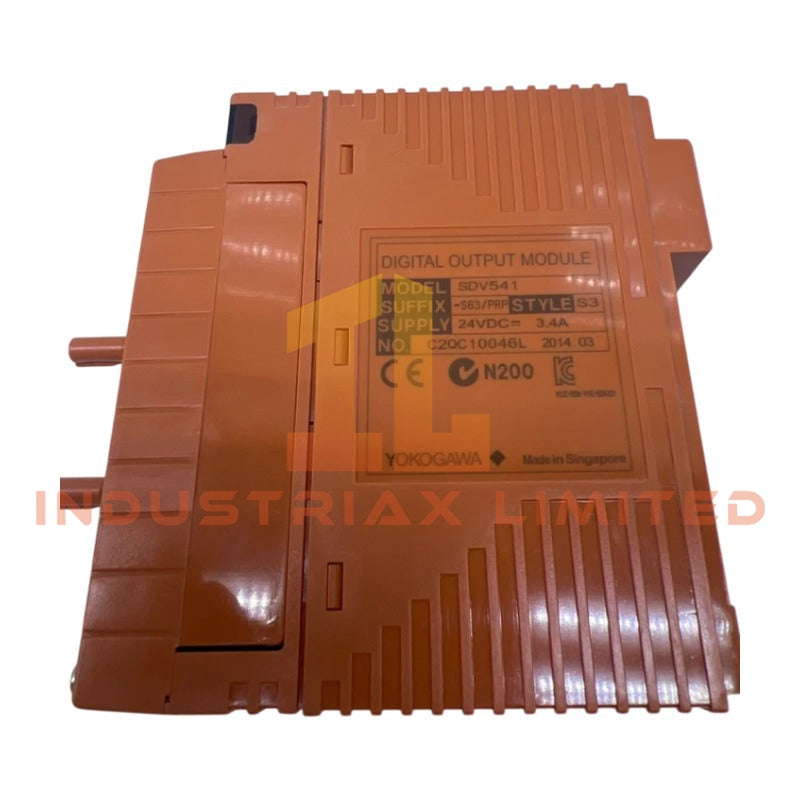

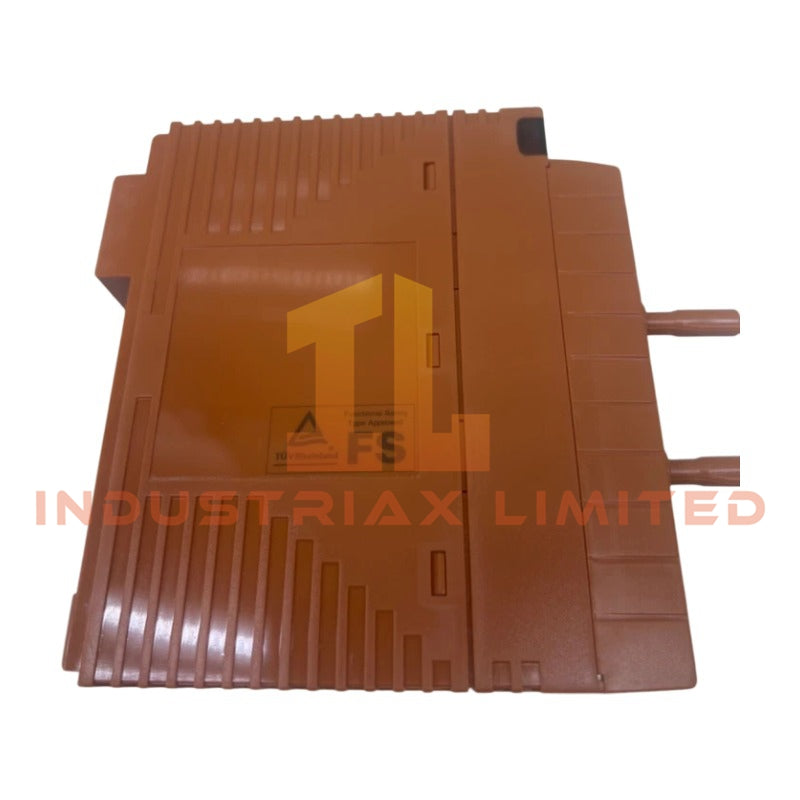

Yokogawa SDV541-S63/PRP Digital Output Module

The Yokogawa SDV541-S63/PRP, also cataloged as the SDV541 Digital Output Module, operates as a dedicated hardware component for 16-channel current source output control within the ProSafe-RS Safety Instrumented System. This module provides isolated, direct electrical execution to actuators and indicators while maintaining functional safety compliance.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa SDV541-S63/PRP
Origin	Japan
Number of Channels	16 channels, module isolation
Output Type	Current source (source type)
Rated Output Voltage	24 VDC
Output Voltage Drop	1 V maximum
Maximum Load Current	0.2 A per output, 3.2 A total
Minimum Load Current	35 mA
Load Resistance Range	120 to 885 ohms
Output Response Time	30 ms maximum
Maximum Leak Current (OFF)	1.6–1.8 mA
External Power Supply Rating	24 VDC, 3.4 A minimum, +20%/-10%
Current Consumption	300 mA maximum @ 5 VDC, 150 mA maximum @ 24 VDC
Withstand Voltage	2 kVAC (between output signal lines and system)
Weight	0.26 kg (pressure clamp/MIL cable), 0.31 kg (with signal cable adapter)
Compatible Signal Cables	Yokogawa AKE331, AKB851
Operating Temperature	-20 to 70 degC
Corrosion Resistance	ISA Standard G3

Channel-to-Channel Isolation and Process Control Attributes

Each output channel is electrically isolated to prevent cross-channel interference, ensuring that voltage transients or short circuits in field devices do not propagate to other channels or the ProSafe-RS controller. The module supports standard 4-20 mA and discrete control loops, allowing deterministic actuation timing and integration into DCS networks. Cold junction compensation (CJC) is implemented for temperature-sensitive output loads.

Frequently Asked Questions

Q: Can the SDV541-S63/PRP module be hot-swapped while the system is operating?
A: Hot-swapping is only permitted if the module is mechanically keyed and the system confirms safe isolation; do not exceed rated load current during insertion.

Q: What is the maximum allowable total output load?
A: Total maximum output current is 3.2 A across all channels. Exceeding this may trigger fault detection and isolate the module.

Q: Are the output channels suitable for inductive loads like solenoids?
A: Yes, provided the load resistance is within 120 to 885 ohms and the module’s 30 ms response time meets the application requirements.

Field Installation Guidelines

• Ensure correct orientation using the /PRP mechanical prevention pin to avoid mis-insertion.
• Connect signal cables (AKE331 or AKB851) following polarity markings.
• Ground shielded cables at a single point to avoid ground loops.
• Maintain separation between high-voltage lines and digital output cables to prevent interference.
• Tighten pressure clamp terminals to the manufacturer’s torque specification to ensure secure electrical contact.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
