Description

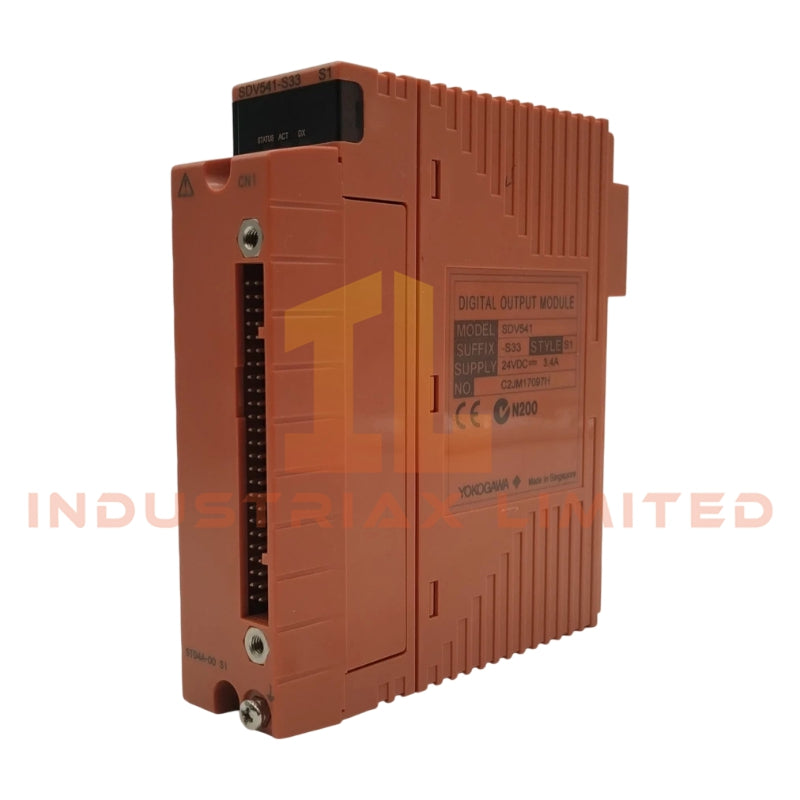

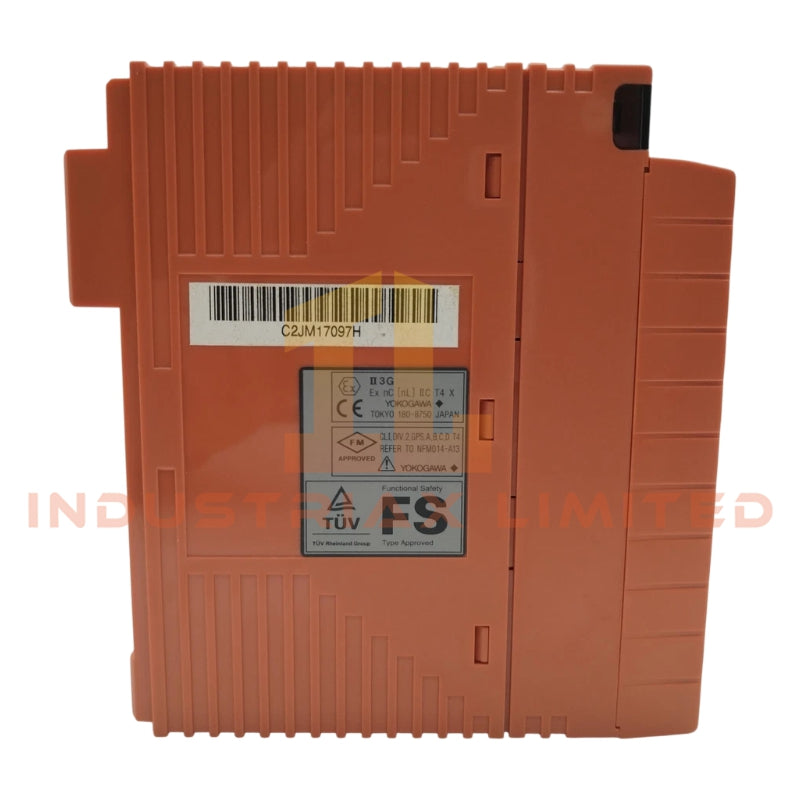

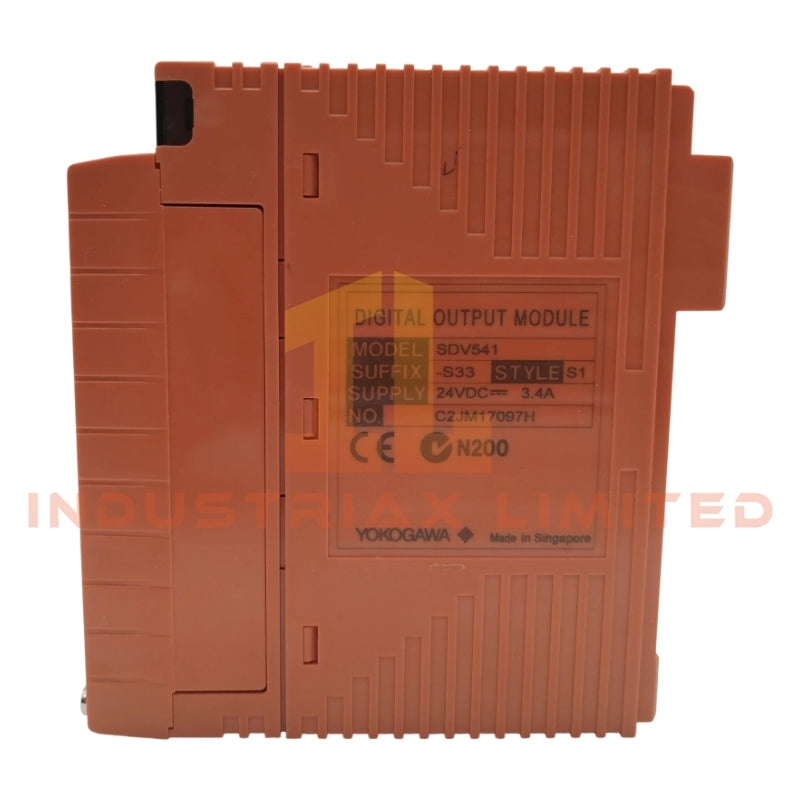

Yokogawa SDV541-S33 Digital Output Module
Configured for discrete output actuation in field signal termination within distributed control systems, the Yokogawa SDV541-S33 (SDV541-S33 Digital Output Module) provides direct electrical switching of 24 VDC loads through channel-isolated output stages.
SuffixBreakdown & Model Matrix
No validated sub-division or coded option mapping is defined in the provided material for SDV541-S33. The suffix is treated as a single-order hardware configuration identifier without published functional segmentation.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Yokogawa SDV541-S33 |
| Origin |
Japan |
| Weight |
0.29 kg (terminal block or MIL cable), 0.31 kg (with signal cable adapter) |
| Dimensions |
Not specified |
| OperatingTemp |
-20 degC to 70 degC |
| PowerConsumption |
Not specified |
| Output Channels |
16 channels |
| Output Type |
Current source digital output |
| Output Voltage |
24 VDC |
| Voltage Drop |
<= 1 V |
| External Supply |
24 VDC, min 3.4 A, +20% / -10% tolerance |
| Load Capacity |
0.2 A per channel, 3.2 A max total |
| Leakage Current (OFF) |
<= 1.6 mA |
| Response Time |
<= 30 ms |
| Withstand Voltage |
2 kVAC (1 min, output to system) |
| Load Resistance |
120 to 685 ohm |
| Isolation |
Module isolated output structure |
Yokogawa Channel Isolation and Output Drive Characteristics
The Yokogawa SDV541-S33 implements channel-group isolation within a 16-point architecture, limiting cross-channel electrical interaction during switching transients. Output stages are designed as current sourcing drivers, requiring defined minimum load current conditions of 35 mA for stable state detection. OFF-state leakage current control (<= 1.6 mA) supports partial diagnostic supervision at field termination level.
Signal integrity is maintained under ISA G3 environmental classification constraints, with wiring diagnostics integrated at module level. Compatibility with pressure clamp terminals and MIL cable assemblies (including AKB331 and AKB651) supports standardized field termination topology without additional external interface conditioning.
Frequently Asked Questions
Q: Can the SDV541-S33 outputs be hot-swapped under load conditions?
A: Hot-swap capability is dependent on system backplane design. Output channels should be de-energized prior to module removal to prevent transient backfeed through field wiring.
Q: What is the minimum load requirement per channel?
A: Each output channel requires a minimum load current of 35 mA to maintain defined output state detection behavior.
Q: Does channel-to-channel isolation eliminate all cross-talk effects?
A: Channel isolation reduces electrical interaction between outputs, but wiring layout and external inductive loads remain influencing factors.
Field Installation Guidelines
-
Maintain separation between field output wiring and high-voltage or high-noise conductors.
-
Use shielded cables for inductive or long-run loads, with shield termination at system ground only.
-
Ensure external 24 VDC supply remains within specified tolerance range (+20% / -10%).
-
Verify load resistance remains within 120 to 685 ohm range including wiring resistance contribution.
-
Apply torque specifications for pressure clamp terminals as defined by cabinet wiring standard.
-
Do not exceed per-channel current limit of 0.2 A or total module load of 3.2 A.
